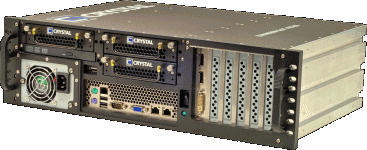

RS363SF Rugged 3U Server
- MEETS MIL-STD 810F/G, 167-1, 461E and MIL-S-901D
- Six expansion slots
- Three HDDs
- 13" depth
- Front I/O
- AC power available; DC available
RS363SF Rugged 3U Server
- Rugged 3U, rack mounted 13" depth
- Leading edge Intel® Westmere, Sandy Bridge, or Ivy Bridge CPU options
- Versatility with three (3) removable 3.5" HDD or 2.5" SATA or SAS bays
- Expandable with six (6) full height slots
- Light weight aluminum construction - 30-35 lbs.
- Easily mounted - Delrin glides, fixed mount or Jonathan rails
** If you are logged in please click on the Documents tab to view our documentation for this product.
Compact and Powerful
In an industry where 28” is norm, Crystal Group provides a server that is 13” deep with the latest Intel processing capabilities. With an all aluminum chassis weighing in at 30-35 lbs., the RS363SF provides high capability in a small package. Don’t wait for the next “rugged” Intel architecture when you can make your programs successful now! Be a leader!
Rugged and Dependable
Using our expertise in Avionics design and development, we’ve created the next generation in rugged computing. This game-changing technology provides enhanced compute power in the harshest of environments. We do not just design to these standards, we actually test to them. When we put our name on the RS363SF, you can be sure it is both rugged and dependable. Put your trust in us!
High Reliability at a Fraction of the Cost
Innovative packaging techniques and attention to the important details makes our product run cooler and perform at wider temperature extremes. Design approach limits deflection and extends circuit board solder joint life. We provide incredible processing power, in a rugged package, with exceptional life at a fraction of the cost. Unrivaled in the industry!
| Testing Standards *see the Documents tab for certificaton reports | |
|---|---|
| Operational Temperature, MIL-STD-810F, Method 501.5, Procedure I/II | -15°C to +55°C,+71°C optoin, with select CPUs; -40°C operational with temperature kit and SSD |
| Storage, MIL-STD-810F, Method 501.5, Procedure I/II | -55°C to 85°C |
| Humidity, MIL-STD-810F, Method 507.4 | 48 Hour, 95% RH 40-65C— w/humidity kit |
| Altitude, MIL-STD-810F, Method 500.4 | 12,500ft operation, 40,000ft transport |
| Vibration, MIL-STD-810G, Method 514.6, Procedure I | 4.43 GRMS, 5-500Hz, 75 min/axis— w/ solid state drives and vibe kits |
| MIL-S-901D, Grade B, Class 2, Type B | Grade A with solid state drives + vibe kits |
| Mechanical (3U) | |
| Height | 5.25” (13.34 cm) |
| Width | 17.75” (45.1 cm) EIA-310 Rack Compliant |
| Depth | 13” (38.1 cm) |
| Weight | 30-35 lbs (13.6-15.9 kg) (content dependent) |
| CPU | |
| Intel® CPU architecture options from Intel embedded long-life roadmap | |
| Option 1 | Nehalem-EP or Westmere-EP LGA 1366 |
| Option 2 | Sandy Bridge (or Ivy Bridge when released) LGA 2011 |
| Option 3 | Sandy Bridge or Ivy Bridge LGA 1155 |
| Dual, Quad, Hexa or Octa Core options (dependent on CPU) | |
| Expansion | |
| Six (6) full-height slot; combination is configuration dependent | |
| External Bays | |
| Option 1 (std) | Three (3) removable SATA or SAS 2.5” or 3.5” HDD |
| Option 2 (can be combined with HDD option) | One (1) CD/DVD/BD (R/W) |
| Cooling | |
| High Speed, High Volume Fans (4) CPU temperature controlled | |
| Mounting | |
| Option 1 (std) | Mounted on Delrin glides |
| Option 2 | Fixed Mount, front and rear |
| Option 3 | Jonathan Rails |
| Power Supply | |
| Option 1 (std) | 120/240VAC w/PFC 600W, 50-400 Hz |
| Option 2 | 585W 18-36VDC |
| System Board | |
| Option 1 | X8DTL-3F, LGA1366 Xeon, ATX, 2LAN1000, VGA, 2 PCI 3.3V, 3 PCI-E X8, 1 PCI-E X16, IPMI, IPKVM, SATARAIDX6, SASRAIDX8 |
| Option 2 | X9DRL-IF, LGA2011 Xeon, ATX, 2LAN1000, VGA, 1 PCI 3.3V, 4 PCI-E X8, 1 PCI-E X1, IPMI, IPKVM, SATARAIDX8, SATA3X2 |
| Option 3 | X9SAE-V, LGA1155, Xeon & i3/5/7, ATX, 2LAN1000, VGA, 2XHDMI, AUDIO, 1 PCI, 2 PCI-E X1, 1 PCI-E X4, 1 PCI-E X8, 2 PCI-E X16, SATAX4, SATA3X2 |
| Software Compatibility | |
| Accepts Windows 7, Windows 8, Windows Server 2008, Windows Server 2012, VMware, or Linux | |
|
* Crystal Group designs all servers to meet or exceed the specifications listed herein. Due to the sheer number of models and combinations of components (memory, CPU, peripheral cards, hard drives), it is not practical to test every combination of servers offered. Please ask your Crystal Business Development Manager for data on qualification testing for configurations similar to the desired configuration for your application |
|
| Supporting Documentation | Download |
|---|---|
| RS363SF - Spec Sheet | download |
| More Documentation | Download |
|---|---|
| RS363SF Rugged 3U Server - Outline Installation Drawing | download |
| RS363SF Nehalem 2.5 GHz, CE102 & RE102-Jan 2010 | download |
