AVC5904 AI & Autonomy Solution

Accelerate artificial intelligence, automation and autonomous projects. Put advanced projects on the fast track to market with the Crystal Group AVC5904, designed specifically for autonomous semi-truck OEMs to reduce development time and streamline systems integration while improving driving safety without sacrificing reliability.

The AVC5904 combines impressive compute power, data-handling capabilities, and storage capacity in a rugged solution that can withstand harsh conditions and demanding environments—including potholes, collisions, shock and vibration, and extreme temperatures that cause traditional systems to fail. Available in custom or off-the-shelf configurations, the AVC5904 high-performance computer optimizes the latest Intel® Xeon® processors, high-capacity DDR4 memory, and leading-edge thermal management in a rugged chassis.

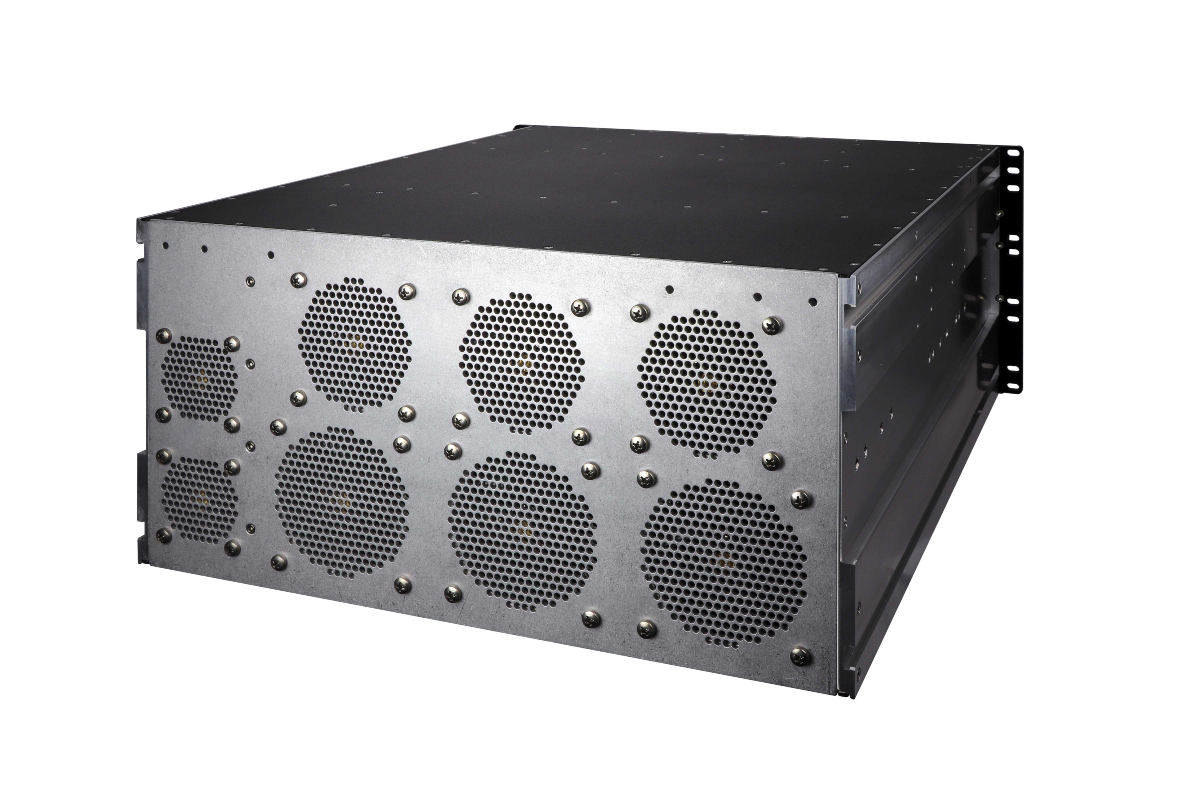

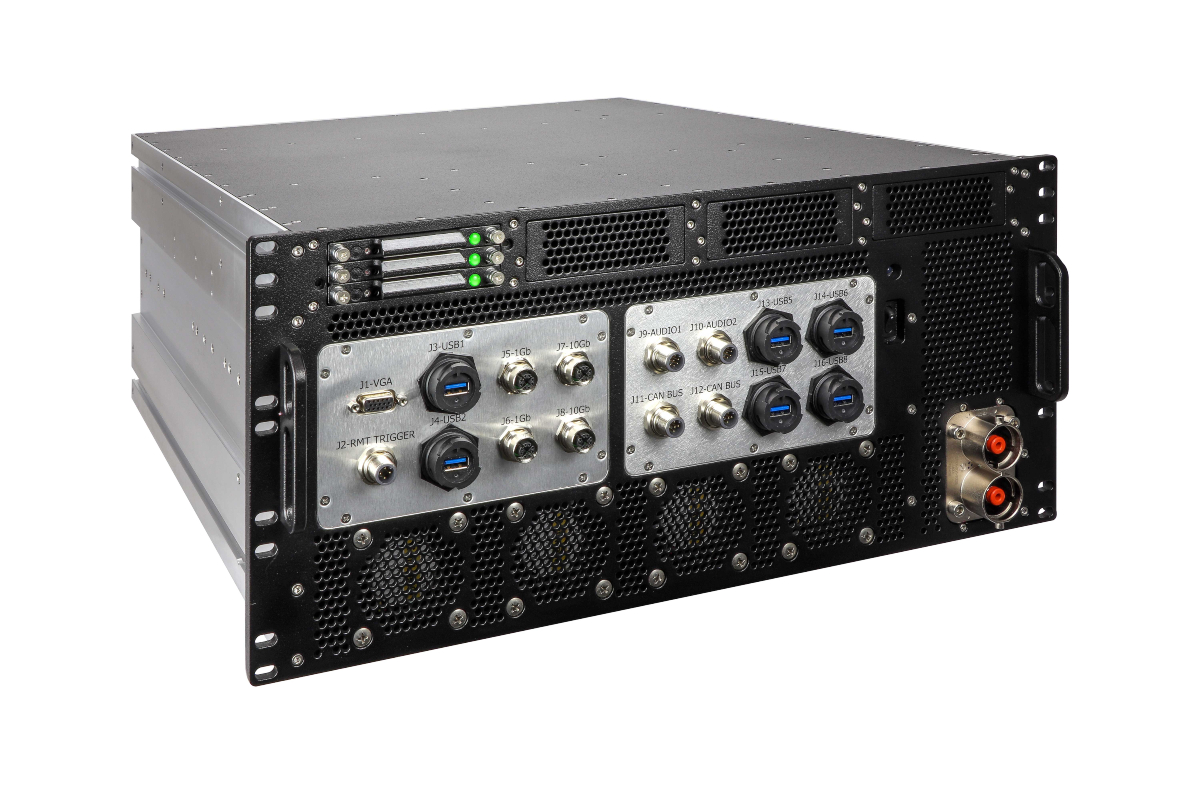

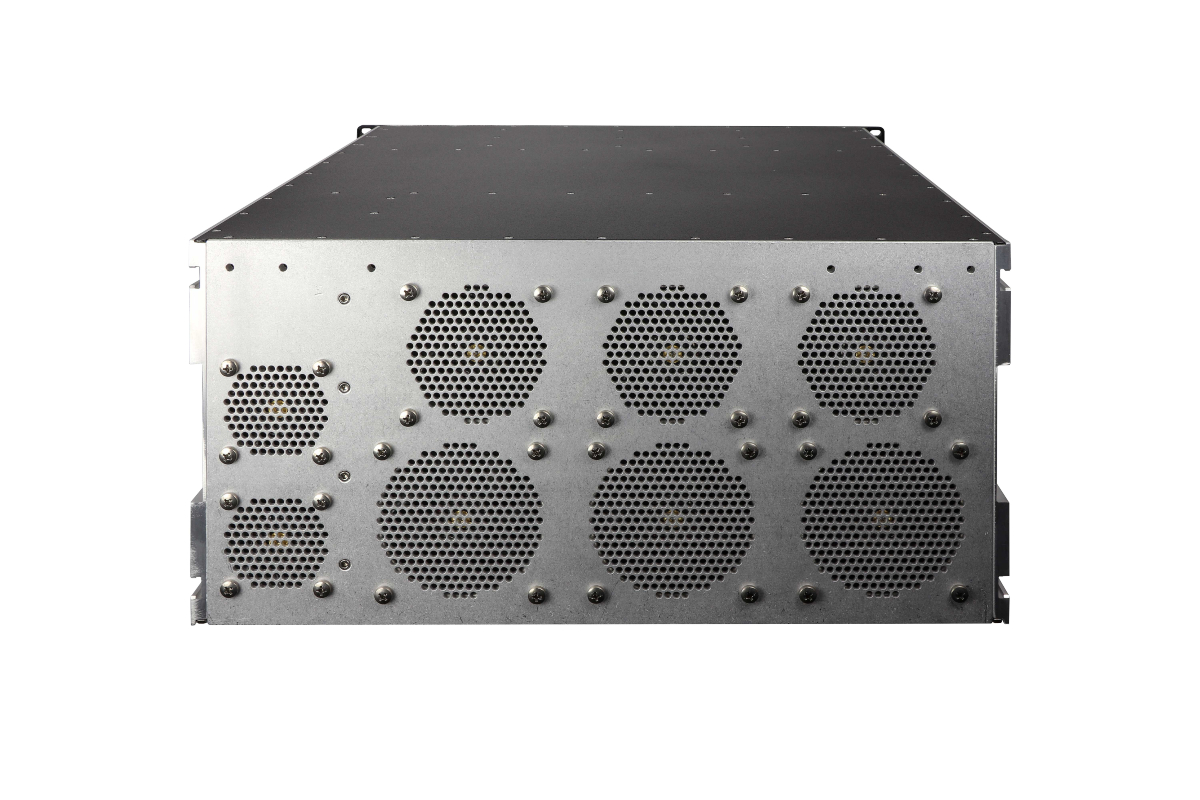

AVC5904 5U Rugged Server
  • 10-32 VDC input power
  • Up to 384GB DDR4 memory
  • Eight removable 15mm 2.5” drives or 12 removable 7mm drives
  • Expandable with nine PCI-E slots
  • Up to four GPUs supported
  • Intel® Xeon® Scalable processors
Environmental Standards
Operational Temperature -20°C to +40°C
Storage -40°C to +85°C
Humidity 5-95%; 240 hours
Altitude 12,500ft operation, 40,000ft transport
Shock 12G 15MS 400 shock pulses, Z-axis, half-sine
Vibration EN60068-2-64, Category 2A
Mechanical
Form Factor 5U
Height 8.75" (22.23cm)
Width 19" (48.26cm) EIA-310 rack compliant
Depth 20" (50.8cm)
Weight 60 - 70 lbs (27.22 - 31.75 kgs) (content dependent)
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap
Intel® Xeon® Scalable processors
Expansion Slots
Up to nine PCIe expansion slots available
External Bays
Standard Twelve removable 7mm SATA 2.5” SSDs
Optional Eight removable 15mm NVME 2.5" SSDs
Memory
Up to 384GB registered DDR4, configuration motherboard dependent
Cooling
Air cooled via twelve high durability chassis fans configurable for front-to-back airflow or back-to-front airflow
System liquid cooled; redundant internal low noise fans circulate air through chassis to cool components not directly cooled by liquid
Mounting
Standard 19" rack mount or custom mounting provisions available
Power Supply
Standard: 1500W 10-32VDC, Amphenol PowerLock™ Series 300 connectors
Optional: 2000W 10-32VDC, Amphenol PowerLock™ Series 300 connectors
System Board
Advantech ASMB-975
Software Capability
Supports Windows 10®, Windows Server 2019®, VMware® or Linux®
Download Spec Sheet
