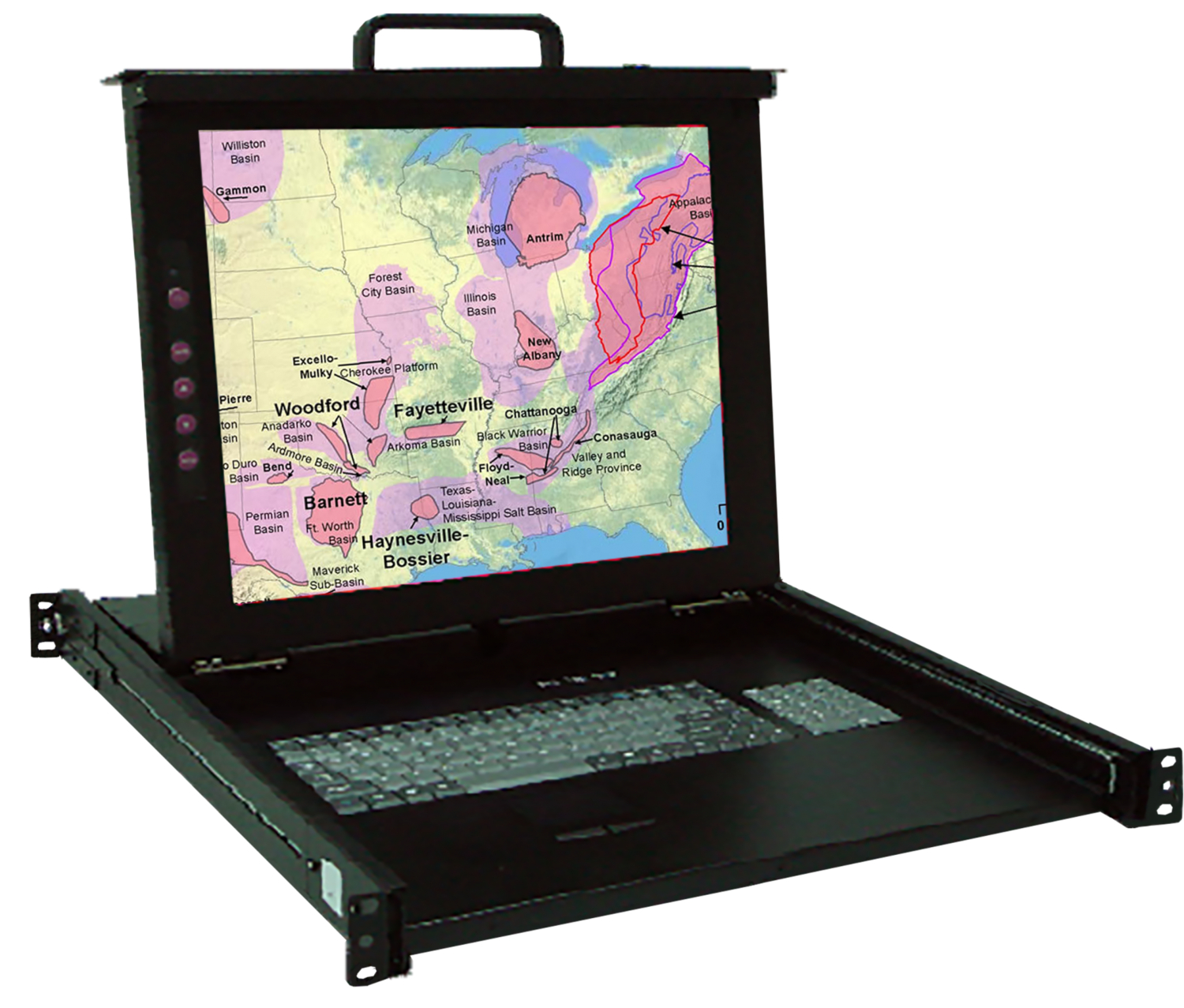

KSR117 Industrial 17″ Display w/1 port KVM

Field tested, failsafe and long life performance in extreme conditions. With an all aluminum construction weighing in at 26 lbs., the KSR117 provides a small package with big capabilities. Unique folding design provides a 1U 17” LCD in a user centric attitude for ease of use in a compact and rugged
package.

Request Quote
KSR117 - Spec Sheet

Features

KSR117 Industrial 17″ Display w/1 port KVM

• Heavy duty steel construction – 26 lbs.
• Easily rack mounted – 17” 1U drawer
• SXGA (1280×1024) resolution, 250 nit
• High brightness 17” LCD TFT display
• Trackball or touchpad with 84 key cherry keyboard
• OSD Function LCD
• Auto switching 120/240VAC power supply
• Inputs for USB K/B, touchpad
• Five (5) year warranty

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II

0°C to +50°C

MIL-STD-810, Humidity, Method 507

10 to 90%, noncondensing

MIL-STD-810, Vibration, Method 514, Procedure I

10 to 58Hz, +/-0.075mm; 58 to 500HZ, 1g

MIL-STD-810, Non-Operational Temperature, Method 501, Procedure I/II

-20°C to +60°C

MIL-STD-810, Non-Operational Humidity, Method 507

5 to 95% at +40°C, noncondensing

MIL-STD-810, Non-Operational Vibration, Method 514, Procedure I

10 to 58Hz, +/-0.15mm; 58 to 500HZ, 2g

MIL-STD-810G, Method 516.6

10g, 11ms

Electromagnetic Compatibility Standards
Some standards may require an internal kit
CE/FCC Part 15, Class A, EN 60950 Safety*

*Certifications provided by Rack Solutions

Mechanical
Form Factor
1U
Height
1.7" (4.32cm)
Width
17.6" (44.7cm)
Depth
19.0" (48.26cm)
Weight:
26.5 lbs ( 12.02 kgs )
LCD
Resolution

SXGA 5:4 1280×1024

Active Area

13.3”X10.6″, (17″ DIAG)

Pitch

.264V x .264H mm

CR

450:1

Color Palette

16.2M colors (6-bit with FRC)

Response Time

Rising Time 2 ms, Decay time 14 ms

Sync

45~80 KHz

Interface
PS/2 and USB
Keyboard
Trackball with 84 key Cherry keyboard
Power Supply
Auto switching 120/240VAC; 25W (typical), 19.05W (panel)
Optics
Viewing angle

60°~70°H, 45°~60°V

Luminance

White 250 cd/m2 (Center 1 point, Typ)

Backlight

Four (4) lamp CCFL

KVM
1 port
Export Compliance
ECCN: 4A994 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.

Reports, Guides & Drawings

KSR117 Industrial 17" Display w/1 KVM Port
