Rugged Integrated NAS Transit Case

CSfC building blocks with IPsec and AES 256 encryption

Rugged, secure storage at the tactical edge. Protect your critical data from malicious cyber threats in forward deployed conditions with our rugged integrated network attached storage (NAS) system. This revolutionary, high-performance storage solution provides FIPS 140-2 certified data encryption with near-zero latency, instant data destruction and integrated key management for secure data protection. Our customizable cybersecurity fly-away-kit meets NIST cybersecurity, FIPS and NIAP standards while providing rugged, leading-edge storage, compute capacity and technology capable of securing top-secret data at the tactical edge. This integrated system includes a Crystal Group FORCE™ rugged server, RCS7450 network switch and rugged display.

Get a Quote Request More Info Download Spec Sheet

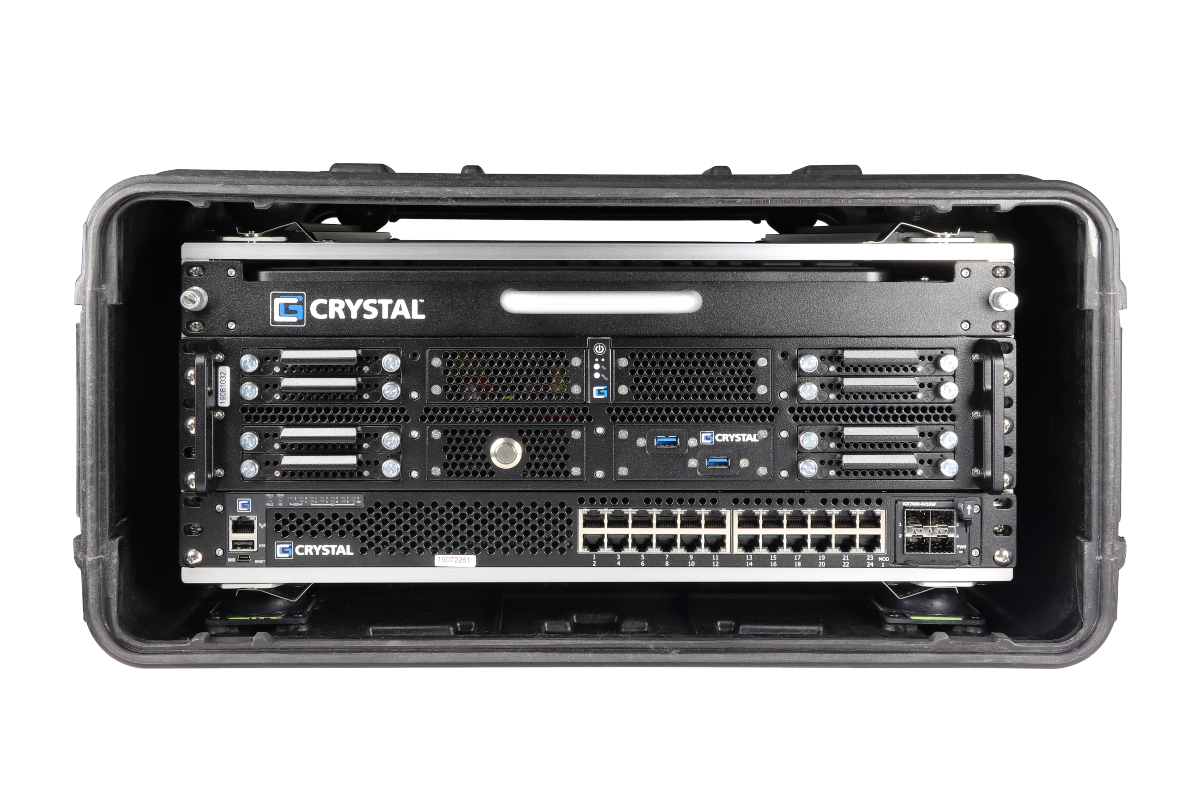

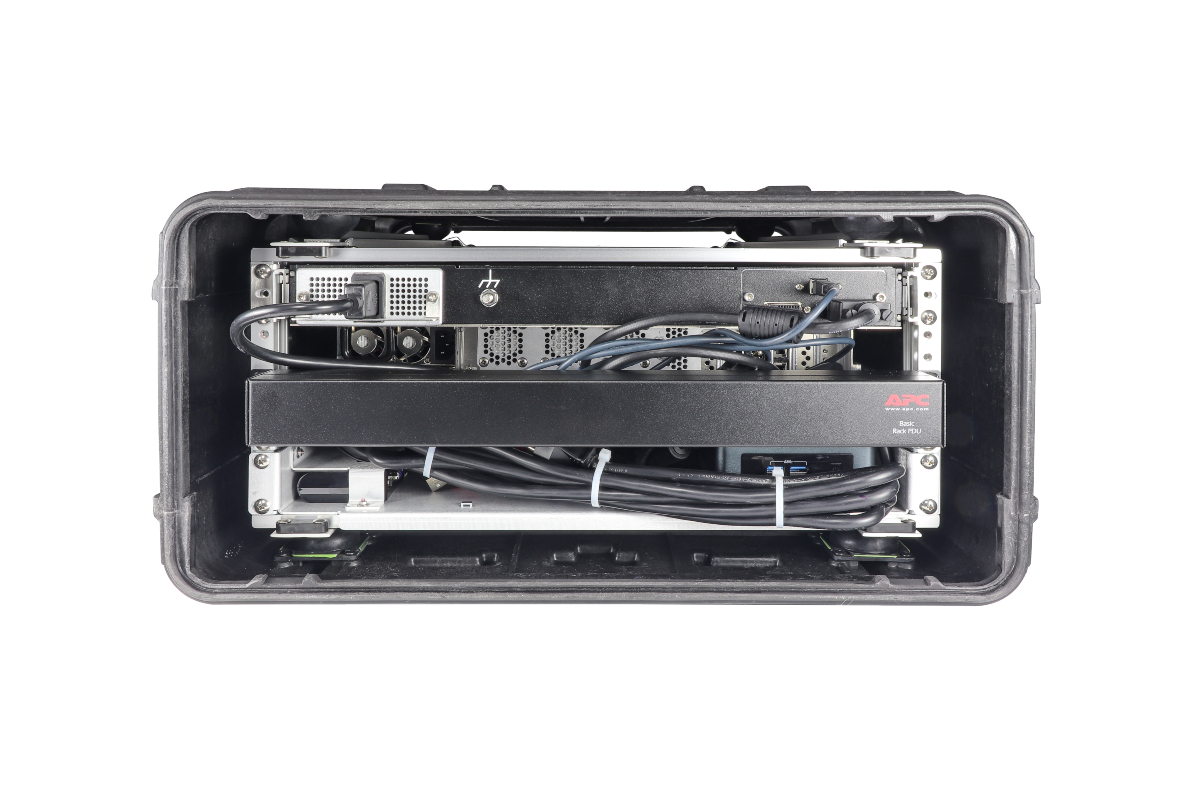

Crystal Group Integrated NAS Transit System
  • Rugged, scalable architecture
  • CSfC building blocks with IPsec and AES 256 encryption
  • FIPS 140-2 certified data encryption and key management
  • Near-zero latency and end-to-end encryption
  • Chassis intrusion detection with options for instant data destruction and key recovery
  • Data in transit and data at rest protection with network access control and support for multi-tenant networks
Environmental Standards
MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II -40°C to +55°C, display limited to -20°C
MIL-STD-810, Storage, Method 501/502, Procedure I/II -40°C to +85°C
MIL-STD-810, Humidity, Method 507, Procedure II 240 hours with conformal coating
MIL-STD-810, Altitude, Method 500 12,500ft operation, 40,000ft transport
MIL-STD-810, Shock, Method 516, Procedures I/V 20g, 11msec functional shock; 40g, 11msec crash hazard shock
MIL-STD-810, Vibration, Method 514, Procedure I 3.0G, 5-2,000Hz, 60 min/axis, 3 axis
MIL-STD-167, Vibration, Type 1
MIL-STD-461G, CE102, RE102
MIL-S-901, Grade A: With solid state drives
MIL-S-901, Grade B
Mechanical
Form Factor 1U
Height 11" (27.94cm)
Width 22.5" (57.15cm)
Depth 34.5" (87.63cm)
Weight 133 lbs ( 60.33 kgs )
Switch Features
Fixed Ports: 40/100 GbE QSFP28 Thirty Two
Console Port One
Out of band management port One
Aggregated Stacking Bandwidth 9.6 Tbps
Maximum units per stack Twelve
Dynamic Pack Buffer Size 12.2 MB
Maximum Stacking Distance 10 KM
Latency 550ns 40 GbE-40GbE/ 2.9, US 10 Gbe-10GbE with license
Base Software Layer 3 with static routes, upgradable to full L3 with license
Switching Capacity (Full Duplex) 6.4 Tbps
Forwarding Capacity (Full Duplex) 2 Bpps
CPU
Intel® Xeon® Scalable processors
Expansion Slots
One low profile or full-height PCIe slot (dependent on motherboard)
External Bays
Option 1 Up to 4 bays populated with FORCE module accessories
Option 2 Optical Drive with up to 2 bays populated with FORCE module accessories
Memory
32 GB DDR4 x16
Cooling
Forced air convection via internal high reliability fans
Power Supply
1,200W AC 1+1 redundant
System Board
Supports latest Intel® Xeon® Cascade Lake microprocessors
Connectors
Available with MIL-CIRC connector, for power
