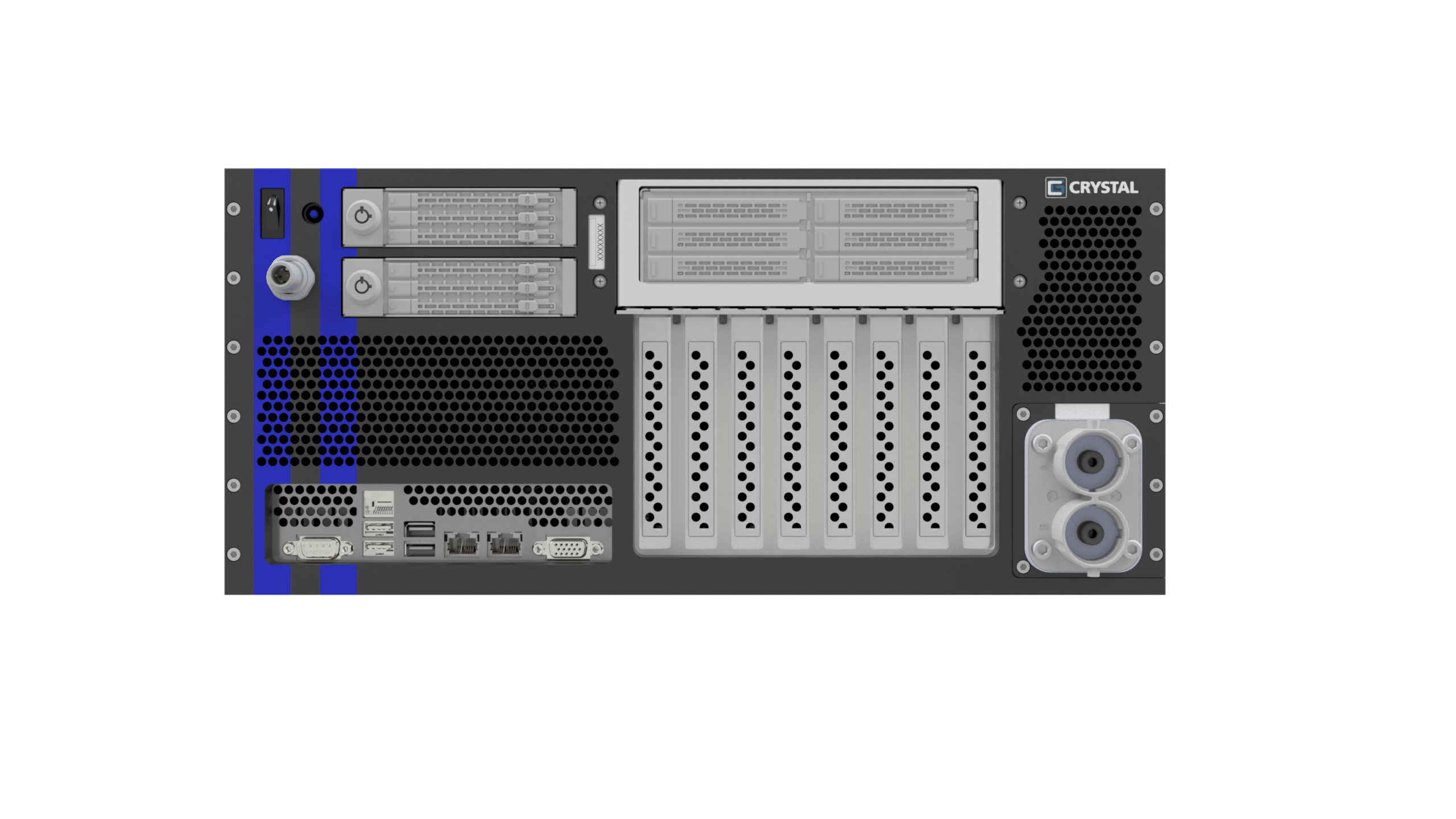

AVC0282 AI & Autonomy Solution

Super server for AI, automation, and autonomous projects

The AVC0282 combines unprecedented compute power, data-handling capabilities and storage capacity in a rugged, mobile solution. Designed for continuous, daily use under heavy utilization, this server integrates high-end, long-life components to enhance reliability.

This high-performance computer eliminates the need for an AC power inverter or DC power conditioner. It utilizes the latest processors, high-capacity memory, leading edge GPUs, and sophisticated power and thermal management stabilized in a size, weight, and power (SWaP)-optimized aluminum chassis.

Crystal Group provides a 5-year warranty and forward-looking configuration management to enhance the long-term investment of your compute solution.

Get a Quote Request More Info Download Spec Sheet
AVC0282 Features
  • Up to 64 CPU cores
  • Up to five GPUs
  • Up to six PCIe slots (motherboard dependent)
  • Up to 12 SSDs
  • Automotive DC power
  • 4TB memory
Mechanical
Height 7" (17.8 cm)
Width 16" (40.6 cm)
Depth 16" (40.6 cm)
Weight 30-45 lbs (13.6-20.4 kg); Content dependent
Mounting
Standard 19” server rack shelf or fixed mount
Power Supply
Up to 2000W 10-32VDC or up to 2400W 18-32VDC
CPU Architecture
Latest generation Intel® Xeon® Scalable or AMD EPYC™ processor options
Memory
Up to 4TB (motherboard dependent)
Expansion
Up to six PCIe (motherboard dependent)
Up to eight CAN bus interfaces
I/O
Commercial I/O or optional automotive or industrial I/O
External Bays
Up to 12 removable SSDs
System Board
Multiple motherboard options from Advantech and Supermicro
Cooling
Default configuration air cooled; optional liquid cooling available
Environmental Standards
Altitude 15,000 ft. operation, 40,000 ft. transport
Operational Temperature, high +50°C, two-hour dwell, four cycles
Operational Temperature, low -30°C, two-hour dwell, four cycles
Humidity 240 hours with optional conformal coating kit
Vibration 5.5g, 5-2,000Hz, 60 min/axis, 3 axis
Acceleration 9g
Shock 12gRMS, 15ms, 400 half-sine pulses
Electromagnetic Compatibility Standards
EMI/EMC IAW DC-111224 150V/m
