Rugged Servers (RS)

Military, industrial, and commercial professionals choose Crystal Group Rugged Servers (RS) when they need high-performance computing and high-capacity data storage in a rugged, all-aluminum package able to withstand some of the roughest terrains and toughest applications. Crystal Group’s highly customizable Rugged Servers are used by the U.S. Air Force, U.S. Army, U.S. Navy, and others for everything from communications and networking to weapons control, sensor and surveillance, and unmanned aircraft systems.

All RS servers are designed to work in extreme environments (extreme shock/vibe, temperature extremes, sand/dust, salt/fog), and meet or exceed MIL-STD-167-1, MIL-STD-461E/F, MIL-STD-810F, and MIL-S-901-D, as well as IEEE and IEC industrial standards.

Select from more than two dozen popular RS models, in 1U to 4U form factors and each covered by a 5-year warranty, or call on Crystal Group to custom-design a device to meet exact specifications.

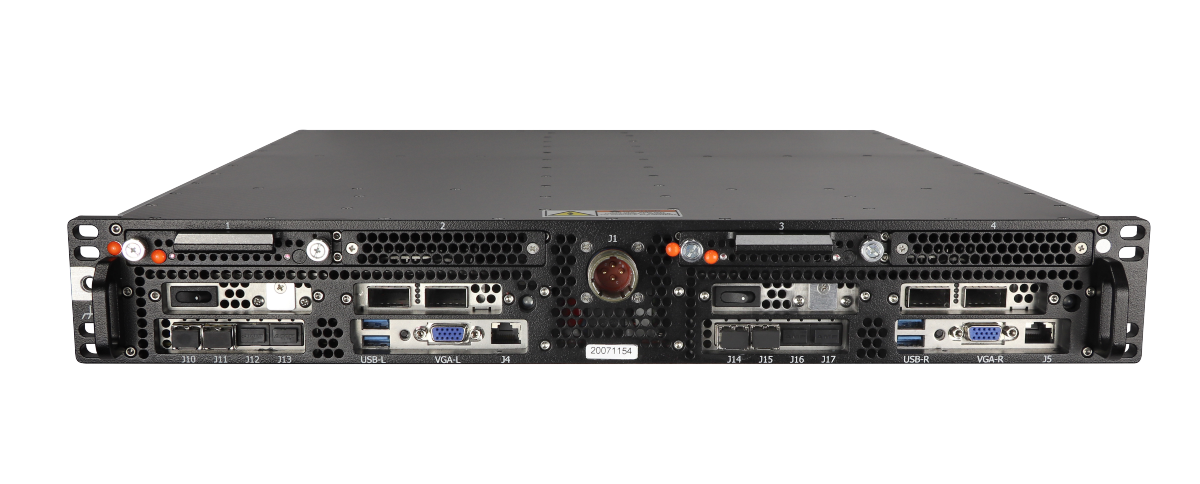

Form Factor:
1.5U
Number of Drives:
6 or 9
Depth:
16" (40.64cm)
Weight:
25 - 30 lbs ( 11.34 - 13.61 kgs ) content dependent
Form Factor:
1.5U
Number of Drives:
4 or 6
Depth:
15" (38.1cm)
Weight:
25 - 30 lbs ( 11.34 - 13.61 kgs ) content dependent

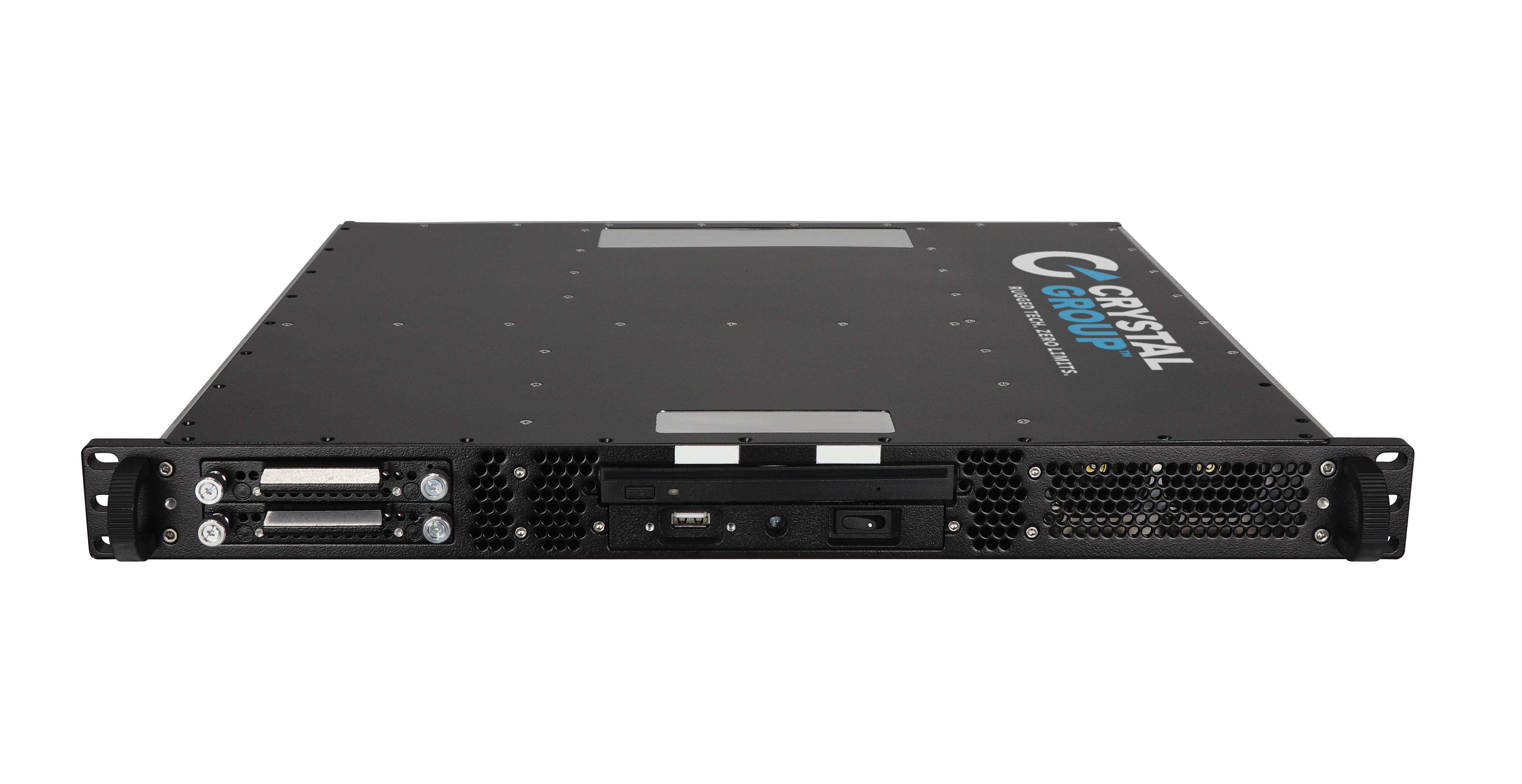

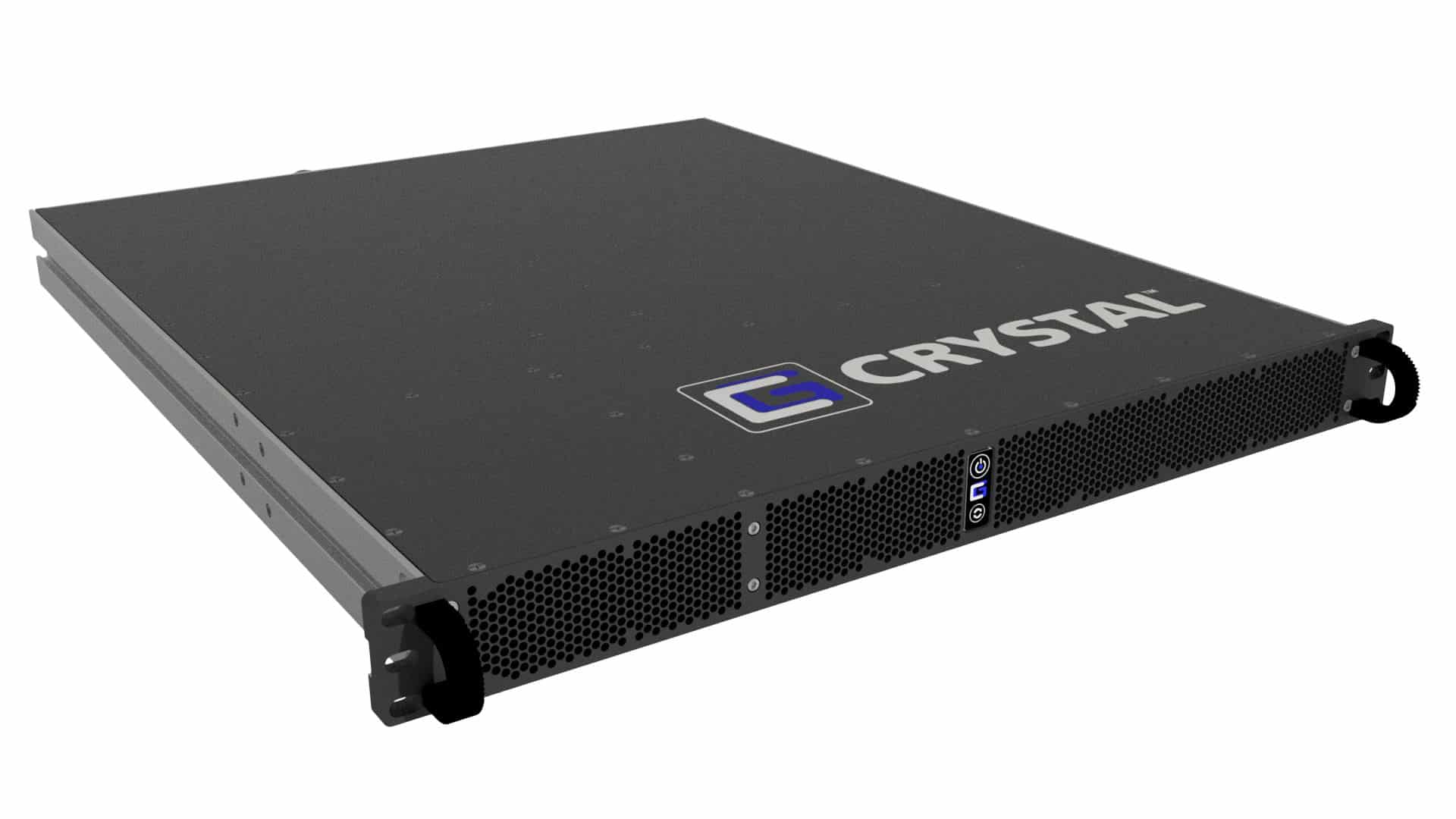

Form Factor:
1U
Number of Drives:
2 or 4
Depth:
20" (50.8cm)
Weight:
15 - 21 lbs ( 6.8 - 9.53 kgs )
Form Factor:
1U
Number of Drives:
2 or 4
Depth:
18" (45.72cm)
Weight:
10.5 - 15 lbs ( 4.76 - 6.8 kgs )
Form Factor:
1U
Number of Drives:
2 or 3
Depth:
13.4" (34.04cm)
Weight:
7 - 15 lbs ( 3.18 - 6.8 kgs )
Form Factor:
1U
Number of Drives:
4 or 6
Depth:
18" (45.72cm)
Weight:
12 - 14 lbs ( 5.44 - 6.35 kgs )
Form Factor:
1U
Depth:
21" (53.34cm)
Weight:
18.25 lbs ( 8.28 kgs ) RTCA DO-160 Section 21, Category M

Highend computing performance in a 1U chassis with a depth of 21” (53.34 cm) fits most any rack space.

Form Factor:
1U
Number of Drives:
2 or 4
Depth:
24" (60.96cm)
Weight:
19 - 27 lbs ( 8.62 - 12.25 kgs )

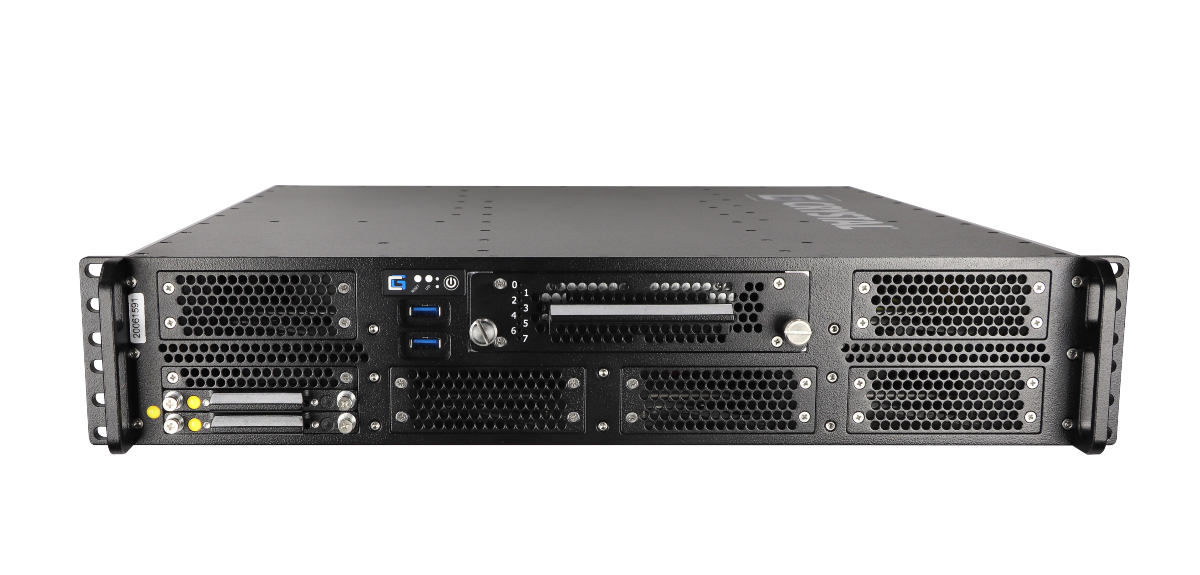

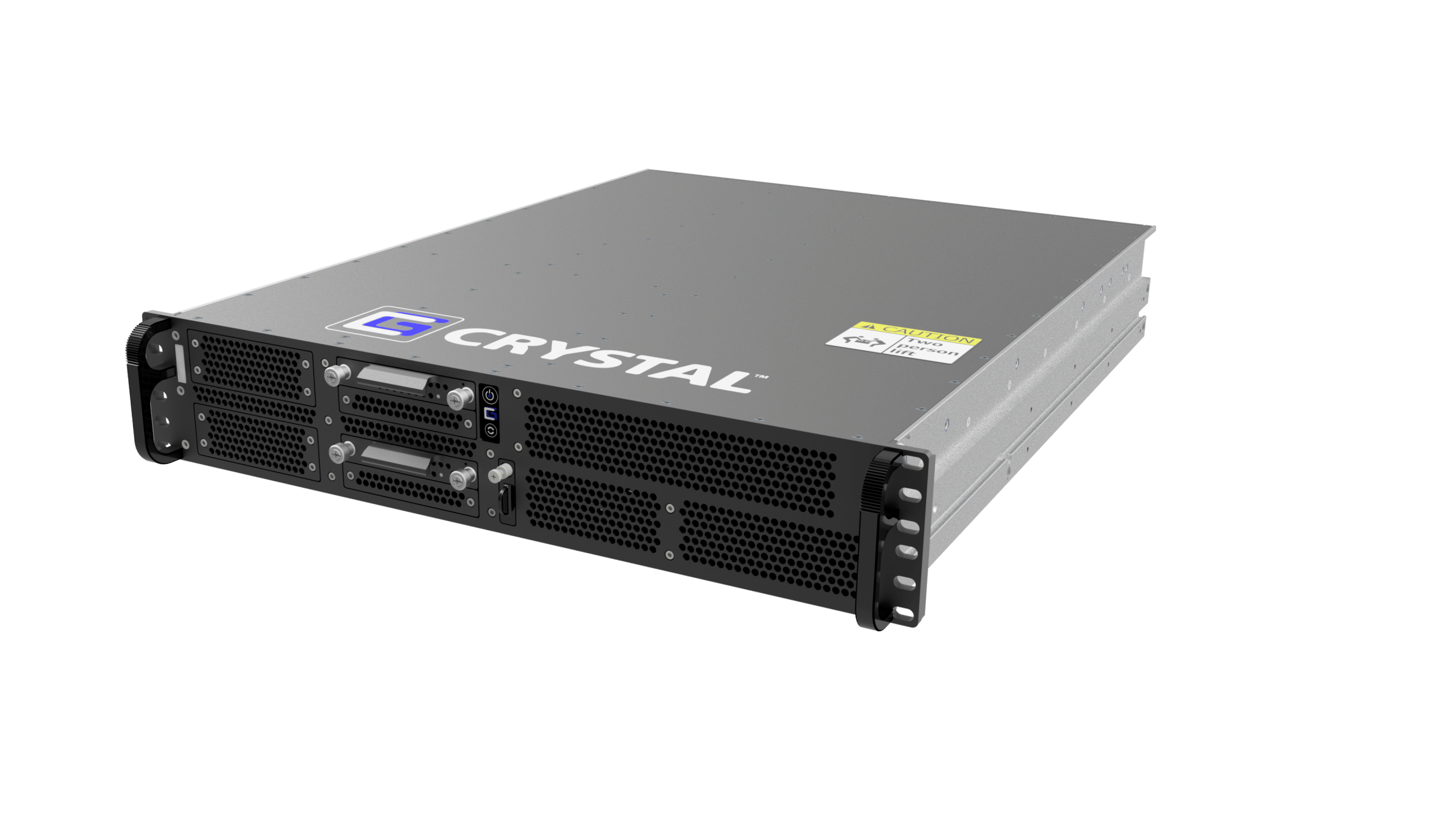

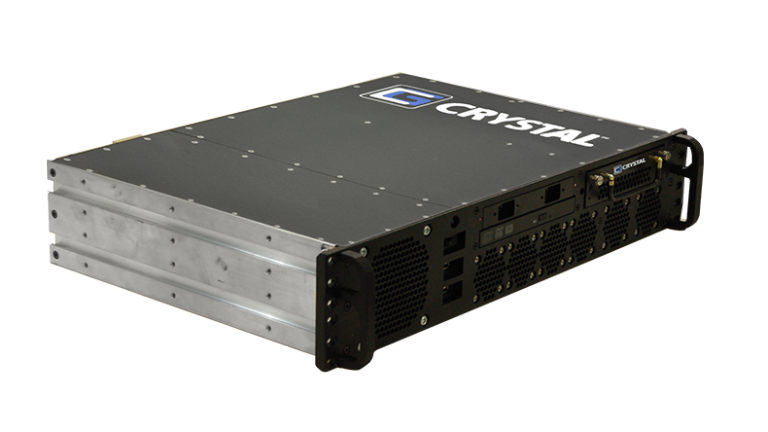

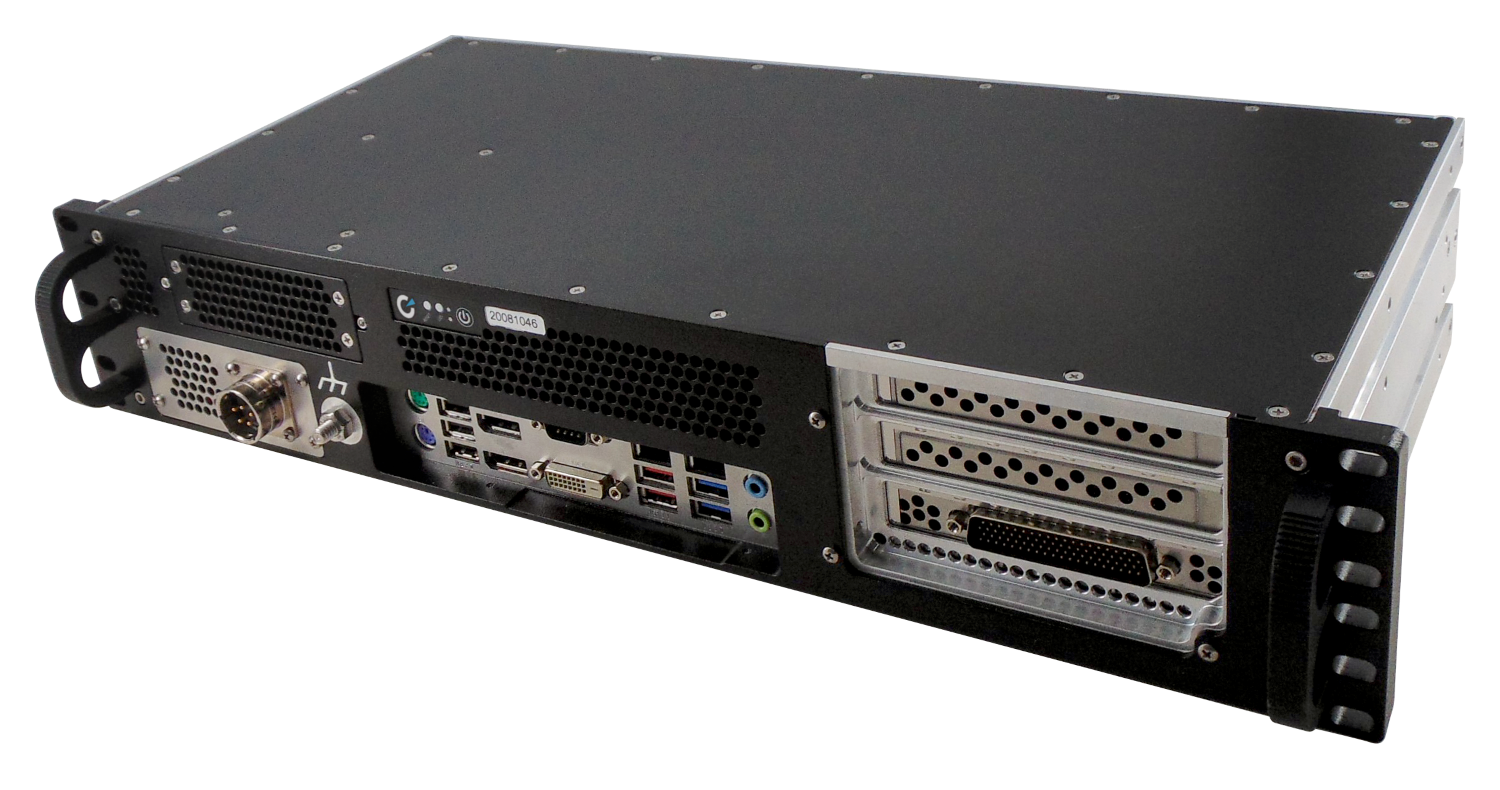

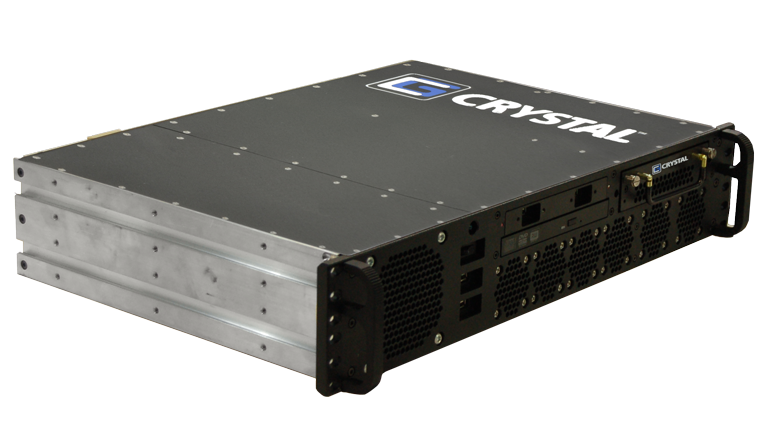

Form Factor:
2U
Number of Drives:
4
Depth:
19" (48.26cm)
Weight:
25 lbs ( 11.34 kgs )

High-end computing performance in a 2U chassis with a depth of 19” (48.3 cm) fits most any rack space.

Form Factor:
2U
Number of Drives:
2 or 4
Depth:
13" (33.02cm)
Weight:
20 - 32 lbs ( 9.07 - 14.51 kgs ) (excludes vibe kit mods)
Form Factor:
2U
Number of Drives:
2 or 4
Depth:
17" (43.18cm)
Weight:
20 - 32 lbs ( 9.07 - 14.51 kgs )
Form Factor:
2U
Number of Drives:
2 or 4
Depth:
12.5" (31.75cm)
Weight:
20 - 25 lbs ( 9.07 - 11.34 kgs ) (excludes vibe kit mods)
Form Factor:
2U
Number of Drives:
5 or 10
Depth:
20" (50.8cm)
Weight:
30 - 35 lbs ( 13.61 - 15.88 kgs )
Form Factor:
2U
Number of Drives:
2 or 4
Depth:
13" (33.02cm)
Weight:
18 - 25 lbs ( 8.16 - 11.34 kgs ) (excludes vibration kit mods)
Form Factor:
2U
Number of Drives:
2 or 4
Depth:
17" (43.18cm)
Weight:
18 - 25 lbs ( 8.16 - 11.34 kgs )
Form Factor:
2U
Number of Drives:
2 or 4
Depth:
12.5" (31.75cm)
Weight:
20 - 25 lbs ( 9.07 - 11.34 kgs )
Form Factor:
2U
Number of Drives:
5 or 10
Depth:
20" (50.8cm)
Weight:
30 - 35 lbs ( 13.61 - 15.88 kgs )
Form Factor:
2U
Number of Drives:
2 Up to 12
Depth:
20" (50.8cm)
Weight:
30 - 35 lbs ( 13.61 - 15.88 kgs ) [content dependent]
Form Factor:
2U
Number of Drives:
16 or 24
Depth:
18" (45.72cm)
Weight:
25 lbs ( 11.34 kgs )
Form Factor:
2U
Number of Drives:
5 or 10
Depth:
20" (50.8cm)
Weight:
18 - 27 lbs ( 8.16 - 12.25 kgs )

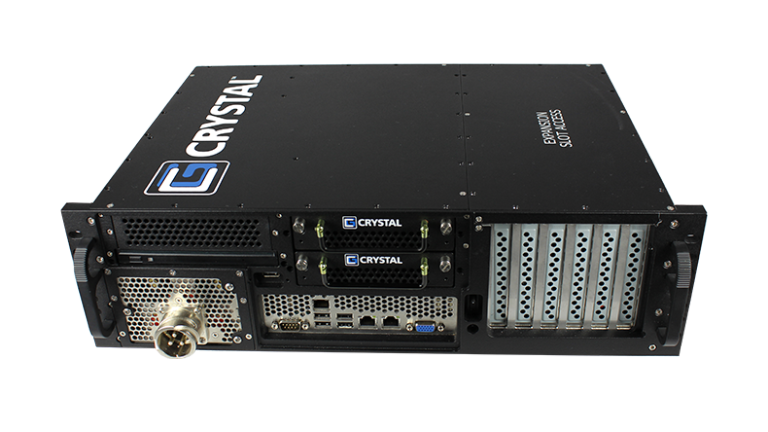

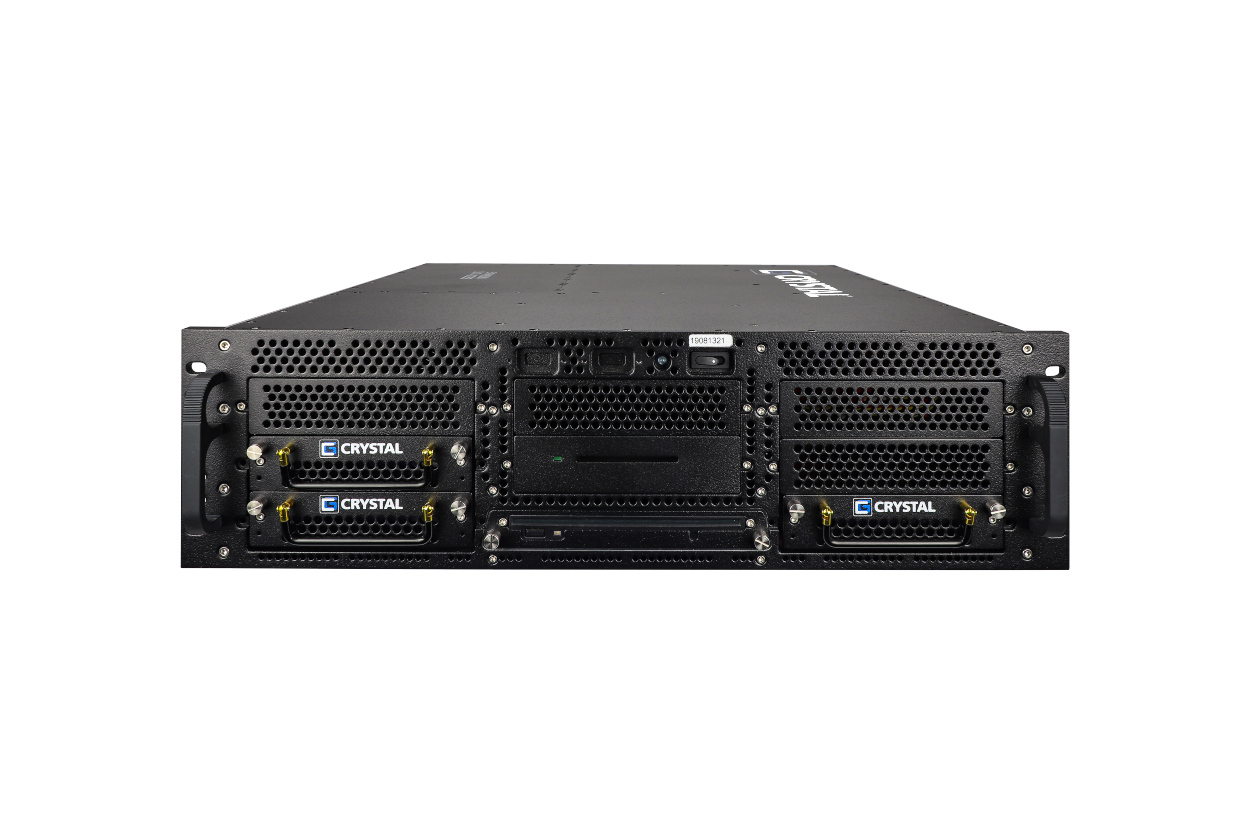

Form Factor:
3U
Number of Drives:
3 or 6
Depth:
15" (38.1cm)
Weight:
35 - 40 lbs ( 15.88 - 18.14 kgs ) [content dependent]
Form Factor:
3U
Number of Drives:
3 or 6
Depth:
15" (38.1cm)
Weight:
30 - 35 lbs ( 13.61 - 15.88 kgs ) [content depending]
Form Factor:
3U
Number of Drives:
3 or 6
Depth:
13" (33.02cm)
Weight:
30 - 35 lbs ( 13.61 - 15.88 kgs )
Form Factor:
3U
Number of Drives:
3 or 6
Depth:
17" (43.18cm)
Weight:
26 lbs ( 11.79 kgs ) [content depending]
Depth:
20" (50.8cm)
Weight:
35 - 40 lbs ( 15.88 - 18.14 kgs ) content dependent

High-end computing performance in a 3U chassis with a depth of 20” (50.8 cm) fits most any rack space

Form Factor:
3U
Number of Drives:
8 or 16 (with drive packs)
Depth:
20" (50.8cm) [accepts Crystal/Jonathan rails] EIA-310 Rack Compliant
Weight:
40 - 46 lbs ( 18.14 - 20.87 kgs ) (excludes vibe kit mods)
Form Factor:
3U
Number of Drives:
8 or 16 or 2 Drive Packs
Depth:
24" (60.96cm)
Weight:
50 - 56 lbs ( 22.68 - 25.4 kgs ) (content dependent)
Form Factor:
3U
Number of Drives:
8 or 16
Depth:
20" (50.8cm)
Weight:
22 - 36 lbs ( 9.98 - 16.33 kgs )
Form Factor:
3U
Number of Drives:
9
Depth:
17" (43.18cm)
Weight:
35 - 40 lbs ( 15.88 - 18.14 kgs ) content dependent

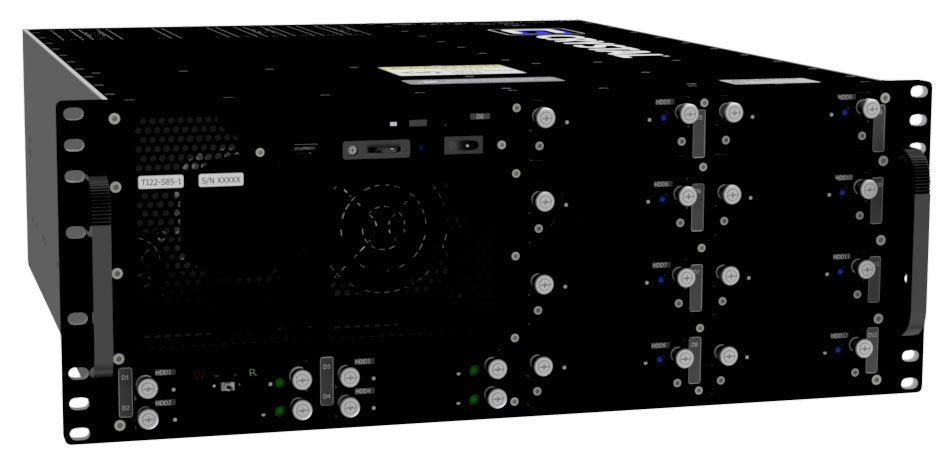

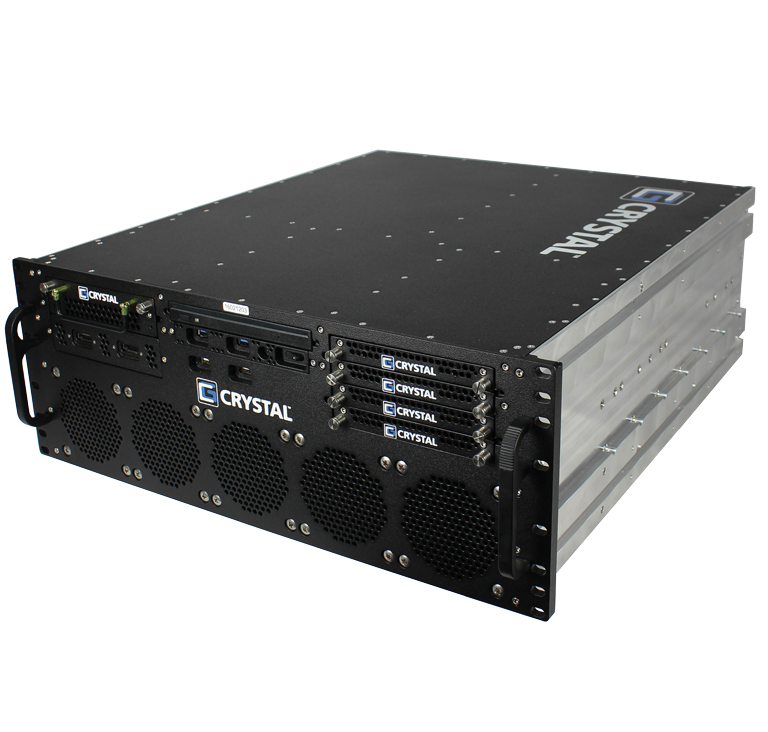

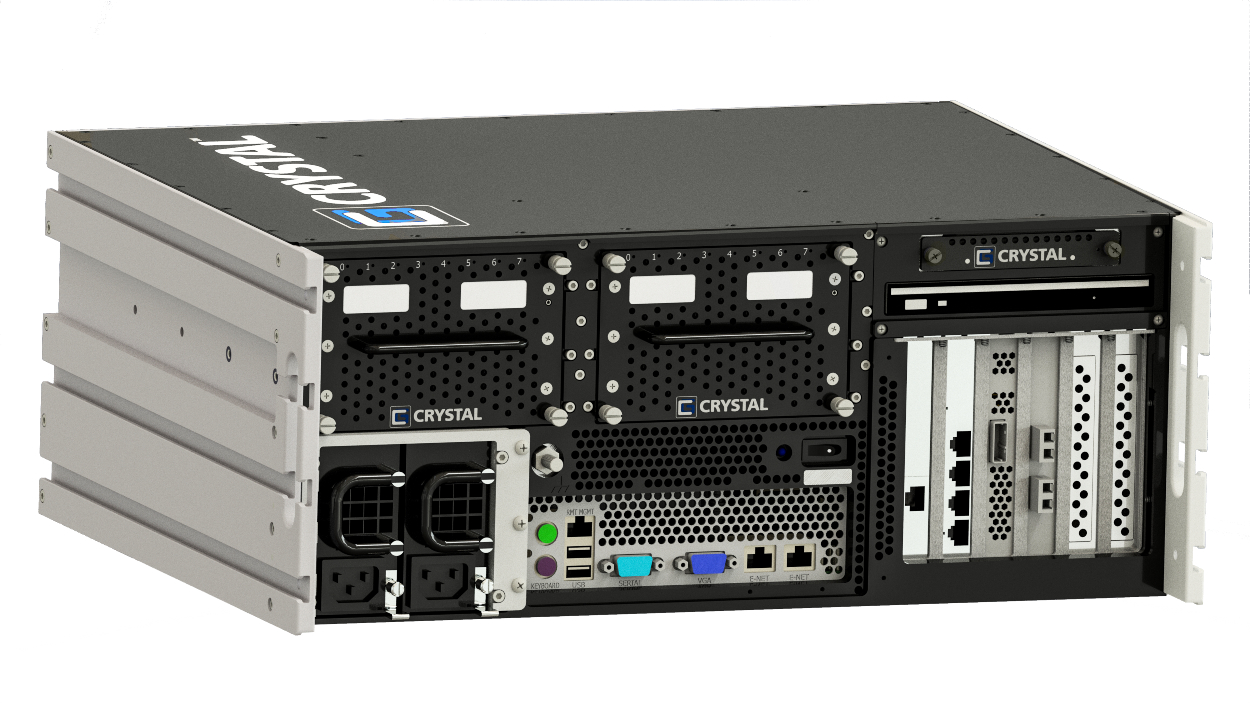

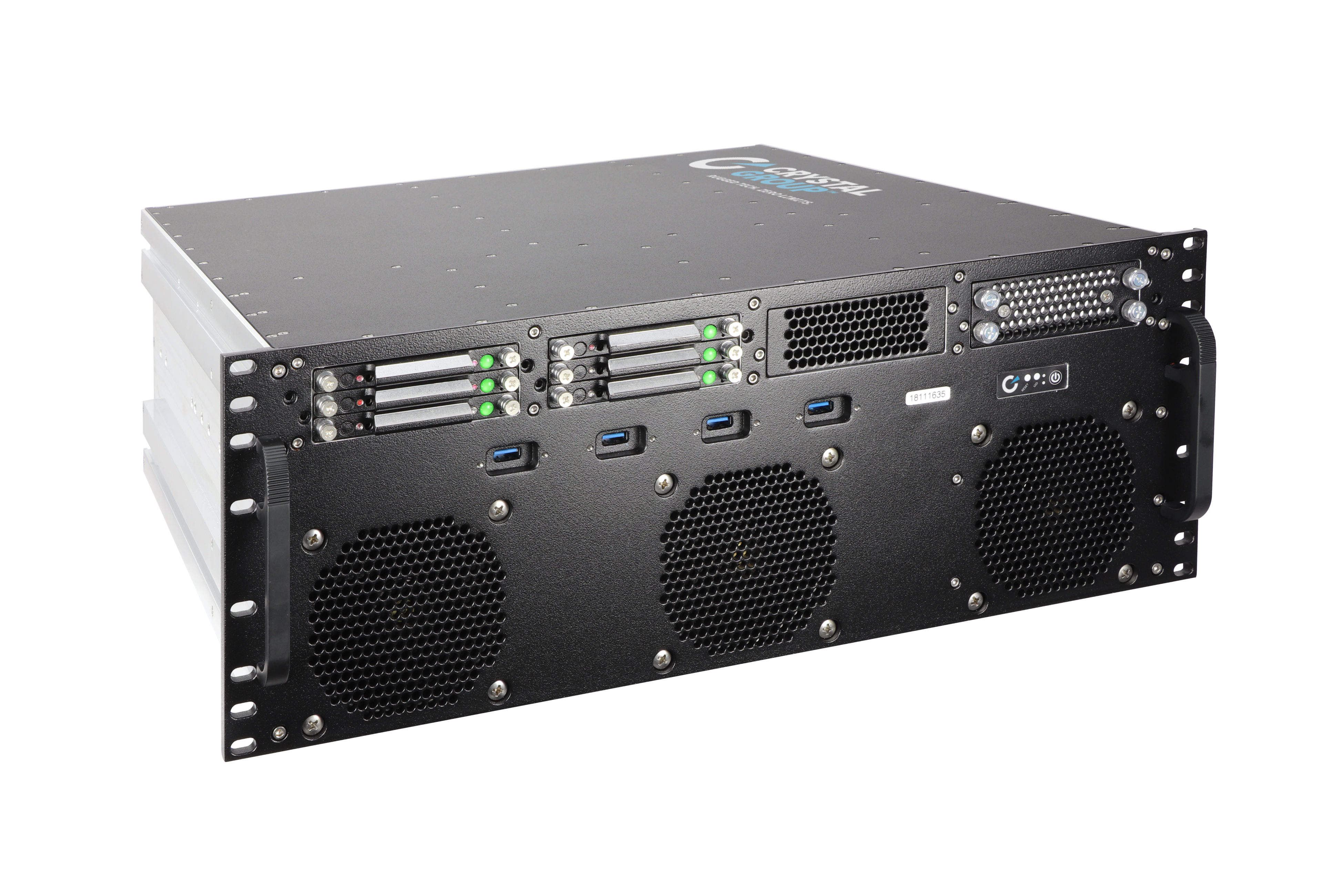

Form Factor:
4U
Number of Drives:
4 or 8
Depth:
20" (50.8cm)
Weight:
65 lbs ( 29.48 kgs )
Form Factor:
4U
Number of Drives:
5 or multiple drive pack options
Depth:
13" (33.02cm)
Weight:
35 lbs ( 15.88 kgs ) [excludes vibe kit mods]

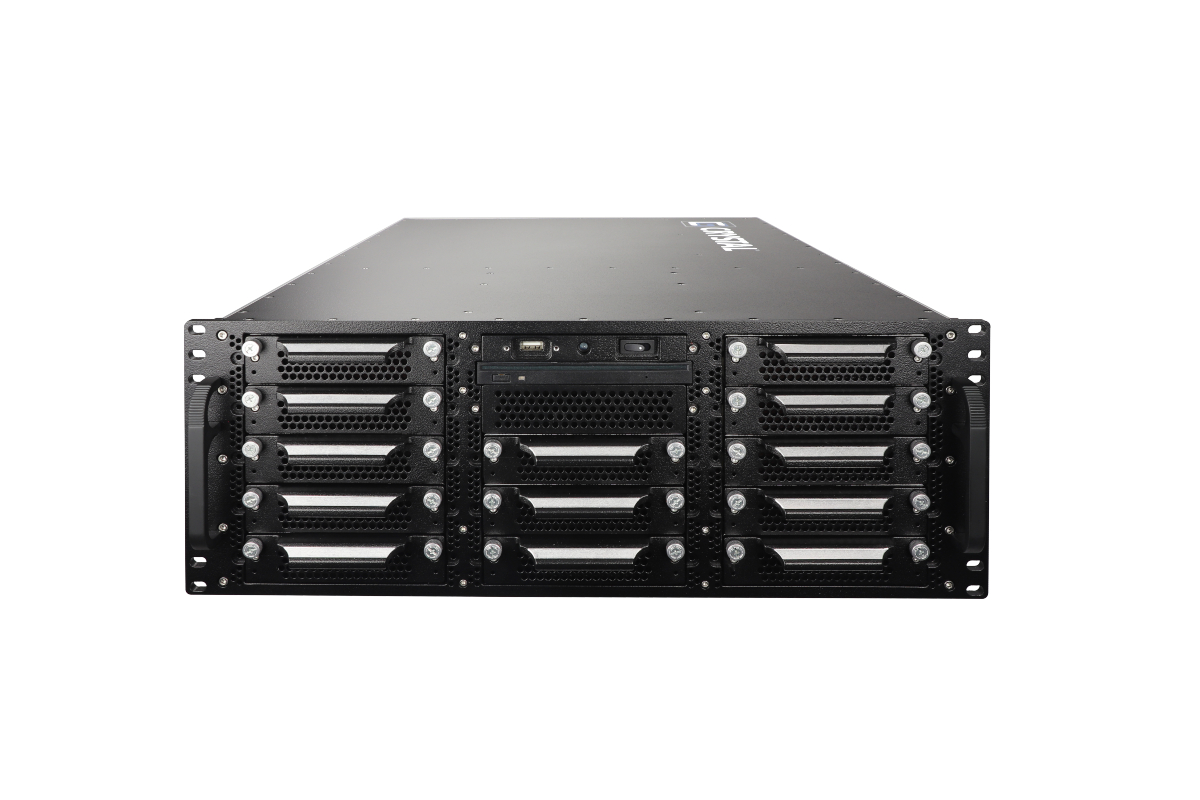

Form Factor:
4U
Number of Drives:
15
Depth:
20" (50.8cm)
Weight:
65 - 77 lbs ( 29.48 - 34.93 kgs ) (excludes vibe kit mods)
Form Factor:
4U
Number of Drives:
15
Depth:
24" (60.96cm)
Weight:
45 - 75 lbs ( 20.41 - 34.02 kgs ) (content depending)

Not Finding What You're Looking For?

We can customize a solution to meet your needs. Contact our knowledgeable sales staff for more information.
