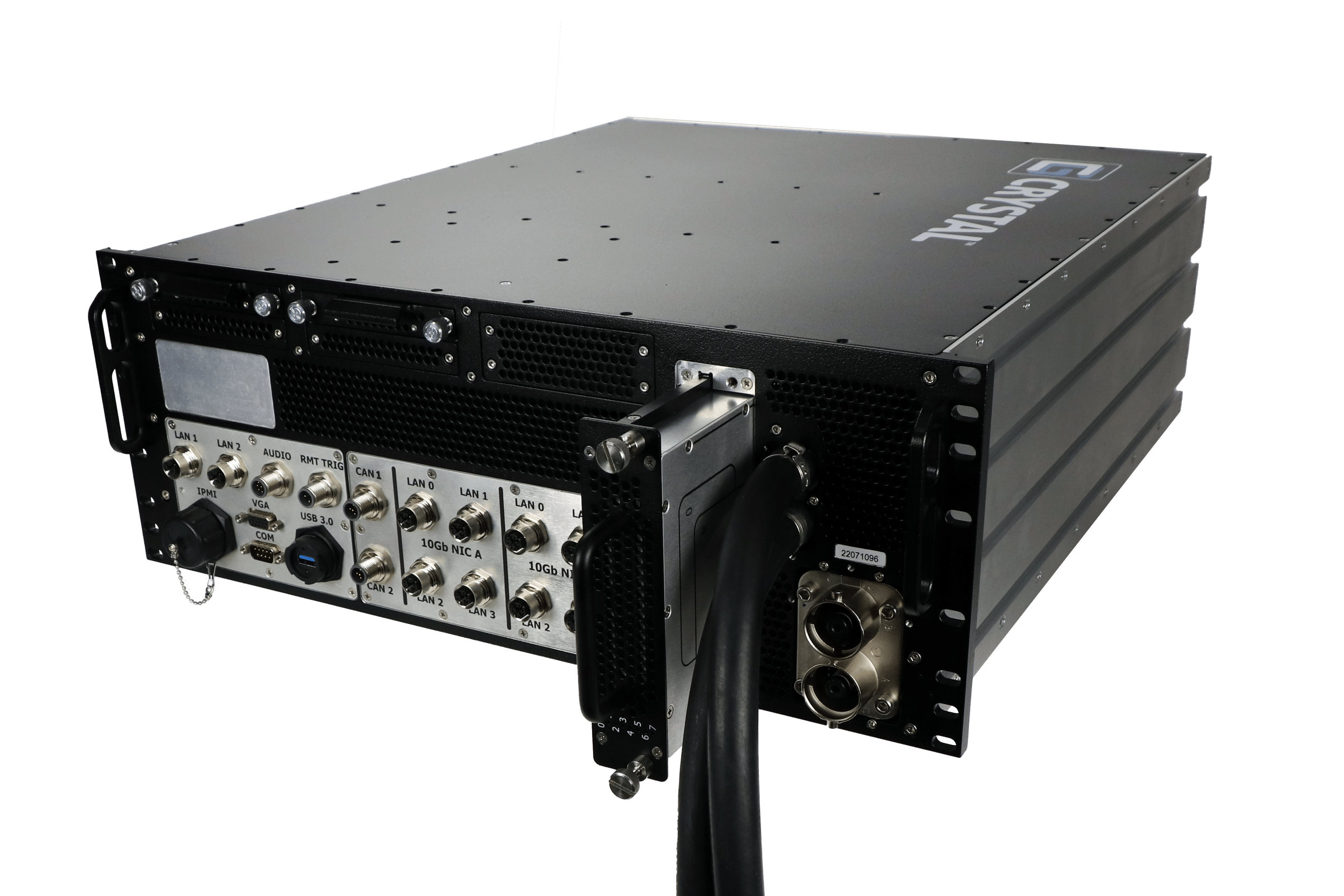

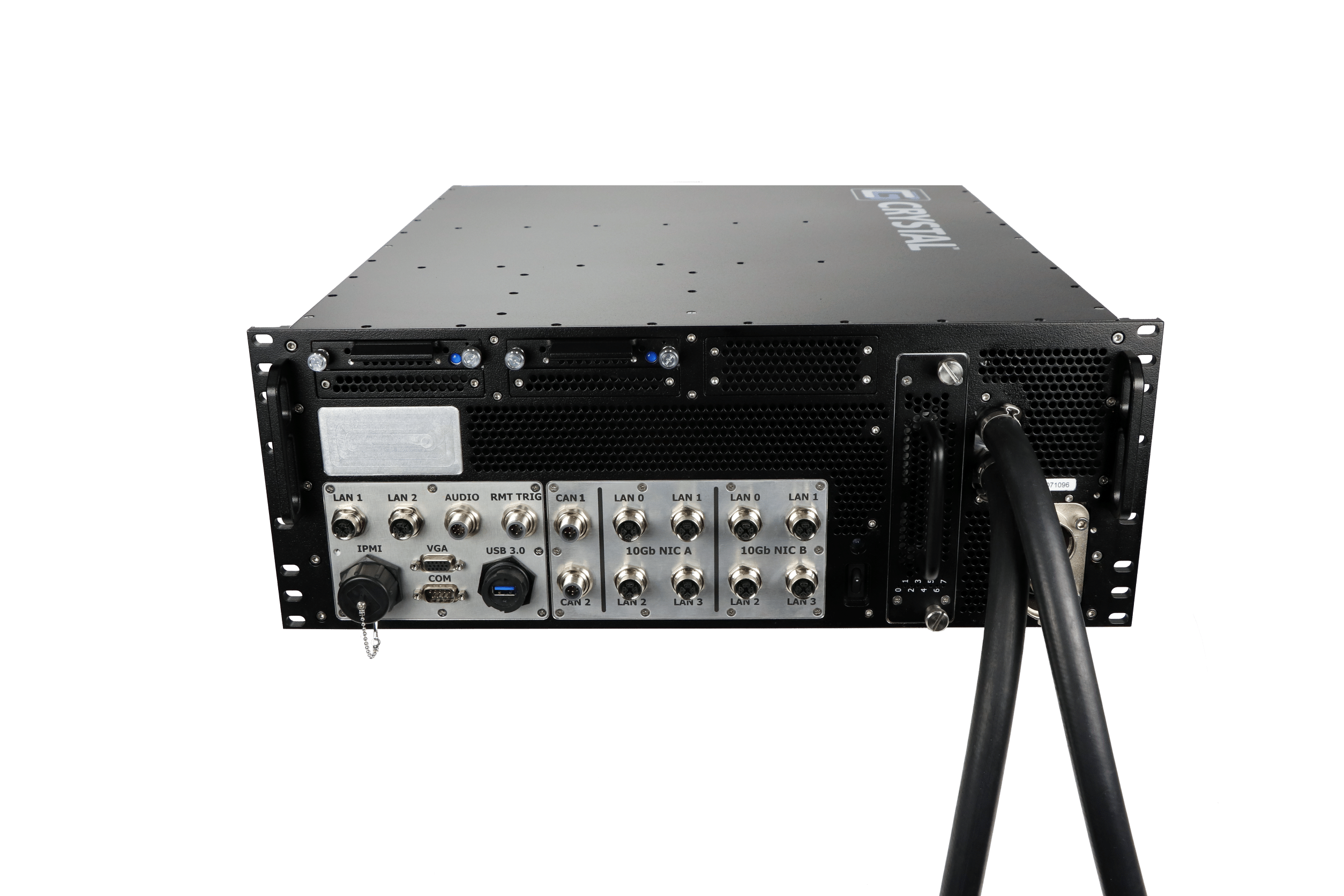

AVC0403 AI & Autonomy Solution

Super server for AI, automation, and autonomous projects. The AVC0403 combines unprecedented compute power, data-handling capabilities and storage capacity in a rugged, mobile solution. Designed specifically for autonomous semi-truck OEMs, this server has a high-capacity removable drive pack to offload data from the vehicle to a data center.

This high-performance computer utilizes the latest processors, high-capacity memory, leading edge GPUs, and sophisticated power and thermal management stabilized in a size, weight, and power (SWaP)-optimized aluminum chassis.

Crystal Group provides a 5-year warranty and forward-looking configuration management to enhance the long-term investment of your compute solution.

AVC0403 AI & Autonomy Solution
  • Two CPUs
  • Five GPUs
  • Up to six PCIe slots
  • 2x M.2
  • 3x NVMe
  • 14x SATA
  • Automotive DC power
  • 4TB memory
Height 7” (17.8 cm)
Width 17” (35.8 cm)
Depth 20” (39.6 cm)
Weight 50-70 lbs (13.6-18.1 kg); Content dependent
Standard 19” server rack or custom options
Power Supply
Up to 2000W 10-32VDC or up to 3000W 18-32VDC
CPU Architecture
Latest generation Intel® Xeon® Scalable or AMD EPYC™ processor options
Up to 4TB (motherboard dependent)
Up to six PCIe (motherboard dependent)
Up to eight CAN bus interfaces
Commercial I/O or optional MIL-CIRC connector I/O
External Bays
Standard: Six individually removable 7mm SATA 2.5” SSDs and one 8-SSD drive pack
Optional: Three individually removable 9mm or 15mm NVMe 2.5” SSDs
System Board
Multiple motherboard options from Advantech and Supermicro
System liquid and fan cooled; Redundant internal low noise fans circulate air through chassis to cool components not directly cooled by liquid; Optional cooling kit or custom design
Environmental Standards
Altitude 15,000 ft. operation, 40,000 ft. transport ²
Operational Temperature, high +50°C, two-hour dwell, four cycles ¹
Operational Temperature, low -30°C, two-hour dwell, four cycles ¹
Humidity 240 hours with optional conformal coating kit ¹
Acceleration 9g
Vibration SAE J1445 for cab mounted components ¹
Shock 12gRMS, 15ms, 400 half-sine pulses ¹
Acoustic Noise
Requirement S, Grade A3²
Electromagnetic Compatibility Standards
MIL-STD-461 CE102, RE102¹ with kit
RTCA/DO-160 Aircraft and airborne equipment, Category M²
EMI/EMC IAW DC-111224 150V/m ¹
Download Spec Sheet
