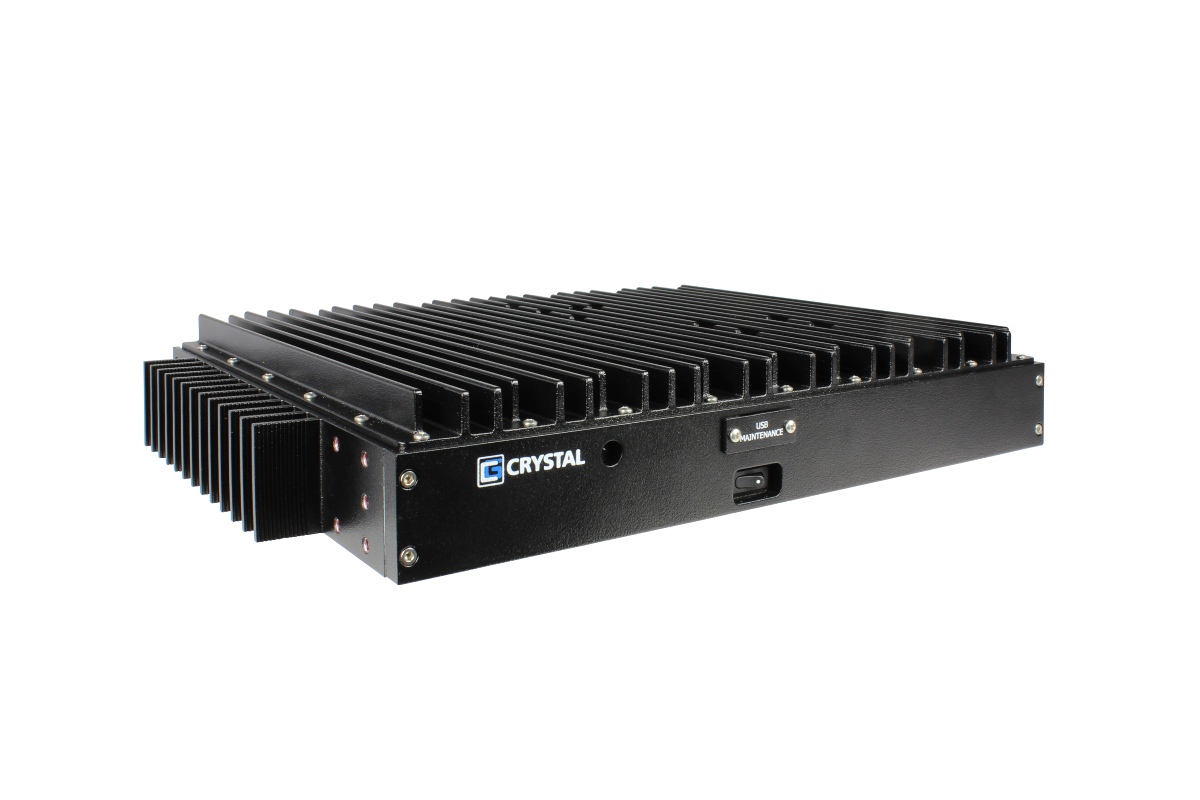

ES1012 Rugged Embedded Computer

Smarter with Intel®. Stronger with Crystal Group.

Energy is essential to modern day living and homeland security, which is why power companies are undergoing a major transformation to protect energy resources now and for years to come. The Crystal Group Energy Series™ (ES) delivers optimized solutions—powered by Intel—to ensure longlasting, high-performance computing in unpredictable conditions.

The ES1012 embedded computer delivers reliable power and performance in a rugged chassis that can withstand the intense conditions of remote locations, such as extreme climates, weather conditions, temperatures, moisture, and dust. Enabling critical power grid capabilities, like constant monitoring, real-time alerts, automation, and remote management, allows power generation, transmission and distribution to flow smoothly while being protected from both physical and cyber threats.

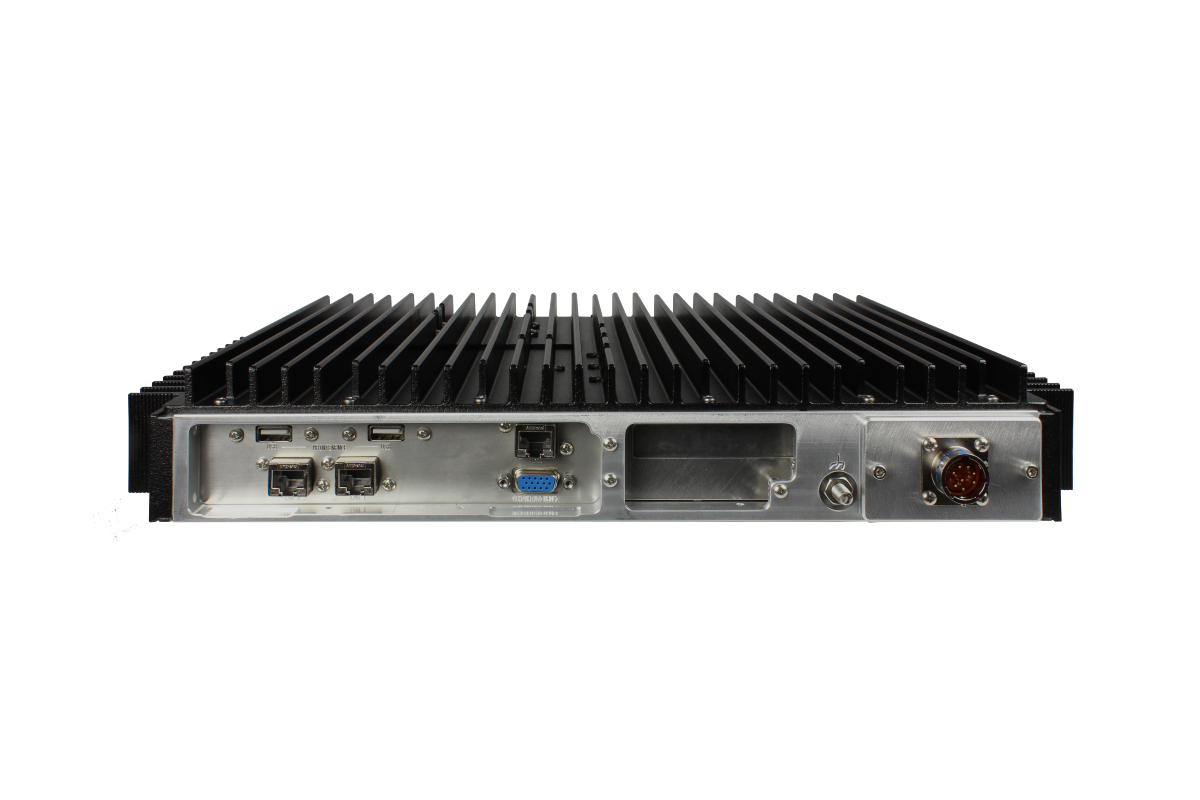

ES1012 Rugged Embedded Computer
  • Compact construction with a 2.4”H x 16” x 11” footprint
  • Panel or rack mounting options
  • Six core Intel® Xeon® D-1528 CPUs
  • Dual 2.5″ SSD hard drives
  • Billet construction from milled and strain hardened 6061-T6511 structural aircraft aluminum
  • IEEE 1613 and IEC 61850-3 certification ready
  • Fanless; no moving parts drives higher reliability
Environmental Standards
Operational temperature -40°C to +40°C
Storage temperature -40°C to +85°C
Humidity 95% non-condensing with humidity kit
Altitude 12,500ft operation, 40,000ft transport
Vibration 5.5G, 10-2000Hz, 60 min/axis, 3 axis
Shock 20g, 11msec– functional shock; 40g 11msec crash hazard shock
Electromagnetic Compatibility Standards
Some standards may require an internal kit
IEC 61850-3 International Standard Communication Networks and Systems for Power Utility Automation (covers environment and EMC concerns)
IEEE 1613 Standard Environmental and Testing Requirements for Communications Networking Devices in Electric Power Substations
Emissions Radiated FCC Part 15. 109, Class A; conducted FCC Part 15. 107, Class A
Testing with solid state drives
Mechanical
Form Factor 1U
Height 2.4" (6.1cm)
Width 16" (40.64cm)
Depth 11" (27.94cm)
Weight 7.52 lbs (3.41 kgs)
Power 55-80W with select configurations, CPU dependent
Expansion Slots
One PCIe X16 low profile
Internal Expansion Slots
Two SATA 2.5” SSD (not externally removable), one M.2 internal SSD
Cooling
Fanless; passively cooled through heatpipe technology with no moving components
Mounting
Panel mounting via ears on base
19” rack mount kit
Power Supply
Option 1 90-250 VAC 50/60 Hz with locking power cord
Option 2 18-36 VDC
Option 3 48 VDC
Option 4 130 VDC
System Board
X10SDV-6C-TLN4F, Xeon D-1528 CPU, Up to 128 GB ECC DDR4, 2-USB 2.0, 2-GBLAN, IPMI, VGA, 1-PCIe x16 (Note, these features are at the board level and may not all be available in the standard configuration)
Software Capability
Accepts Windows 10®, RHEL® or VMware 6®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Program Manager to receive the classification of your product.
