ES3304S19 Substation Server

Intel® Inside, energized by Crystal Group. Energy is essential to modern day living and homeland security. Power companies are undergoing a major transformation of aged computing infrastructure to protect energy resources now and for years to come in the SmartGrid initiative. Crystal Group ES™ — Energy Series — delivers optimized solutions powered by Intel to ensure long lasting, high performance computing in unpredictable conditions. Crystal Group integrates Intel technologies into substation hardware to support state-of-the-art power grid capabilities such as continuous monitoring, real-time alerts, AI automation, virtualization of existing substation equipment and remote-control management. This ensures the entire supply chain — from power generation through transmission and distribution to end use — works efficiently, securely and without interruption.

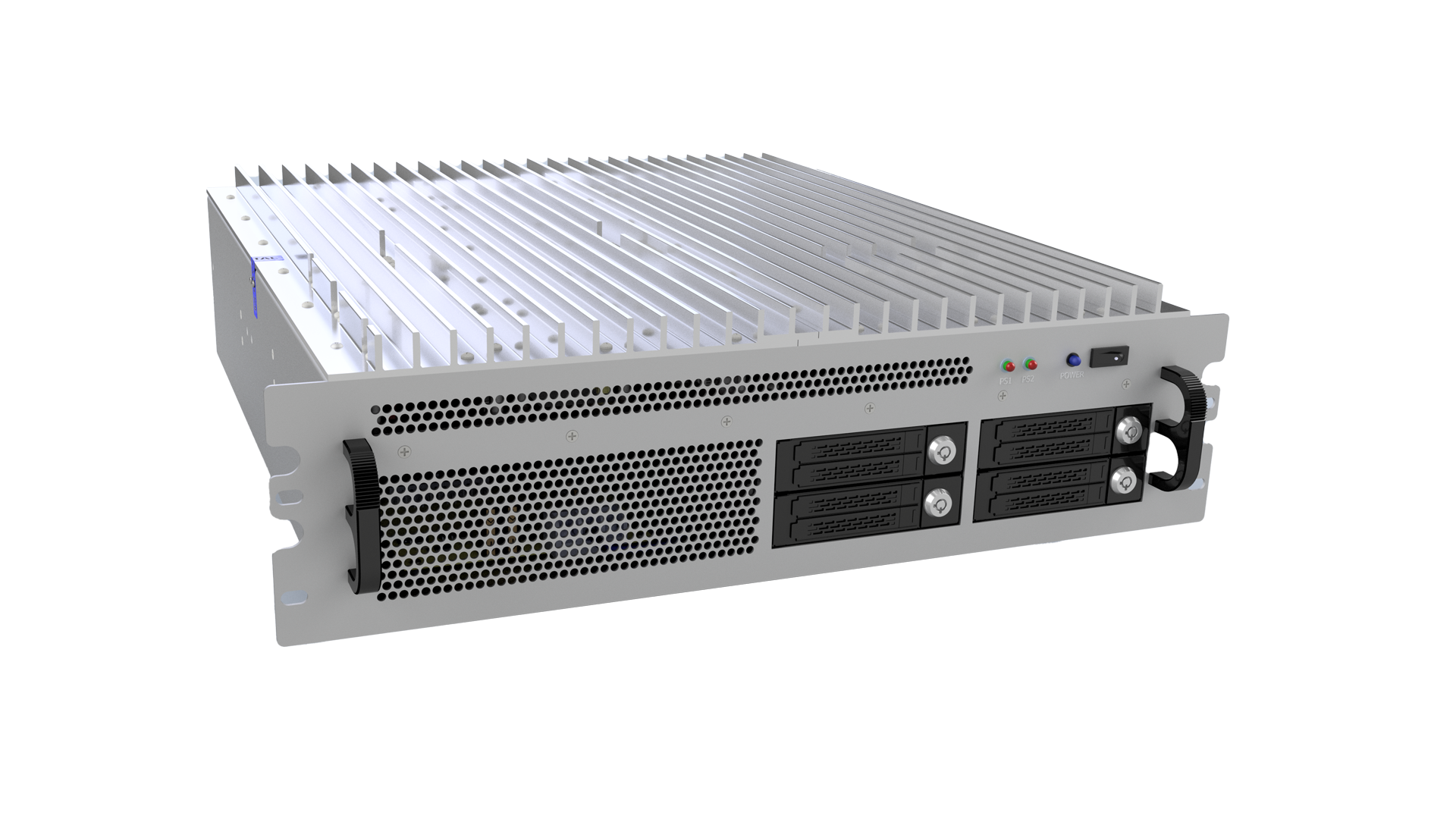

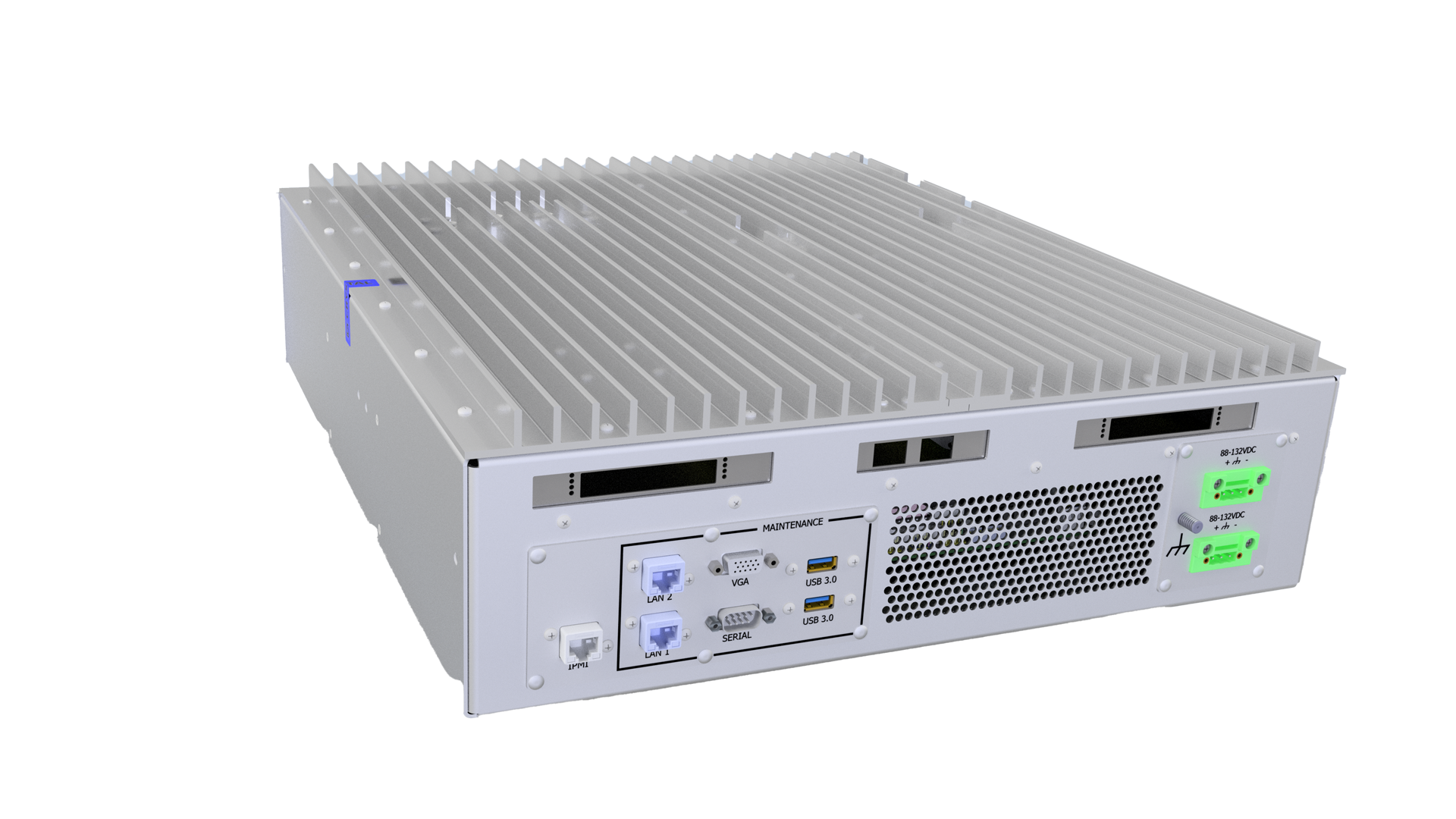

ES3304S19 Substation Server
  • Light-weight aluminum construction 35-40 lbs.
  • 3U tall, 19″ rack mount server
  • Up to 128GB of DDR4 ECC memory
  • Versatility with four industry standard drive bays supporting up to 12 SSDs
  • Expandable with three slots
  • Dual Intel® Coffee Lake E series Xeon® CPU
  • 19″ depth chassis
  • Modular I/O
  • 7+ year warranty
Environmental Standards
Operational temperature -35°C to +55°C
Storage temperature -40°C to +85°C
Humidity 95% non-condensing with humidity kit
Altitude 12,500ft operation, 40,000ft transport
Electromagnetic Compatibility Standards
Compliance with some standards may require an internal kit
IEC 61850-3 International Standard Communication Networks and Systems for Power Utility Automation (regarding environment and EMC concerns)
IEEE 1613 Standard Environmental and Testing Requirements for Communications Networking Devices in Electric Power Substations, EMI category
Emissions Radiated FCC Part 15. 109, Class A; conducted FCC Part 15. 107, Class A
Testing with solid state drives
Mechanical
Form Factor 3U
Height 5.25" (13.34cm)
Width 17.5" (44.45cm) EIA-310 rack compliant
Depth 19" (48.26cm)
Weight 35 - 40 lbs ( 15.88 - 18.14 kgs ) content dependent
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap
Single Coffee Lake E series Xeon CPU
Expansion Slots
Three PCIe
External Bays
4 standard 3.5" drive bays supporting up to 12 removable SATA/SAS SSDs
Memory
Up to 128GB, registered, ECC, DDR4 RAM
Cooling
Passive, conduction based thermal management
Mounting
19" rack mount with Accuride rails
Power Supply
Dual input, redundant, 400W, 125VDC + 125VDC
Software Capability
Accepts Windows 10®, VMware®, Linux® or Windows Server 2019®
Export Compliance
ECCN: 5A992.c | Classification is dependent on configuration and is subject to change. Contact your Program Manager to receive the classification for your product.
