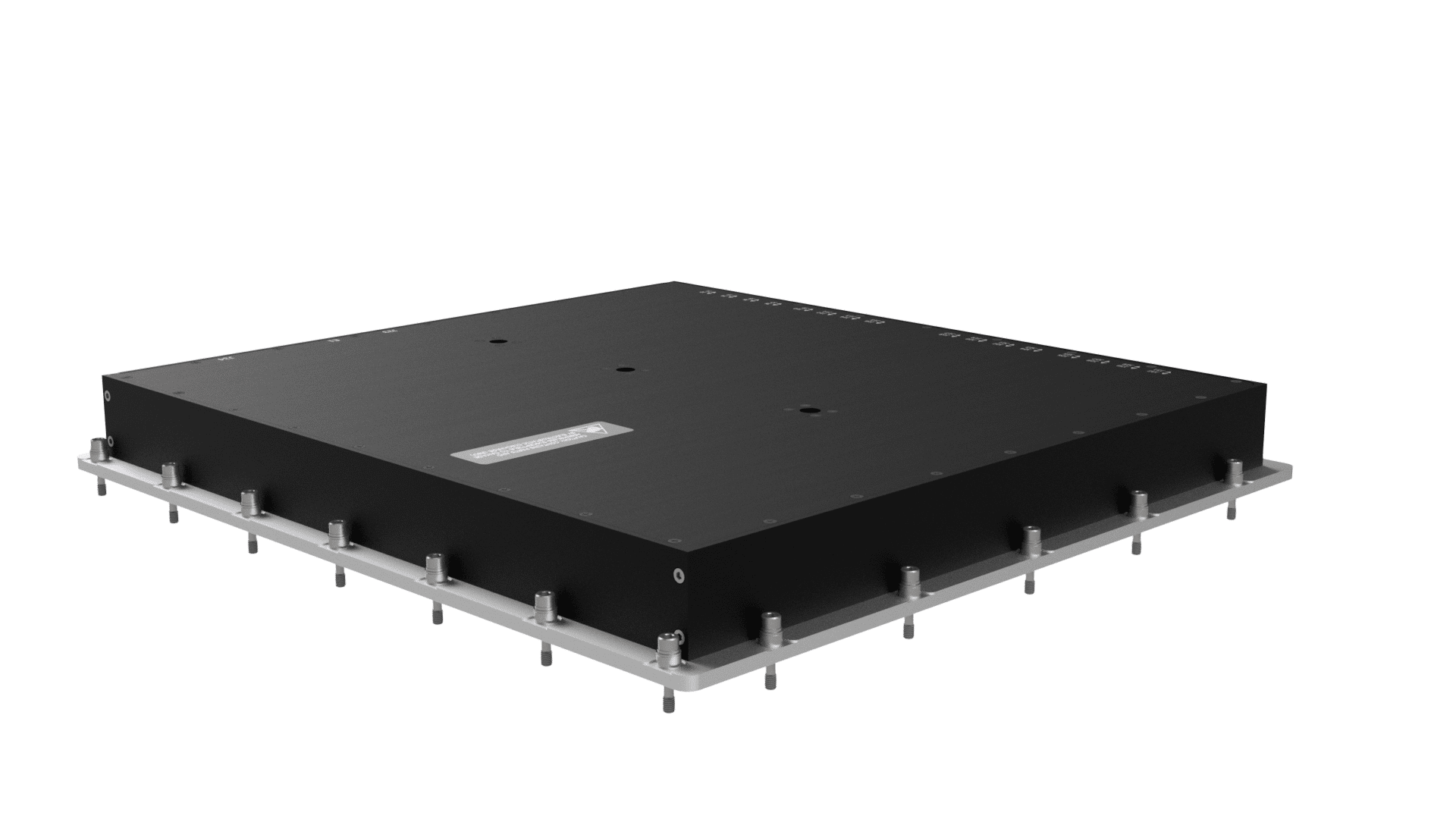

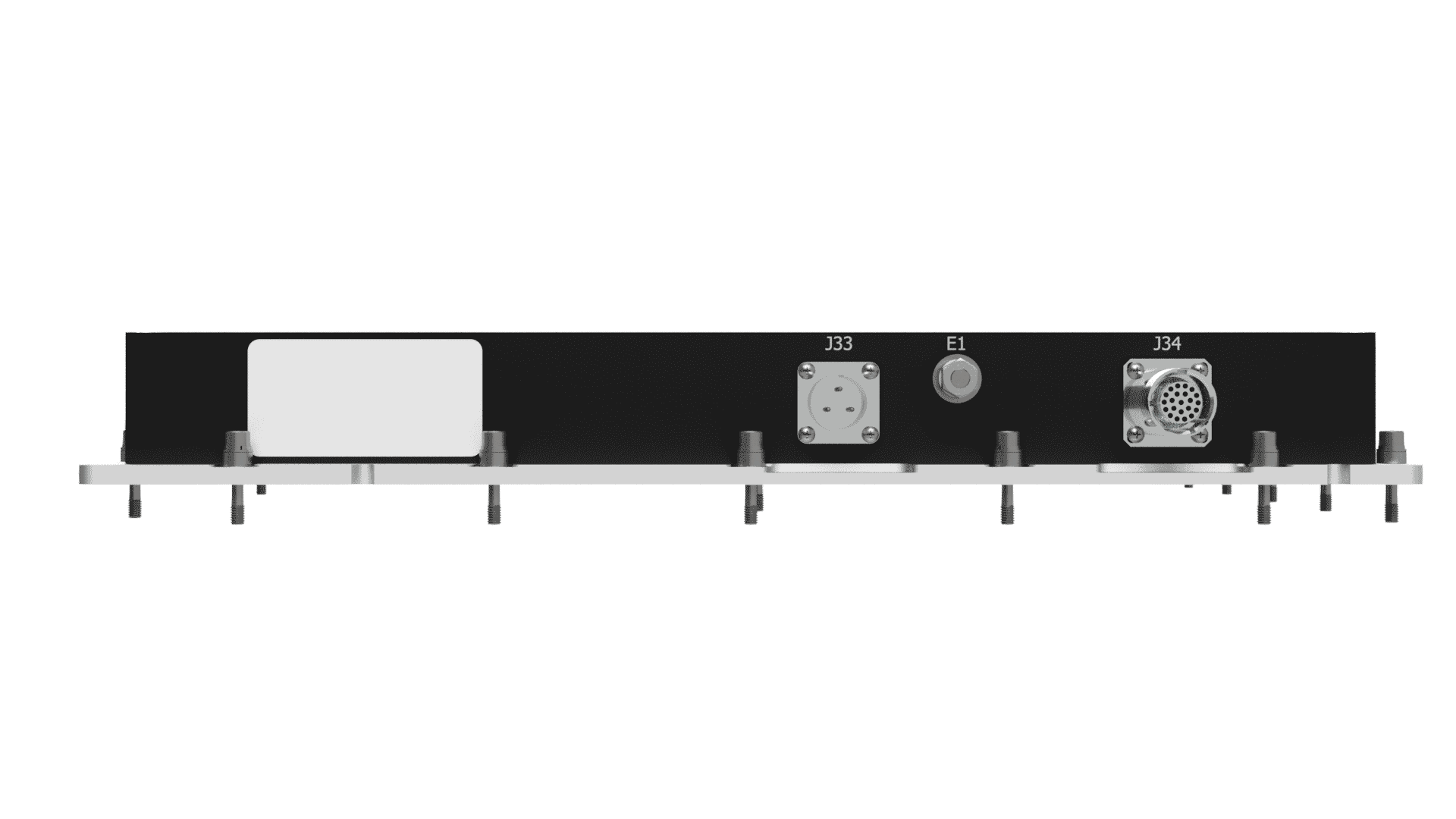

RCS2700-CB2F Rugged Switch

Fail-safe and long-life performance in extreme conditions. Our rugged RCS2700-CB2F brings plug and play functionality, Layer 2+/3 switching, and fanless cooling. This 17″ depth switch—based on the Mellanox SN2700 series—provides enterprise-class LAN solutions for small and medium size applications.

RCS2700-CB2F Rugged Switch
  • Light weight construction from billet strain, hardened aluminum
  • 32 port designs in cabinet-mounted chassis
  • 28V DC input power
  • Layer 2+ and Layer 3 capable
  • FCC and MIL-STD-461 EMC compliant

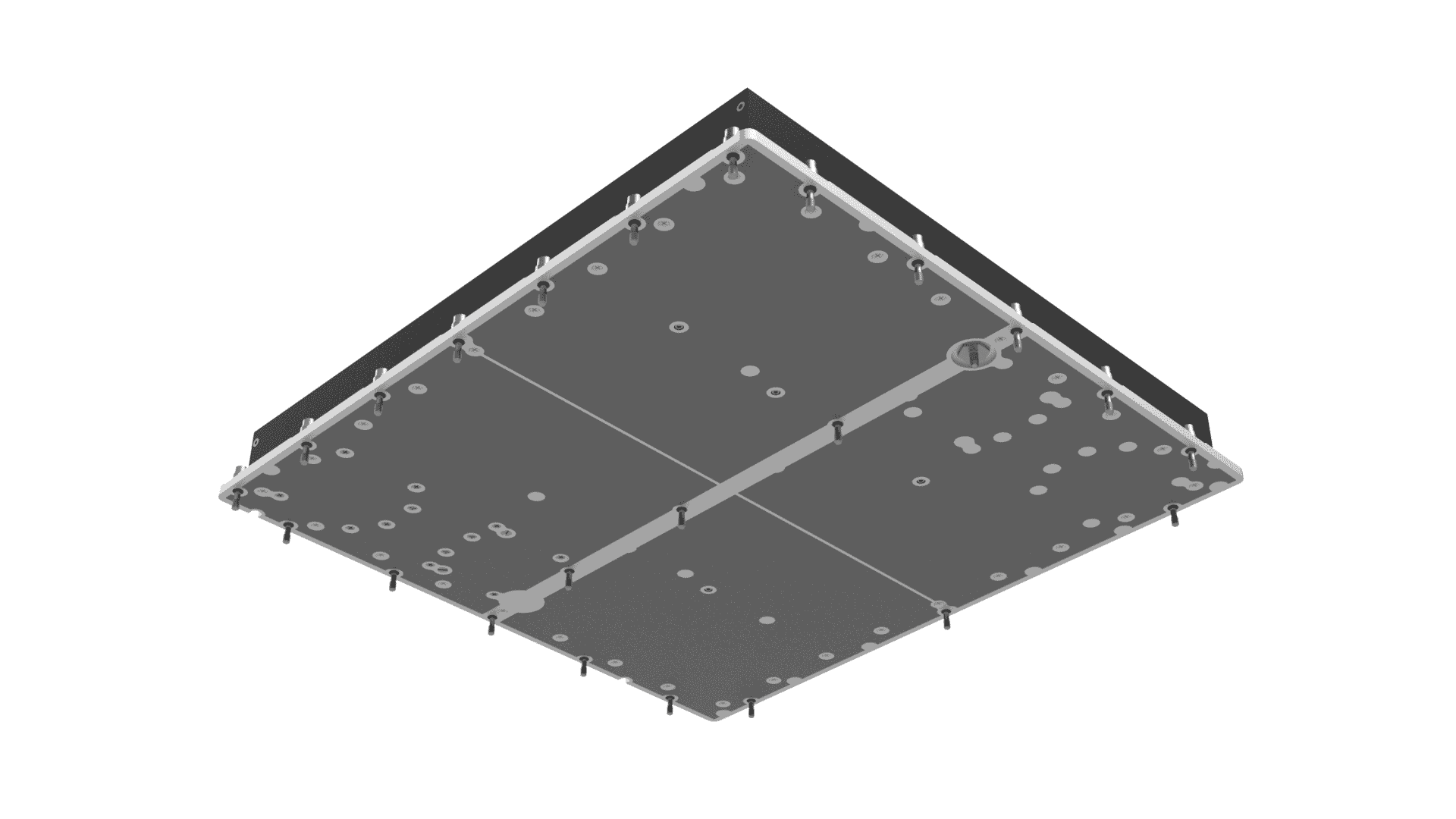

  • Fanless and conduction-cooled through baseplate
Environmental Standards
MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II -40°C to +55°C
MIL-STD-810, Vibration, Method 514, Procedure I 3 GRMS, 5-2000Hz, 60 min/axis
MIL-STD-810, Shock, Method 516, Procedures I/V 20g, 11msec–functional shock; 40g, 11msec crash hazard shock
MIL-STD-810, Humidity, Method 507 With kit
MIL-STD-810, Altitude, Method 500 12,500ft operation, 40,000ft transport
Mechanical
Height 1.9" (4.9 cm)
Width 18.1” (46.0 cm)
Depth 17.0” (43.20 cm)
Weight 25.0 lbs (11.3 kg)
Switch Features

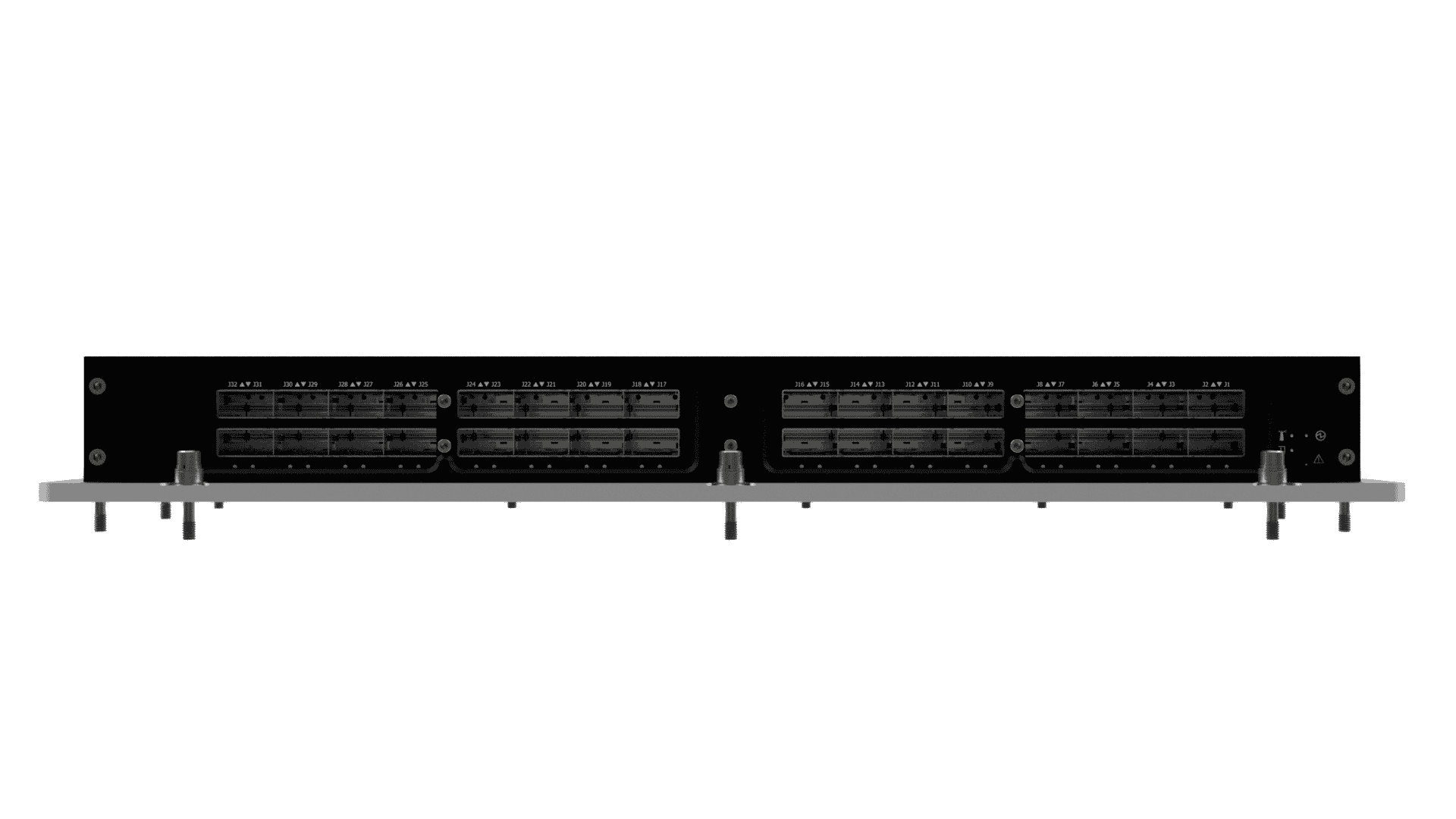

Fixed Ports: 40/50/56/100 GbE QSFP28 32
Console Port 1
Management Port 1
Latency 300nsec for 100GbE port-to-port
Base software Layer 3 supported
Throughput 6.4 Tbps, 4.76 Bpps
Mounting
Cabinet mounting
Power Supply
18-36 VDC
