RCS7450-48 Rugged SFP Switch

Field tested, failsafe and long life performance in extreme conditions. Crystal Group switches provide intelligent, scalable, edge switch technology with enterprise class functionality and mil-spec environmental performance. These switches are enterprise class, stackable LAN solutions for small and medium size applications. These 15.5” depth units are based on the Ruckus® ICX® 7450 series.  The optional NIAP certified VPN Encryption Service Module is ideal for transport of sensitive data using standards-based and interoperable implementation requiring encryption from multi-site end-to-end secure data transfer.

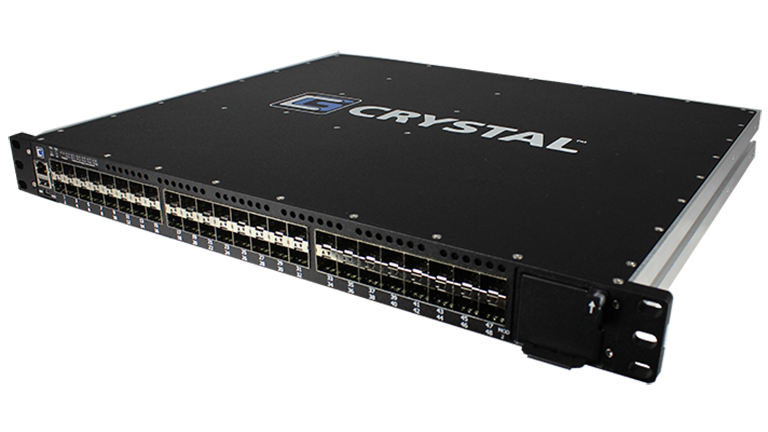

RCS7450-48 SFP Rugged Crystal Switch
  • Optional extended security, data confidentiality, and hardware-based acceleration for IP-sec
  • Layer 2+ and Layer 3 capable
  • Light weight construction from billet strain, hardened aluminum
  • Easy mounting in EIA-310 19” rack, Delrin glides, or fixed mount
  • 48 SFP port switch in 15.5” 1U chassis
  • Modular upgrade capability
  • AC/AC, AC/DC, and DC/DC 1+1 MIL-STD-461 EMC compliance
  • Optional MIL-CIRC connector I/O

You can find more information on the Crystal & Ruckus partnership by visiting the Ruggedized Switches page.

Download the features and capabilities of all the Crystal Group rugged switches.

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II -40°C to +55°C
MIL-STD-810, Vibration, Method 514, Procedure I 4.43 GRMS, 5-2000Hz, 60 min/axis -with solid state drives + vibration kits
MIL-STD-810, Shock, Method 516, Procedures I/V 20g, 11msec–functional shock; 40g, 11msec crash hazard shock
MIL-STD-810, Humidity, Method 507 with kit
MIL-STD-810, Altitude, Method 500 12,500ft operation, 40,000ft transport
Form Factor 1U
Height 1.75" (4.45cm)
Width 17.32" (43.99cm)
Depth 15.5" (39.37cm)
Weight 17.99 lbs (8.16 kgs) (depending on supply configuration)
Switch Features
10/100/1000 Mbps RJ-45 Ports -
10/100/1000 Mbps SFP Ports Forty-Eight
Modular Slots Three
1 GbE SFP Ports Four
1/10 GbE SFP/SFP+ Ports Twelve
1/10GBASE-T RJ-45 Ports Twelve
40 GbE QSFP+ Ports Two
IPv4/v6 L3 Routing With License
Stacking Bandwidth 960 Gbps
Stacking Density Twelve
Stacking Distance 10 km
Internal AC Power Supply Rating 2 X 250W
Internal DC Power Supply Rating 2 X 510W
Switching Capacity (Full Duplex) 336 Gbps
Forwarding Capacity (Full Duplex) 250 Mpps
Forced air convection via internal high reliability fans.
Fixed or Delrin Glides, mounts in standard EIA-310 rack
Power Supply
DC, EMI compliant to MIL-STD-461, CE102, RE102
AC, Auto Switching 90-246VAC, Auto-switching
DC, EMC compliant to MIL-STD-461, CE102, RE102 18-36VDC, 1+1 redundant
Non-rugged COTS 48VDC
Available with MIL-CIRC connector, for power
