Field tested, failsafe and long life performance in extreme conditions. These units are based on the Ruckus® ICX® 7750 series. These switches are enterprise class, stackable LAN solutions for small and medium size applications. Crystal Group rugged network switches provide intelligent, scalable, edge switch technology with enterprise class functionality and mil-spec environmental performance.

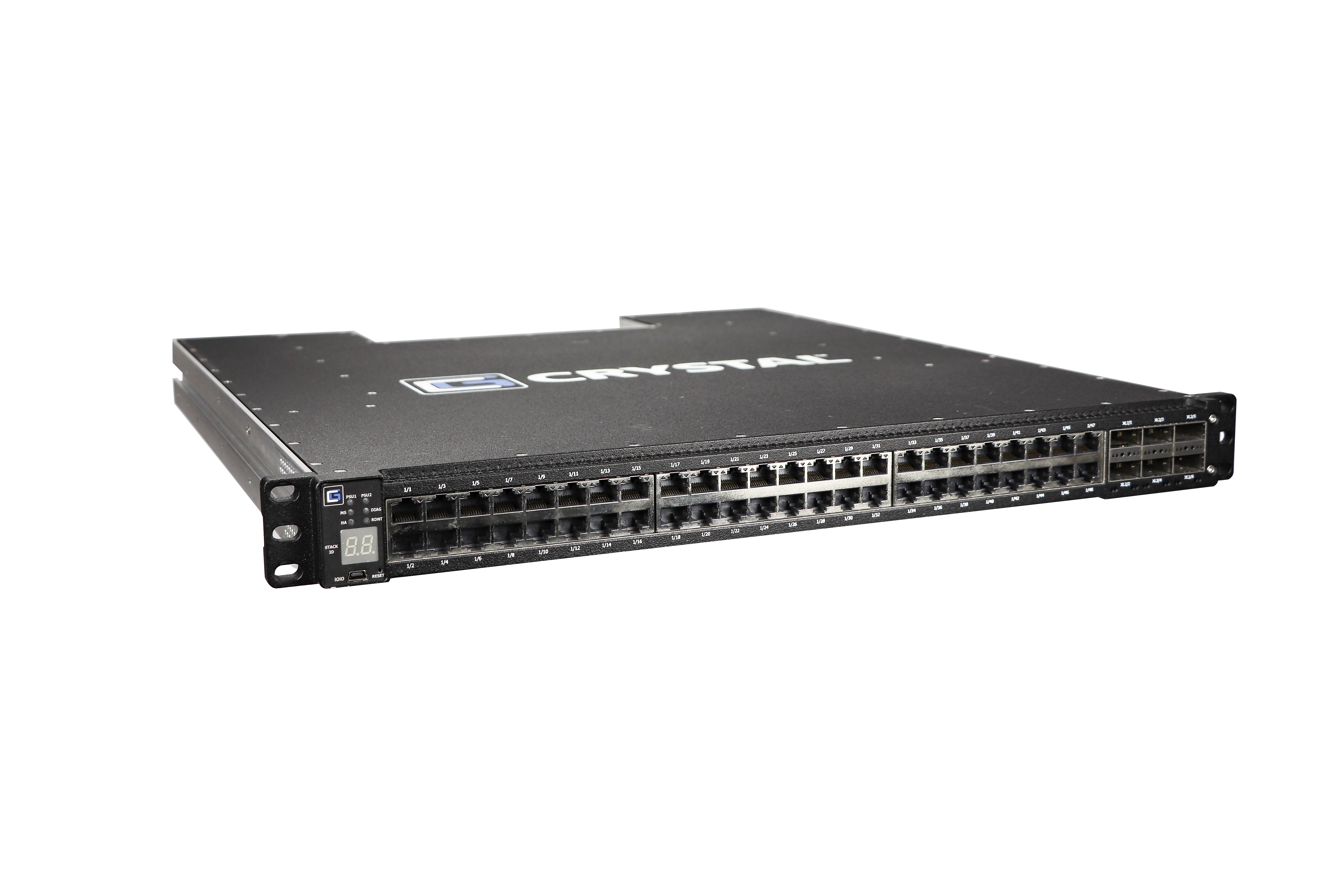

RCS7750-48C Rugged Crystal Switch
- Light weight construction from billet strain, hardened aluminum\
- Easy mounting in EIA-310 19” rack, Delrin glides, or fixed mount
- 48 port designs in 19” chassis
- Available with copper or fiber ports
- Layer 2+ and Layer 3 capable
- AC/AC, AC/DC, and DC/DC 1+1, FCC and MIL-STD-461 EMC compliant
- Tested to MIL-STD-810
- Operational Temperature, Method 501/502 Procedure I/II: -40°C to +55°C
- Vibration, Method 514, Procedure I: 4.63 GRMS, 5-2000Hz, 60 min/axis -with solid state drives + vibration kits
- Shock, Method 516, Procedures I/V: 20g, 11msec–functional shock; 40g, 11msec crash hazard shock
- Altitude, Method 500: 12,500ft operation, 40,000ft transport
- Humidity, Method 507: With kit
Download the features and capabilities of all the Crystal Group rugged switches.
Environmental Standards
| MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II | -40°C to +55°C |
| MIL-STD-810, Vibration, Method 514, Procedure I | 4.63 GRMS, 5-2000Hz, 60 min/axis -with solid state drives + vibration kits |
| MIL-STD-810, Shock, Method 516, Procedures I/V | 20g, 11msec–functional shock; 40g, 11msec crash hazard shock |
| MIL-STD-810, Humidity, Method 507, Procedure II | with kit |
| MIL-STD-810, Altitude, Method 500 | 12,500ft operation, 40,000ft transport |
Mechanical
| Form Factor | 1U |
| Height | 1.75" (4.45cm) |
| Width | 17.32" (43.99cm) |
| Depth | 19" (48.26cm) or 17" (43.18cm) |
| Weight | 19.98 - 26 lbs (9.06 - 11.79 kgs) (depending on power supply configuration) |
Switch Features
| Fixed Ports: 1/10 GbE SFP/SFP+ | - |
| Fixed Ports: 1/10 GBASE-T RJ45 | Forty-Eight |
| Fixed Ports: 40 GbE QSFP+ | Six |
| Optional Expansion Ports: 40 GbE QSFP+ | Six |
| Console Port | One |
| Out of band management port | One |
| 1/10 Gbe SFP/SFP+ Ports (Uplink/Stacking) | - |
| Aggregated Stacking Bandwidth | 5.76 Tbps |
| Maximum units per stack | Twelve |
| Dynamic Pack Buffer Size | 12.2 MB |
| Maximum Stacking Distance | 10 KM |
| Latency | 550ns 40 GbE-40GbE/ 2.9, US 10 Gbe-10GbE w/ license |
| Base Software | Layer 3 with static routes, upgradable to full L3 w/ license |
| Switching Capacity (Full Duplex) | 1.92 Tbps |
| Forwarding Capacity (Full Duplex) | 1.44 Bpps |
Cooling
| Forced air convection via internal high reliability fans |
Mounting
| Fixed or Delrin Glides, mounts in standard EIA-310 rack |

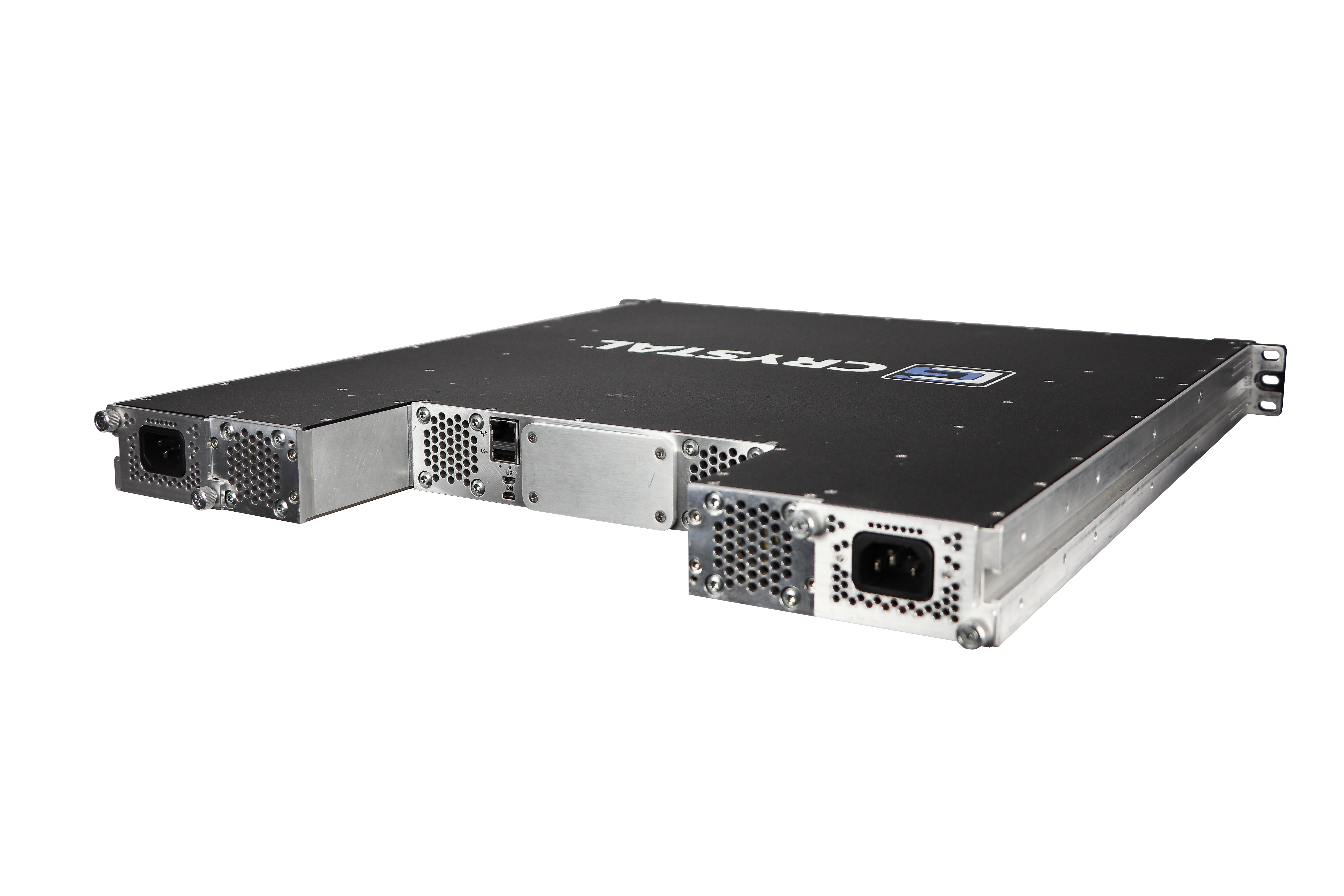

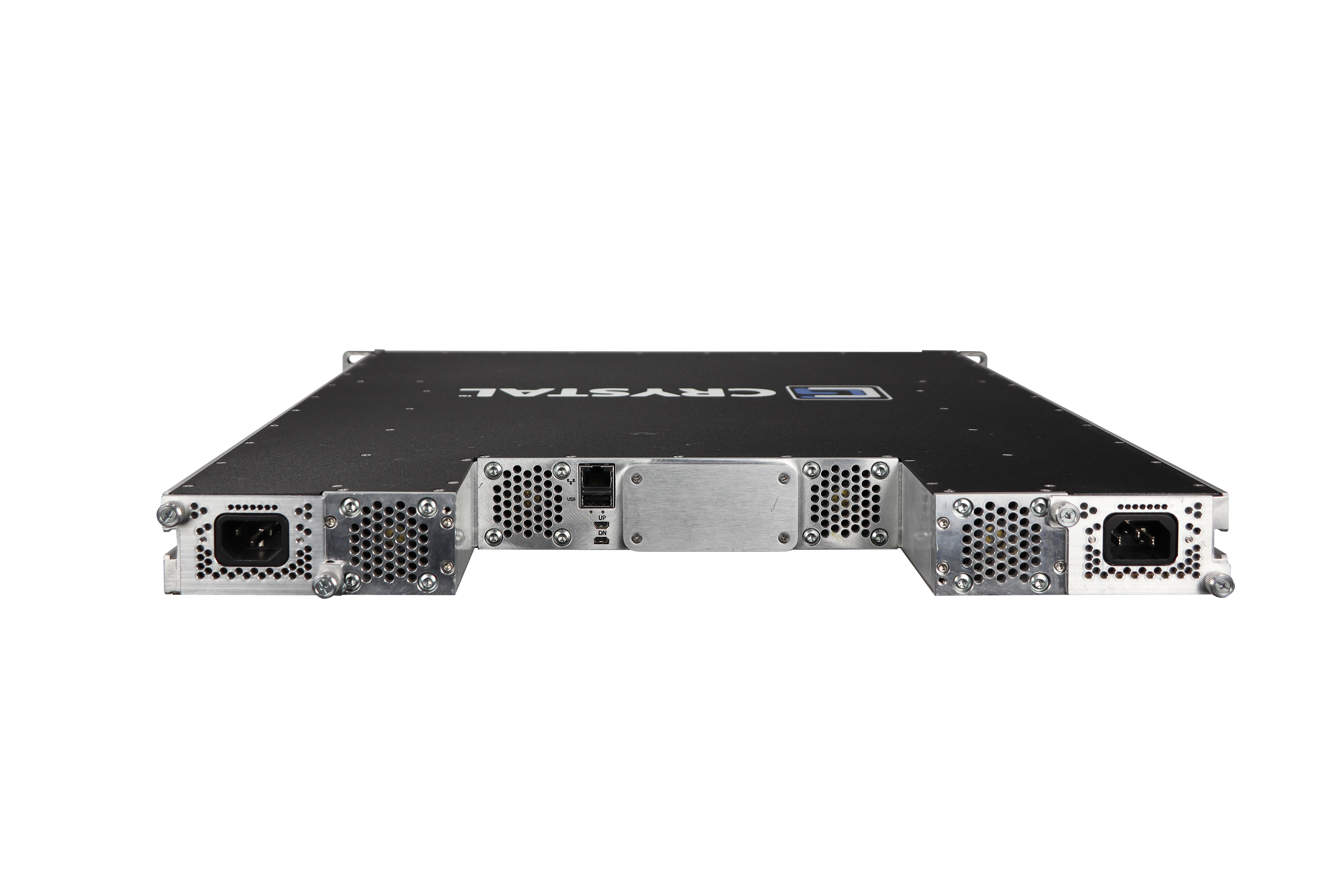

Dual Power Supply
| AC, FCC compliant, Auto Switching 1+1 | 100-240 VAC, 50/60 Hz, 500 W |
| 1U DC, FCC compliant (1+1) | 43-53 VDC |
| 2U DC, FCC compliant (1+1) | 18-36 VDC |
