RCS7750-48CM Rugged Switch

Field tested, failsafe and long life performance in extreme conditions. Crystal switches provide intelligent, scalable, edge switch technology with enterprise class functionality and mil-spec environmental performance.  These units are based on the Ruckus® ICX® 7750 series. These switches are enterprise class, stackable LAN solutions for small and medium size applications.

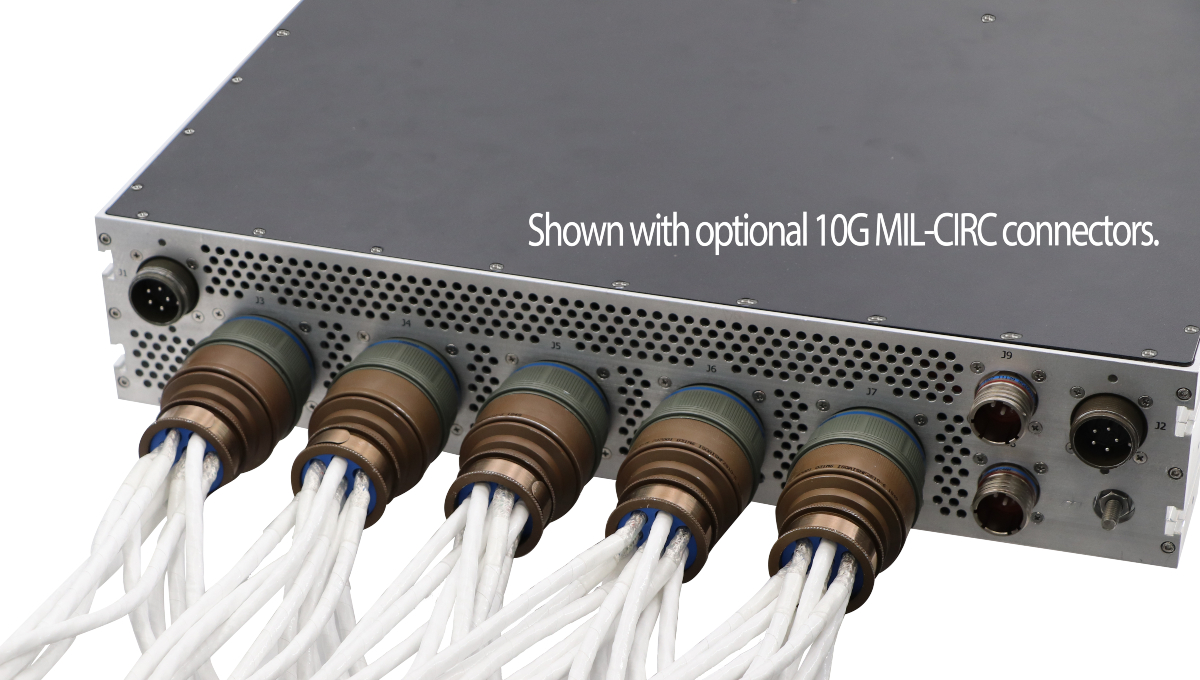

RCS7750-48CM Rugged Crystal Switch
  • Light weight construction from billet strain, hardened aluminum
  • Easy mounting in EIA-310 19” rack, Delrin glides, or fixed mount
  • 48 port designs in 19” chassis
  • Available with copper or fiber ports
  • Layer 2+ and Layer 3 capable
  • AC/AC, AC/DC, and DC/DC 1+1, FCC and MIL-STD-461 EMC compliant

You can find more information on the Crystal Group & Ruckus partnership by visiting the Ruggedized Switches page.

Download the features and capabilities of all the Crystal Group rugged switches.

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II -40°C to +55°C
MIL-STD-810, Vibration, Method 514, Procedure I 4.63 GRMS, 5-2000Hz, 60 min/axis -with solid state drives + vibration kits
MIL-STD-810, Shock, Method 516, Procedures I/V 20g, 11msec–functional shock; 40g, 11msec crash hazard shock
MIL-STD-810, Humidity, Method 507, Procedure II with kit
MIL-STD-810, Altitude, Method 500 12,500ft operation, 40,000ft transport
Form Factor 2U
Height 3.5" (8.89cm)
Width 17.32" (43.99cm)
Depth 22" (55.88cm)
Weight 33 lbs (14.97 kgs) (depending on power supply configuration)
Switch Features
Fixed Ports: 1/10 GbE SFP/SFP+ -
Fixed Ports: 1/10 GBASE-T RJ45 Forty-Eight
Fixed Ports: 40 GbE QSFP+ Six
Optional Expansion Ports: 40 GbE QSFP+ Six
Console Port One
Out of band management port One
1/10 Gbe SFP/SFP+ Ports (Uplink/Stacking) -
Aggregated Stacking Bandwidth 5.76 Tbps
Maximum units per stack Twelve
Dynamic Pack Buffer Size 12.2 MB
Maximum Stacking Distance 10 KM
Latency 550ns 40 GbE-40GbE/ 2.9, US 10 Gbe-10GbE w/ license
Base Software Layer 3 with static routes, upgradable to full L3 w/ license
Switching Capacity (Full Duplex) 1.92 Tbps
Forwarding Capacity (Full Duplex) 1.44 Bpps
Forced air convection via internal high reliability fans
Fixed or Delrin Glides, mounts in standard EIA-310 rack
Dual Power Supply
DC, FCC compliant 1+1 18-36 VDC
Export Compliance
ECCN: 5A991 | Classification is dependent on configuration and is subject to change. Please contact your Program Manager to receive the classification of your product.
Download Spec Sheet
