Form factor | 1U | 1U | 1U | 1U |
Width | 17.46” (433.5 mm) | 17.46” (433.5 mm) | 17.46” (433.5 mm) | 17.46” (433.5 mm) |
Depth | 20.8” (528.32 mm) | 20.8” (528.32 mm) | 20.8” (528.32 mm) | 20.8” (528.32 mm) |
Weight | 17.5-20.5 lbs (9.3-7.94 kg) | 17.5-20.5 lbs (9.3-7.94 kg) | 17.5-20.5 lbs (9.3-7.94 kg) | 17.5-20.5 lbs (9.3-7.94 kg) |
Cooling | Forced air convection via internal, high-reliability fans
| Forced air convection via internal, high-reliability fans
| Forced air convection via internal, high-reliability fans
| Forced air convection via internal, high-reliability fans
|
Mounting | Glides or fixed, mounts in standard EIA-310 rack | Glides or fixed, mounts in standard EIA-310 rack | Glides or fixed, mounts in standard EIA-310 rack | Glides or fixed, mounts in standard EIA-310 rack |

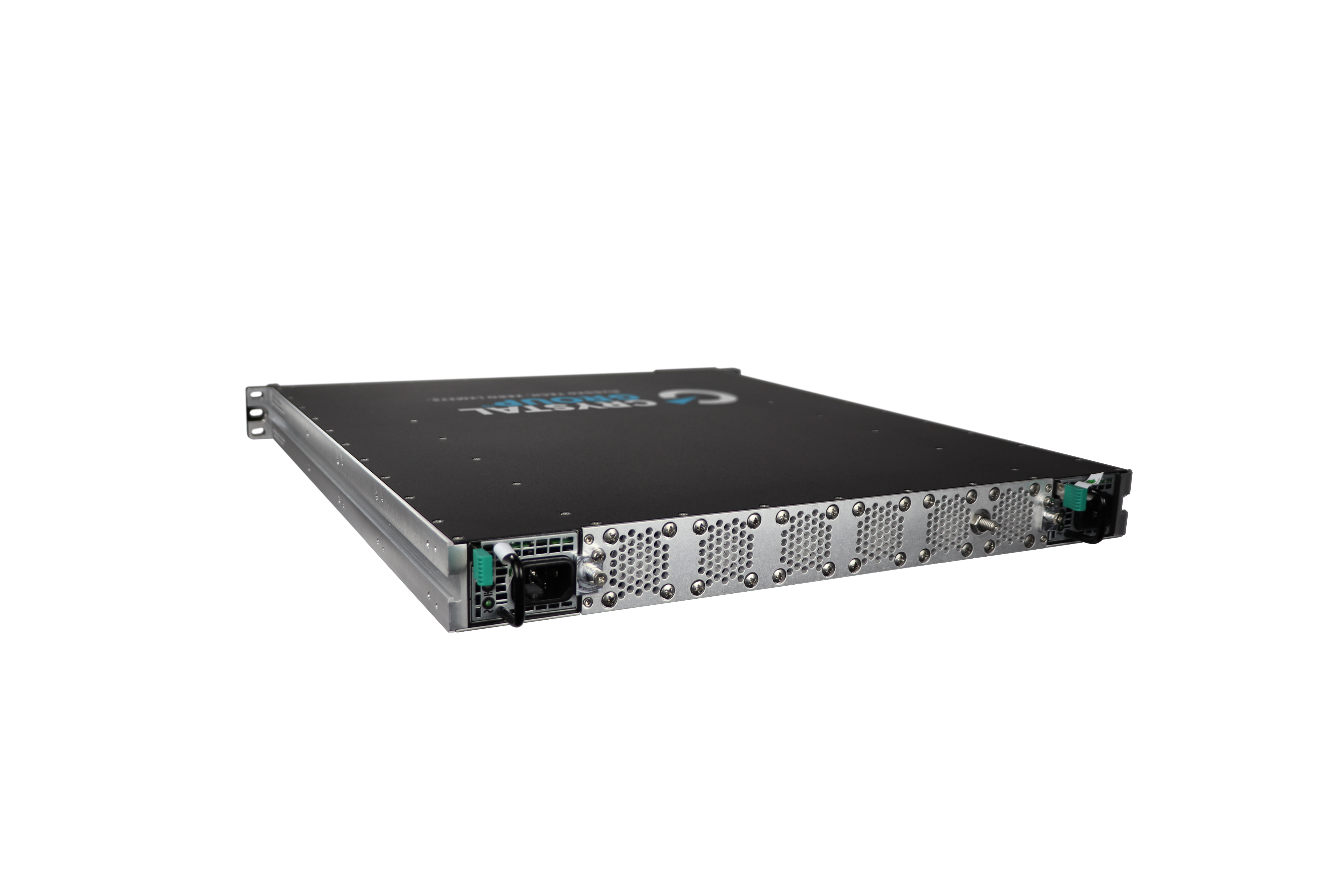

Power supply | AC: 100-240VAC, 50-60 Hz, auto-switching, single or 1+1 redundant, EMI compliant to MIL-STD-461, CE102, RE102
DC: 18-36VDC, single or 1+1 redundant, EMI compliant to MIL-STD-461, CE102, RE102
DC: 18-36VDC, single or 1+1 redundant, EMI compliant to MIL-STD-461, CE102, RE102 | AC: 100-240VAC, 50-60 Hz, auto-switching, single or 1+1 redundant, EMI compliant to MIL-STD-461, CE102, RE102
DC: 18-36VDC, single or 1+1 redundant, EMI compliant to MIL-STD-461, CE102, RE102
DC: 18-36VDC, single or 1+1 redundant, EMI compliant to MIL-STD-461, CE102, RE102 | AC: 100-240VAC, 50-60 Hz, auto-switching, single or 1+1 redundant, EMI compliant to MIL-STD-461, CE102, RE102
DC: 18-36VDC, single or 1+1 redundant, EMI compliant to MIL-STD-461, CE102, RE102
DC: 18-36VDC, single or 1+1 redundant, EMI compliant to MIL-STD-461, CE102, RE102 | AC: 100-240VAC, 50-60 Hz, auto-switching, single or 1+1 redundant, EMI compliant to MIL-STD-461, CE102, RE102
DC: 18-36VDC, single or 1+1 redundant, EMI compliant to MIL-STD-461, CE102, RE102
DC: 18-36VDC, single or 1+1 redundant, EMI compliant to MIL-STD-461, CE102, RE102 |

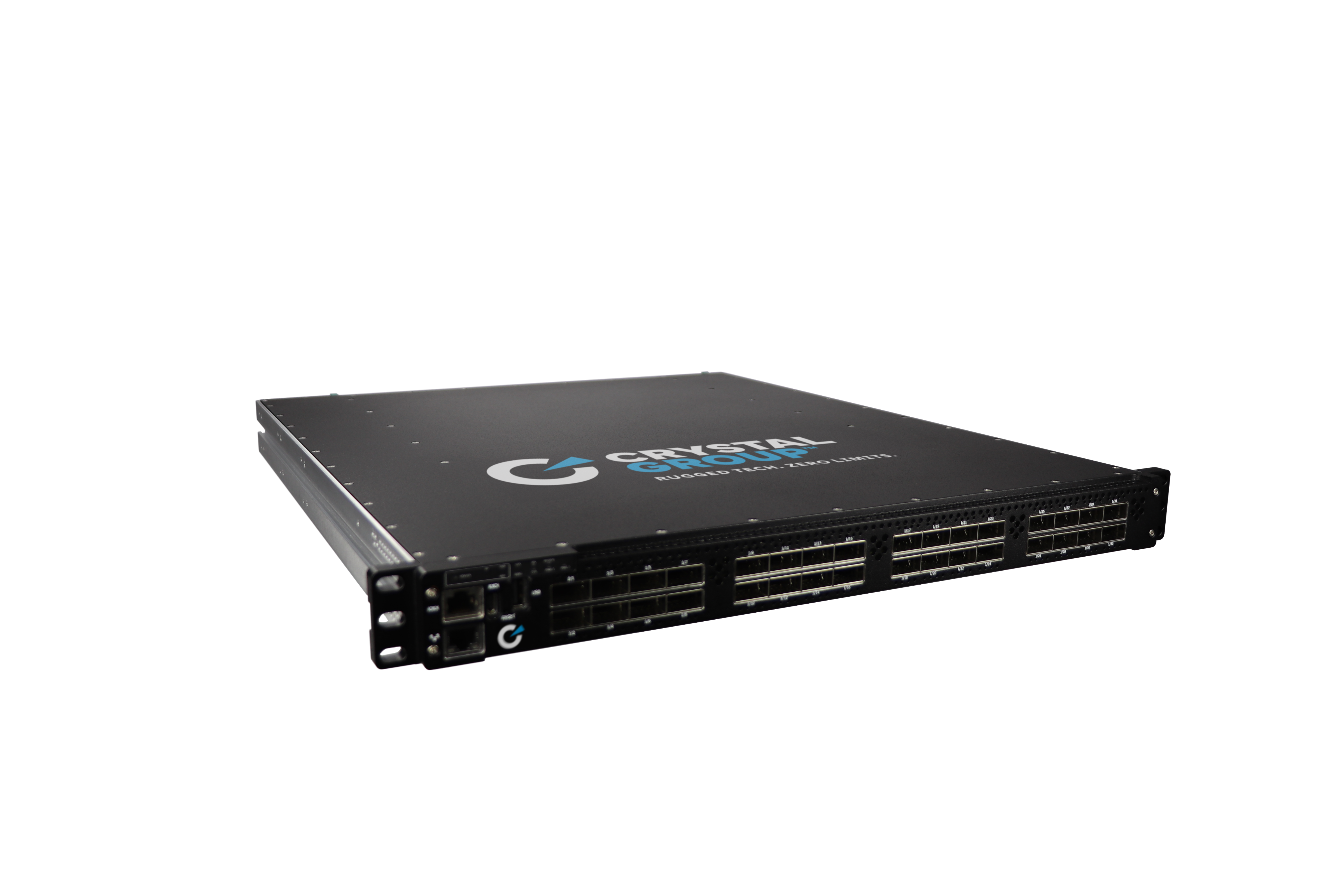

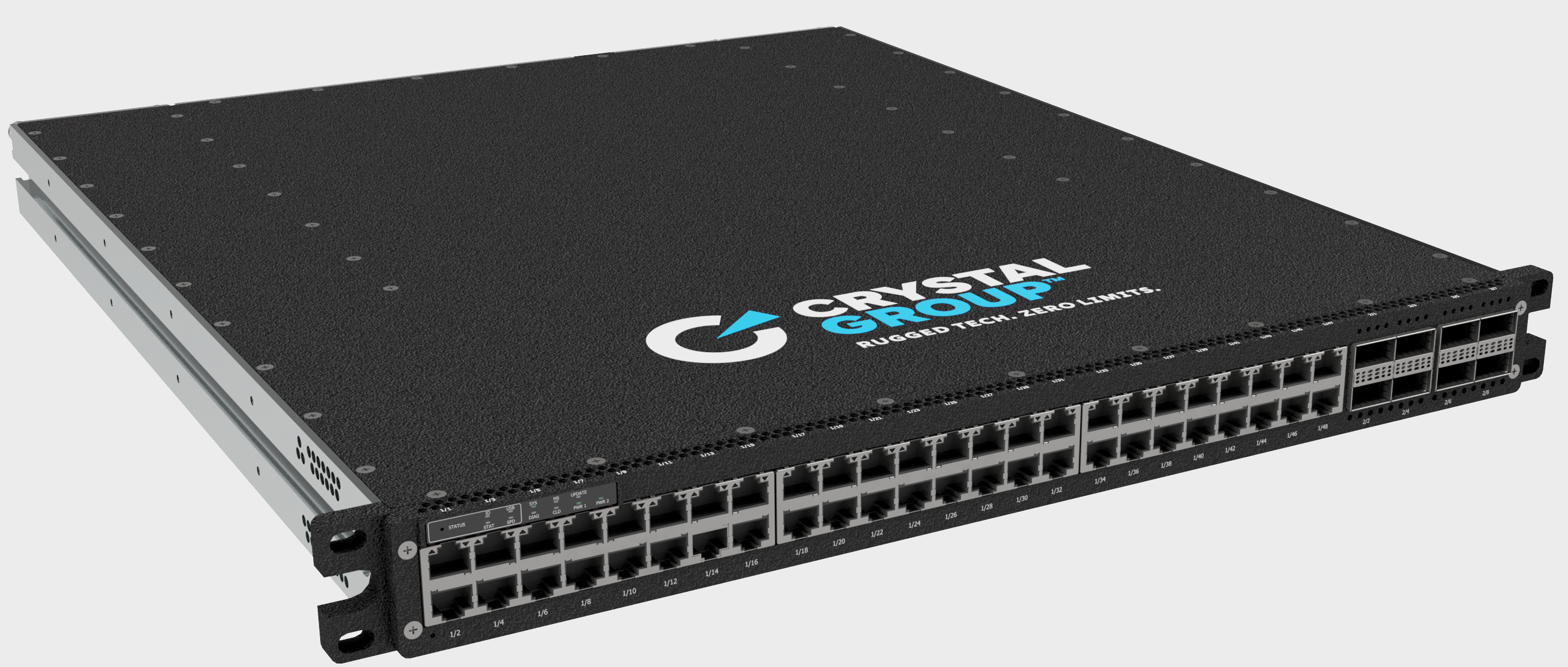

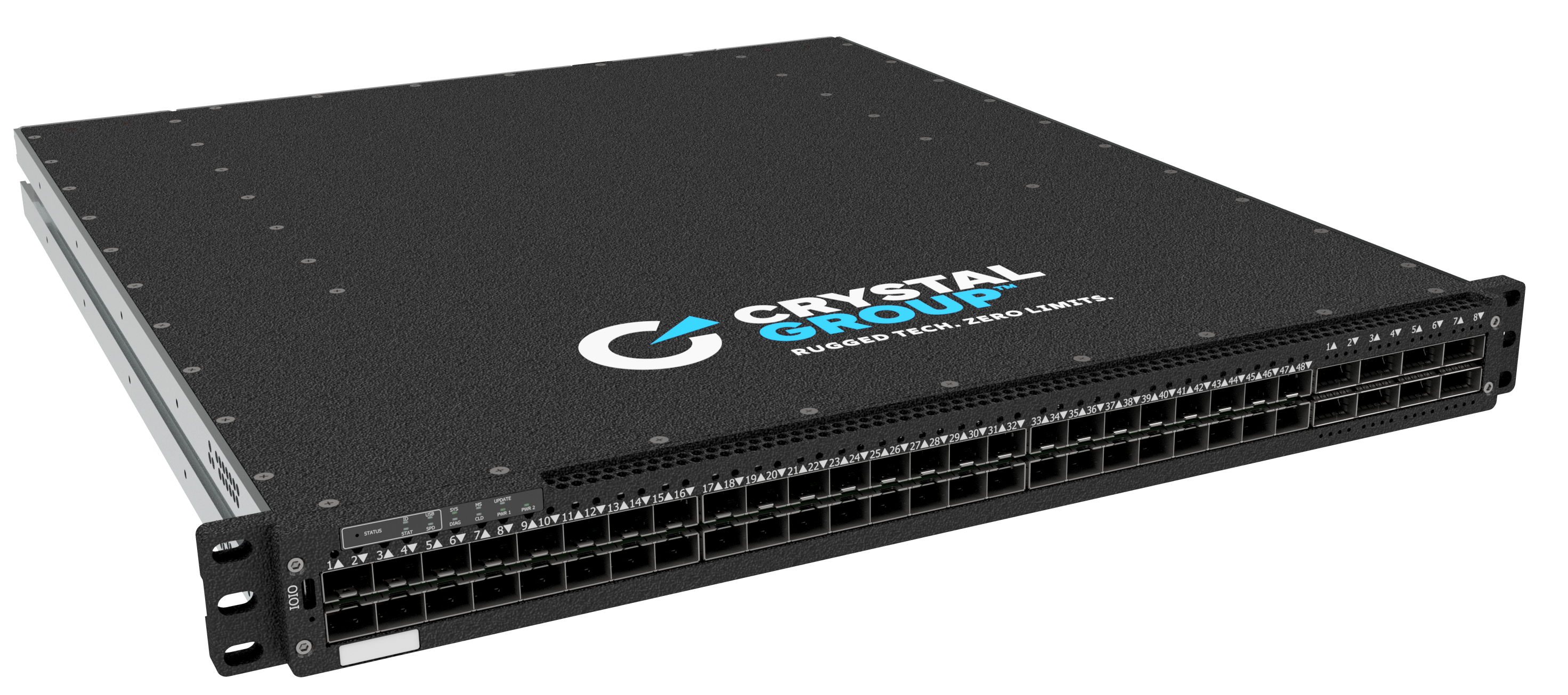

Downlink ports | 32 40/100Gbps QSFP28 (up to 8 usable for stacking) | 48 1/10Gbps SFP+ | 48 1/10/25Gbps SFP28 | 48 1/10Gbps 10GBASE-T RJ45 |
Layer 3 Routing | Basic static routing, RIP. Add on license enables advanced L3 routing (OSPF, BGP, VRRP, PIM, PBR, VRF features) | Basic static routing, RIP. Add on license enables advanced L3 routing (OSPF, BGP, VRRP, PIM, PBR, VRF features) | Basic static routing, RIP. Add on license enables advanced L3 routing (OSPF, BGP, VRRP, PIM, PBR, VRF features) | Basic static routing, RIP. Add on license enables advanced L3 routing (OSPF, BGP, VRRP, PIM, PBR, VRF features) |
Aggregated Stacking Bandwidth | 9.6 Tbps | 9.6 Tbps | 9.6 Tbps | 9.6 Tbps |
Stacking/Uplink Ports | 8 40/100Gbps QSFP28 | 8 40/100Gbps QSFP28 | 8 40/100Gbps QSFP28 | 8 40/100Gbps QSFP28 |
Stacking Density | 12 | 12 | 12 | 12 |
Stacking Distance | 10 km | 10 km | 10 km | 10 km |
Switching Capacity (Full Duplex) | 6.4 Tbps | 2.56 Tbps | 4.0 Tbps | 2.56 Tpbs |
Forwarding Capacity (Full Duplex) | 2.0 Bpps | 1.9 Bpps | 2.0 Bpps | 1.9 Bpps |
