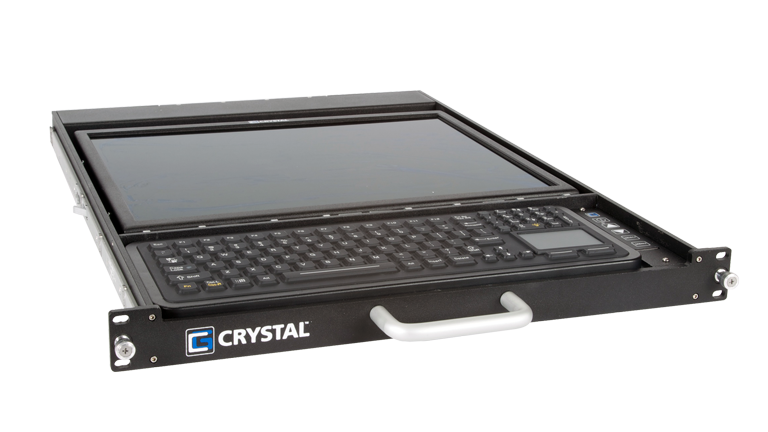

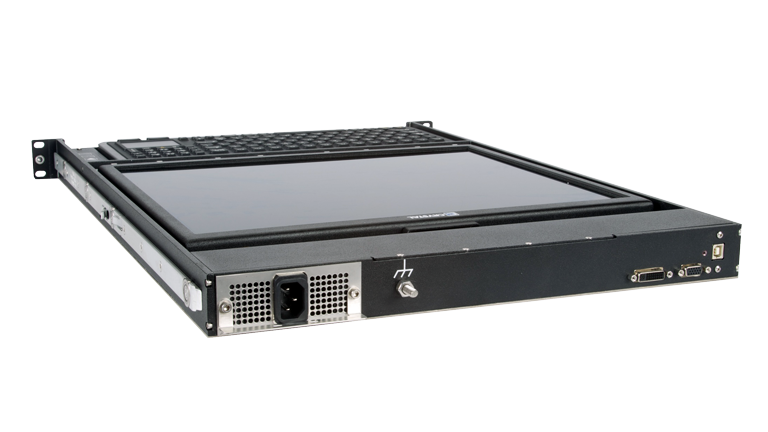

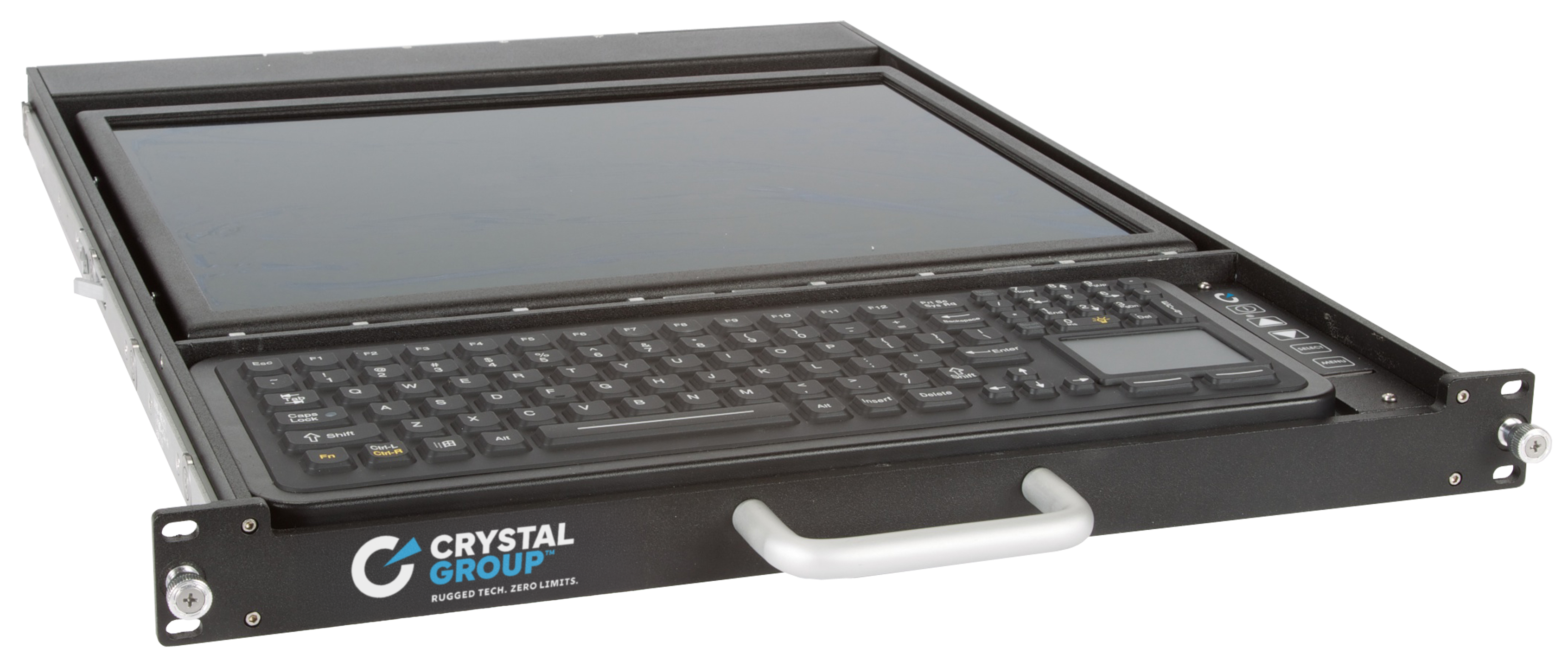

RD1119 Rugged 1U 19” Display

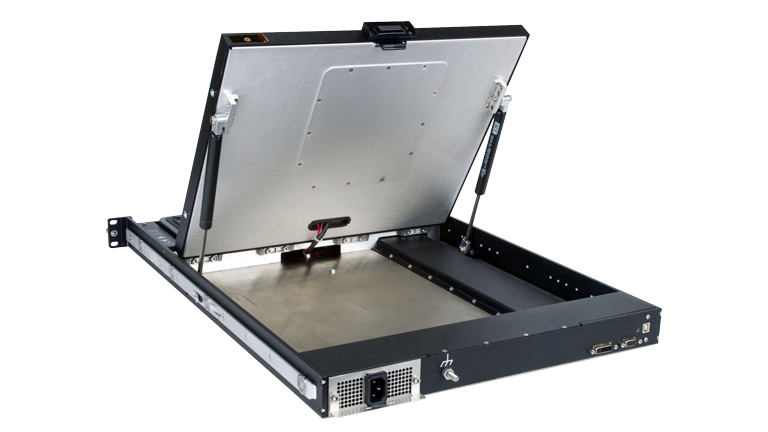

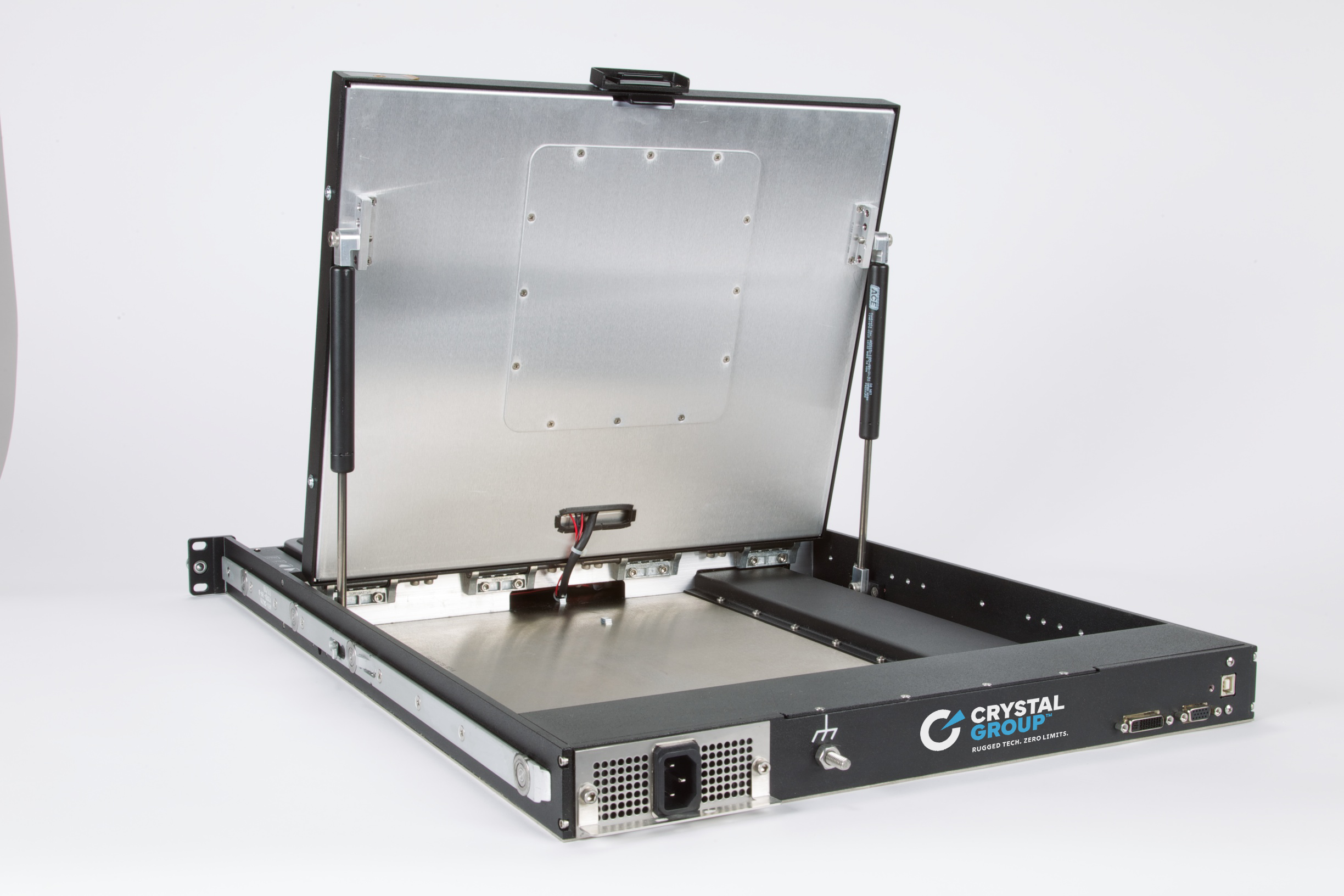

Field tested, failsafe and long life performance in extreme conditions. With an all aluminum construction weighing in at 22lbs., the RD1119 provides a small package with big capabilities. Unique folding design provides a 1U 19” LCD in a user centric attitude for ease of use in a compact and rugged package.

Features

RD1119 Rugged 1U 19″ Display

• All aluminum construction – 22 lbs. depending on content
• Easily mounted –1U drawer mount on Accuride slides or Jonathan rails
• Rugged 19″ display in EIA 1U drawer
• Ultra wide viewing angle +/- 85V/H
• Sealed iKey keyboard
• SXGA resolution, 1000 nit, low reflectance, high ambient contrast/full color
• High brightness backlight and low reflectance cover glass yield sunlight readability
• CR 1500:1

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II

-15°C** to +55°C

** LCD may be impacted by temperature, resulting in LC response time to be less than 250 ms 10/90 at -15°C.

MIL-STD-810, Storage, Method 501, Procedure I/II

-55°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

3 GRMS, 5-2000Hz, 75 min/axis, 3 axes

MIL-S-901, Grade B
MIL-S-901, Grade A Stowed
Mechanical
Form Factor
1U
Height
1.75" (4.45cm)
Width
17.5" (44.45cm) EIA-310 Rack Compliant
Depth
24" (60.96cm)
Weight:
22 lbs ( 9.98 kgs )
LCD
Manufacturer and Type

Sharp 19” Diagonal, TFT TN, normally black AMVA

Resolution

SXGA 5:4 1280 X 1024

Active Area

376.3 mm (H) x 301.1 mm (V)

Pixel Pitch

0.294 x 0.294

Pixel Configuration

RGB Vertical Stripe

Color Palette

16.2 M colors (RBG 8-bit)

Interface
DVI and/or VGA
Keyboard
Sealed iKey Keyboard with touchpad - optional non-sealed. 10-Key Numeric Pad; 12 function keys
Mounting
1U drawer mount on Accuride Slides or Jonathan® Rails
Power Supply
120/240 VAC w/PFC
Optics
Viewing Angle

+/- 85V, +/- 85H minimum

Luminance

1000 nits normal to display surface (standard configuration)

Contrast Ratio

CR 1500: 1 normal, type

NTSC Color Saturation

72%

Fully laminate 3mm Cover glass with HEA surface treatment
Export Compliance
ECCN: 4A994 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.

Deployments

This product is ideal for the following Industrial applications:

Oil & Gas

Reports, Guides & Drawings

RD1119 Display - Outline Installation Drawing
RD1119 19" Display Hardware Guide
TST-00141 RD1119 Display June 2012 MIL-STD-810 Thermal In-House Test Report
TST-00018 RD1119 Display November 2013 IEC & RTCA-DO-160 Test Report
TST-00038 RD1119 Display December 2012 MIL-STD-810 Shock & Vibration Test Report Summary
