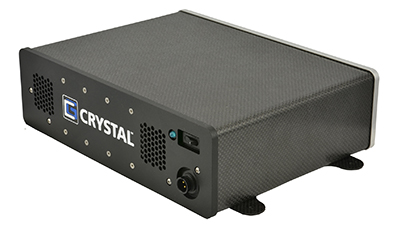

RE0412 Rugged Embedded Computer

Field tested, failsafe and long life performance in extreme conditions. Feature rich Crystal Group Embedded Computer Systems are powerful, compact, and rugged. Completely and easily configurable, the Embedded product line boasts advanced thermal management and a carbon fiber chassis, are field-tested to withstand shock and vibration, extended temperature ranges, harsh elements and harsh environments. Crystal Group Embedded Computer Systems follow the Intel® Roadmap to ensure access to the latest, powerful Intel chipsets and processors.

Features

RE0412 Rugged Embedded Computer

• Compact construction – 4.5 lbs. maximum weight with expansion
• Versatility with two (2) 2.5” SSD, non-removable
• Offering a DC power solution, with optional AC supply brick available
• Up to 2 TB of internal storage
• Expandable with one (1) PCIe x16 low
profile slot
• Wide range input power ideal for UAV/UGV applications

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II

-20°C to +55°C with rotational HDD, -40°C to +55°C w/ solid state HDD

MIL-STD-810, Storage, Method 501, Procedure I/II

-55°C to +85°C

MIL-STD-810, Vibration, Method 514, Procedure I

5.56 G, 5-2000Hz, 60 min/axis, 3 axes

MIL-STD-810, Shock, Method 516, Procedures I

20g

MIL-S-901, Grade A

With solid state drives + shock kits

Electromagnetic Compatibility Standards
Some standards may require an internal kit
AC, MIL-STD-461, RE102, CE102 compliant
DC, MIL-STD-461, RE102, CE102 compliant
IEC 61850-3
IEEE 1613
Emissions

Radiated FCC Part 15. 109, Class A; conducted FCC Part 15. 107, Class A

Testing with solid state drives
Mechanical
Height
3.13" (7.95cm)
Width
10.76" (27.33cm)
Depth
8.63" (21.92cm)
Weight:
4.5 lbs ( 2.04 kgs ) with graphics card
CPU
3rd Generation Core i7 Architecture
Internal Expansion Slots
PCIe x16 low profile
Removable Drives and I/O
Up to two (2) 2.5" HDD or SSD
Memory
- 16 GB DDR3
Cooling

Two (2) high speed fans thermostatically controlled

Power Supply
Option 1

120/240 VAC w/PFC with optional power brick (rugged available)

Option 2

150W, 18-36 VDC

System Board

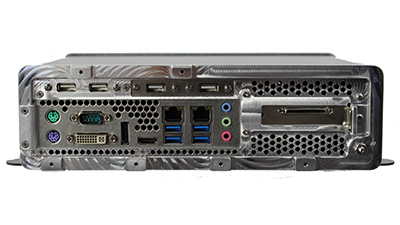

AAEON® mini-ITX motherboard, RPGA988B socket, 2X 1G LAN, 6XUSB 2.0, 4X USB 3.0, DVI-I, 2X SATA 6G, 2X SATA 3G, HDMI, VGA, Audio
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.

Deployments

This product is currently deployed on the following program:

Rescue 21 Alaska for US Coast Guard

Reports, Guides & Drawings

TST-00035 RE0412 March 2012 MIL-STD-461 EMC Test Report
TST-00041 RE0412 March 2012 MIL-STD-810 Test Report
RE0412 Hardware Guide
RE0412 Rugged Embedded Computer(mobile version)- Outline Installation Drawing
TST-00036 RE0412 September 2014 Thermal In-House Test Report Summary.
