Field tested, fail-safe and long-life performance in extreme conditions. Feature-rich Crystal Group embedded computer systems are powerful, compact, and rugged. Easily configurable to meet specific customer requirements, the embedded product line boasts advanced thermal management and carbon fiber chassis field tested to withstand shock and vibration, extended temperature ranges, harsh elements, and extreme environments. Our embedded computer systems follow the Intel® roadmap to ensure access to the latest, most powerful Intel chipsets and processors.
RE1539 Features
- Compact construction – 6”H x 15.4” W x 9.6”D footprint
- Less than 12 lbs
- Up to 16 Intel Xeon® D-21xx processor cores
- Up to three NVMe SSDs or six SATA SSDs
- 18-36 or 36-72 VDC power input
- Up to 256GB DDR4 memory
- Bulkhead, tray, or floor mounting options
- Expandable with multiple PCIe, mPCIe, and M.2 interfaces
- Four 1Gb Ethernet, two 10Gb Ethernet, two SFP+
Environmental Standards
| Testing in Progress | |
| Operational temperature | -40°C to +60°C |
| Storage | -40°C to +85°C |
| Humidity | 240 hours with humidity kit |
| Altitude | 12,500ft operation, 40,000ft transport |
| Vibration | 5.5G, 5-2,000Hz, 60 min/axis, 3 axis |
Electromagnetic Compatibility Standards
| Some standards may require an internal kit | |
| MIL-STD-461, CE102, RE102 |
Mechanical
| Height | 6" (15.24cm) |
| Width | 15.4" (39.11cm) |
| Depth | 9.6" (24.38cm) excluding connectors |
| Weight | 10.3 lbs (4.63 kgs) - 12 lbs (5.4 kg) |
| Power | 100-150W with select configurations; CPU dependent |
Expansion Slots
| Two PCIe 3.0 full height, half length expansion slots | |
| One mini-PCIe | |
| One M.2 M-key 2280 | |
| One M.2 B-key 3042 |
External Bays
| Standard | Six removable 7mm SATA 2.5” SSDs |
| Optional | Three removable 15mm NVME 2.5” SSDs |
Cooling

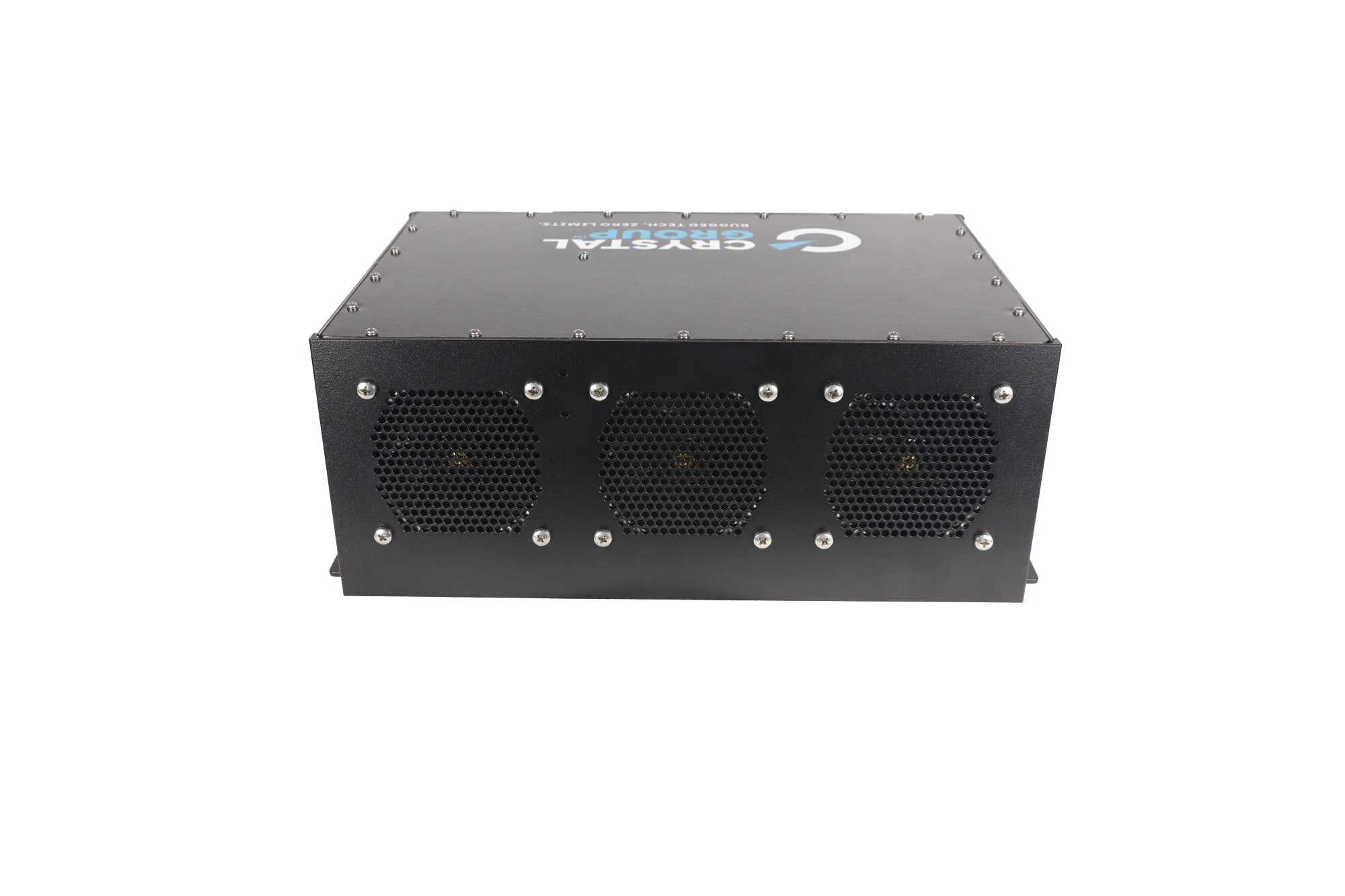

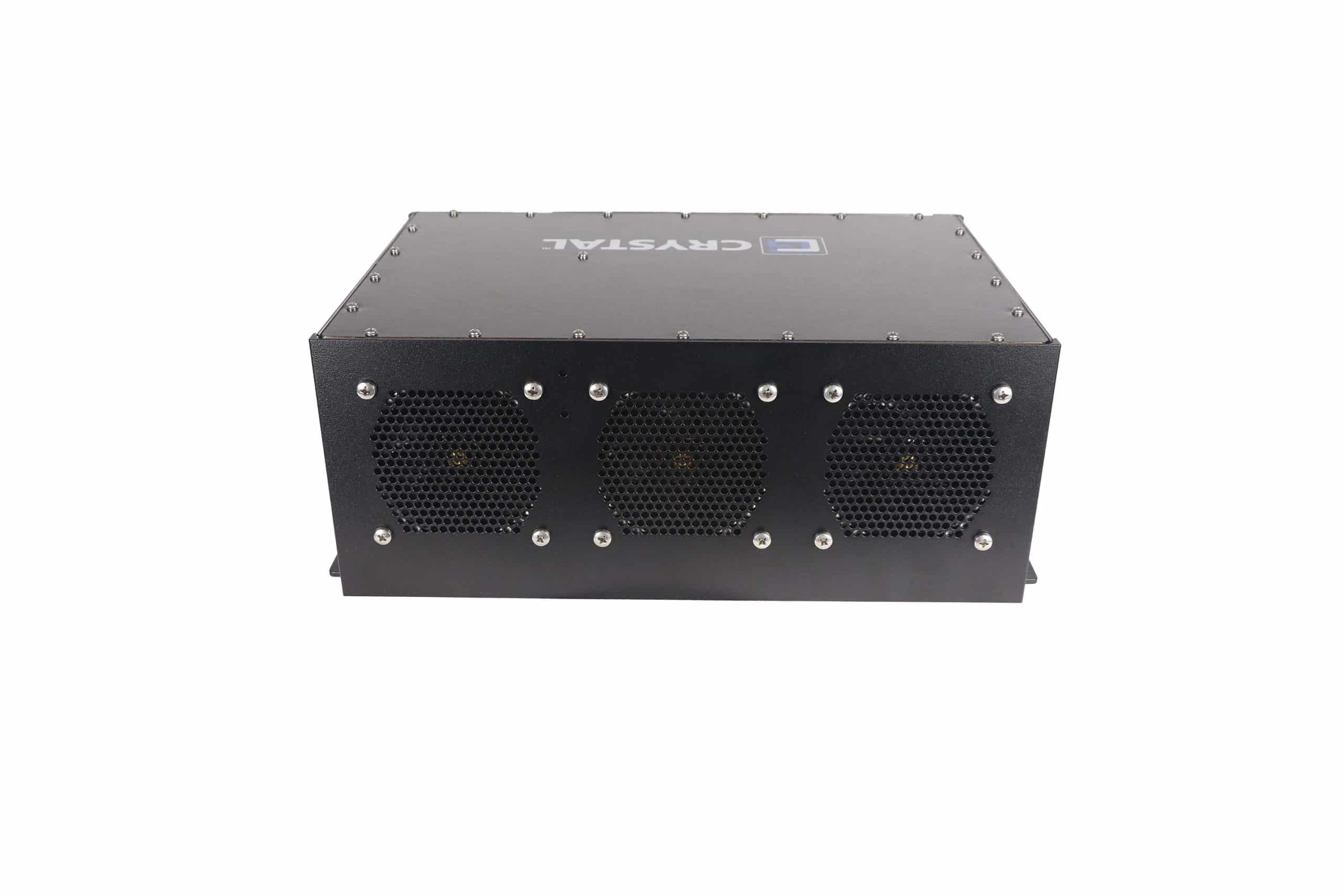

| Air cooled via three high-durability 92mm chassis fans |
Mounting
| Tray, bulkhead, or floor mounted with optional mounting kits |
Power Supply
| 200W 18-36 VDC | |
| 350W 36-72 VDC |
System Board
| Option 1 | X11SDV-4C-TP8F |
| Option 2 | X11SDV-8C-TP8F |
| Option 3 | X11SDV-12C-TP8F |
| Option 4 | X11SDV-16C-TP8F |
Software Capability
| Windows® 10, Server 2019®, RHEL® 6.8/7.1/7.2, Ubuntu® 18/20, or CentOS® 7.1 |
Configurable I/O
| NVIDIA RTX™ A2000 GPU | |
| CAN bus FD | |
| Intel Movidius Myriad X AI module | |
| WiFi / LTE / GPS | |
| 802.3af PoE |
