Field tested, failsafe and long-life performance in extreme conditions. Feature-rich Crystal Group embedded computer systems are powerful, compact, and rugged. Designed for applications requiring a small footprint with huge GPU capabilities, the RE1739 is ideal for signal processing and autonomous vehicle sensor processing and inference, the system is light weight and small. Complete with an integrated DC power supply designed for low-voltage vehicular applications. Completely and easily configurable, our embedded product line boasts advanced thermal
management in a billet aluminum chassis for rugged compute performance. Crystal Group embedded computer systems follow leading-edge CPU and GPU roadmaps to ensure access to the latest, most powerful silicon chipsets and processors.
RE1739 Features
- Compact construction – 6.1” (15.3cm)H x 16.3”(41.4cm)W x 13”(33.cm)D

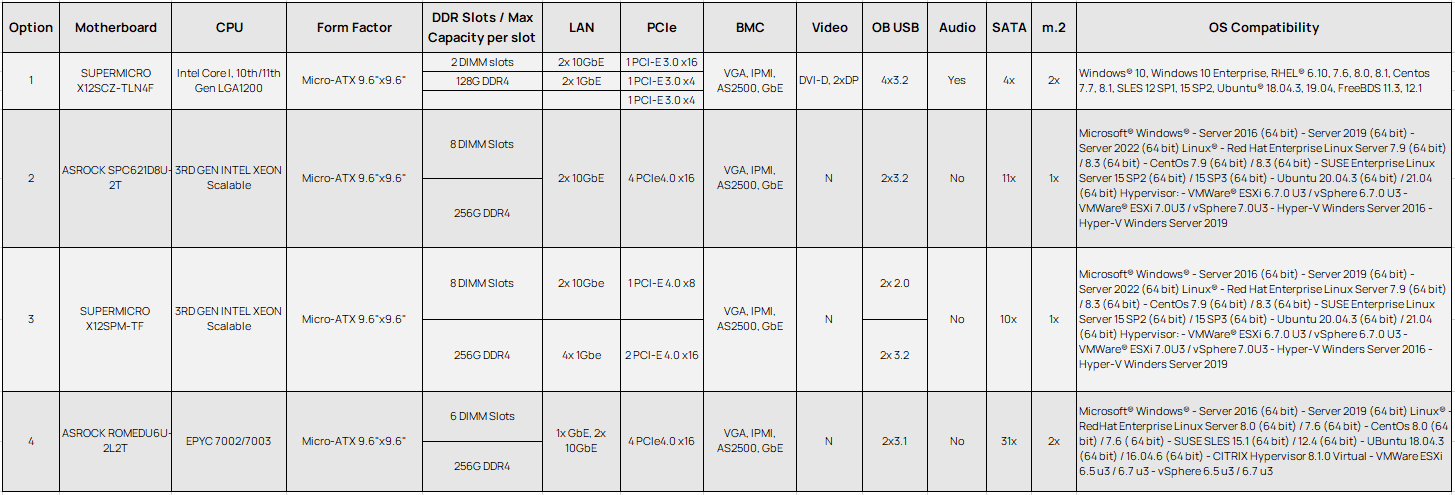

- Modular chassis accommodates multiple micro-ATX motherboard/processor configurations
- Multiple DC input options and 120- 240VAC

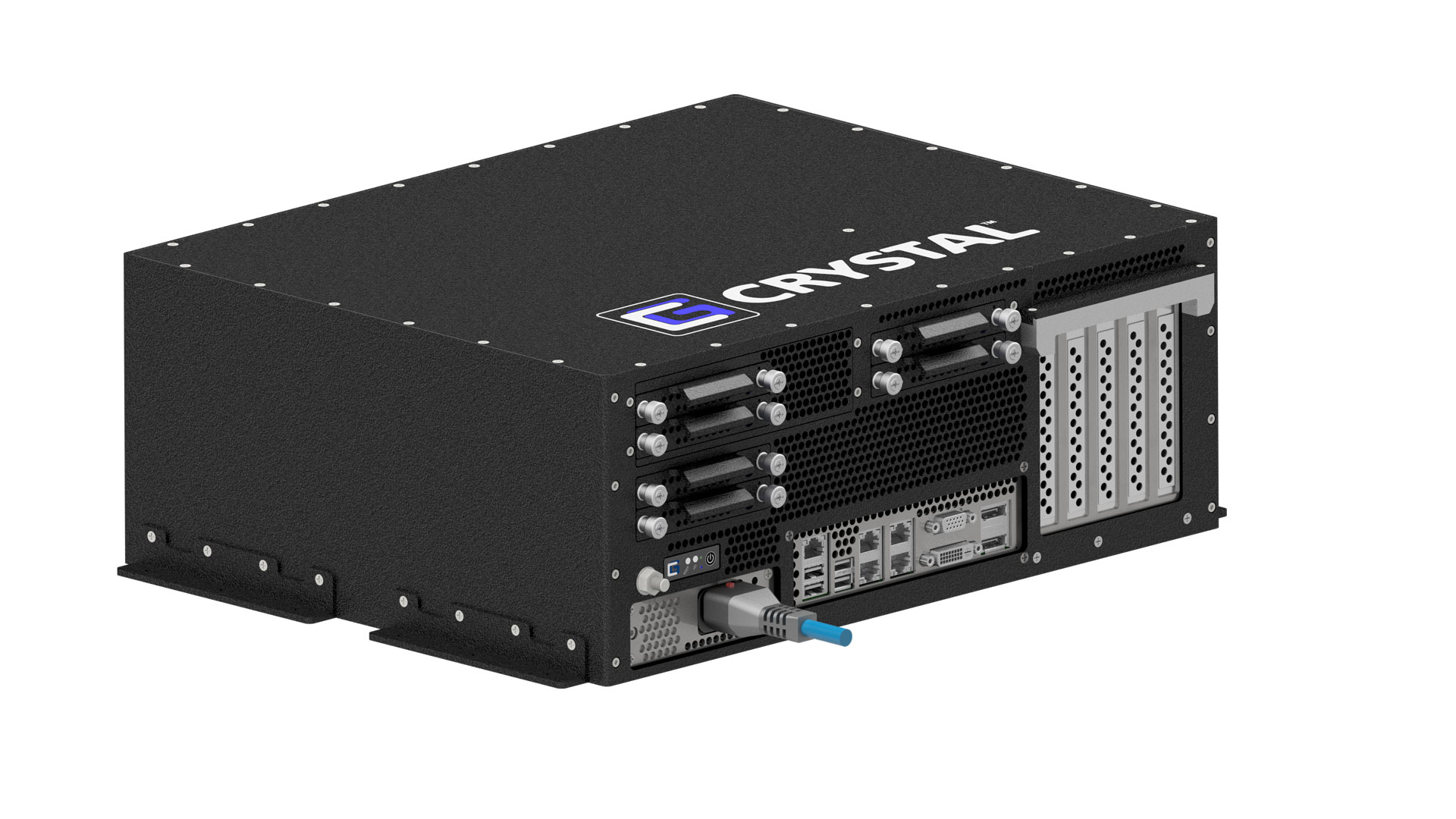

- Up to six 7 or 9mm SSD storage options, including removable drives
- MIL-STD-461 CE102, RE102 compliant with power supply filter option
- Rack, bulkhead or tray mount options
- Supports full-height, full-length cards; GPU ready
- IPMI intelligent management
Environmental Standards
| Testing in Progress | |
| MIL-STD-810, Operational Temperature | -40°C to +60°C |
| MIL-STD-810, Storage, Method 501, Procedure I/II | -40°C to +85°C |
| MIL-STD-810, Humidity, Method 507, Procedure II | 12,500ft operation, 40,000ft transport |
| MIL-STD-810, Vibration, Method 514, Procedure I | 5.5G, 5-2,000Hz, 60 min/ axis, 3 axis with vibration kit |
Electromagnetic Compatibility Standards
| MIL-STD-461, CE102, RE102 with kit |
Mechanical
| Height | 6.1" (15.3cm) |
| Width | 16.3" (41.4cm) |
| Depth | 13" (33cm) |
| Weight | 20 lbs (9.1 kgs) - 26 lbs (11.8 kg) |
| Power | 75-650W with select configurations; CPU/GPU dependent |
Internal Expansion Slots
| Six SATA/SAS 2.5” SSD (externally removable) |
Cooling

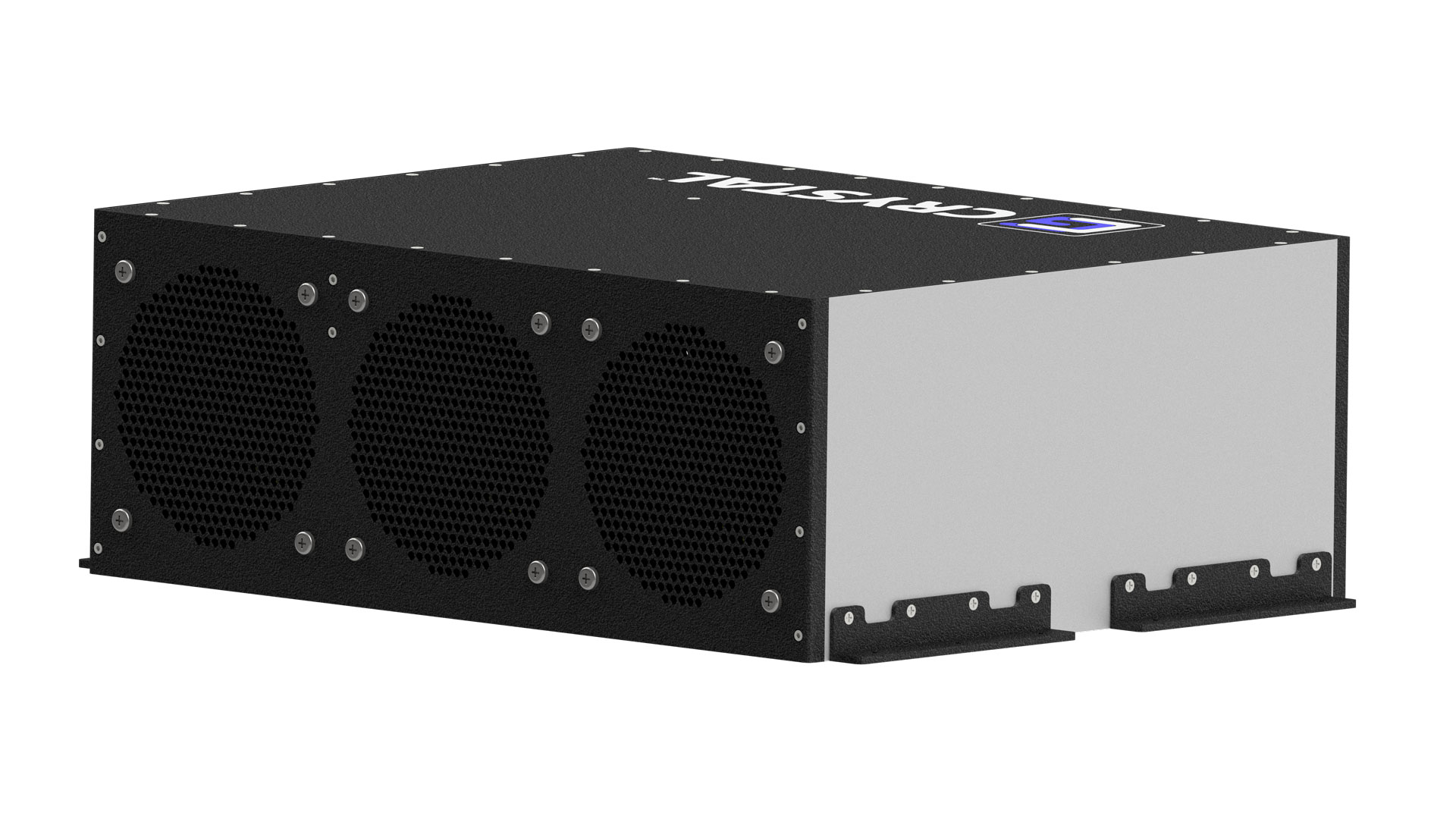

| Three high-reliability, 120mm fans; back to front airflow |
Mounting
| Option 1: | Tray |
| Option 2: | Bulkhead; ears supplied |
| Option 3: | Rack |
Power Supply
| Option 1: | 10-36VDC |
| Option 2: | 18-36VDC |
| Option 3: | 120-240VAC 50/60Hz, 115VAC 400Hz |
