Field tested, fail-safe and long-life performance in extreme conditions. Feature-rich Crystal Group embedded computer systems are powerful, compact, and rugged. Designed to deliver high power with ultra-quiet computing capabilities in a small footprint, the RE3101 is ideal for running geospatial mapping and airborne applications.

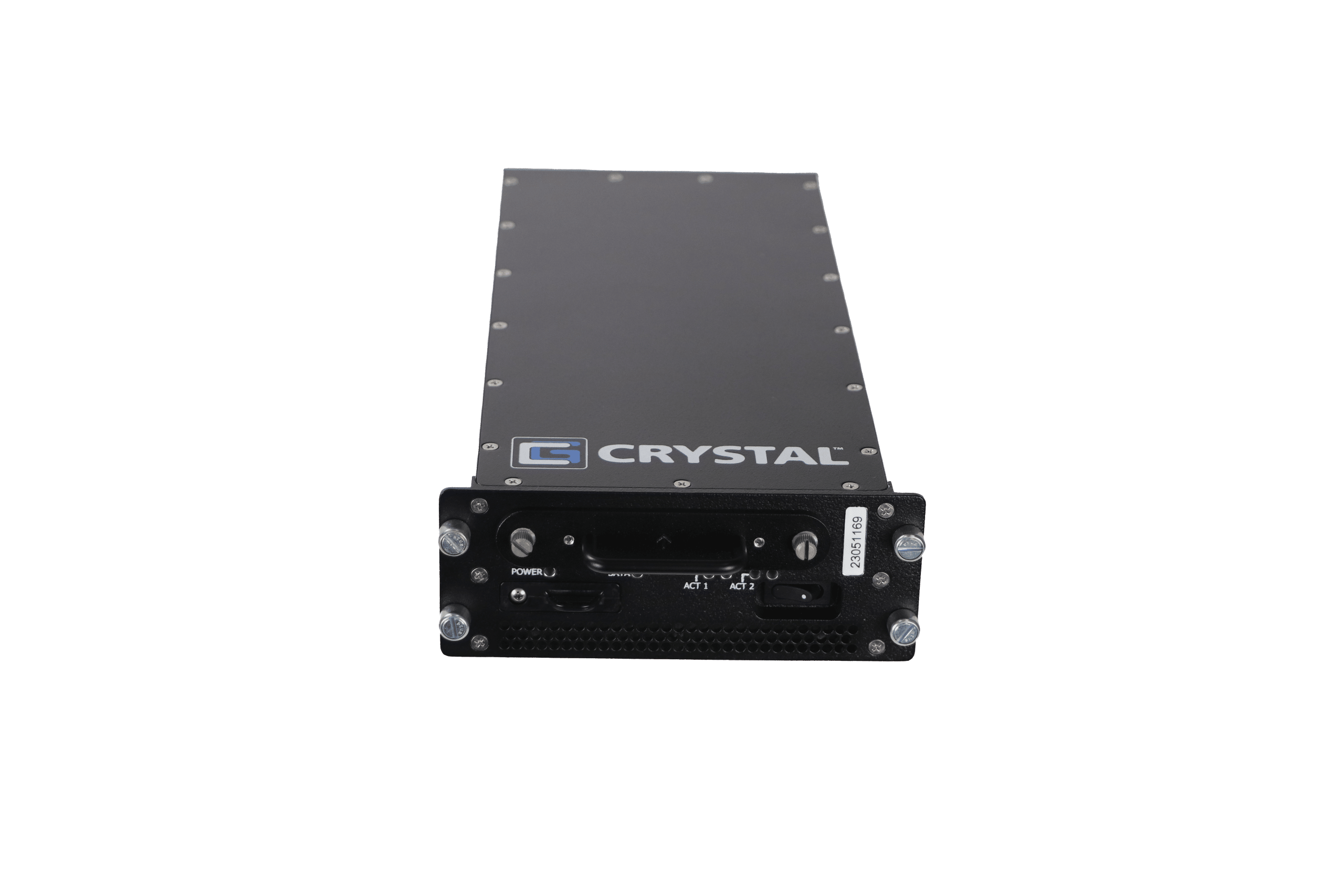

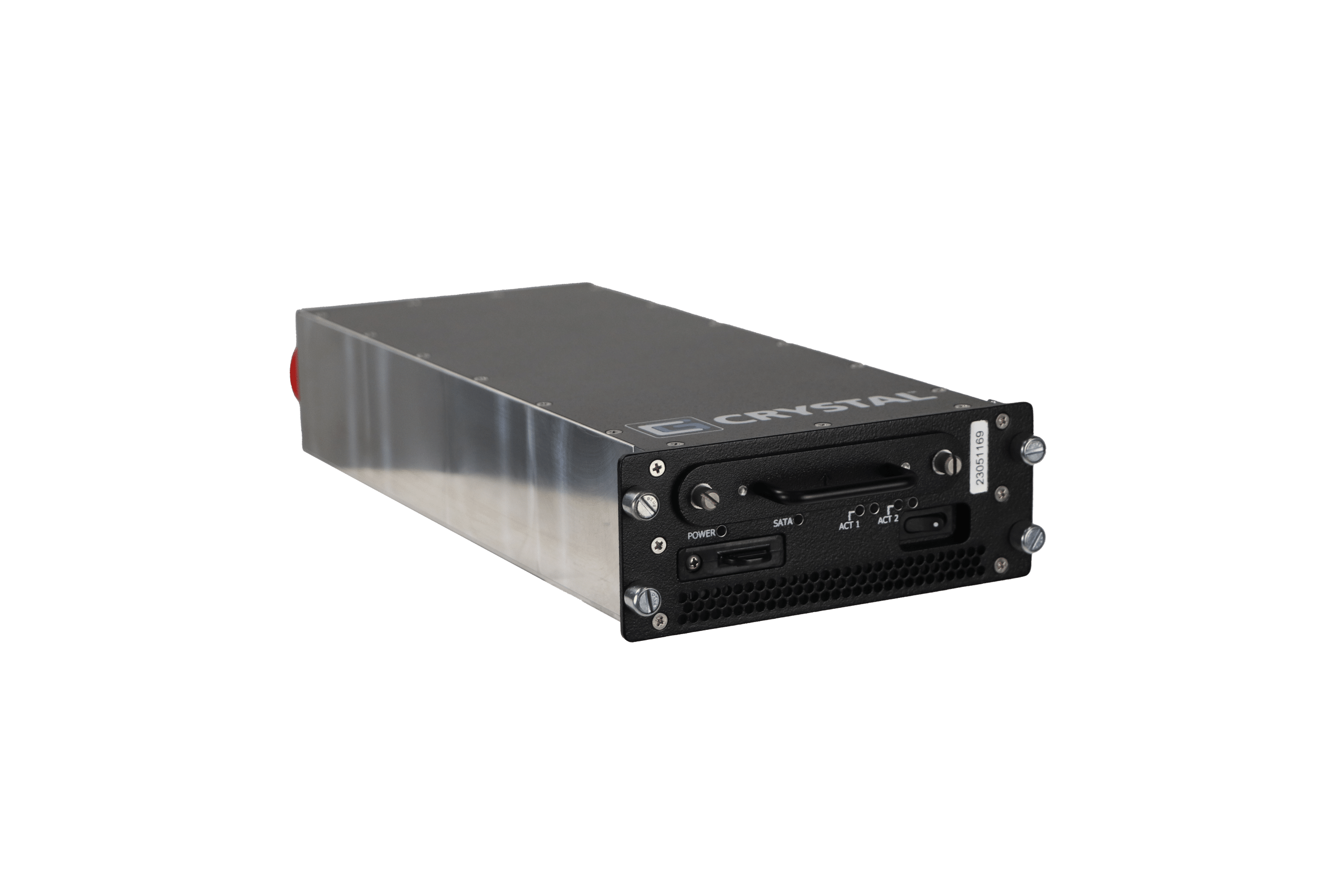

RE3101 Rugged Embedded Computer
- Lightweight construction – 4.8 lbs. (2.2 kg)
- Flight deck mounted
- Quiet operation and optimal thermal performance

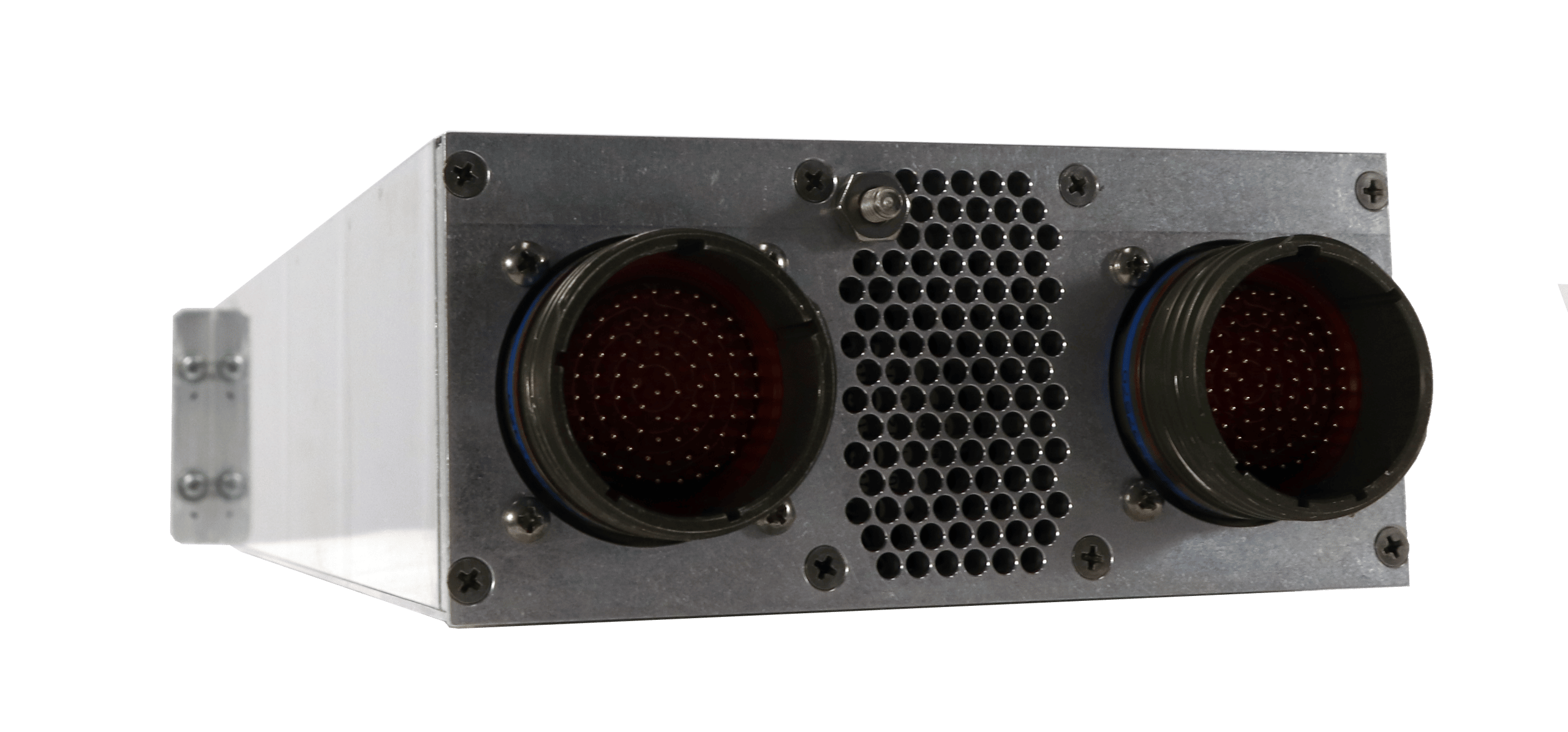

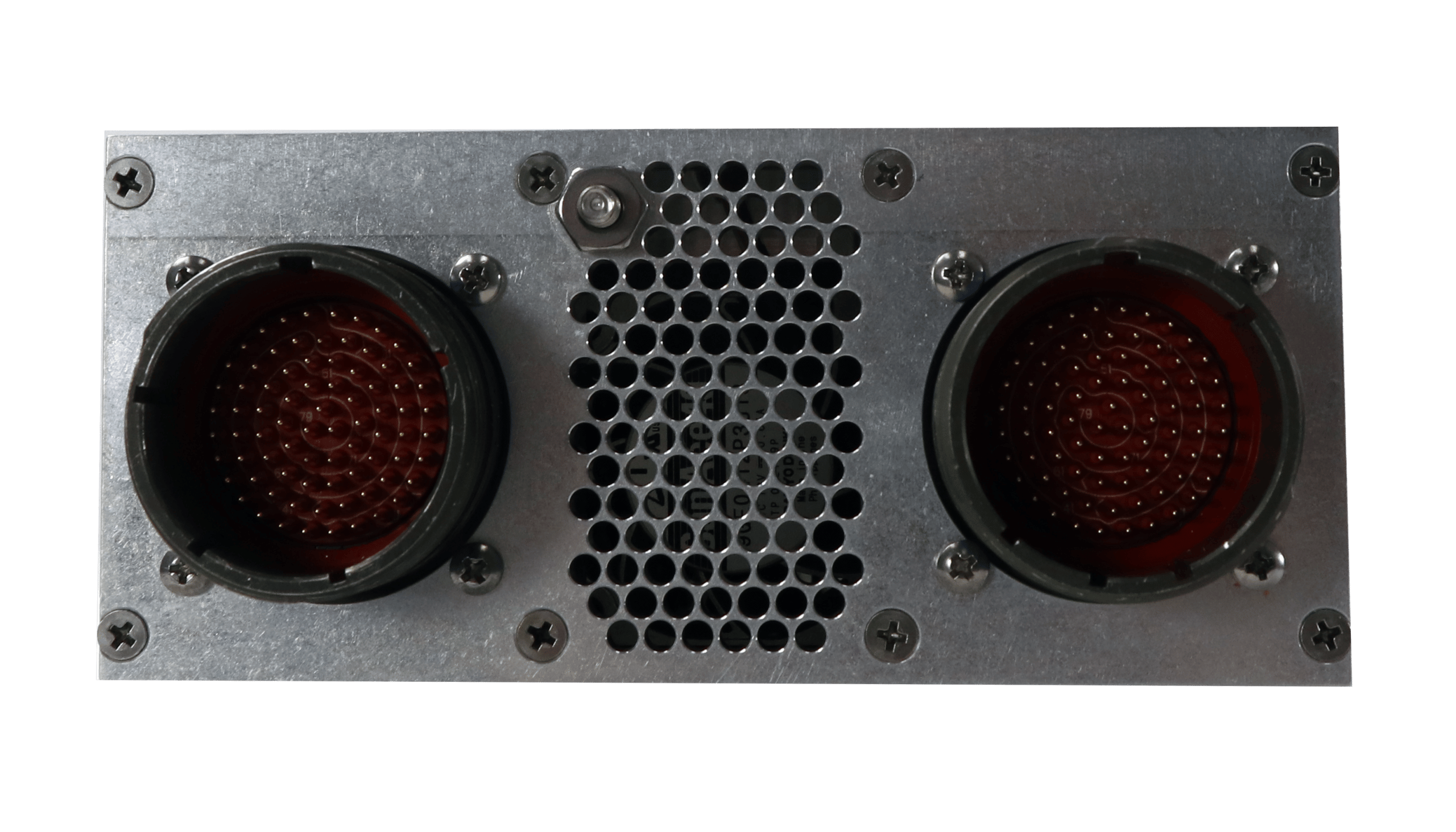

- MIL-CIRC I/O
- One mini PCIe expansion port
- Replaceable CMOS battery
- Front-mounted indicator lights
- Less than 13″ (33 cm) deep for compact environments
- One removable SATA SSD
Environmental Standards
| MIL-STD-810, Operational Temperature, Method 501, Procedure I/II | 0°C to +55°C, with solid state drives |
| MIL-STD-810, Storage, Method 501, Procedure I/II | -55°C to +85°C |
| MIL-STD-810, Vibration, Method 514, Procedure I | 7.18GRMS x- and y-axis, 4.63GRMS z-axis, 5-2000Hz, 60 min/axis |
| MIL-STD-810, Shock, Method 516, Procedures I/V | 20g, 11msec functional shock; 40g, 11msec crash hazard shock |
| MIL-STD-810, Humidity, Method 507, Procedure II | 240 hours with humidity kit |
| MIL-STD-810, Altitude, Method 500 | 10,000ft operation |
Electromagnetic Compatibility Standards
| MIL-STD-461: | |
| CE102 (conducted emissions) | |
| CS101 (conducted susceptibility) | |
| CS114 (conducted susceptibility) | |
| CS115 (conducted susceptibility) | |
| CS116 (conducted susceptibility) | |
| RE102 (radiated emissions) | |
| RE103 (radiated susceptibility) | |
| Tested with solid state drives |
Mechanical
| Height | 2.4” (6.1 cm) |
| Width | 5.7" (14.5 cm) with mounting |
| Depth | 12.6” (32.0 cm) excluding connectors, ground stud, or drive carrier protrusions |
| Weight | 4.8 lbs. (2.2 kg) |
Storage
| One removable 2.5'' SATA drive |
Mounting
| Dzus rail mounted |
Cooling
| Modulated speed, high-volume, long-life thermostatically controlled fans use a no-air-over-component design |
Software Compatibility
| Windows 10®, Windows 11®, Redhat® 7 or 8, Linux |
System Board
| Com Express Type 6 - i71185G7E, 16GB DDR4, TPM |
I/O
| 1x VGA, 6x USB 2.0, 2x 1G Ethernet, 2x RS-232 Serial, 1553 A/B, 8x GPIO, Audio I/O, Composite Video |
