SWFTS-TI20-C04-1 compliant chassis
Increase readiness. The RS1.549S18 1.5U rugged server delivers proven reliability and computing performance in extreme and unpredictable environments — critical for successful execution of combat, sonar and electronic warfare applications across multiple configurations in the TI20 (Technical Insertion 2020) program. At 18” (44.3 cm) and 25 pounds, the smaller, integrated footprint of the unit fits easily into standard rack slots, including S26-1. With greater weapons system availability, superior cooling and shock/vibe resistance, this 1.5U rugged server stands ready to perform.

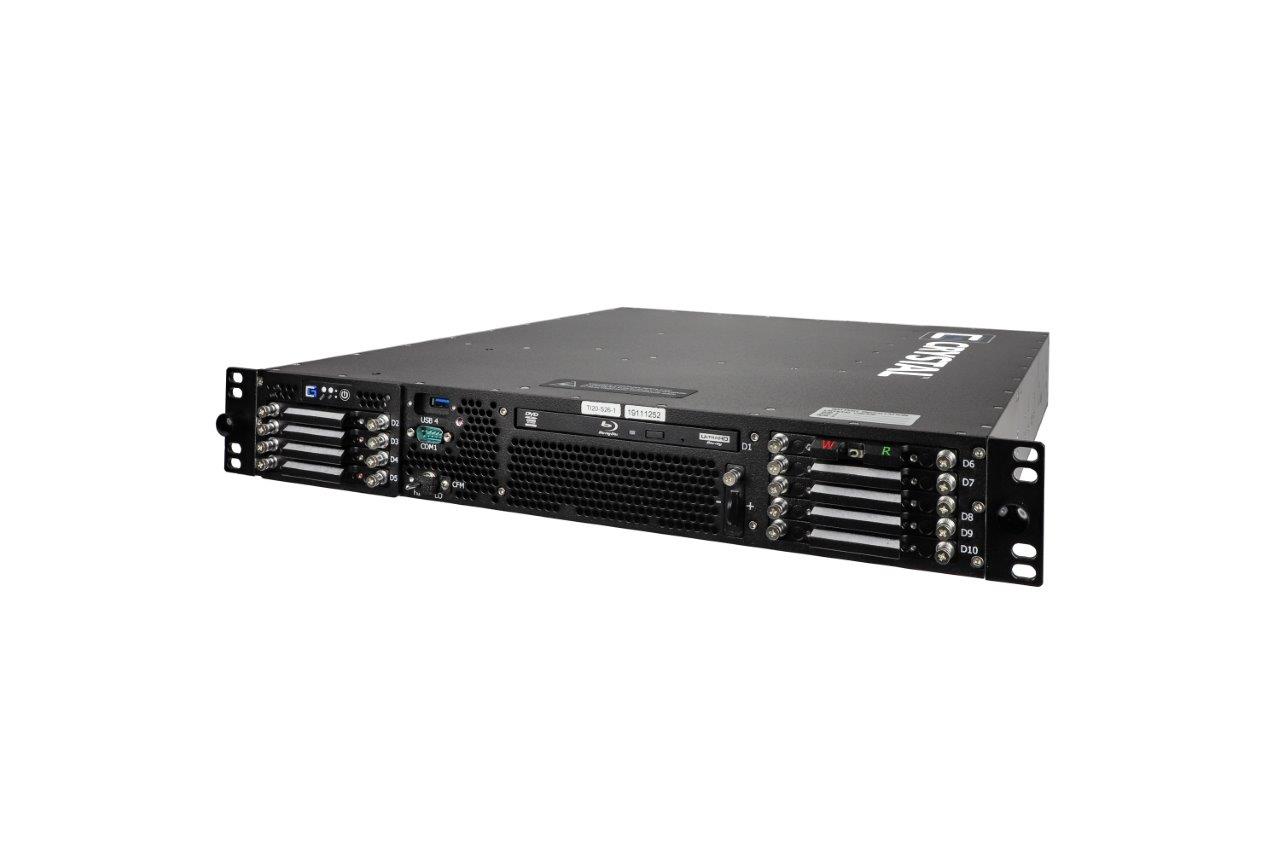

RS1.549S18 Rugged 1.5U Server
- SWFTS-TI20-C04-1 compliant chassis
- Rugged 1.5U, 18″ rack mounted server
- Lightweight aluminum construction – 25 lbs.
- 256 GB of memory
- Easy, front access CMOS battery drawer

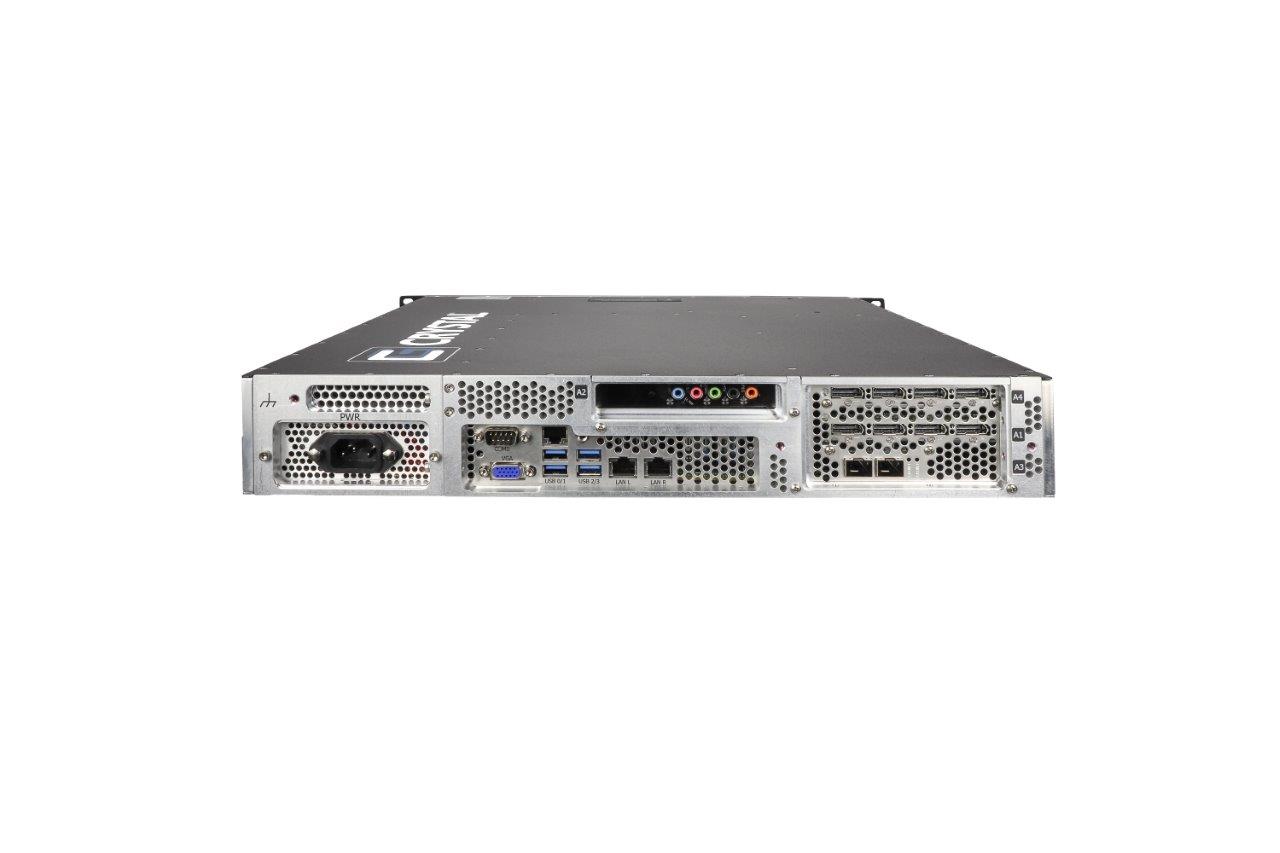

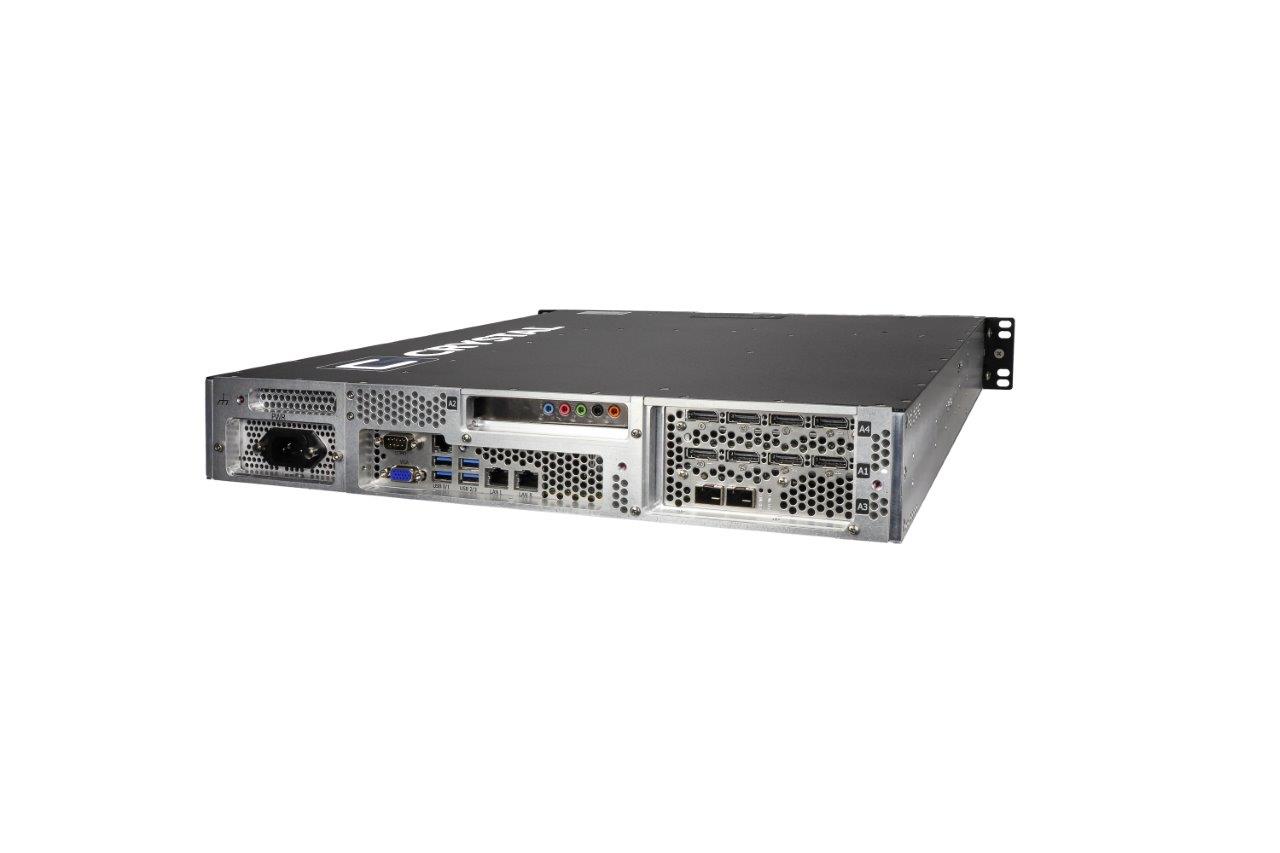

- 6x USB 3.0, VGA, 2x Gigabit LAN, IPMI, Serial
- Versatility with up to nine FIPS 140-2 removable 2.5” SSD bays
- Intel® Xeon® ES-2648L processors
Mechanical
| Form Factor |
1.5U |
| Height |
2.63" (6.68cm) |
| Width |
16.97" (43.1cm) EIA-310 Rack Compliant |
| Depth |
18" (45.72cm) |
| Weight |
25 - 25.04 lbs ( 11.34 - 11.36 kgs ) |
CPU
| Intel® CPU architecture options from Intel embedded long-life roadmap |
| Intel® Xeon® ES-2648L processors - Two Intel Xeon E5-2648L V4, 1.8/2.5GHZ, 14-core, 9.6GT/S QPI, 2400MHZ DDR4, 35MB, LGA2011 R3, 75W |
Expansion Slots
| Two or three full height slots; combination is configuration dependent |
Memory
| 32 GB DDR4 Eight DDR4 REG ECC RDIMM, 2666MHZ, 32GB (256GB) |
Cooling
| Four high speed, high volume fans, Hi/low fan CFM selection switch with lock-out |
Mounting
| Mounting interfaces can be adapted to fit existing rail installations |
Power Supply
| AC 120/240V, 50-60HZ, auto switching |
System Board
| Supermicro®, Dual LGA2011 R3, X10DRW-I with IPMI LAN |
Software Capability
| Accepts Windows 10®, Windows Server 2012®, VMware®, Linux® or Windows Server 2016® |
