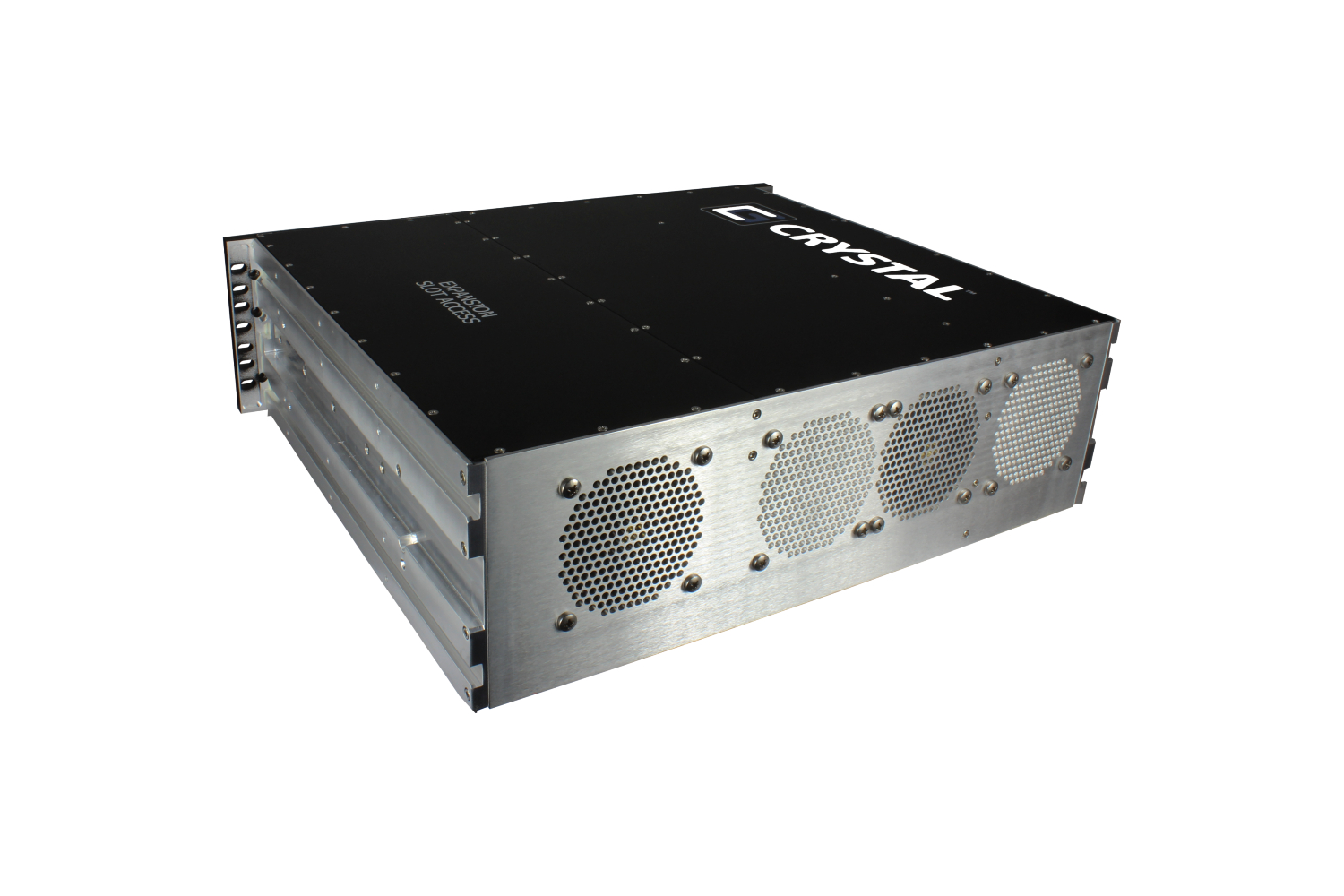

RS363S15F Rugged 3U Server

Field tested, failsafe and long life performance in extreme conditions. As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the RS363S15F. High-end computing performance in a 3U chassis with a depth of 15” (38.1 cm) fits most any rack space.



Request More Info Request Quote
RS363S15F - Spec Sheet

Features

RS363S15F Rugged 3U Server

• Light weight aluminum construction – 35-40 lbs.
• Easily mounted – Delrin glides, fixed mount, or Jonathan® rails
• Up to 1 TB of memory
• Rugged 3U, rack mounted 15” depth
• Three removable 3.5” HDDs or five 2.5” SATA or SAS bays
• Expandable with six slots
• Optional liquid cooling kit available
• Intel® Xeon® Scalable processors
• Front I/O

Please contact us to receive the reports, guides and drawings that best fit your requirements.

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II

-15°C to +55°C, capable of -40°C to +71°C with select processors

MIL-STD-810, Storage, Method 501, Procedure I/II

-55°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

4.43GRMS, 5-500Hz, 75 min/axis with solid state drives and vibration kits

MIL-S-901, Grade B
MIL-S-901, Grade A

With solid state drives & shock kits

Electromagnetic Compatibility Standards
Some standards may require an internal kit
AC, FCC compliant
AC, MIL-STD-461, RE102, CE102 compliant
DC, MIL-STD-461, RE102, CE102 compliant
RTCA DO-160 Section 21, Category M
Mechanical
Form Factor
3U
Height
5.25" (13.34cm)
Width
17.5" (44.45cm) EIA-310 Rack Compliant
Depth
15" (38.1cm)
Weight:
35 - 40 lbs ( 15.88 - 18.14 kgs ) [content dependent]
CPU
Intel CPU architecture options from Intel embedded long-life roadmap
Intel® Xeon® Scalable processors

Up to 22 core options per socket

Expansion Slots
Six full-height slot; combination is configuration dependent
External Bays
Option 1

Three removable SATA or SAS 2.5” or 3.5” HDDs

Option 2

Five removable SATA or SAS 2.5” or 3.5″ HDD

Option 3 (can be combined with HDD option)

One CD/DVD/BD (R/W)

Memory
16 GB - 1 TB DDR4
Cooling

Option 1: Four high speed, high volume fans; CPU temperature controlled

Option 2: Liquid cooling with four high speed, high volume fans; CPU temperature controlled

Mounting
Option 1

Mounted on Delrin glides

Option 2

Fixed mount, front and rear

Option 3

Jonathan rails

Power Supply
Option 1

600W 120/240VAC 50/60Hz w/PFC, 115 400Hz

Option 2

1005W 18-36VDC

System Board
X10DRI-T, Dual LGA2011 R3 Xeon®, EATX, 2LAN10G, VGA, 3 PCI-E X16, 3 PCI-E X8, IPMI, IPKVM, SATA3X10
Software Compatibility
Accepts Windows 10®, Windows Server 2012®, VMware®, Linux® or Windows Server 2016®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Program Manager to receive the classification of your product.
