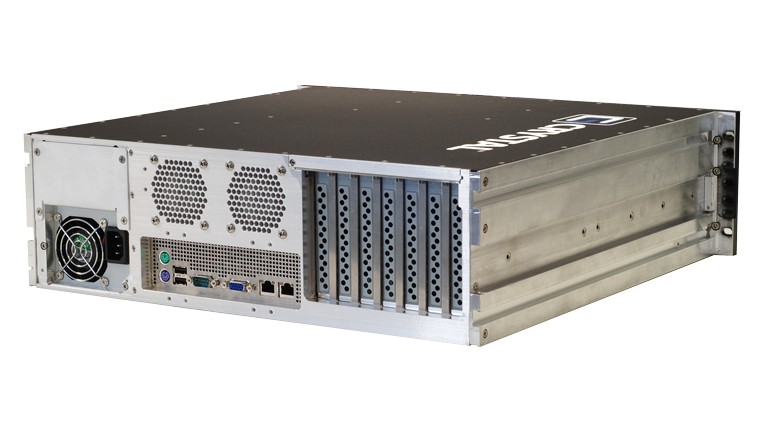

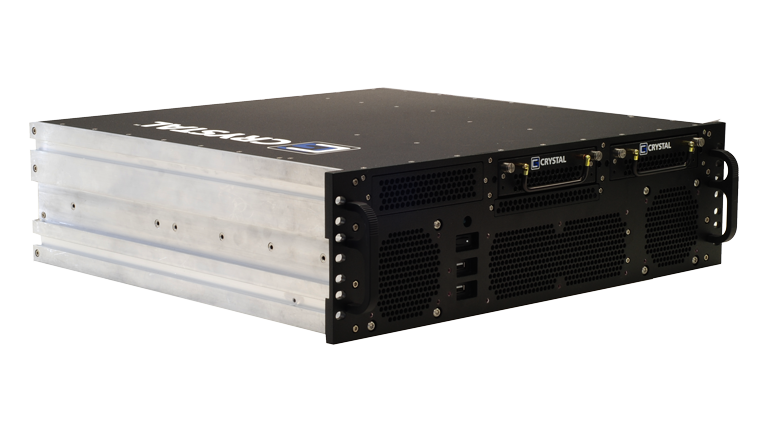

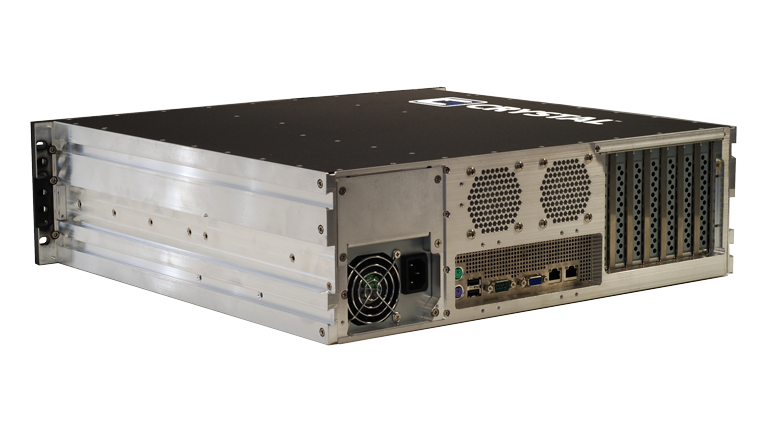

RS373S17 Rugged 3U Server

Field tested, failsafe and long life performance in extreme conditions. As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the RS373S17. High-end computing performance in a 3U chassis with a depth of 17” (43.2 cm) fits most any rack space.

Features

RS373S17 Rugged 3U Server

• Light weight aluminum construction – 26 lbs.
• Easily mounted – Delrin glides, Fixed mount, or Jonathan® rails
• Up to 512 GB of memory
• Rugged 3U, rack mounted 17” depthz• Versatility with three (3) removable 3.5” HDD or six (6) 2.5” SATA or SAS bays
• Expandable with seven (7) full height slots
• Leading edge Intel® Haswell or Broadwell CPU options
• Optional optical drive

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II

-15°C to +55°C, capable of -40°C to +71°C with select processors

MIL-STD-810, Storage, Method 501, Procedure I/II

-55°C to 85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

4.63 GRMS, 10-2,000Hz, 60 min/axis with solid state drives and vibration kits

MIL-S-901, Grade A with solid state drives and shock kit
MIL-S-901, Grade B
Electromagnetic Compatibility Standards
Some standards may require an internal kit
AC, FCC compliant
AC, MIL-STD-461, RE102, CE102 compliant
DC, MIL-STD-461, RE102, CE102 compliant
RTCA DO-160 Section 21, Category M
Mechanical
Form Factor
3U
Height
5.25" (13.34cm)
Width
17.5" (44.45cm)
Depth
17" (43.18cm)
Weight:
26 lbs ( 11.79 kgs ) [content depending]
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap
Haswell or Broadwell

LGA2011 R3, X10DRL-I or X10SRL-F

Dual, Quad, Hexa, Octa, or Deca Core options (dependent on CPU)

Expansion Slots
Seven (7) full height slots; combination is configuration dependent
External Bays
Option 1

Three (3) removable SATA or SAS 2.5” or 3.5” HDDs

Option 2

Six (6) 2.5” SATA or SAS HDDs

Option 3 (can be combined with HDD option)

One (1) CD/DVD/BD (R/W)

Memory
16 GB - 512 GB DDR4 (motherboard dependent)
Cooling

High speed, high volume fans (5) CPU temperature controlled

Mounting
Option 1

Mounted on Delrin glides

Option 2

Fixed mount, front and rear

Option 3

Jonathan rails

Power Supply
Option 1

600W 120/240VAC 50/60HZ w/PFC, 115VAC 400Hz

Option 2

1005W 18-36VDC

System Board
Option 1

X10DRL-I, Dual LGA2011 R3 Xeon®, ATX, 2LAN1000, VGA, 5 PCI-E X8, 1 PCI-E X16, IPMI, IPKVM, SATA3X10

Option 2

X10SRL-F, Single LGA2011 R3 Xeon®, ATX, 2LAN1000, VGA, 2 PCI-E X16, 5 PCI-E X8, IPMI, IPKVM, SATA3X10

Software Compatibility
Accepts Windows 10®, Windows Server 2012®, VMware® or Linux®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.
