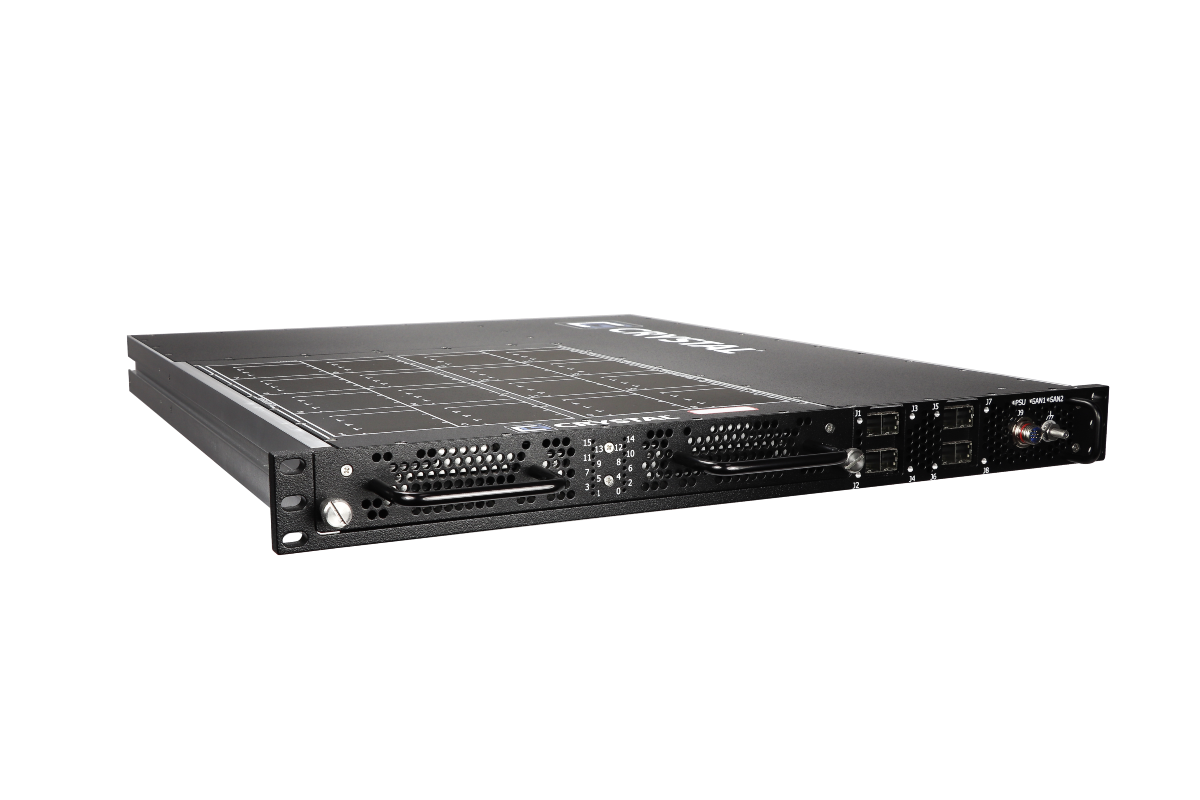

RSS116F JBOD Rugged Storage System

Field tested, failsafe, and long life performance in extreme conditions. Crystal Group provides a 12G SAS direct attached storage array that is 21” deep. With an all aluminum chassis weighing in at 20.4 pounds fully loaded, the RSS116F provides high storage capability in a small package. Crystal Group’s turnkey Rugged Storage Systems combine high-capacity data storage and military-grade security in a reliable, rugged device that doesn’t sacrifice performance or critical data. Rugged Storage Systems, available in multiple form factors, feature high-bandwidth 12G SAS architecture and enterprise-class solid-state drives (SSDs). Crystal Group Storage products are specifically engineered to provide fast, reliable, and secure data storage in the most challenging military, industrial, and commercial applications on harsh land, sea, air, and space environments.

RSS116F JBOD Rugged Storage System
  • All aluminum construction – less than 21 lbs.
  • Easily installed on Crystal glides or fixed mounted
  • Rugged 1U, rack mounted 21” depth
  • Versatility with sixteen SSD media canister
  • Redundant power input, power supplies, and data paths for maximum reliability
  • Offers maximum airflow with five high speed, high volume, low noise fans
Environmental Standards
MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II -40°C to +55°C, operational with SSD
MIL-STD-810, Storage, Method 501, Procedure I/II -55°C to +85°C
MIL-STD-810, Humidity, Method 507, Procedure II 240 hours with humidity kit
MIL-STD-810, Altitude, Method 500: 12,500ft operation, 40,000ft transport
MIL-STD-810, Vibration, Method 514, Procedure I 4.63 GRMS, 5-2,000Hz, 60 min/axis with solid state drives + vibration kits
MIL-S-901, Grade A With solid state drives + shock kits
MIL-S-901, Grade B
FAR 25.853(a)
Electromagnetic Compatibility Standards
Some standards may require an internal kit.
FCC Class A
Mechanical
Form Factor 1U
Height 1.75" (4.45cm)
Width 17.5" (44.45cm) (Accepts Crystal Slides and Jonathan Rails) EIA-310 Rack Compliant
Depth 21" (53.34cm)
Weight 20.4 lbs ( 9.25 kgs ) Fully Loaded
External Bays
One - Sixteen removable SSD media canister
Cooling
Five high speed, thermostatically controlled, low noise fans
Mounting
Option 1 Crystal Glides
Option 2 Fixed mount, front and rear
Power Supply
325W AC, 110/220VAC 50/60Hz 1+1 with PFC, 115VAC 400Hz
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Program Manager to receive the classification of your product.
Download Spec Sheet
