Field tested, failsafe and long life performance in extreme conditions. Crystal Group rugged thin and zero clients bring plug-and-play functionality to demanding military and industrial applications in air, on land and at sea. Maximum network bandwidth virtualization through client-side caching provides superior performance with dual video HD outputs and high-end graphics capabilities all in a small, rugged package. Non-volatile memory provides an “unplug and abandon” capability with a design to survive extreme environments, extreme temperatures, and high shock and vibration.

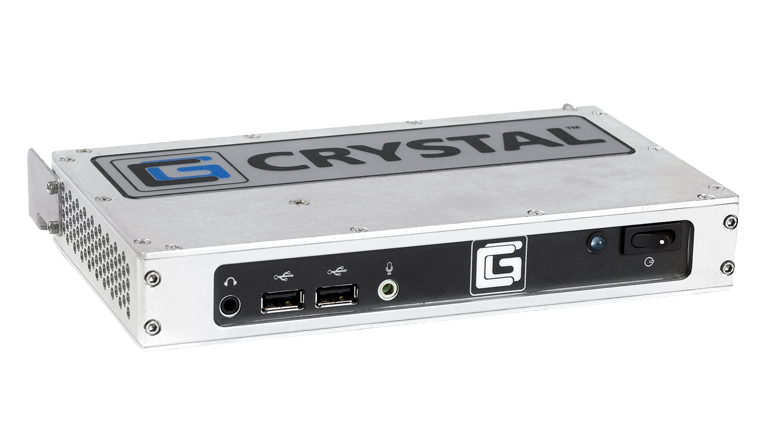

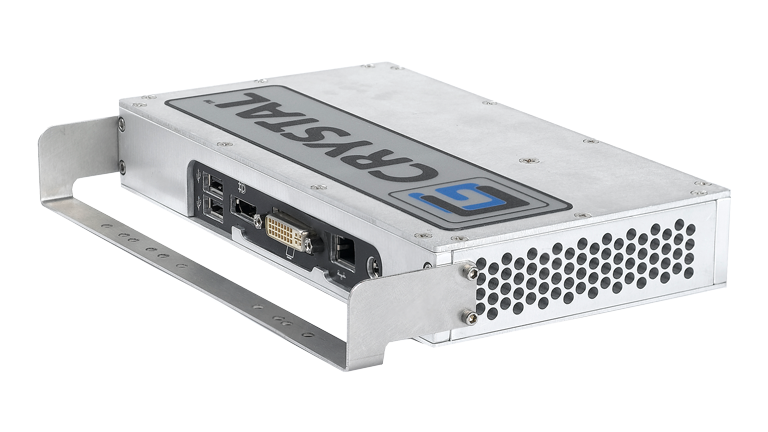

Zero Client
- TERA 2321 PCoIP
- No local OS, extremely secure
- Less than 10W of power required
- Rugged shock and vibration resilient design
- Compact footprint integrates easily in tight spaces
Environmental Standards
| MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II | -40°C to +71°C |
| MIL-STD-810, Storage, Method 501, Procedure I/II | -40°C to +85°C |
| MIL-STD-810, Humidity, Method 507, Procedure II | 240 hours with humidity kit |
| MIL-STD-810, Altitude, Method 500 | 12,500ft operation, 40,000ft transport |
| MIL-STD-810, Vibration, Method 514, Procedure I | 4.63GRMS, 5-2,000Hz, 60 min/axis with solid state drives and vibration kits |
| MIL-S-901, Grade B | With shock kits |
Electromagnetic Compatibility Standards
| Some standards may require an internal kit | |
| FCC Class A |
Mechanical
| Height | 1.28" (3.25cm) |
| Width | 8" (20.32cm) |
| Depth | 4.51" (11.46cm) |
| Weight | 1.6 lbs (0.73 kgs) |
CPU
| Teradici, TERA 2321 PCoIP® |
Memory
| 512 MB RAM |
Storage
| 32MB Flash |
I/O
| 1 Display port, 1 DVI-I, 4 USB 2.0 (2 front, 2 back), Gigabit Lan Interface, Audio |
Cooling
| Forced air convection via internal high reliability fan |
Mounting
| 4 point |
Power Supply
| Option 1 | 12VDC input to device |
| Option 2 | 120/240V AC to DC external PSU (Power Brick) |
OS
| Firmware Based ROM |
Virtualization Platform Compatibility
| VMware® ESXi |
