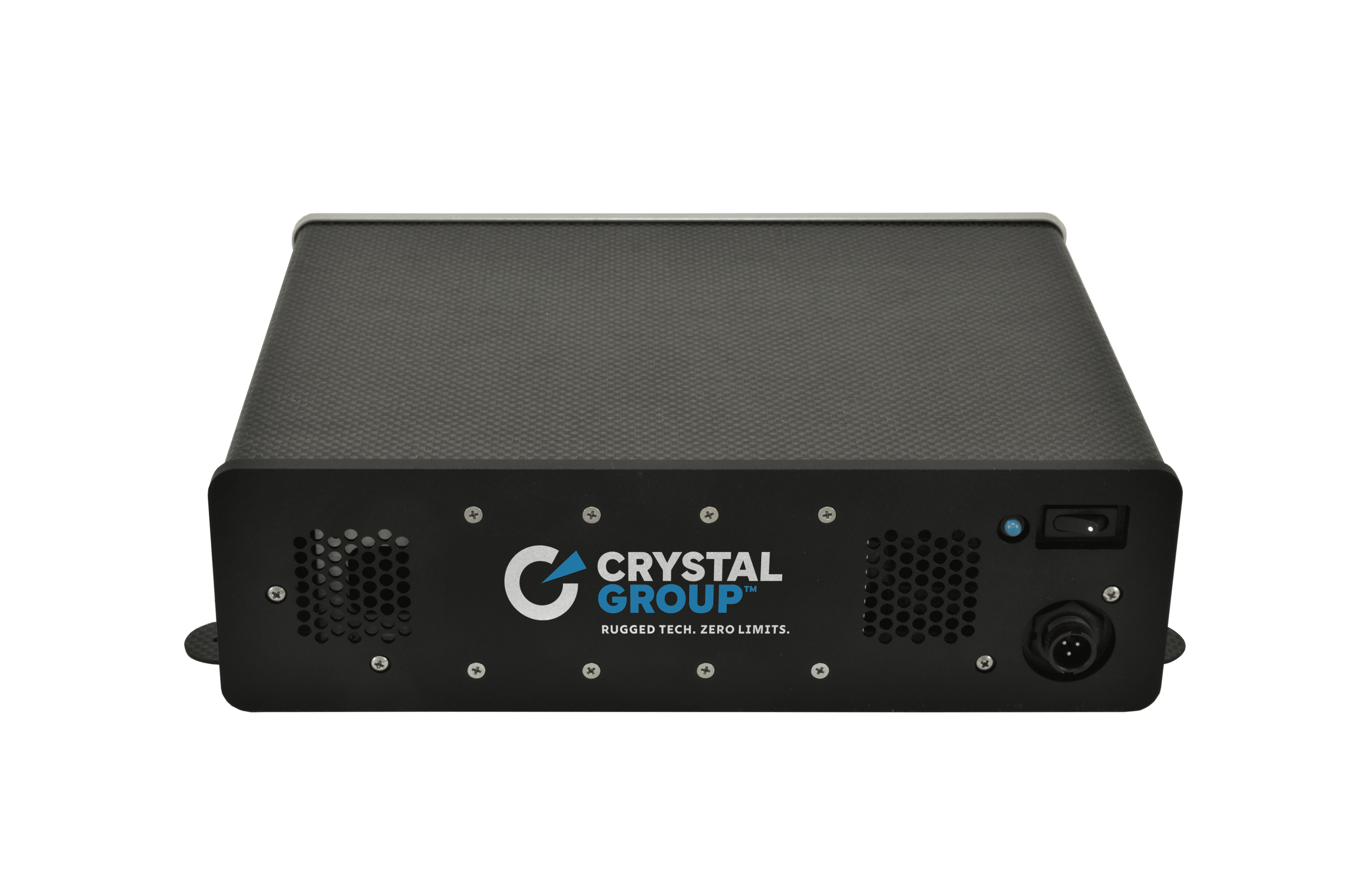

Rugged Embedded Computer

RE0412

Powerful, compact, rugged compute system. With an aluminum frame and carbon fiber chassis weighing in at 4.25 lbs., the RE0412 provides big capability in a small package. Optimized for airborne and ground mobile applications where significant processing power is required.

Small form factor MIL-STD tested Easily configurable
Design my solution Get a Quote

Features

  • CPU on motherboard closeup

    High-performance CPUs

    Intel® Xeon® D and Core i7 CPU options.

  • Lightweight composite materials closeup

    Ultra lightweight

    Aluminum frame with carbon fiber chassis, weighing in at 4.25 lbs.

  • Solid state storage closeup

    Expandable storage

    Up to 16 TB of internal storage with two 2.5" non-removable SSDs.

  • Power and cabling closeup

    Flexible power

    AC and DC power supply options.

  • Expansion slot closeup

    Expansion ready

    One PCIe, low-profile slot.

  • Industrial testing environment

    Field tested

    Carbon fiber chassis field-tested to withstand shock, vibration, extended temperature ranges, and harsh environments.

Proven in the field

Ground mobile

Rugged embedded compute for ground mobile applications that demand significant processing power.

View case studies

Airborne

Optimized for airborne applications where SWaP constraints and reliability are critical.

View case studies

Shipboard

Compact, reliable compute for maritime and shipboard systems where space and environmental extremes collide.

View case studies

Test standards

Designed and tested against demanding military and quality standards.

MIL-STD 810
MIL-STD 461
MIL-S 901
ISO / AS 9001

Key specifications

Mechanical

Height
3.13" (7.95cm)
Width
10.76" (27.33cm)
Depth
8.63" (21.92cm)
Weight
Less than 4.5 lbs (2.04 kgs)

CPU & memory

CPU options
Intel Xeon D-1700, Core i7 13th Generation
Expansion
One PCIe, low-profile
Memory
Up to 128GB ECC DDR4 (Xeon D); up to 64GB DDR4 (Core i7)
Cooling
Two high speed fans, thermostatically controlled

Storage & power

Internal storage
Up to 16 TB
Drives
Up to two 2.5" SSD and one M.2 NVMe SSD
Power option 1
150W, 18-36 VDC
Power option 2
120/240 VAC with external power brick
Download full spec sheet

Need a custom configuration?

Easily configurable to meet specific customer needs. Share your SWaP, I/O, environmental, and program requirements and our team will engineer the right solution.

Get started Talk with an engineer
