Leading edge COTS utilization and custom electrical design and development produces open architecture systems tailored to specific customer needs:
Crystal provides server, switch, display, storage, and embedded computer architectures and related integration services for mission critical installations worldwide. We design, manufacture, integrate, and support rugged computer-based systems for intelligence, communications, reconnaissance, navigation, surveillance, and critical control applications. All products are designed and built to meet/exceed MIL-STDs 810F, 167-1, 461E/F and MIL-S-901D.
Military/Government Products
The Crystal SS11 Sealed Server offers all aluminum construction with custom EMI gasketing to seal the server chassis. I/O is facilitated through quick locking mil-circular connectors. The SS11 Sealed Server offers immersion protection rated to IP68. Convection cooling enables an extended temperature range of +55C to -30C, with a -40C SSHDD option. Cold-plate mounting is available for higher temperature environments. The SS11 sealed server is designed to MIL-STDs 810F, 461E, 464A, 704E
The RD2120C Rugged Display is a 20.1” display in a clam shell, flush mounted table top design offering maximum usable space. Features include WSXGA+ Resolution, 500nit, low reflectance, high ambient contrast, full color TFT LCD, all aluminum construction and the RD2120C is built to survive shock and vibe. A sealed keyboard, is also included in this compact and rugged package. The RD2120C is designed to MIL-STD-810F and MIL-S-901D.
The TCM1 offers extended capability with a shock/vibe rating of 5 GRMS in combined wheeled vehicle and aircraft profiles, a temperature range of –30°C up to 65°C (-22°F to 141°F) and a DC power option that is MIL-STD-461, MIL-STD-704 and MILSTD-1275 compliant. The TCM1 is available with the following processor: Intel® Core™ 2 Duo/ Core Solo. This short depth (12.75 inches) module features up to two rotational or solid state 2.5” Sata II HDDs and an expansion option of one mini PCle slot and one mini PCI slot. The TCM1 is designed and being tested to meet MIL-STD 810F, 167-1, 461E/F and MIL-S-901D requirements.
The RSS639 offers high bandwidth connectivity through two SAS x4 (SFF-8088) inputs with 12Gbps bandwidth each. The RSS639 system serves as a 78TB mass storage device that can be used in conjunction with an RS112 or RS255 RAID head unit. When paired with an RS series RAID head unit, the system can be operated in the following RAID modes: 50, 60, JBOD or multiple arrays of 1, 1E, 5, 5EE, 6 or 10. Multiple RSS639 storage systems can be attached to a single RS255 RAID head.
The Cisco-compatible Crystal Firewall RCS5510FW offers extended capability with shock/vibe ratings for 3 GRMS in combined wheeled vehicle and aircraft profiles, and a temperature range of -15oC up to 55oC (5 to 137oF). The RCS5510FW provides networking services for small and medium-sized units. It enables businesses to securely deploy mission-critical applications and networks in a highly reliable manner. It can provide high-performance intrusion prevention and worm mitigation services through the AIP SSM, or comprehensive malware protection service through the CSC SSM.
Computing in challenging industrial environments:

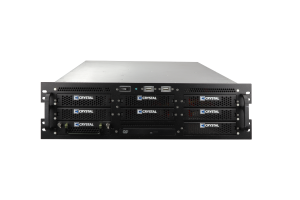

If you need compact, high-density, wide temperature range, low power computing solutions, choose from our line of industrial servers and displays. Our industrial/commercial products are compact, powerful and feature rugged steel chassis construction and state of the art cooling features which make them perfect for extreme or industrial applications.
Commercial/Industrial Products
