Rugged LCD Displays
Airborne. Shipboard. Land-based.
Crystal Group's specialized Rugged LCD Displays (RD models) are designed for shipboard, airborne, and land-based applications. The low specular reflectance and high brightness displays yield excellent high ambient contrast.
These displays are rackmountable with locking slides and available with HD-15 and DVI interfaces. Some models are wall mount, pole mount or RAM mount capable, and many offer keyboard package options.
Our Industrial Displays (RPD models) feature compact design as 17 inch, 1U rackmount LCDs, with micro keyboards and come with or without KVM switch.
Most product configurations have been tested, please see the documents tab under more information to download product specific documentation.
Please contact us for a quote or to request more information.
RD2217 Rugged Rackmount Dual 17" Display
- Application:
- Rugged
- Form Factor:
- 2U
- Display Size:
- 17" dual
- LCD Type:
- amTFT
- Back Light Type:
- LED
- Screen Format:
- SXGA
- Aspect Ratio:
- 5:4
- Luminance:
- 800 NITS
- Colors:
- 16.2M
- Weight:
- 45 lbs
Notes:
Rugged Dual 17" Display. Front mounted for ease of use and stowage, sealed iKey keyboard option available.
RPD-1171B 1U Rackmount LCD
- Application:
- Industrial
- Form Factor:
- 1U
- Display Size:
- 17
- LCD Type:
- amTFT
- Back Light Type:
- CCFL
- Screen Format:
- SXGA
- Aspect Ratio:
- 5:4
- Luminance:
- 260 nits
- Colors:
- 264K
- Weight:
- 32 lbs
Notes:
RPD-1178B 1U Rackmount LCD with 8 port KVM Switch
- Application:
- Industrial
- Form Factor:
- 1U
- Display Size:
- 17
- LCD Type:
- amTFT
- Back Light Type:
- CCFL
- Screen Format:
- SXGA
- Aspect Ratio:
- 5:4
- Luminance:
- 260 nits
- Colors:
- 264K
- Weight:
- 32 lbs
Notes:
0C to 45C; has 8 port KVM

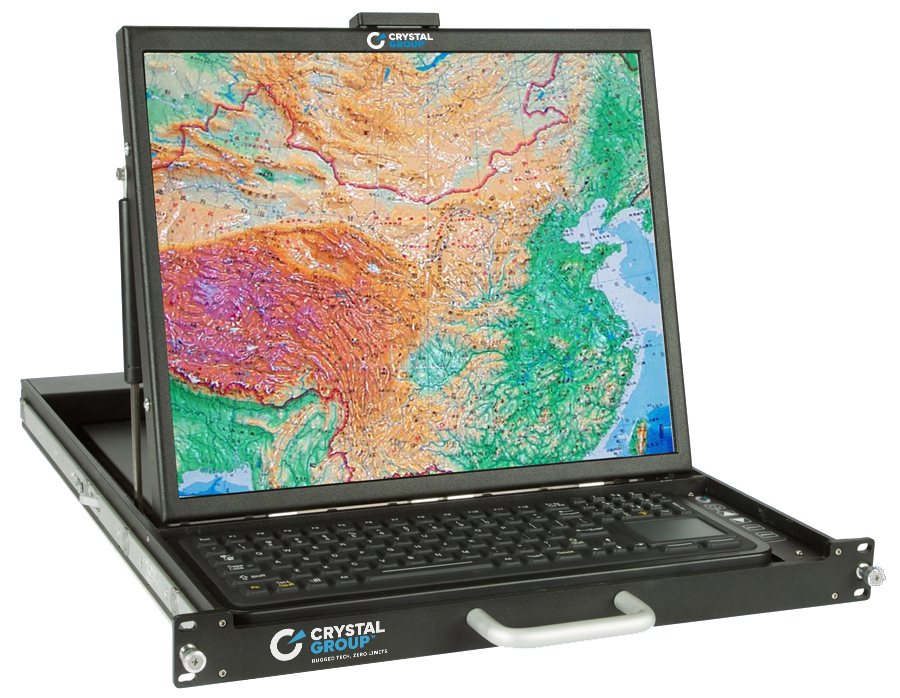

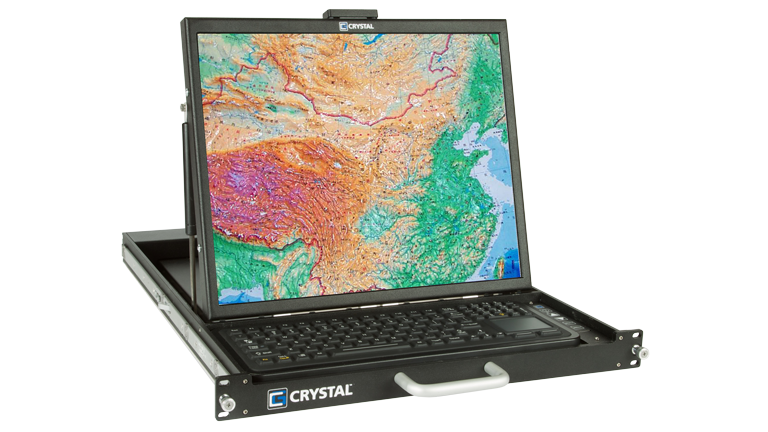

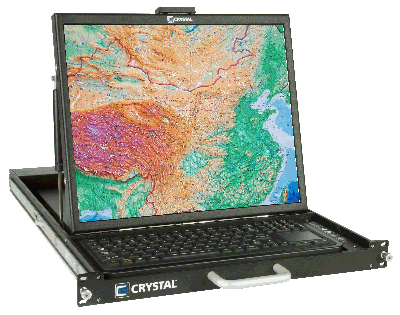

RD1119 Rugged 1U 19” Display
.gif)
- Application:
- Rugged
- Form Factor:
- 1U
- Display Size:
- 19"
- LCD Type:
- TFT TN
- Back Light Type:
- LED
- Screen Format:
- SXGA
- Aspect Ratio:
- 5:4
- Luminance:
- 800 nits
- Colors:
- 16.7M
- Weight:
- 22 lbs lbs
Notes:
All-aluminum construction weighing in at only 22 pounds. Unique folding design mounted on Accuride slides. Sealed iKey keyboard.
Crystal Group rugged displays are designed and being tested to meet MIL-STDs 810F, 167-1, 461E, and 901D requirements. As always, each Crystal product comes with a standard three-year (plus) warranty, and configuration management is available upon request.
