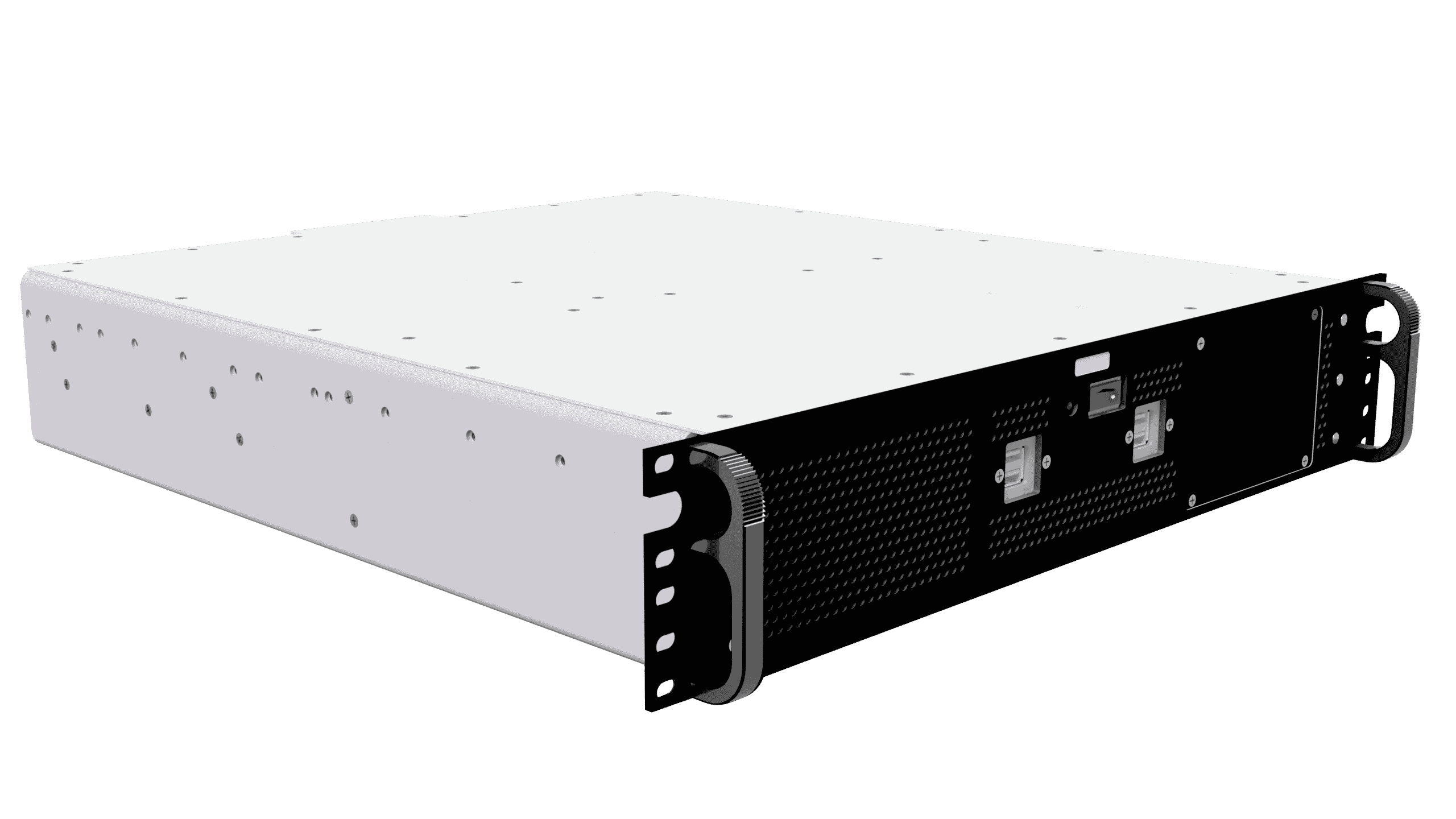

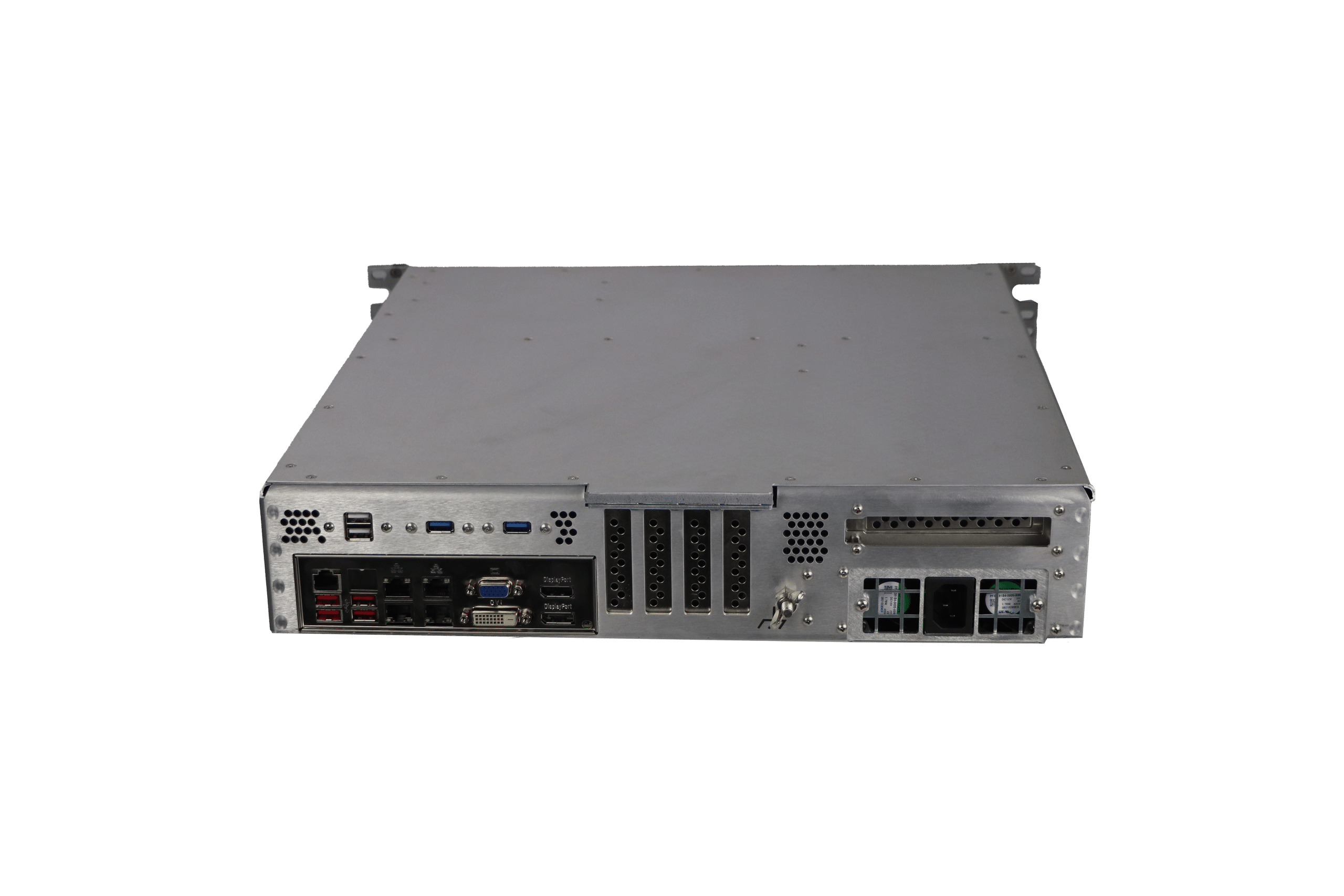

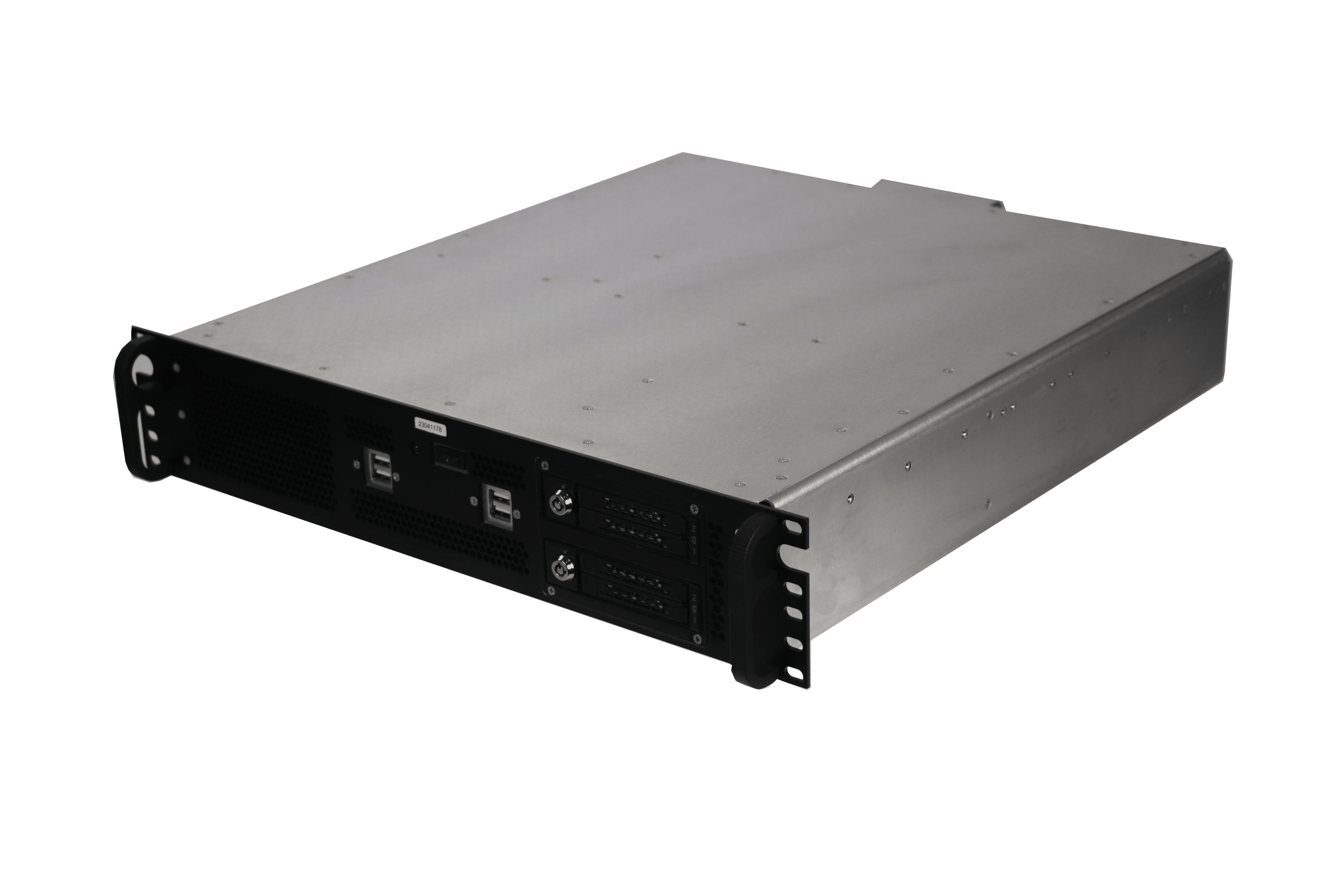

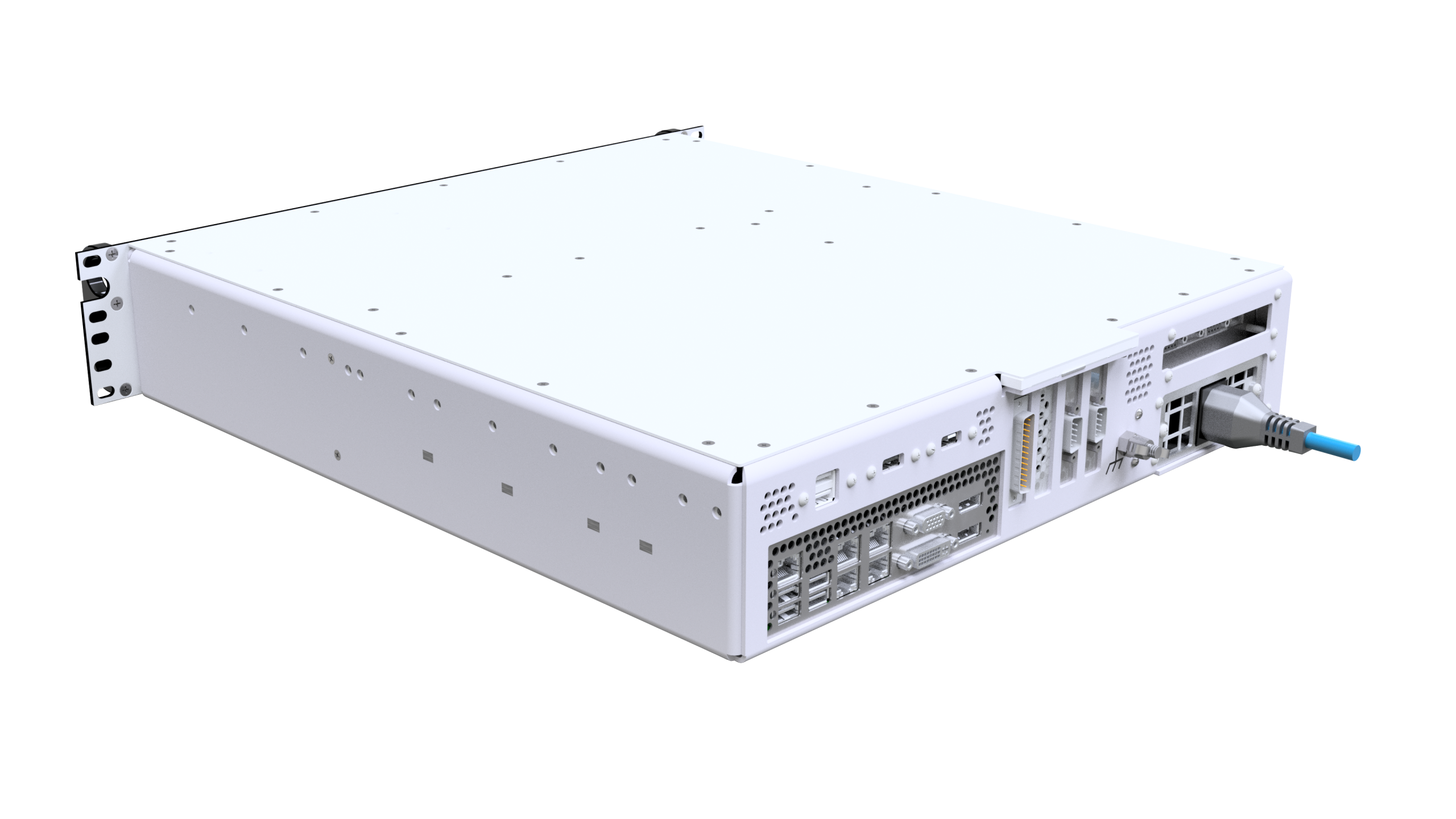

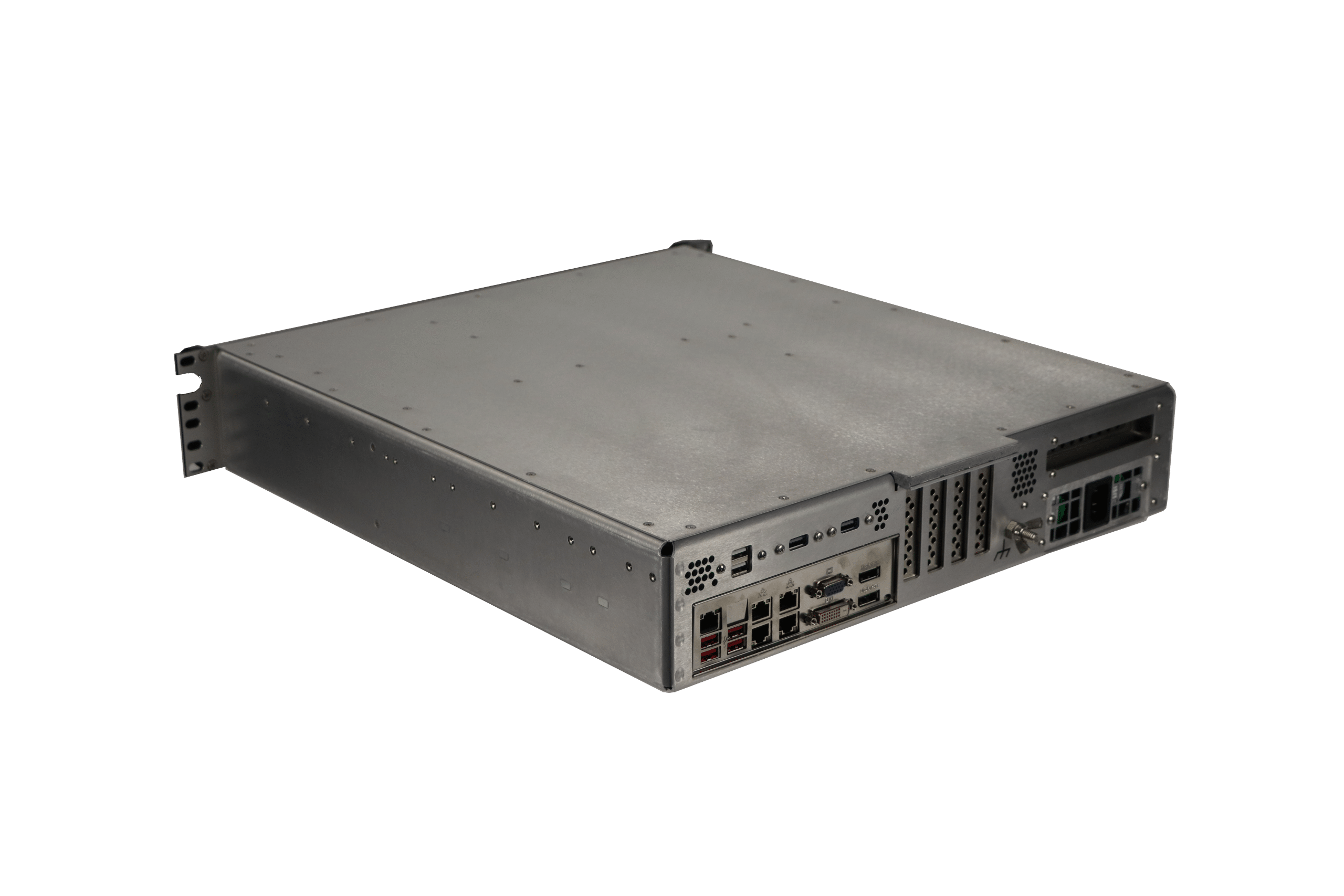

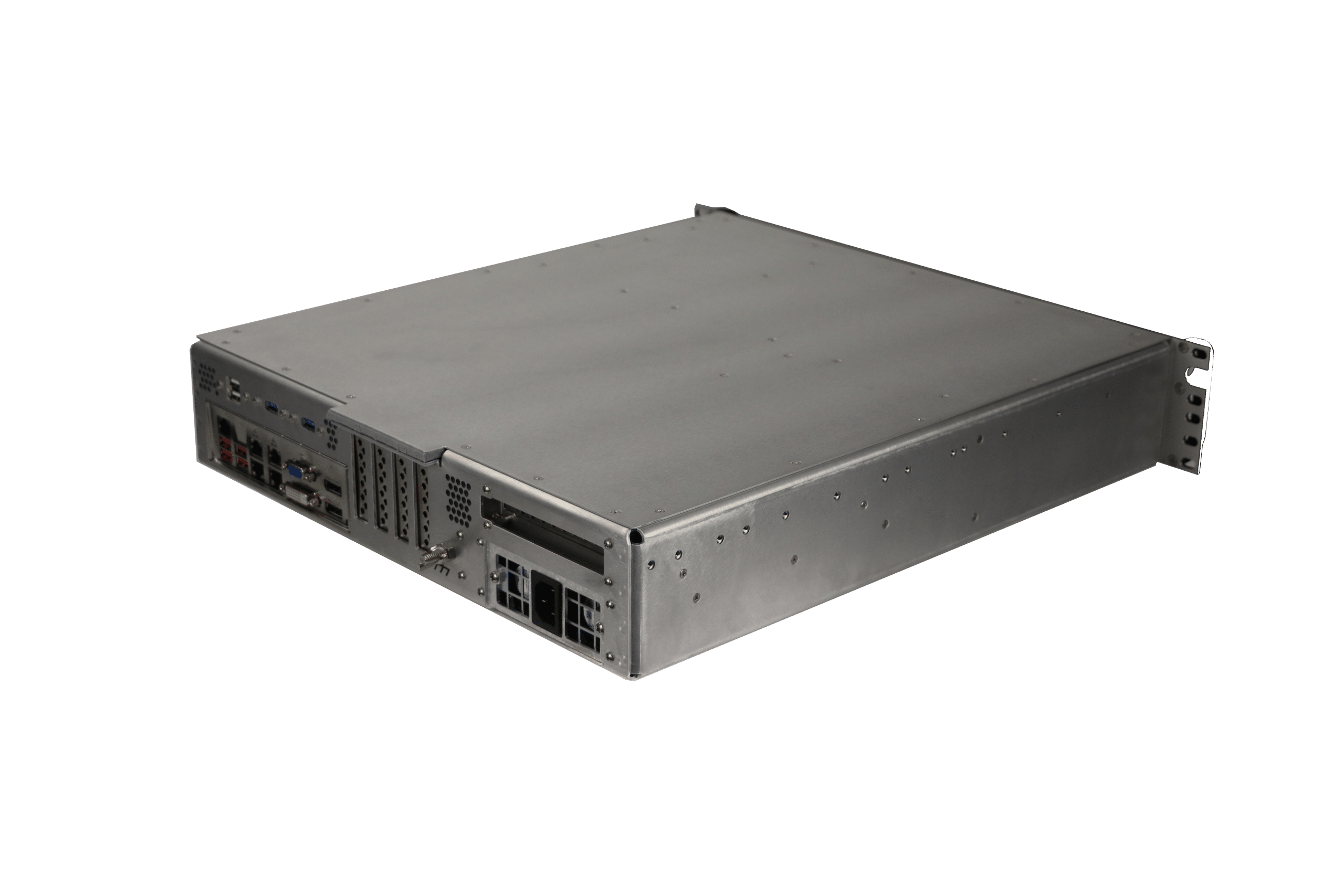

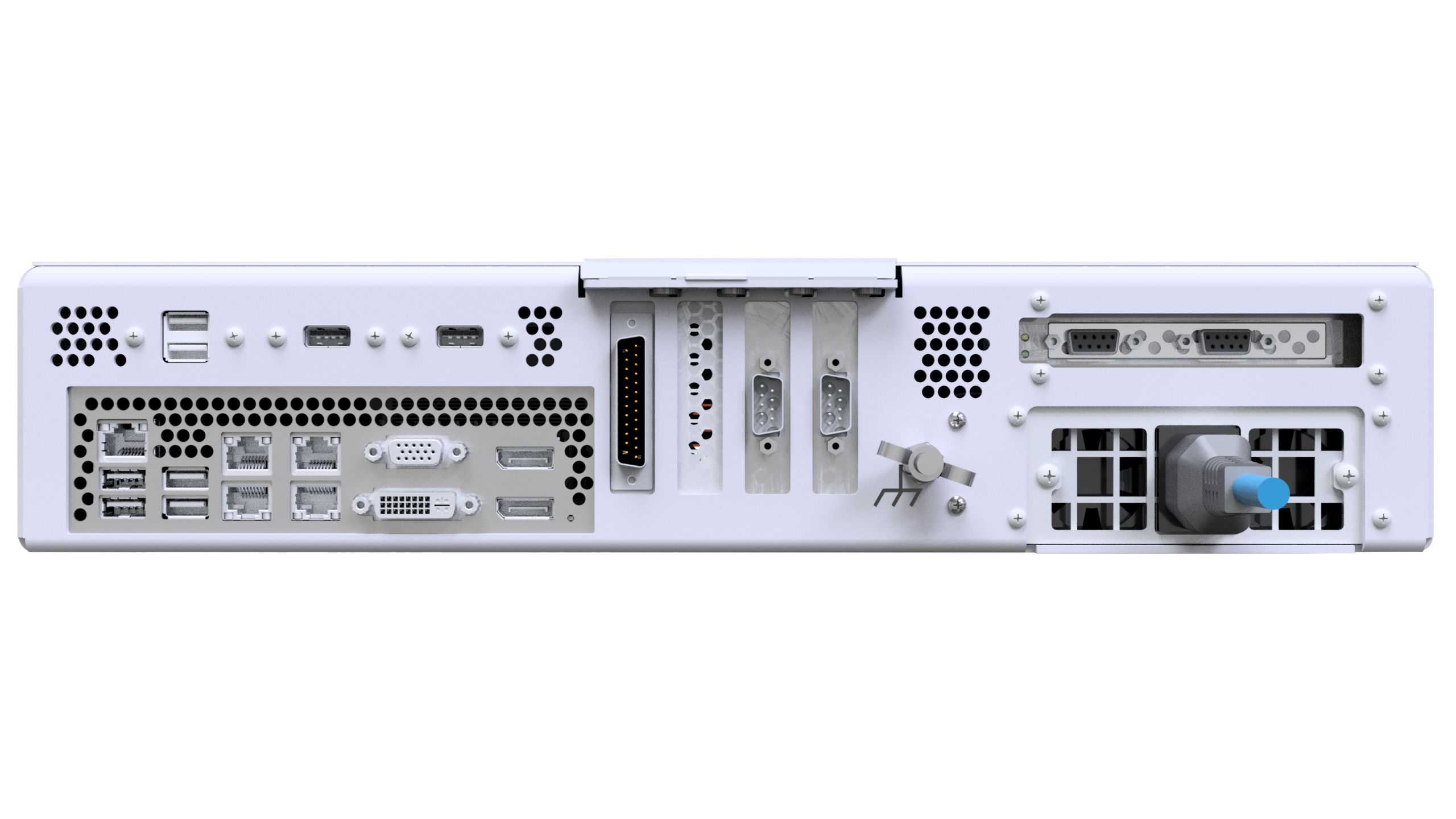

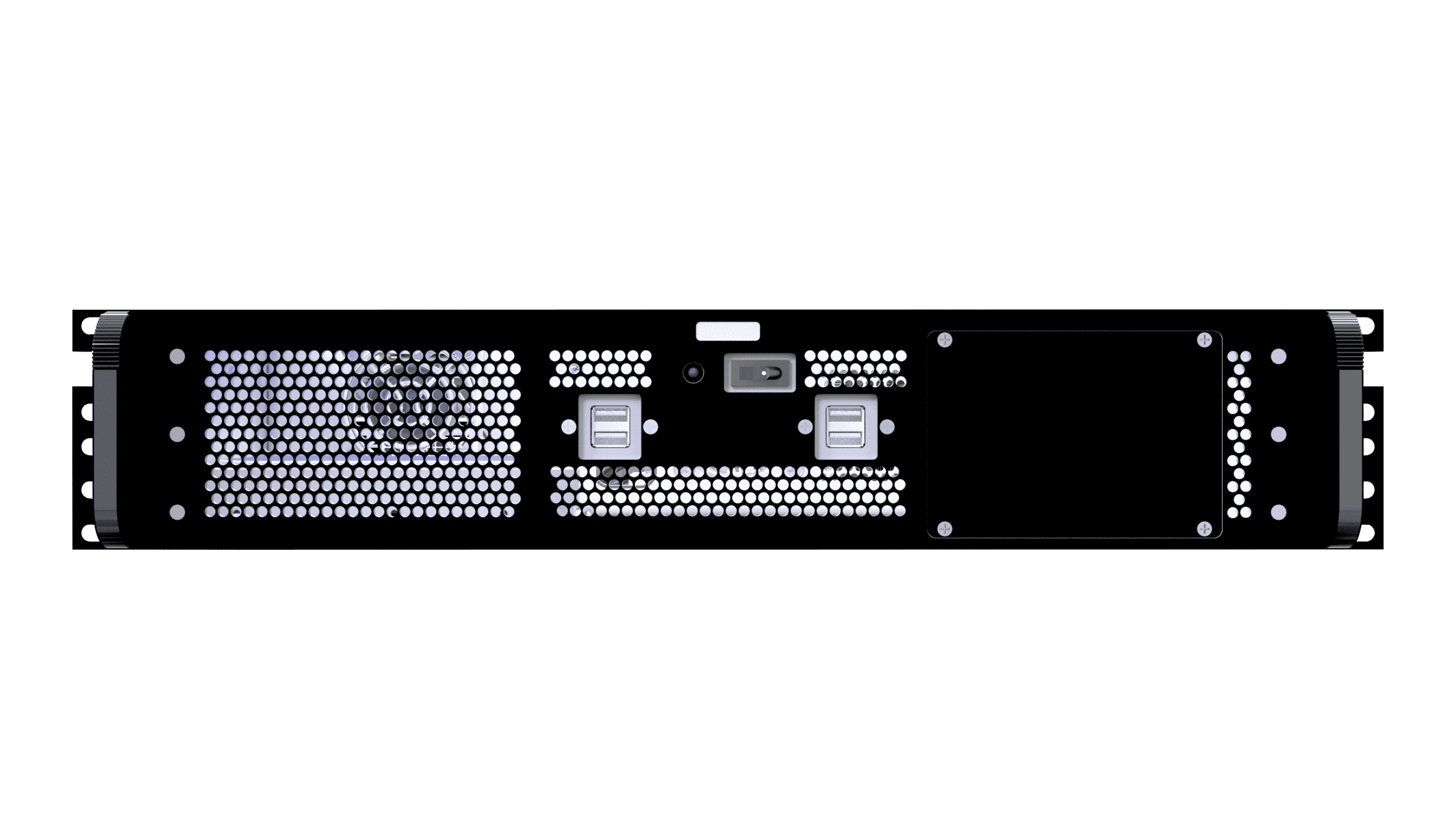

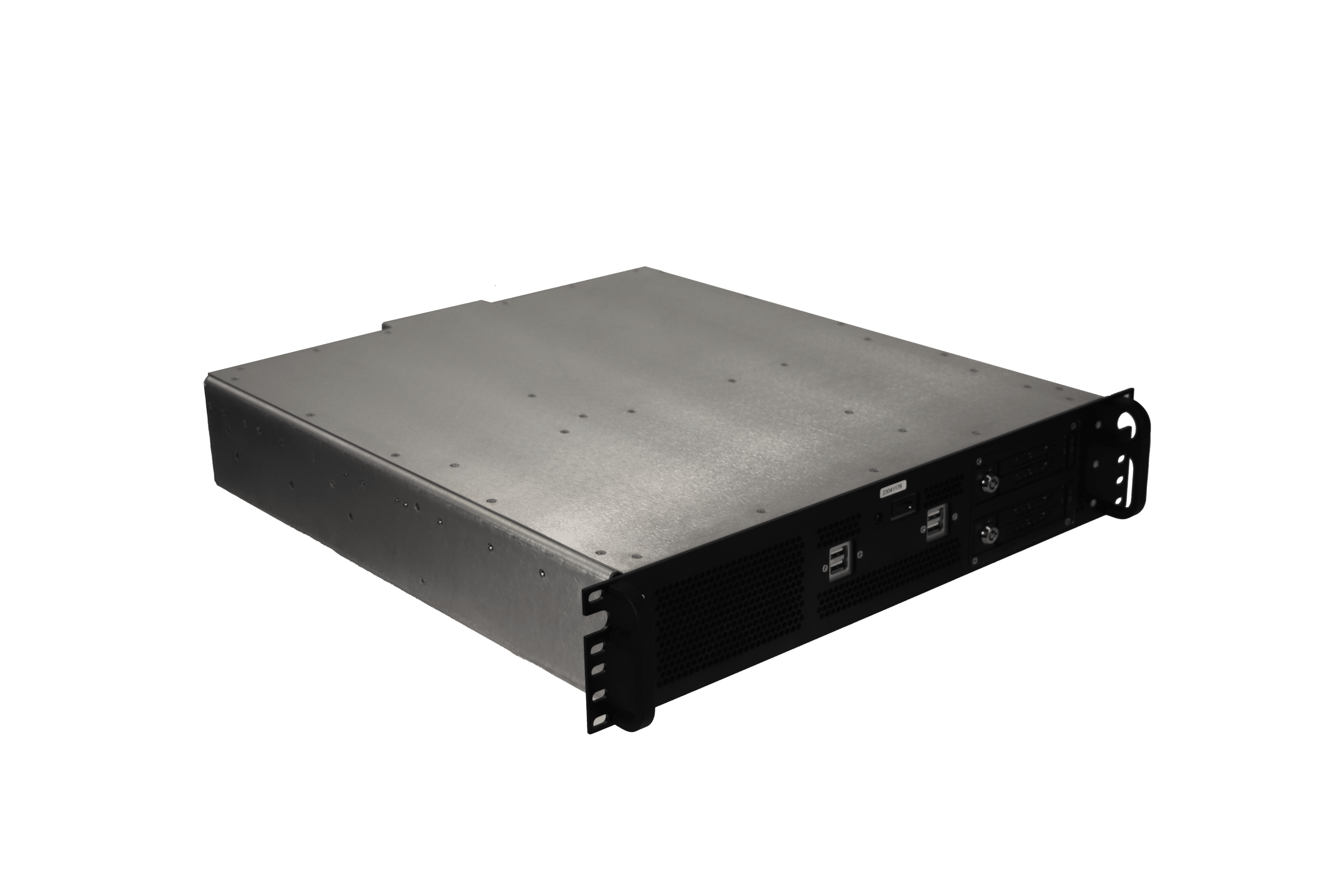

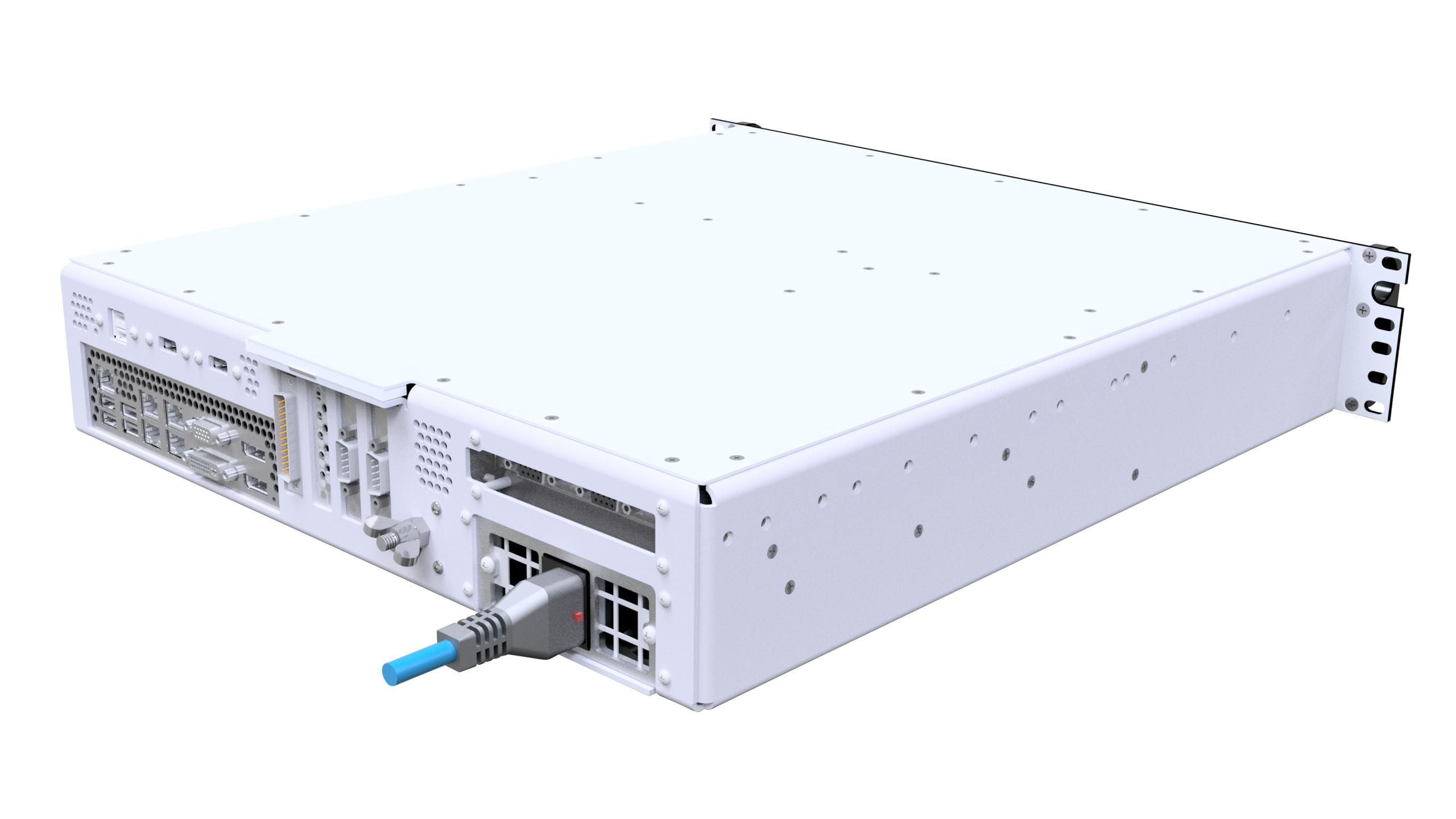

IS2502 Industrial 2U Server

Industrial server designed for demanding applications. The IS2502 was designed to collect data and send real-time alerts of potential platform failure. With a modular faceplate, this server accepts COTS drive carriers and can be easily upgraded as the demands of the industry change. Tested to strict environmental standards, this purpose-designed appliance can operate in extreme heat, humidity, and vibration. This custom solution for the oil & gas industry also meets BIS certification, to be in compliance with Indian standards.

Use cases:

  • Sensor data aggregation
  • Data logging
  • IP camera video storage
  • AI/ML inferencing at the edge
  • SIEM log capture for cybersecurity and compliance
  • Edge monitoring equipment
  • General purpose compute
  • Ideally suited for wireline and offshore oil platforms
IS2502 Industrial Server
  • Supports Intel® Core or Xeon® processors
  • GPU for AI/ML options
  • Five expansion slots
  • Up to six SATA or two NVMe
  • 460WAC
  • Up to 128GB DDR4 ECC memory
Mechanical
Form factor 2U
Height 3.5" (8.89 cm)
Width 16.93" (44.45 cm); EIA-310 rack compliant
Depth 19" (48.26 cm)
Weight 15-25 lbs. (6.8-11.3 kg)
Mounting
EIA rack-mounted, ball bearing slides
Power Supply
460WAC
CPU Architecture
Intel® 10th Gen Core i3/5/7/9
Intel® Xeon® W-1200 series
Expansion Slots
One full-height, 3/4-length slot
One low-profile PCIe 3.0 x16
One low-profile PCIe 3.0 x4 (x8 mechanical)
One low-profile PCIe 3.0 x4
System Board
SuperMicro X12SCZ-TLN4F, 2X 1G LAN, 2X 10G LAN, IPMI W/VGA, DVI-D, 2X DP, 4X USB 3.2
Advantech ASMB-587, 2x 1G LAN, IPMI (optional), VGA, DVI-D, HDMI, 4x USB 3.2, Audio
Cooling
Redundant high-speed, high-volume fans; CPU temperature controlled
Storage
Up to six 2.5” SATA SSDs
Up to two 2.5” NVMe SSDs
Environmental Standards
Operational Temperature -40°C to +50°C
Temperature Storage -40°C to +70°C
Humidity (with optional kit) 48 hrs, 5-95% RH 25-65C
Vibration 5-2000Hz, 1.5GRMS, 75 minutes per axis
Shock 20g, 11msec, 3 shocks each axes, each direction
Acoustic Noise Requirement S, Grade A3
