Crystal Group RIA™ Ai & Autonomy Solution

Crystal Group RIA™ (Rugged Intelligence Appliance) combines impressive compute power, data-handling capabilities, and storage capacity in a compact, rugged solution capable of withstanding harsh environmental conditions, including potholes, collisions, and extreme temperatures that are likely to cause traditional systems to fail. Specifically designed for unmanned and autonomous driving vehicles, this turnkey solution is ideal for both military and commercial/industrial applications.

Features

• 10-32VDC input power
• Light weight aluminum construction – 30-40 lbs.
• Up to 2 TB DDR4 of memory

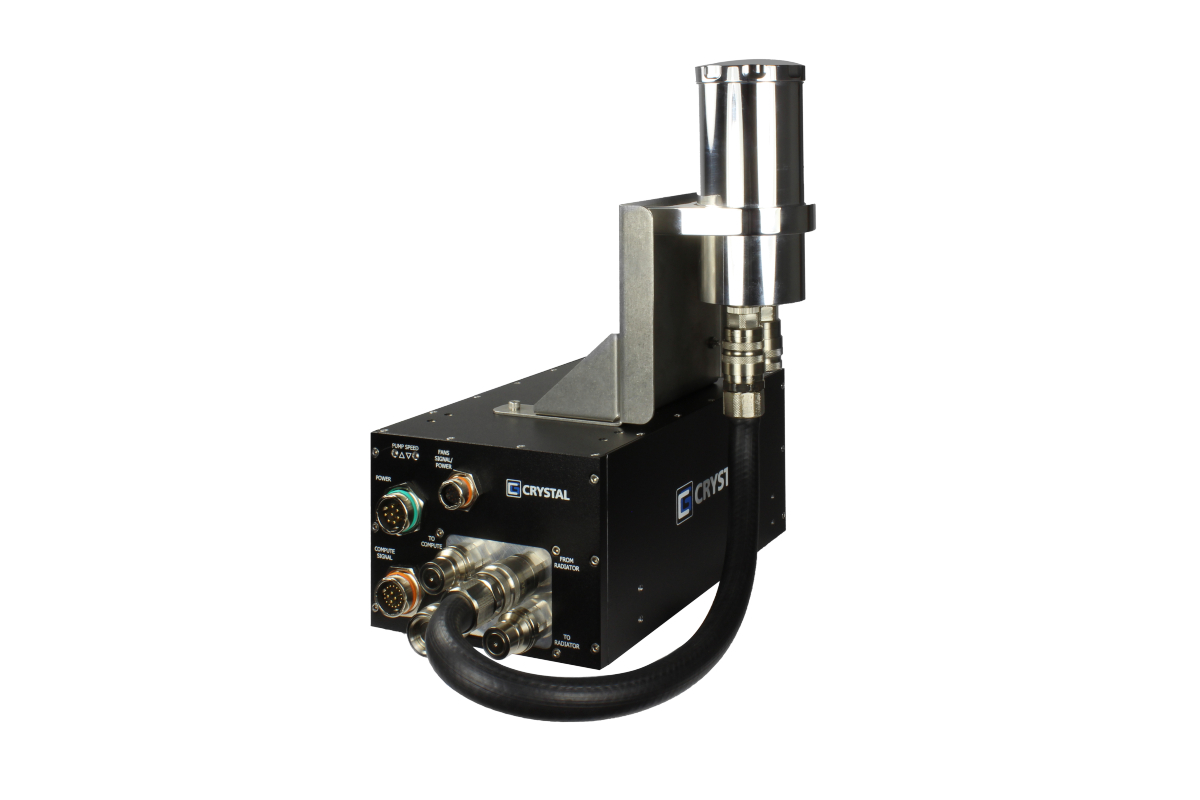

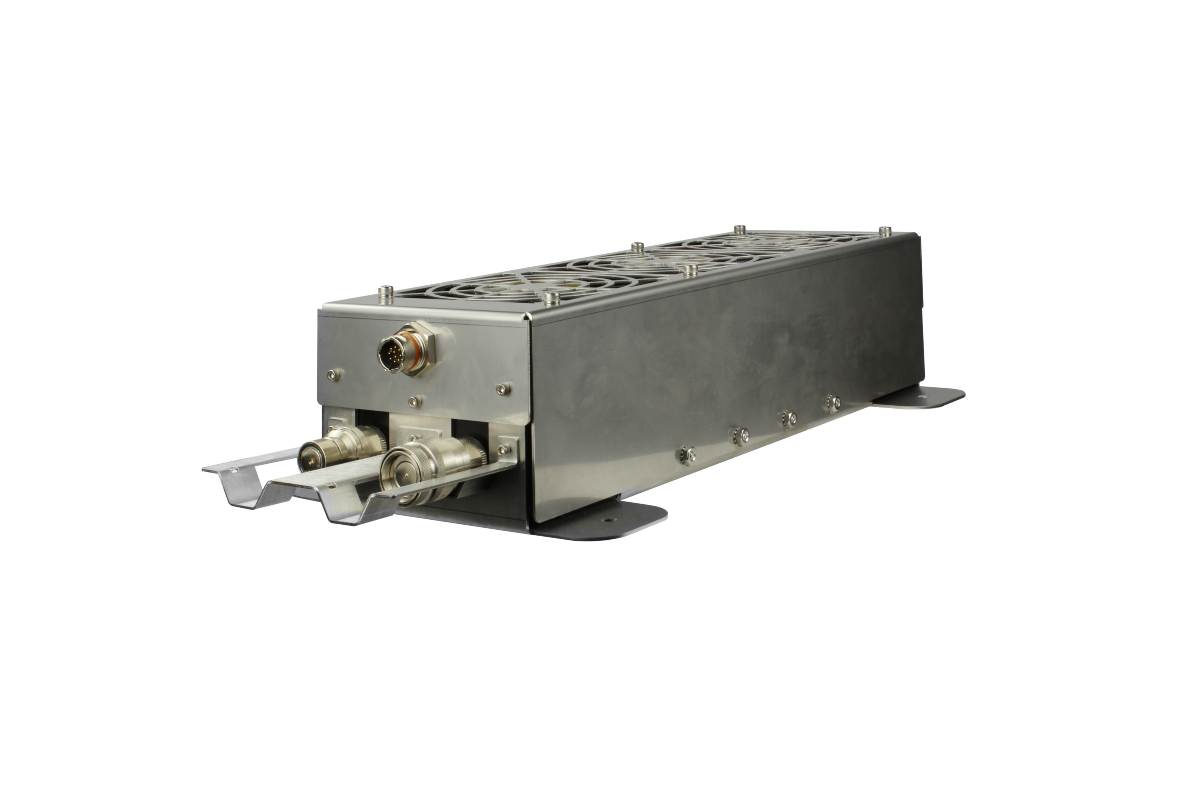

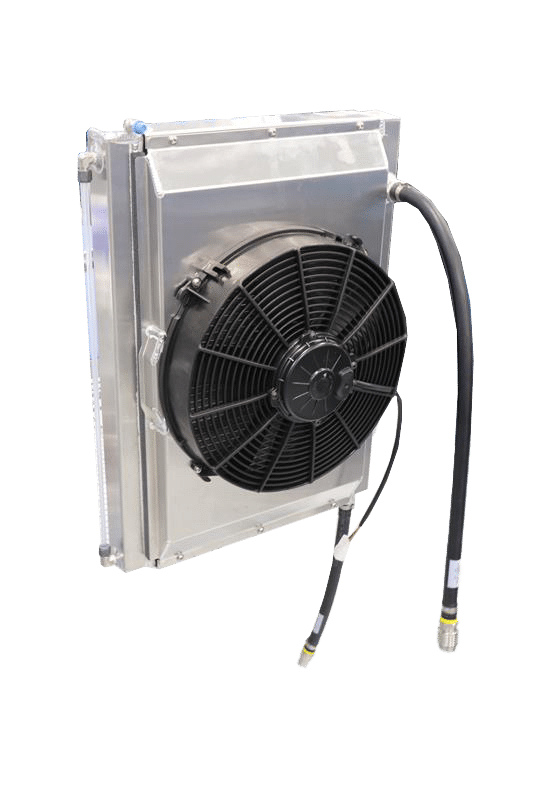

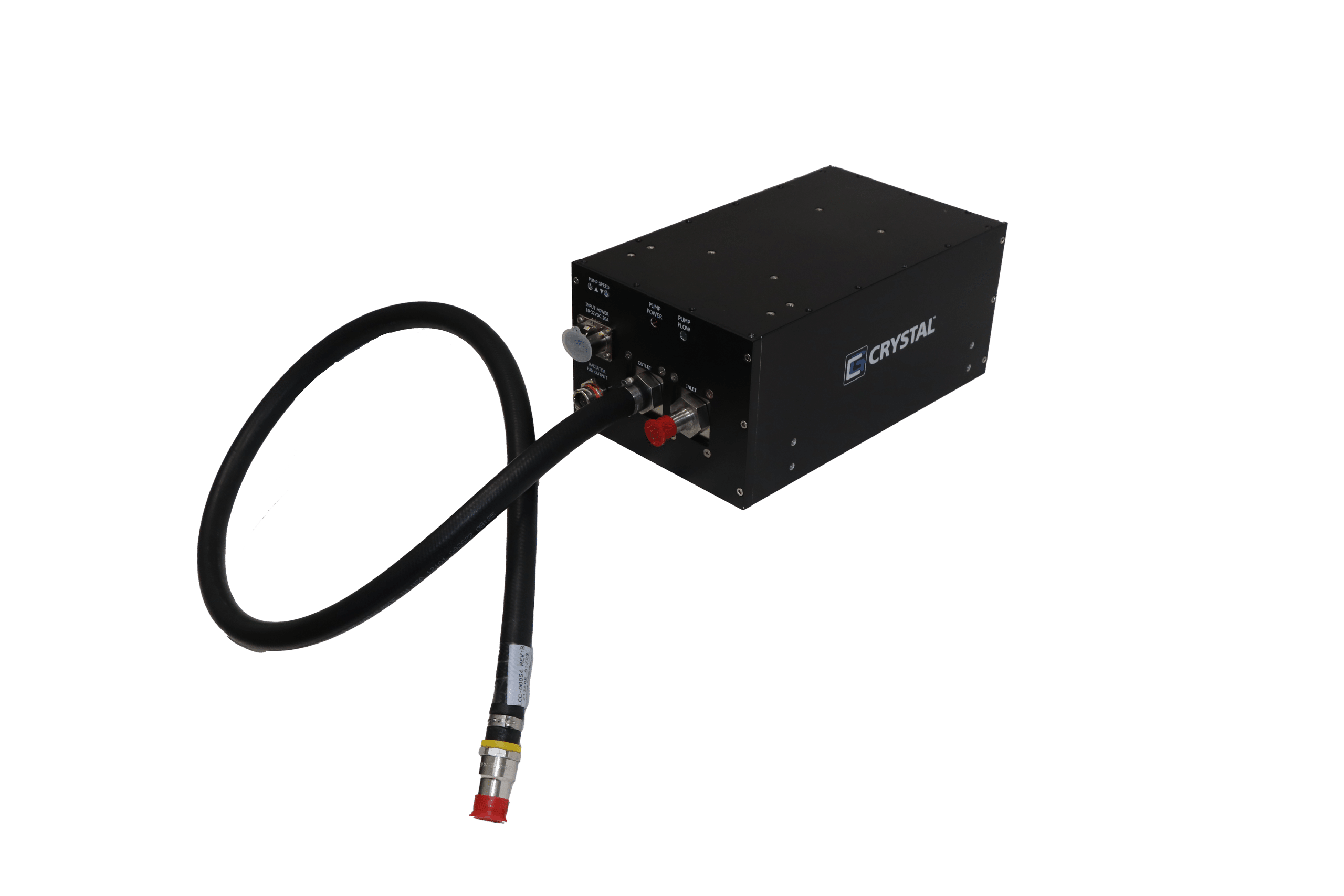

• Open loop cooling system kits available
• Versatility with two (2) removable 15mm drives or three (3) removable 9.5mm drives
• Expandable with six (6) PCI-E slots

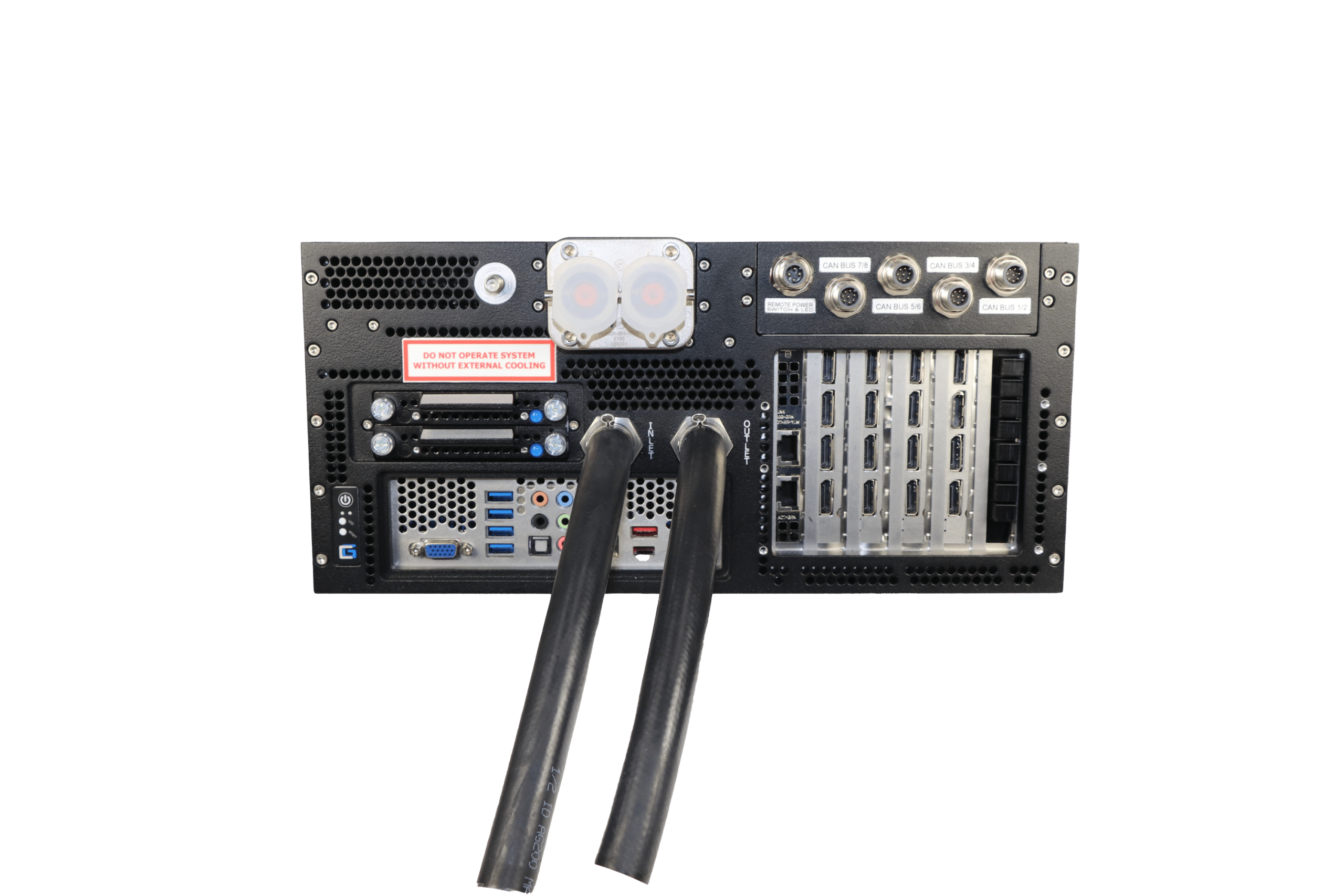

• Liquid cooled to maximize compute density
• Intel® Xeon® Scalable Processors

Specifications

Environmental Standards
Designed to meet standards
Operational Temperature

-40°C to +55°C. Expanded temperature ranges available

Storage

-40°C to +85°C

Humidity

5-95%; 240 hours

Altitude

12,500ft operation, 40,000ft transport

Shock

25G 10ms 400 shocks in each direction in each axis 2400 shocks total

Vibration

2.0Grms 10Hz-1000Hz 13.5 hours in each axis

MIL-STD-810, Shock, Method 516, Procedure I/V

20 G, 11ms

Mechanical
Height
6.5" (16.51cm)
Width
14.1" (35.81cm) EIA-310 rack compliant
Depth
15.6" (39.62cm)
Weight:
30 - 40 lbs ( 13.61 - 18.14 kgs ) content dependent
Expansion Slots
Up to six (6) PCI-E; configuration motherboard dependent
External Bays
Standard

Three (3) removable 7 or 9.5mm SATA 2.5” bays

Optional

Two (2) removable 7, 9.5 or 15mm SATA 2.5″ bays

Memory
Up to DDR4 Configuration motherboard dependent
Cooling

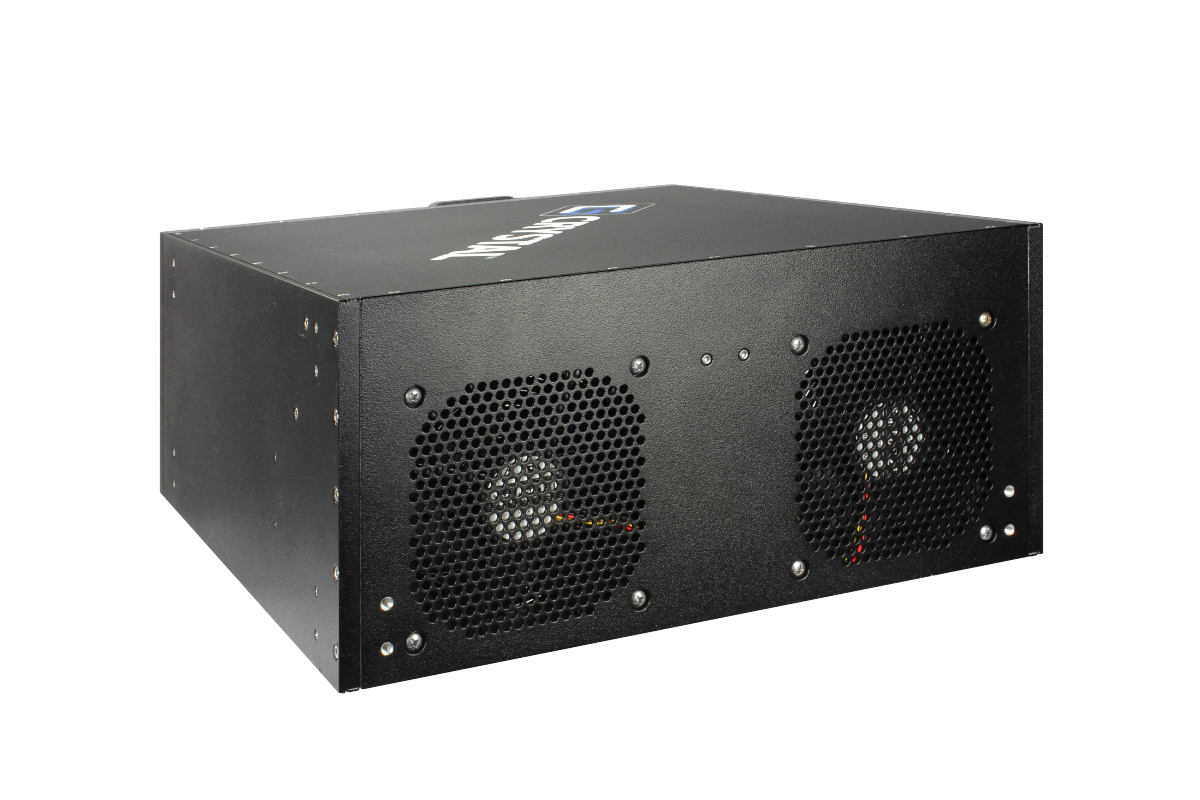

System liquid cooled; two (2) internal low noise fans circulate air through chassis to cool components not directly cooled by liquid

Optional bench top lab cooling kit

Mounting
Mounting provisions on chassis; we can create custom mounting for your application
Power Supply
1500W 10-36VDC, Amphenol PowerLok™ Series 300 connectors
System Board
Multiple motherboard options from Intel, SuperMicro, and Advantech
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Program Manager to receive the classification of your product.
