RE1529 Rugged Embedded Computer

Field tested, failsafe and long life performance in extreme conditions. Feature rich Crystal Group Embedded Computer Systems are powerful, compact, and rugged. Completely and easily configurable, the Embedded product line boasts advanced thermal management and a carbon fiber chassis, are field-tested to withstand shock and vibration, extended temperature ranges, harsh elements and harsh environments. Crystal Group Embedded Computer Systems follow the Intel® Roadmap to ensure access to the latest, powerful Intel chipsets and processors.

Features

RE1529 Rugged Embedded Computer

  • Compact construction – 6”H x 15.4” W x 9.6”D footprint
  • Compact composite construction provides low SWaP
  • Xeon®-D CPU technology
  • Up to 16 cores Xeon-D
  • 36-72 VDC power or 250 VDC power options
  • Up to nine 7/9mm SSD storage options, removable drives
  • Up to 128GB ECC DDR4 unbuffered, non ECC DDR4 1.2V SO-DIMM or 128GB ECC DDR4 with Xeon-D offering
  • MIL-STD-461 CE102, RE102 compliant
  • Bulk head or tray mounted options
  • Supports full height, half length expansion cards
  • Offers high volume, high speed network connections
  • Two expansion slots

Please contact us to receive the reports, guides and drawings that best fit your requirements.

Specifications

Environmental Standards
Designed to meet standard
MIL-STD-810, Operational Temperature

-40°C to +60°C

MIL-STD-810, Storage, Method 501, Procedure I/II

-40°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

5.5G, 5-2,000Hz, 60 min/axis, 3 axes
with vibration kit

Electromagnetic Compatibility Standards
Some standards may require an internal kit
MIL-STD-461, CE102, RE102
Mechanical
Height
6" (15.24cm)
Width
15.4" (39.12cm)
Depth
9.6" (24.38cm) or -2" (-5.08cm) excludes connectors
Weight:
7.52 lbs ( 3.41 kgs )
Expansion Slots
Two PCIe 3.0x16 full height, half length expansion bay
Internal Expansion Slots
Up to nine SATA 2.5” SSD (externally removable)
Cooling

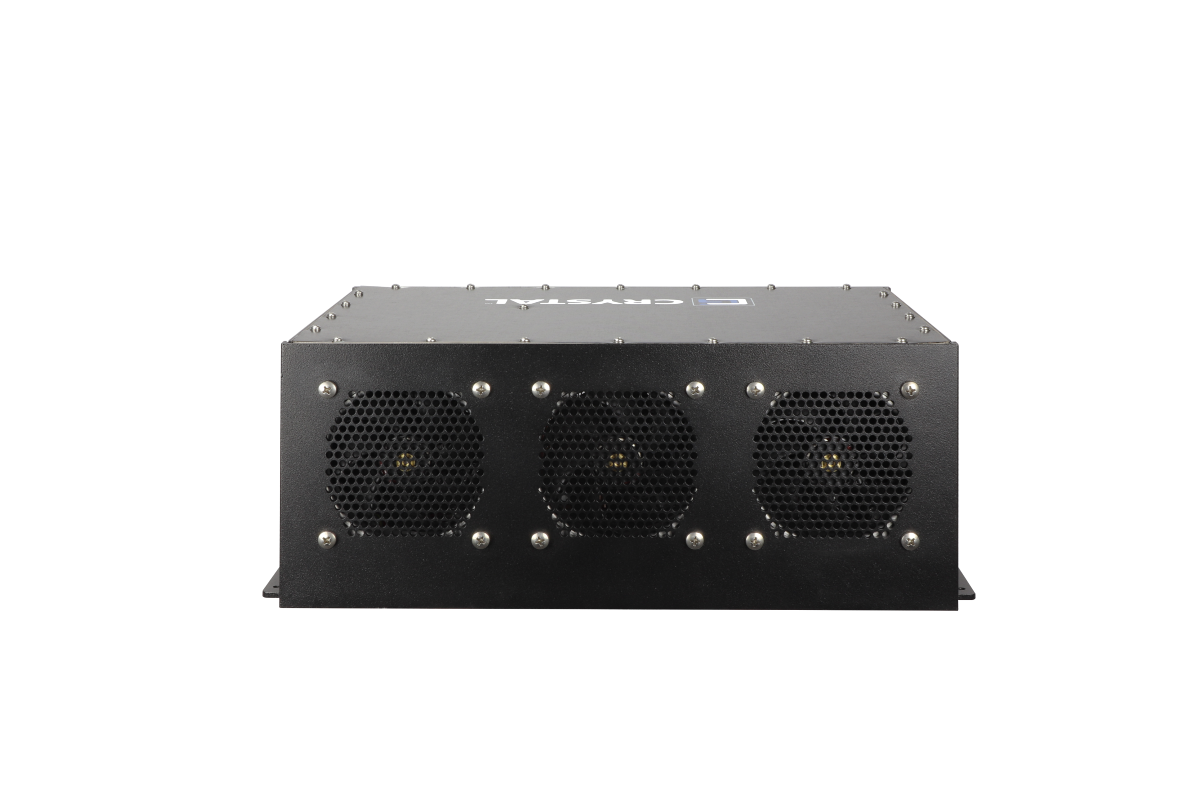

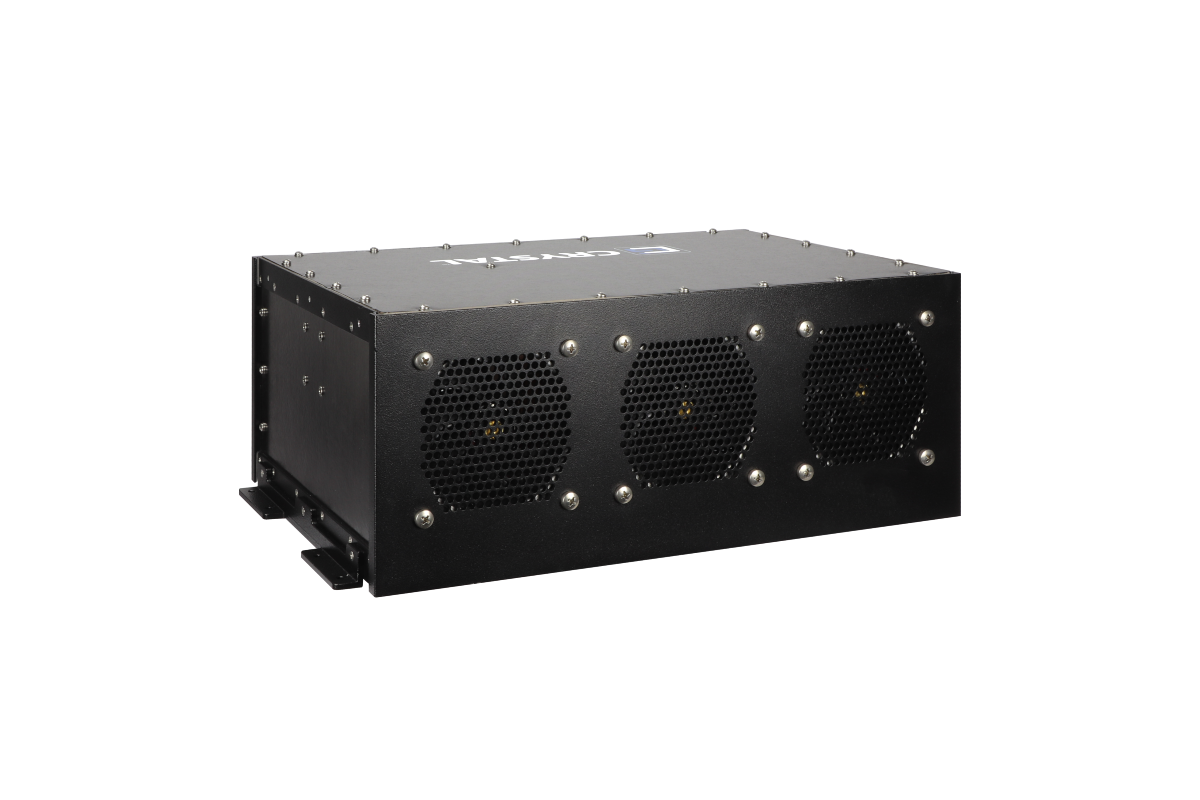

Three high reliability 92mm fans

Mounting
Tray or bulkhead mounted using ears supplied
Power Supply
Option 1

36 -72 VDC, 120VAC Watt power brick

Option 2

250 VDC

System Board
Option 1

X10 SDV – 7TP8F

Option 2

X10 SDV – 7TP4F

Other options available
Software Compatibility
Accepts Windows 10®, RHEL 7.1®, SUSE SLES 11®, Centos 7.1®, Windows Server 2016®, RHEL 6.8®, RHEL 7.2® or Ubuntu 16/18®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.
