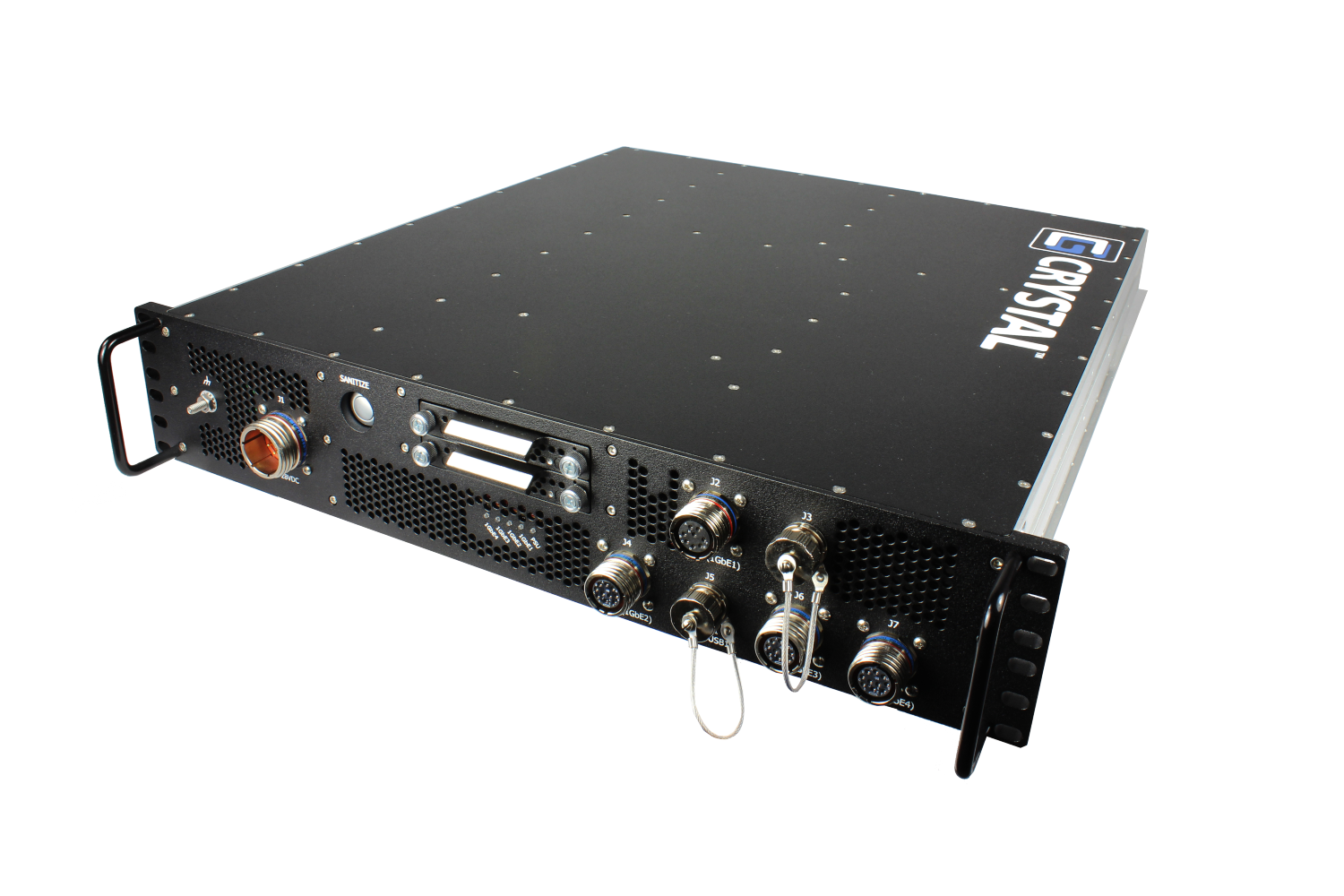

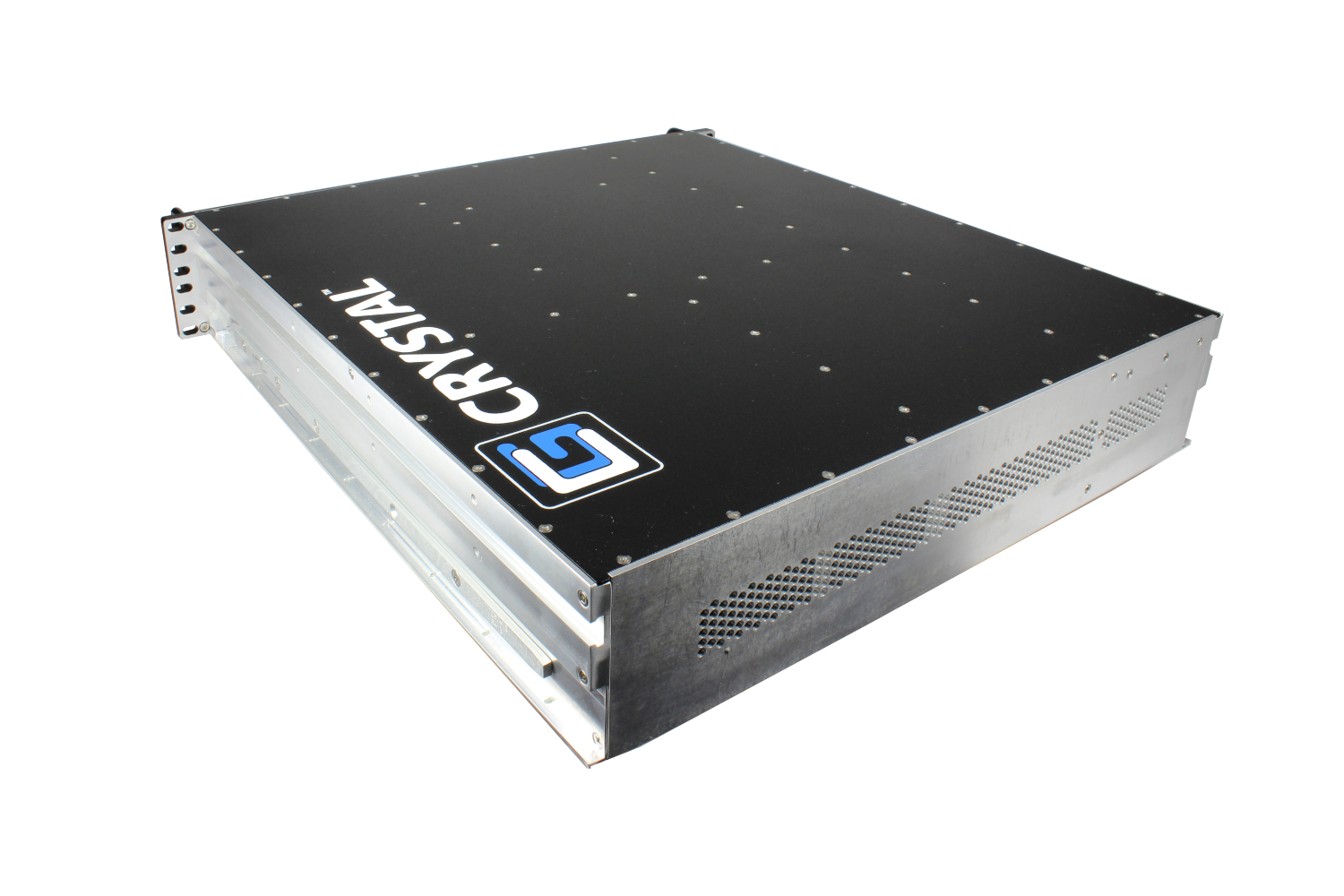

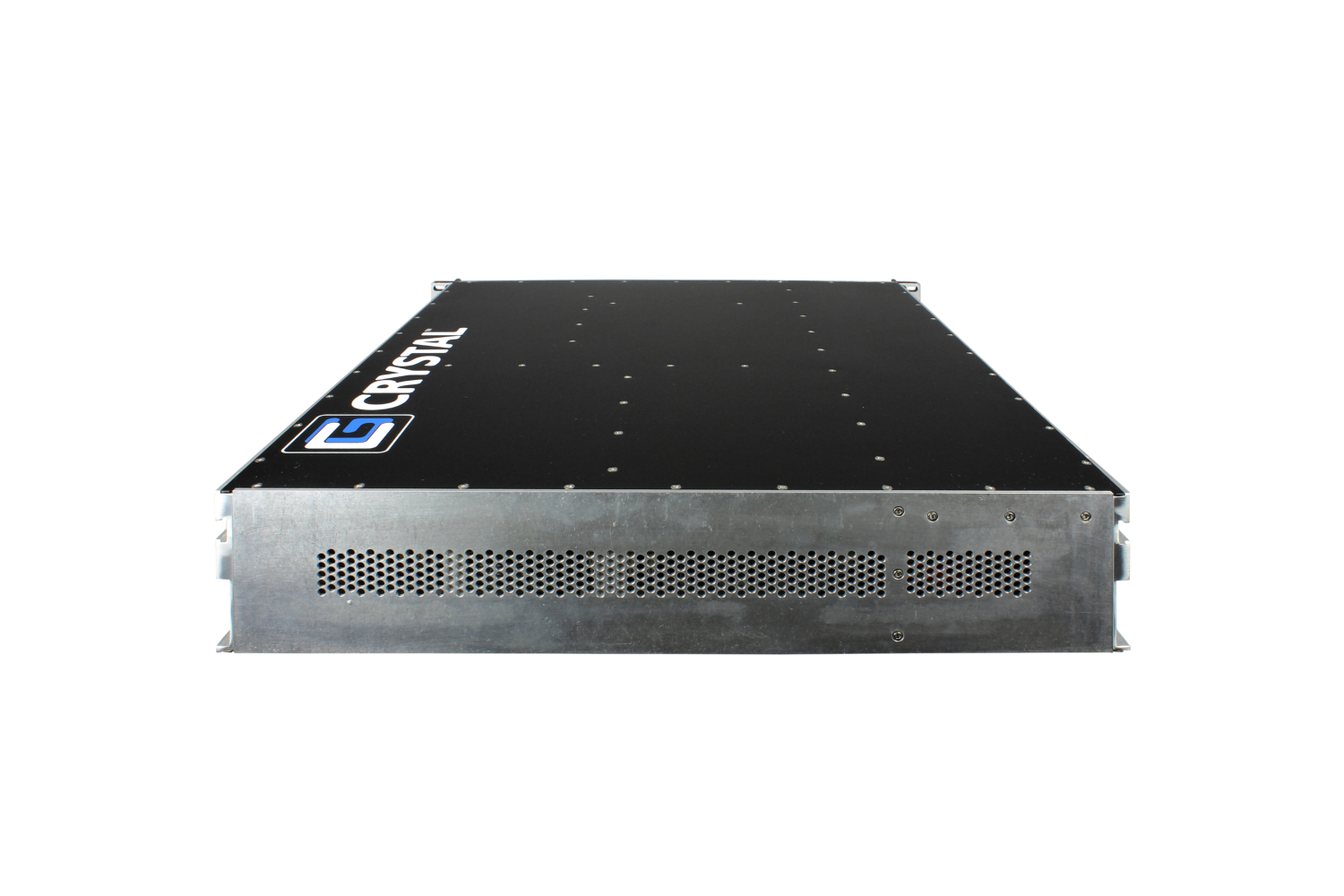

RS202FM Rugged 2U Server

Field tested, failsafe and long life performance in extreme conditions. As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the RS202FM. High-end computing performance in a 2U chassis with a depth of 19” (48.3 cm) fits most any rack space.

Features

RS202FM Rugged 2U Server

• Light weight aluminum construction – under 25 lbs.
• Easily mounted – Delrin glides, or Jonathan® rails
• Up to 512 GB of memory
• Rugged 2U, rack mounted 19” depth
• Versatility with up to two (2) 2.5” SSD’s in a single removable twin carrier sled
• Internal expansion with Mil-Circ I/O
• Leading edge Intel® Sandy Bridge, Ivy Bridge, Haswell or Broadwell CPU options

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II:

-15°C to +50°C

MIL-STD-810, Storage, Method 501, Procedure I/II:

-55°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II:

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500:

11,000ft operation, 41,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I:

4.63 GRMS, 5-2,000Hz, 60 min/axis with solid state drives + vibration kits

MIL-S-901, Grade B
MIL-S-901, Grade A:

With solid state drives + shock kits

MIL-STD-810G, Shock, Method 516.6, 15g, 11ms, operational
Electromagnetic Compatibility Standards
Some standards may require an internal kit
AC, FCC Compliant
AC, MIL-STD-461, RE102, CE102 compliant
DC, MIL-STD-461, RE102, CE102 compliant
RTCA DO-160 Section 21, Category M
Mechanical
Form Factor
2U
Height
3.48" (8.84cm)
Width
17.46" (44.35cm)
Depth
19" (48.26cm)
Weight:
25 lbs ( 11.34 kgs )
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap; Up to 18 core options per socket (dependent on motherboard)
Option 1:

Sandy Bridge or Ivy Bridge

Option 2:

Haswell or Broadwell LGA2011, X10SRL-F or X10DRL-I

External Bays
One or two 2.5" SSD's in a single twin carrier. Internal expansion available with custom Mil-Circ I/O
Memory
16 GB DDR3 or DDR4 (motherboard dependent)
Cooling

High speed, high volume fans (4), CPU temperature controlled

Mounting
Option 1:

Delrin glides

Option 2:

Jonathan rails

Power Supply
505W DC ATX Power Supply 18-36 VDC
System Board
X9DRD-7LN4F, Dual LGA2011 XEON, EATX, 4LAN1000,IPMI, VGA, 6X PCI-E 3.0 X8, 4X SATA2, 2X SATA3, 8X SAS2
Software Compatibility
Accepts Windows 10®, VMware®, Linux® or Windows Server 2016®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification for your product.
