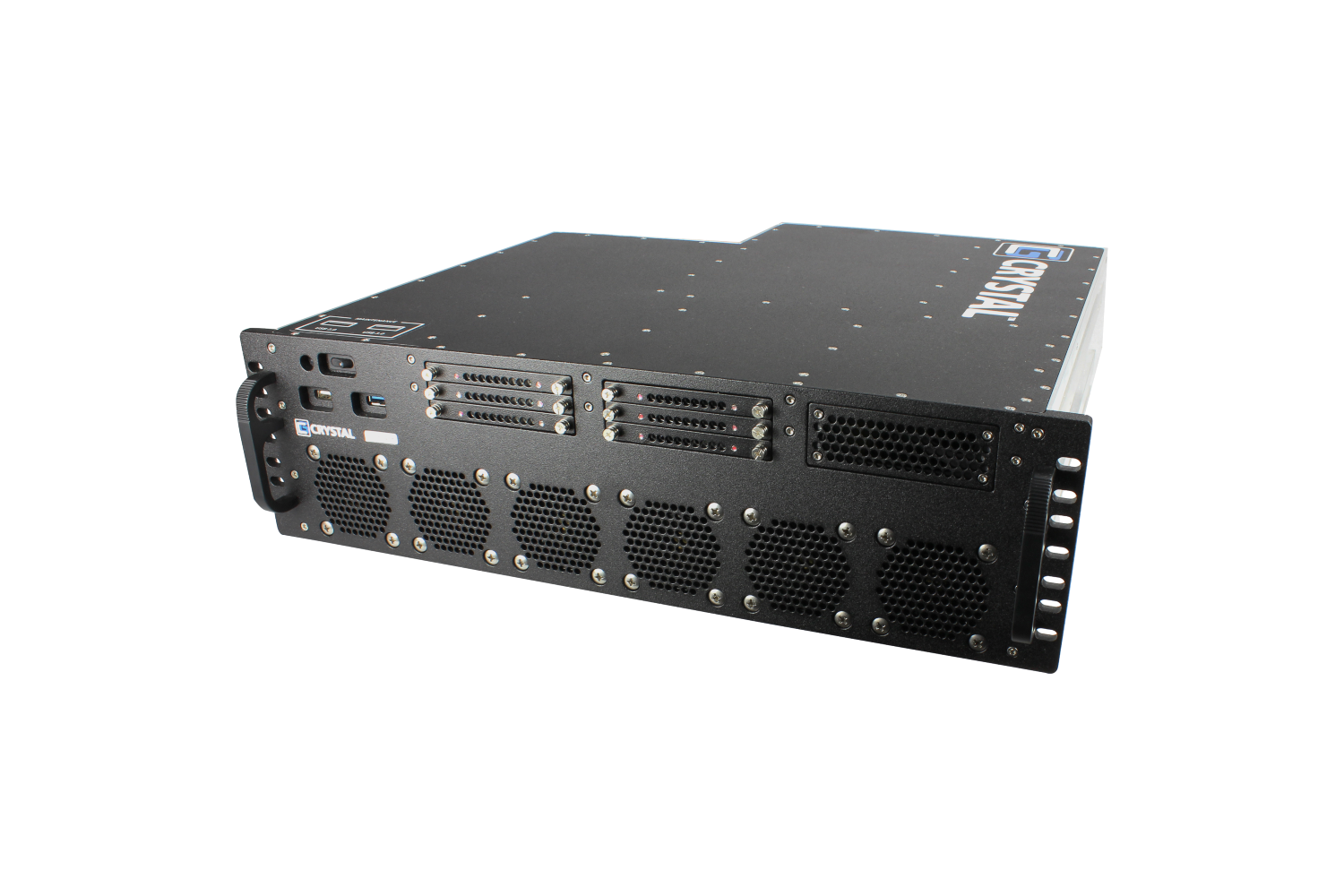

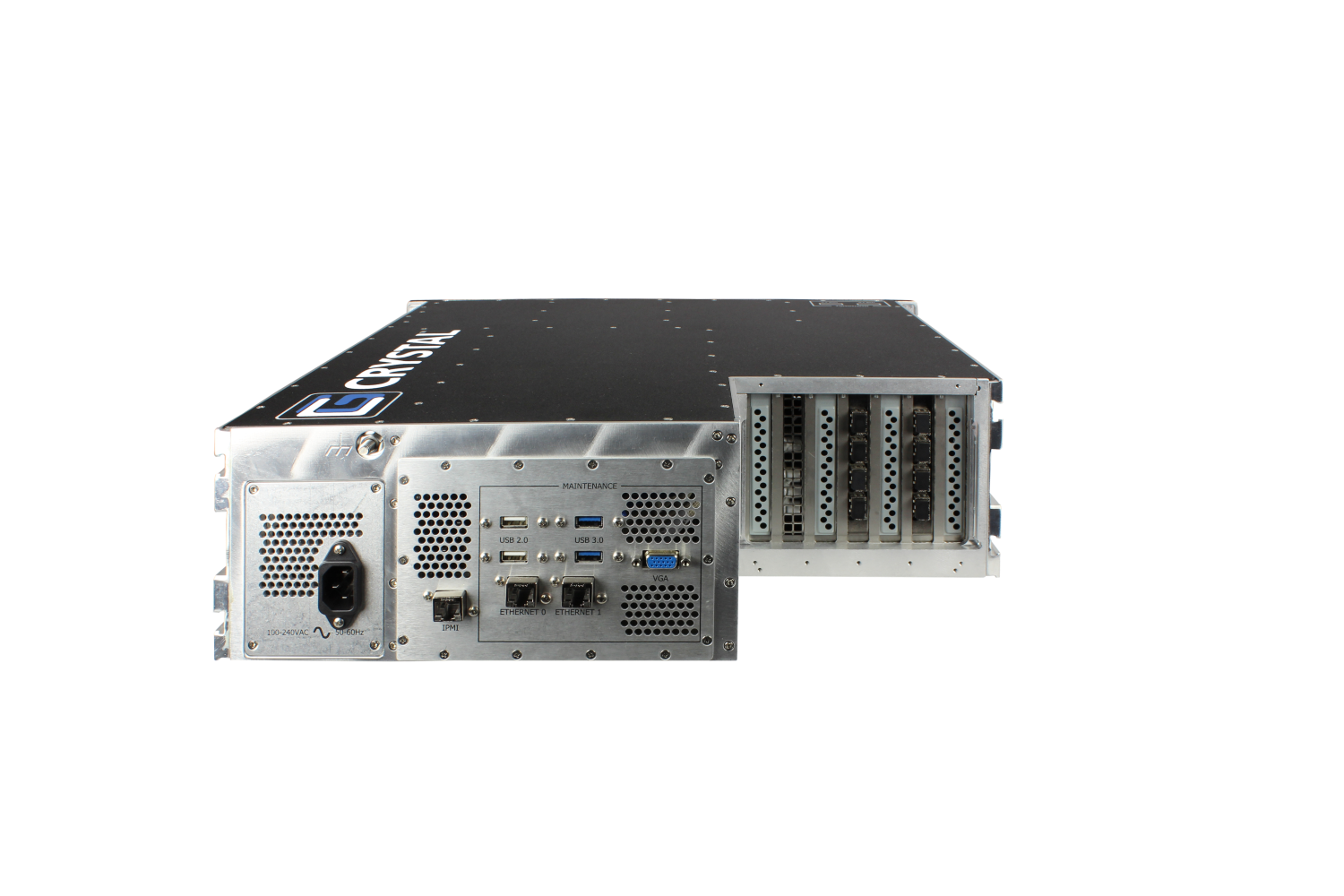

RS373S17M Rugged 3U Server

Smarter with Intel®. Stronger with Crystal Group. Energy is essential to modern day living and homeland security. Power companies are undergoing a major transformation of aged computing infrastructure to protect energy resources now and for years to come. Traditional off-the-shelf computer hardware cannot provide the performance and long-term reliability required by substations today. Crystal Group ruggedized solutions, powered by Intel, offer long life in a robust server – surviving treacherous conditions such as extreme temperature, moisture, and dust.

Features

RS373S17M Rugged 3U Server

• Light weight aluminum construction – 35- 40 lbs.
• Easily mounted – Delrin glides
• Up to 512 GB of memory
• Versatility with nine SATA/SAS 2.5″ drive bays
• Expandable with seven slots
• Five-year warranty
• Intel® Haswell and Broadwell family CPUs
• 17″ depth
• Modular I/O

Please contact us to receive the reports, guides and drawings that best fit your requirements.

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature

-15°C to +55°C. Expanded temperature ranges available

MIL-STD-810, Storage, Method 501, Procedure I/II

-55°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

Electromagnetic Compatibility Standards
FCC
IEC 61850-3
IEEE 1613 surge
Mechanical
Form Factor
3U
Height
5.25" (13.34cm)
Width
17.5" (44.45cm) EIA-310 rack compliant
Depth
17" (43.18cm)
Weight:
35 - 40 lbs ( 15.88 - 18.14 kgs ) (content dependent)
CPU
Intel CPU architecture options from Intel embedded long-life roadmap
Single socket Haswell and Broadwell processors (up to 18 cores)
Expansion Slots
Seven PCI-E
External Bays
Nine 9.5mm or six 15mm drive bays supporting removable SATA/SAS 2.5" bays
Memory
16 GB - 512 GB DDR4
Cooling

Six high speed, high volume fans; CPU temperature controlled

Mounting
Mounted on Delrin glides
Power Supply
Option 1

460W, 120/240VAC, 50/60Hz PFC

Option 2

400W, 125/240VDC

System Board
Single CPU: X10SRL-F, Single LGA2011 R3 Xeon
Software Compatibility
Accepts Windows 10®, Windows Server 2012®, VMware®, Linux® or Windows Server 2016®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Program Manager to receive the classification of your product.
