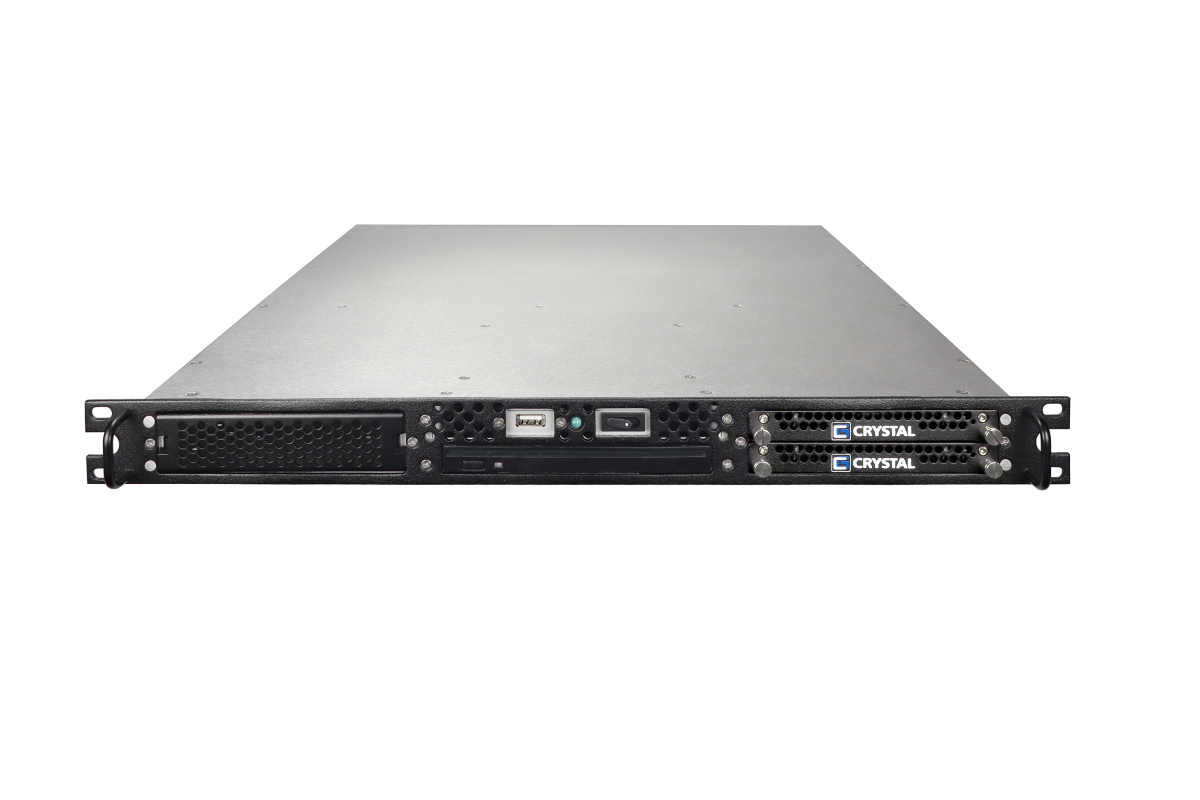

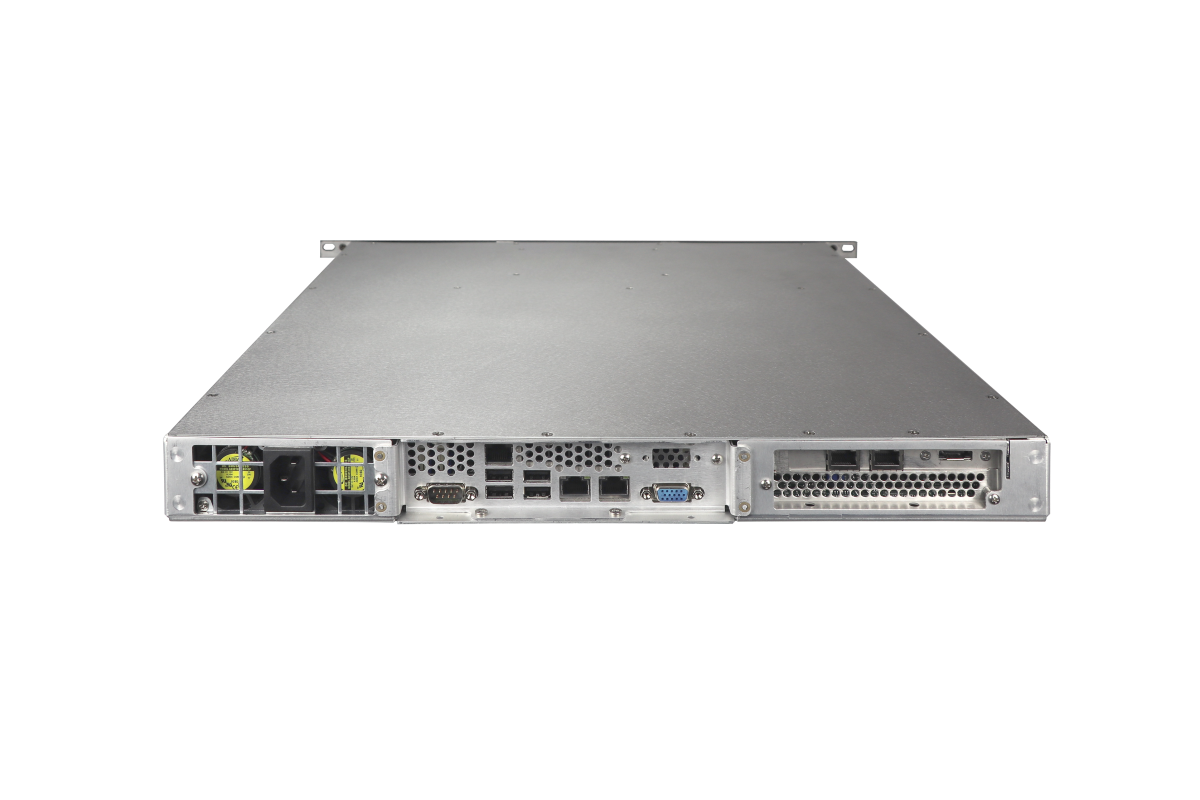

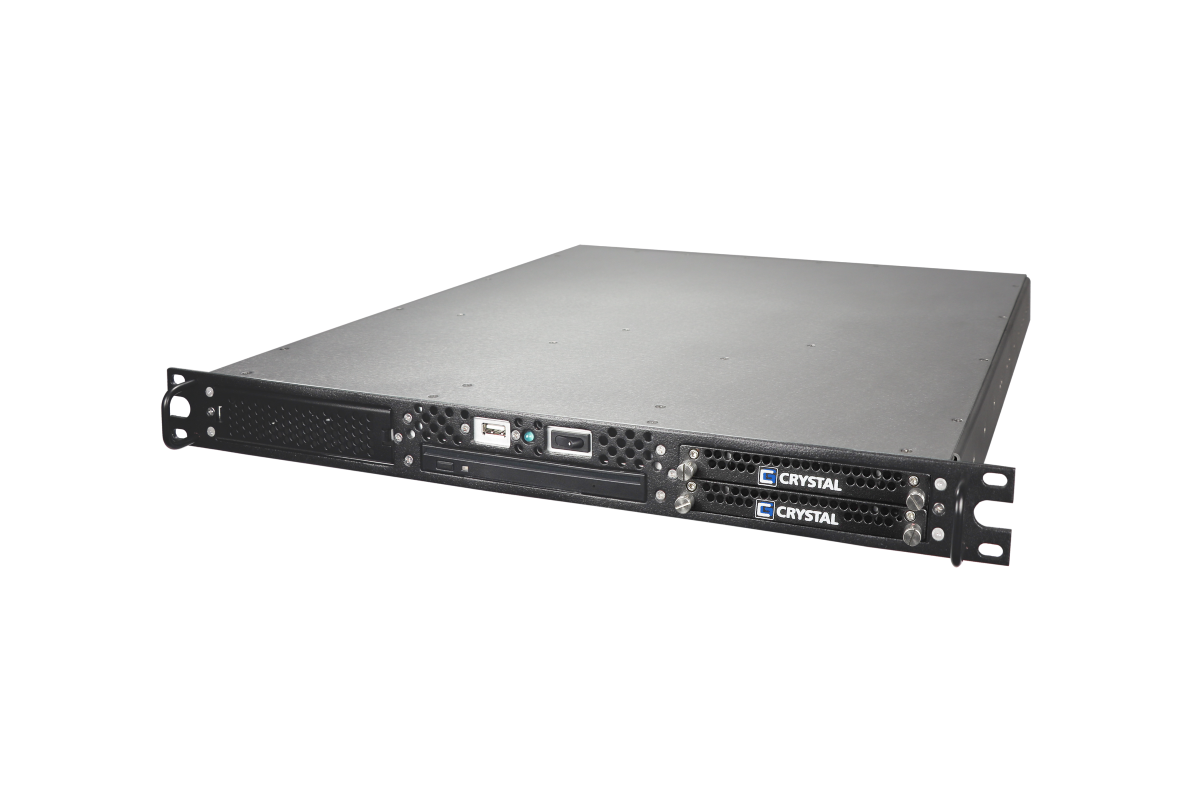

IS100 Industrial 1U Server

Field tested, failsafe and long life performance in extreme conditions. As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the IS100. High-end computing performance in a 1U chassis with a depth of 20” (50.8 cm) fits most any rack space.

Request Quote
IS100 - Spec Sheet

Features

IS100 Industrial 1U Server

• Light weight aluminum construction–14.8 – 18.6 lbs.
• Easily mounted on ball bearing slides
• Up to 256 GB of Memory
• Industrial 1U, 20” depth
• Front power switch with LED and HDD activity lights
• Leading edge Intel® Sandy Bridge, Ivy Bridge, Haswell or Broadwell CPU options
• Modular design allows for easy reconfiguration and versatility

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II

-10°C to +50°C, -40°C operational with SSD, capable of -40°C to 71°C with select processors

MIL-STD-810, Storage, Method 501, Procedure I/II

-30°C to +75°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

10,000ft operation, 20,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

1.5 GRMS, 5-2,000Hz, 75 min/axis

MIL-STD-810, Shock, Method 516, Procedures I/V

20g, 11msec; 3 axes, each direction

Electromagnetic Compatibility Standards
Emissions

FCC Class A

Mechanical
Form Factor
1U
Height
1.75" (4.45cm)
Width
16.93" (43cm) EIA-310 Compliant
Depth
20" (50.8cm)
Weight:
14.8 - 18.6 lbs ( 6.71 - 8.44 kgs )
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap
Option 1

Sandy Bridge or Ivy Bridge LGA1155, X9SAE-V

Option 2

Haswell or Broadwell LGA 2011, X10SRL-F

Dual, Quad, Hexa, Octa, Deca, or Dodeca Core options (dependent on motherboard)

Expansion Slots
One (1) full-height, 3/4 length slot
External Bays
Option 1

Two (2) removable SATA or SAS 2.5” or 3.5” HDDs

Option 2

Four (4) 2.5” SATA or SAS HDDs

Option 3 (can be combined with HDD option)

One (1) CD/DVD (R/W)

Memory
16 GB - 256 GB DDR3 or DDR4 (motherboard dependent)
Cooling

High speed, high volume fans (6) CPU temperature controlled

Mounting
EIA rack mounted slides

Mounted on ball bearing slides

Power Supply
Option 1

460W 110/240 VAC w/ PFC

Option 2

18-36VDC

System Board
Option 1

X9SAE-V, Single LGA1155, Xeon®, i3/5/7, ATX, 2LAN1000, VGA, 2XHDMI, AUDIO, 1 PCI, 2 PCI-E X1, 1 PCI-E X4, 1 PCI-E X8, 2 PCI-E X16, SATAX4, SATA3X2

Option 2

X10SRL-F, Single LGA2011 R3 Xeon®, ATX, 2LAN1000, VGA, 2 PCI-E X16, 5 PCI-E X8, IPMI, IPKVM, SATA3X10

Software Compatibility
Accepts Windows 8®, Windows 7®, Windows Server 2008®, VMware® or Linux®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.

Deployments

This product is ideal for the following industrial applications:

Communications

Weather Radar
