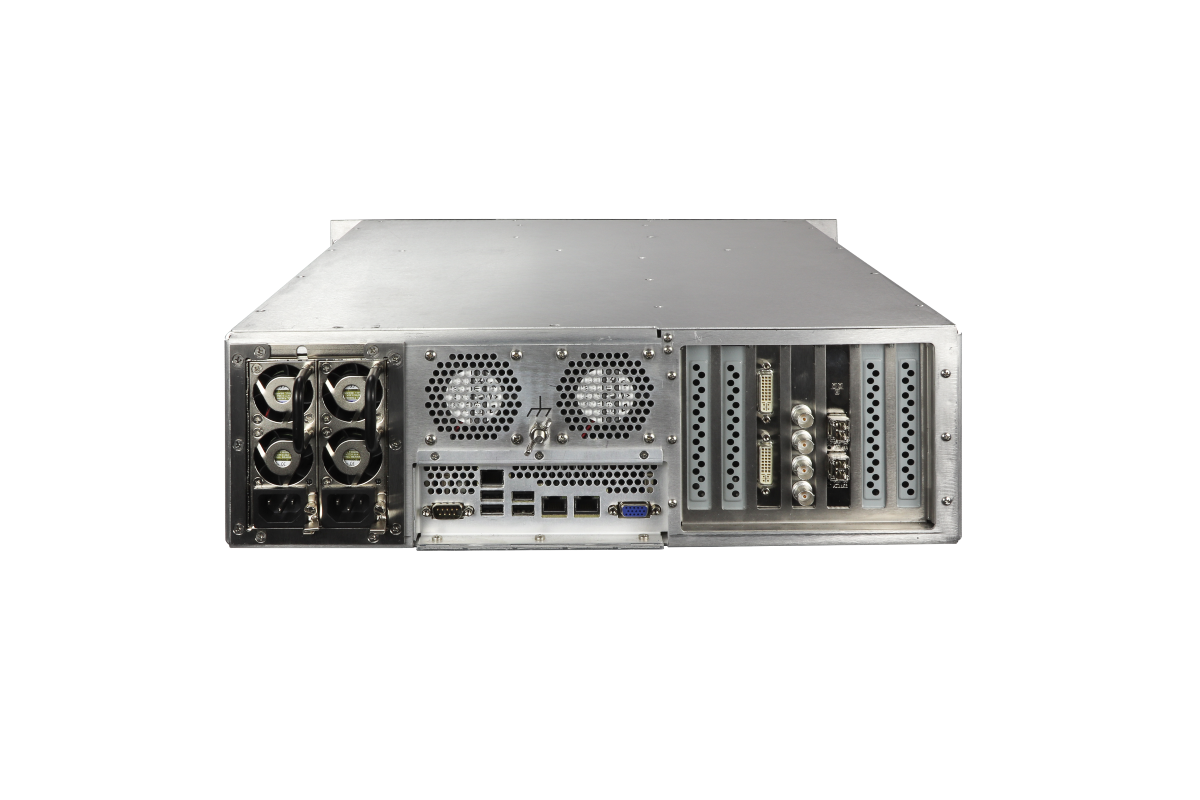

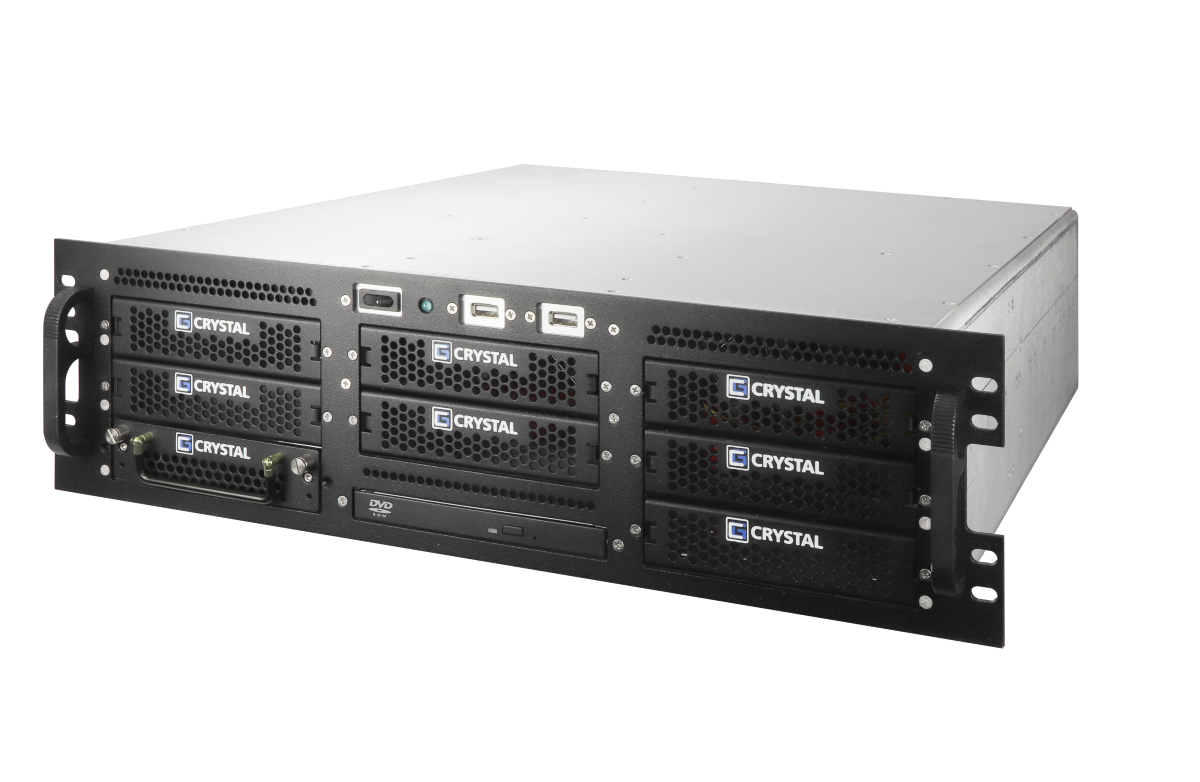

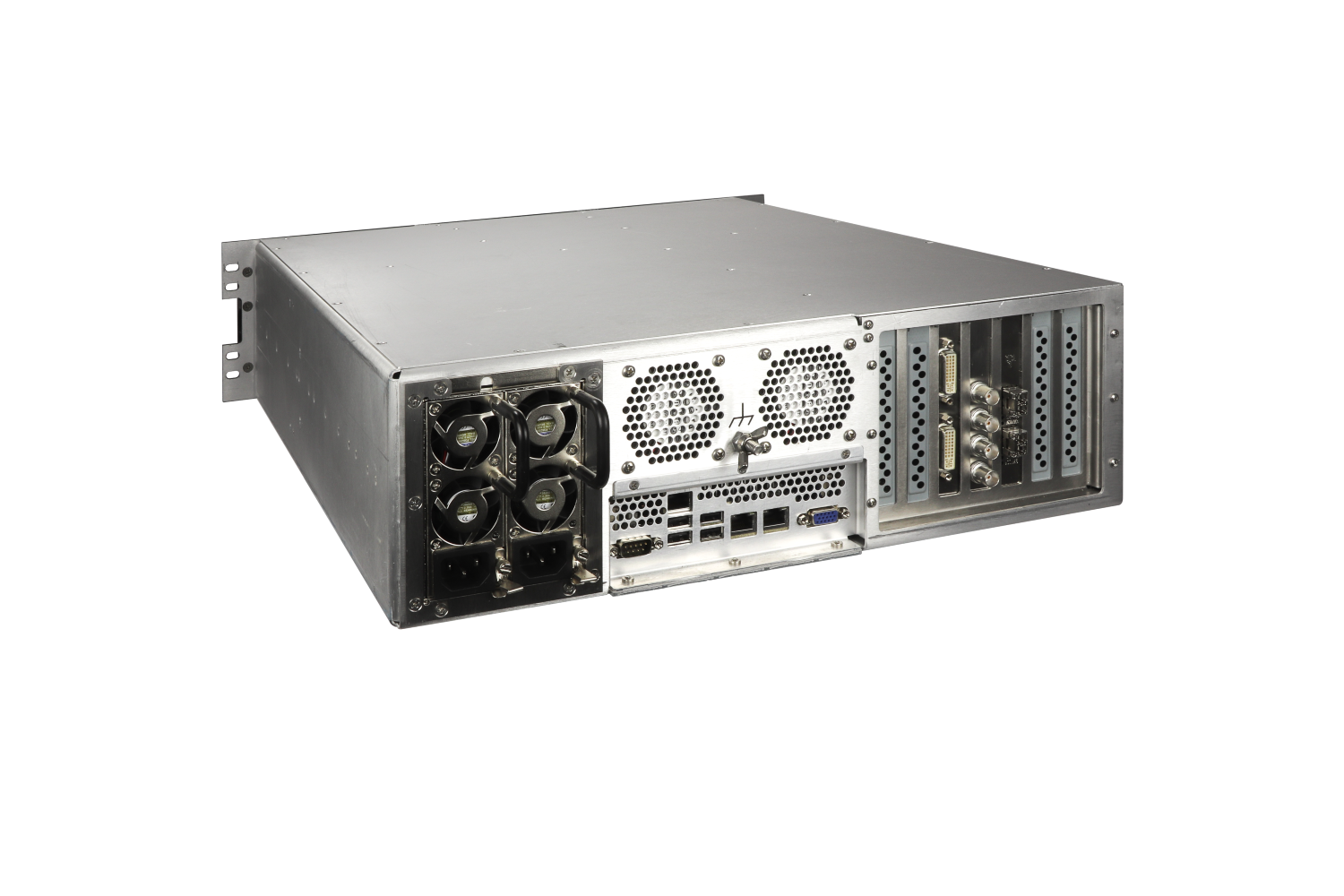

IS300 Industrial 3U Server

Field tested, failsafe and long life performance in extreme conditions. As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the IS300. High-end computing performance in a 3U chassis with a depth of 20” (50.8 cm) fits most any rack space.


IS300 Industrial 3U Server

• Light weight aluminum construction – 26 – 42 lbs.
• Easily mounted on ball bearing slides
• Up to 512 GB of Memory
• Industrial 3U, 20” depth
• Front power switch with LED and HDD activity lights
• Leading edge Intel® Sandy Bridge, Ivy Bridge, Haswell or Broadwell CPU options
• Modular design allows for easy reconfiguration and versatility


Environmental Standards
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II

-10°C to +55°C, capable of -40°C to +71°C with select processors

MIL-STD-810, Storage, Method 501, Procedure I/II

-30°C to +75°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

10,000ft operation, 20,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

1.5GRMS, 5-2,000HZ, 75 min/axis

MIL-STD-810 Shock, Method 516, Procedures I/V

20G, 11 msec, 3 axes, each direction

Electromagnetic Compatibility Standards
Emissions FCC Class A
Form Factor
5.19" (13.18cm)
16.93" (43cm) EIA-310 Rack Compliant
20" (50.8cm)
26 - 42 lbs ( 11.79 - 19.05 kgs )
Option 1

Sandy Bridge or Ivy Bridge LGA1155, X9SAE-V

Option 2

Haswell or Broadwell LGA 2011, X10SRL-F or X10DRL-I

Up to 18 cores per socket

Expansion Slots
Seven (7) full-height 3/4 expansion slots
External Bays
Option 1

Eight (8) removable SATA or SAS 2.5″ or 3.5″ HDD

Option 2

Sixteen (16) 2.5” SATA or SAS HDDs

Option 3

One (1) CD/DVD/BD (R/W)

16 GB - 512 GB DDR3 or DDR4 (motherboard dependent)

Five (5) high speed, high volume fans temperature controlled

EIA rack mounted slides - Mounted on ball bearing slides
Power Supply
Option 1

600W AC 110/240VAC w/ PFC

Option 2


Option 3

1200W 1+1 110/240VAC w/PFC

System Board
Option 1

X9SAE-V, Single LGA1155, Xeon®, i3/5/7, ATX, 2LAN1000, VGA, 2XHDMI, AUDIO, 1 PCI, 2 PCI-E X1, 1 PCI-E X4, 1 PCI-E X8, 2 PCI-E X16, SATAX4, SATA3X2

Option 2

X10DRL-I, Dual LGA2011 R3 Xeon®, ATX, 2LAN1000, VGA, 5 PCI-E X8, 1 PCI-E X16, IPMI, IPKVM, SATA3X10

Option 3

X10SRL-F, Single LGA2011 R3 Xeon®, ATX, 2LAN1000, VGA, 2 PCI-E X16, 5 PCI-E X8, IPMI, IPKVM, SATA3X10

Software Compatibility
Accepts Windows 8®, Windows 7®, Windows Server 2008®, VMware® or Linux®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.


This product is ideal for the following industrial applications:


Weather Radar
