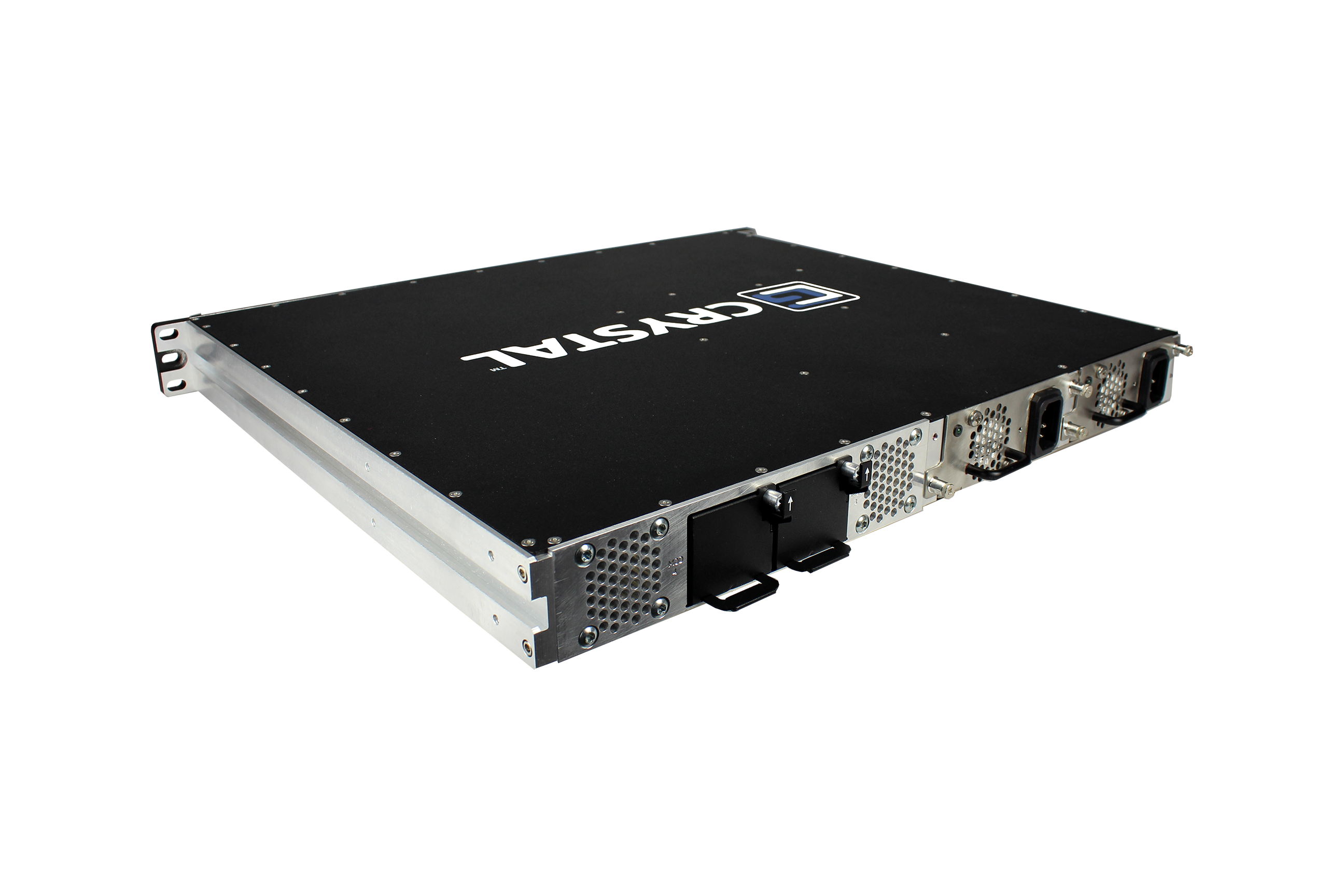

RCS7450-24 Rugged Crystal Switch

Field tested, failsafe and long life performance in extreme conditions. These 15.5” depth units are based on the Ruckus® ICX® 7450 series. These switches are enterprise class, stackable LAN solutions for small and medium size applications. Crystal switches provide intelligent, scalable, edge switch technology with enterprise class functionality and mil-spec environmental performance.

Features

RCS7450-24 Rugged Crystal Switch

• Light weight construction from billet strain, hardened aluminum
• Easy mounting in EIA-310 19” rack, Delrin glides, or fixed mount
• 24 Copper, 48 Copper and 48 SFP port designs in 15.5” chassis
• Modular upgrade capability
• Layer 2+ and Layer 3 capable
• AC/AC, AC/DC, and DC/DC 1+1 MIL-STD-461 EMC compliance

You can find more information on the Crystal & Ruckus partnership by visiting the Ruggedized Switches page.

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II

-40°C to +55°C

MIL-STD-810, Vibration, Method 514, Procedure I

4.43 GRMS, 5-2000Hz, 60 min/axis -with solid state drives + vibration kits

MIL-STD-810, Shock, Method 516, Procedures I/V

20g, 11msec–functional shock; 40g, 11msec crash hazard shock

MIL-STD-810, Humidity, Method 507

with kit

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

Mechanical
Form Factor
1U
Height
1.75" (4.45cm)
Width
17.32" (43.99cm)
Depth
15.5" (39.37cm)
Weight:
16.95 lbs ( 7.69 kgs ) (depending on supply configuration)
Switch Features
10/100/1000 Mbps RJ-45 Ports
Twenty-Four (24)
10/100/1000 Mbps SFP Ports
-
Modular Slots
Three (3)
1 GbE SFP Ports
Four (4)
1/10 GbE SFP/SFP+ Ports
Twelve (12)
1/10GBASE-T RJ-45 Ports
Twelve (12)
40 GbE QSFP+ Ports
Three (3)
IPv4/v6 L3 Routing
With License
Stacking Bandwidth
960 Gbps
Stacking Density
Twelve (12)
Stacking Distance
10 km
Internal AC Power Supply Rating
2 X 250 W
Internal DC Power Supply Rating
2 X 510 W
Switching Capacity (Full Duplex)
288 Gbps
Forwarding Capacity (Full Duplex)
214 Mpps
Cooling

Forced air convection via internal high reliability fans

Mounting
Fixed or Delrin Glides, mounts in standard EIA-310 rack
Power Supply
DC, EMI compliant to MIL-STD-461, CE102, RE102
AC, Auto Switching

90-246VAC, Auto-switching

DC, EMC compliant to MIL-STD-461, CE102, RE102

18-36VDC, 1+1 redundant

Non-rugged COTS

48VDC

Connectors
Available with MIL-CIRC connectors, for power
Export Compliance
ECCN: 5A991 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.
