RD1117/RD1117-4 Rugged Display

Keep a clear line of sight in extreme conditions. Partnering with Daisy Displays, we’ve engineered a military, high-performance 1U drawer display that meets the tactical needs for high brightness and contrast. The RD1117 and RD1117-4 provide big capabilities in compact, rugged, and versatile packages. The unique folding design provides a 17.3” LCD in a user centric attitude for ease of use in critical land, air, and sea applications across the most challenging edge environments.

RD1117/RD1117-4 Rugged Display
  • Scratch-resistant, laminated cover glass
  • 17.3” WUXGA LCD with 1000 nit LED backlight
  • 1920 x 1080 resolution
  • On-screen display function
  • HulaPoint with USB keyboard
  • Optional four-port KVM switch

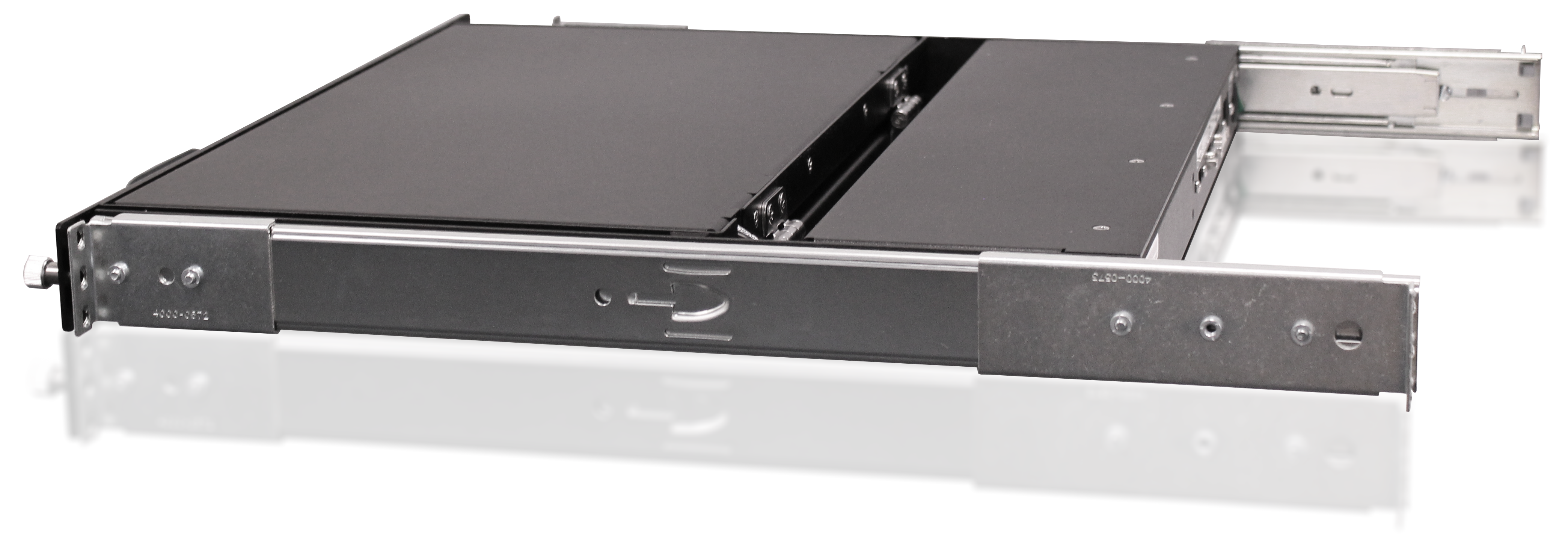

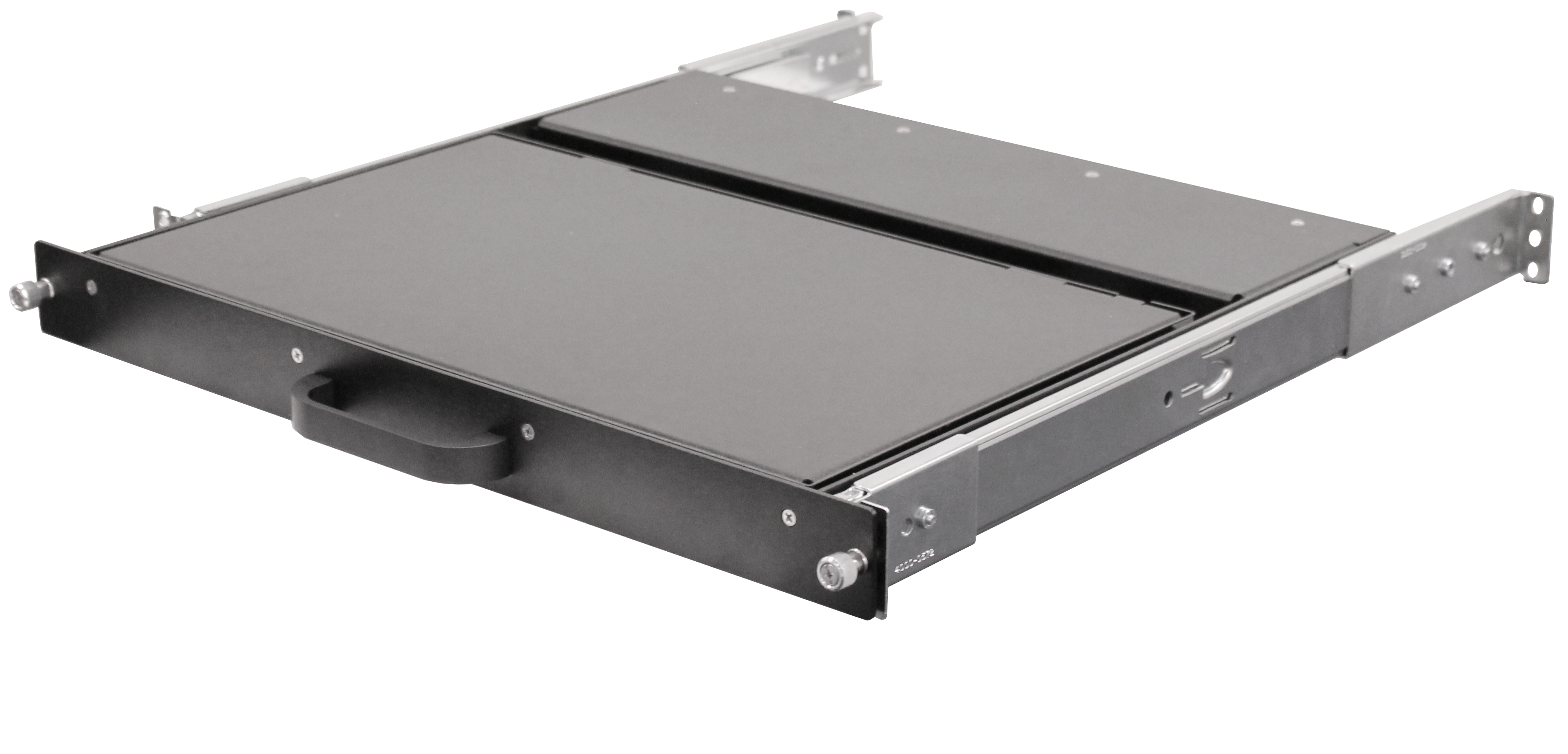

  • Easy, rack-mount 1U drawer

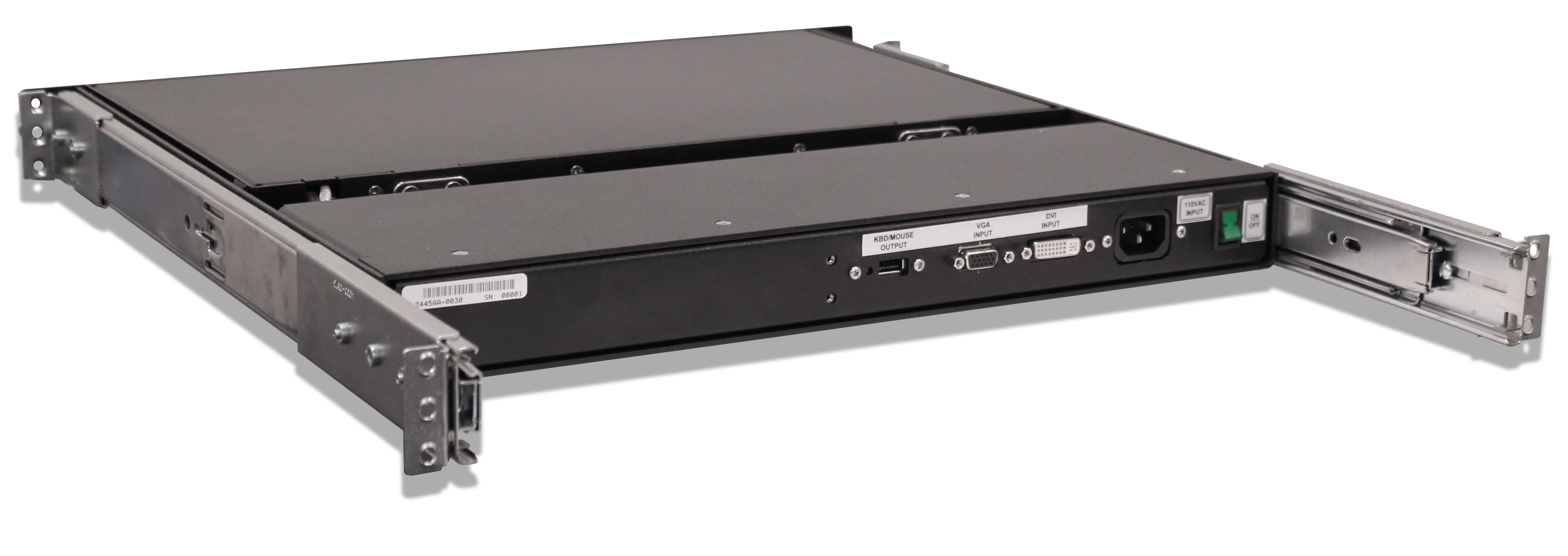

  • Recessed rear-mounting receptacles
  • Auto-switching 120/240VAC power supply
  • Conformal-coated PC boards
  • Five-year warranty
Environmental Standards
MIL-STD-810, Operational Temperature -30°C to +55°C
MIL-STD-810, Storage, Method 501, Procedure I/II -40°C to +85°C
MIL-STD-810, Humidity, Method 507, Procedure II 240 hours with conformal coating
MIL-STD-810, Altitude, Method 500 12,500 ft. operation, 40,000 ft. transport
MIL-STD-810, Shock, Method 516, Procedures I/V 6g, 11msec functional shock; 20g, 11msec crash hazard shock
MIL-STD-810, Vibration, Method 514, Procedure I 4.63 Grms, 5–2,000Hz, 60 min/axis, 3 axis
MIL-STD-167-1A, Vibration, Type 1
Electromagnetic Compatibility Standards
CE/FCC Part 15, Class A, EN 60950 safety
Form Factor 1U
Height 1.75" (4.45cm)
Width 18.9” (48.0 cm)
Depth 20.0" (50.8 cm)
Weight 22–24 lbs (9.9–10.8 kg)
Resolution 1920 x 1080 WUXGA
Active area 17.3" diagonal
Color palette 16.2 M colors (6-bit with FRC)
Aspect ratio 16:9
Viewing angle 85° x 85°
Brightness 1000 nits
Laminated glass cover for impact protection
Power Supply
Auto switching 120/240 VAC 50/60Hz
85W (typical)
HulaPoint sealed, elastomeric USB keyboard
Mean Time Between Failures (MTBF)
65,000 hours at 40°C
Keyboard, Video, Mouse (KVM)
Four-port DVI and USB switch
Optional DisplayPort input
