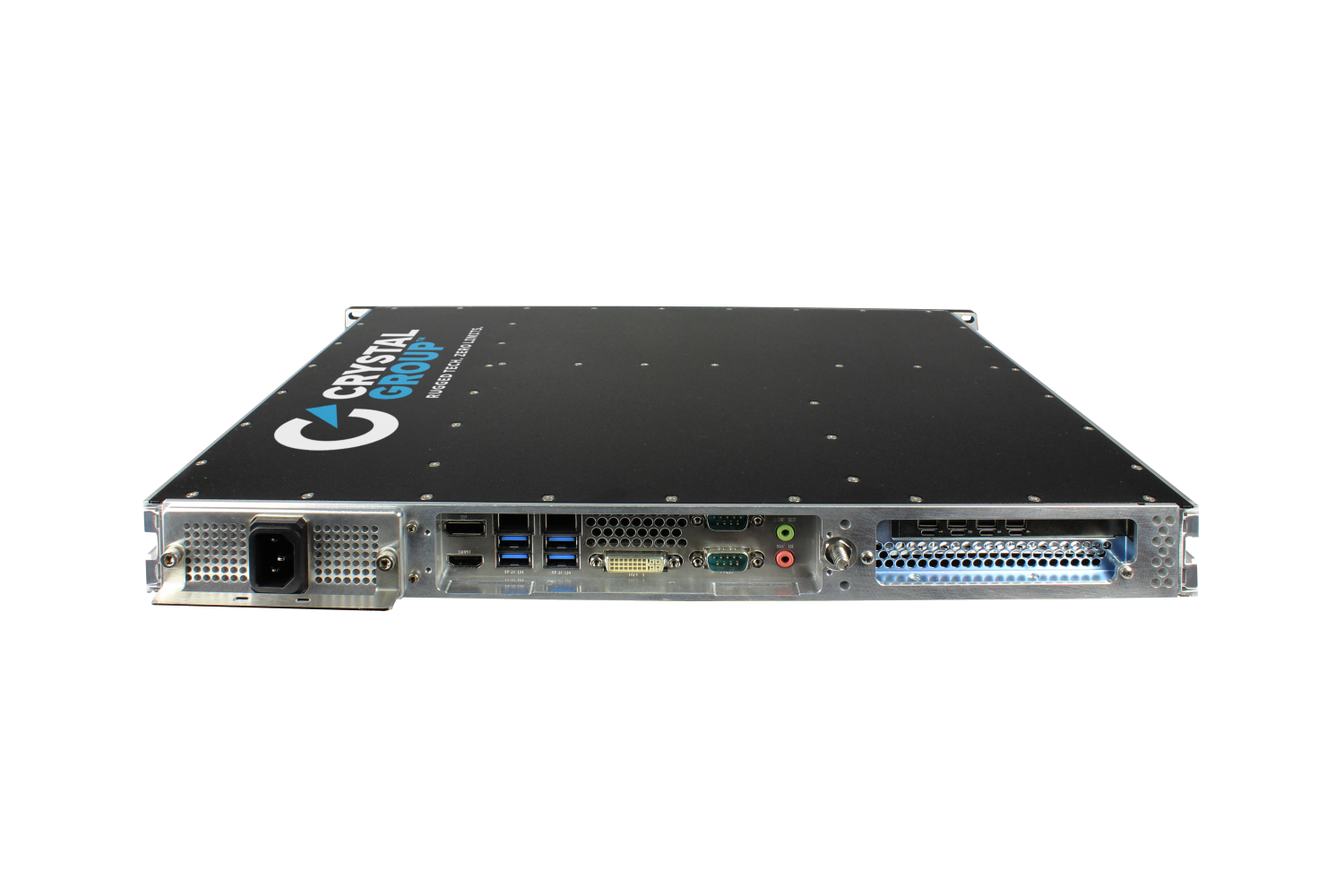

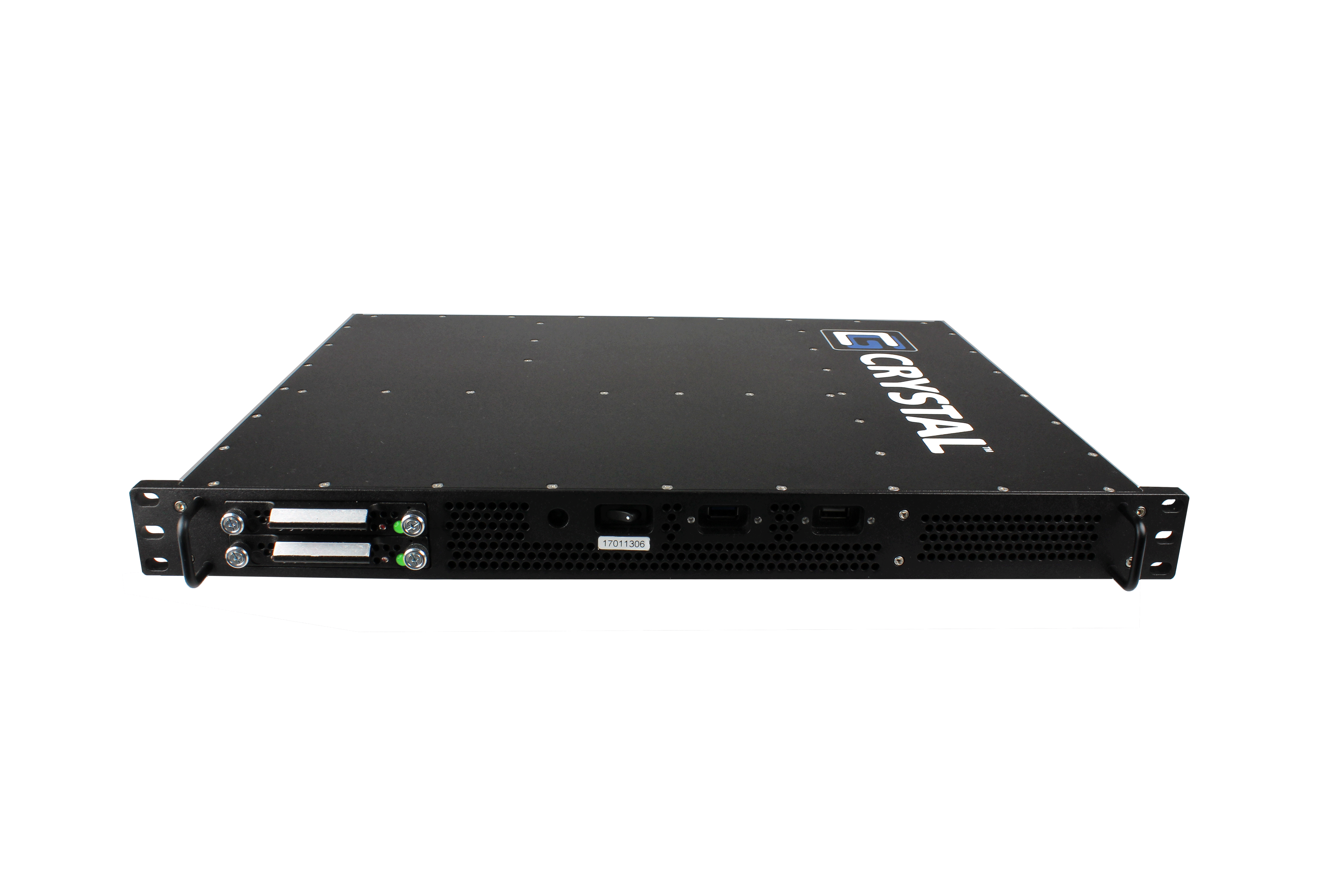

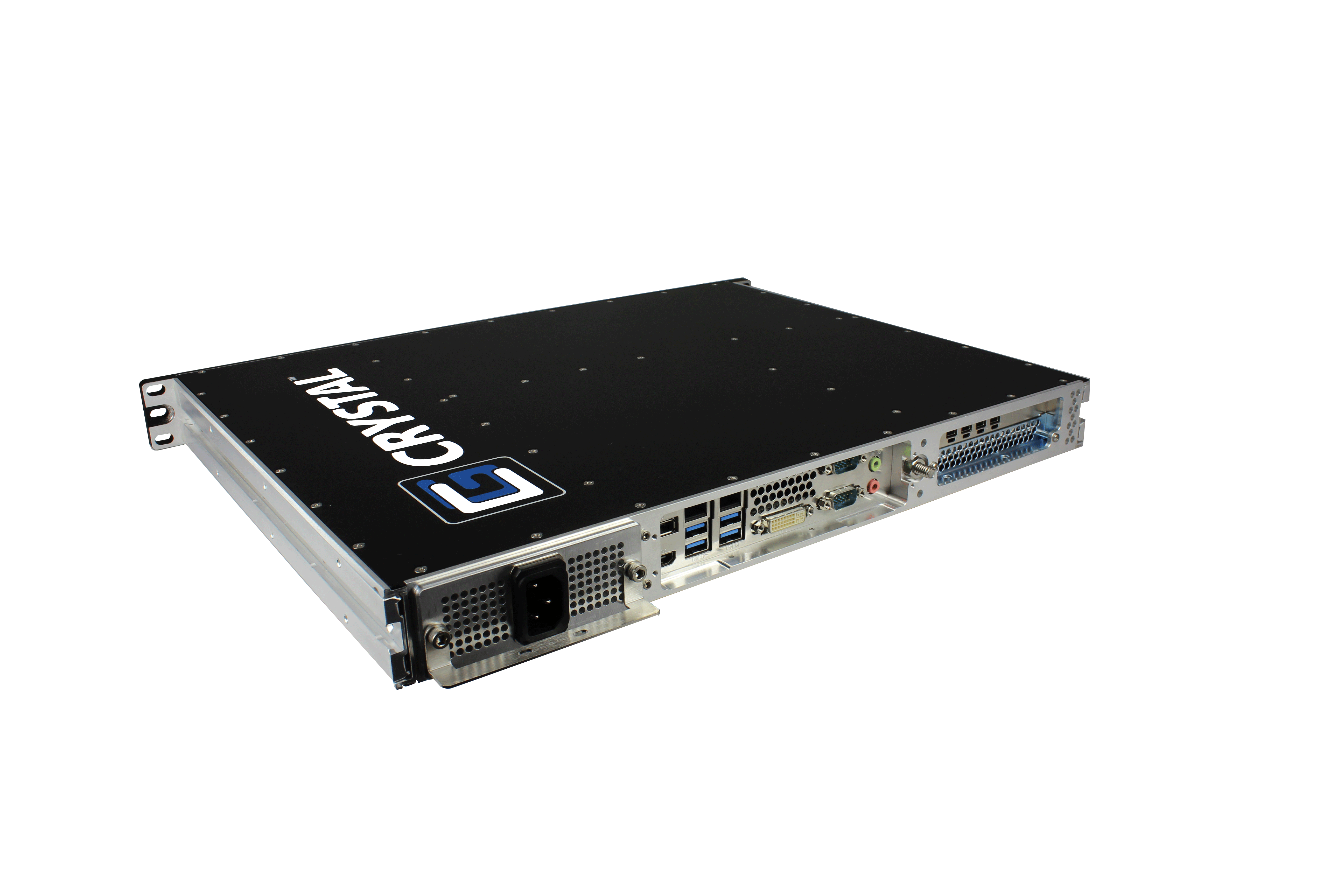

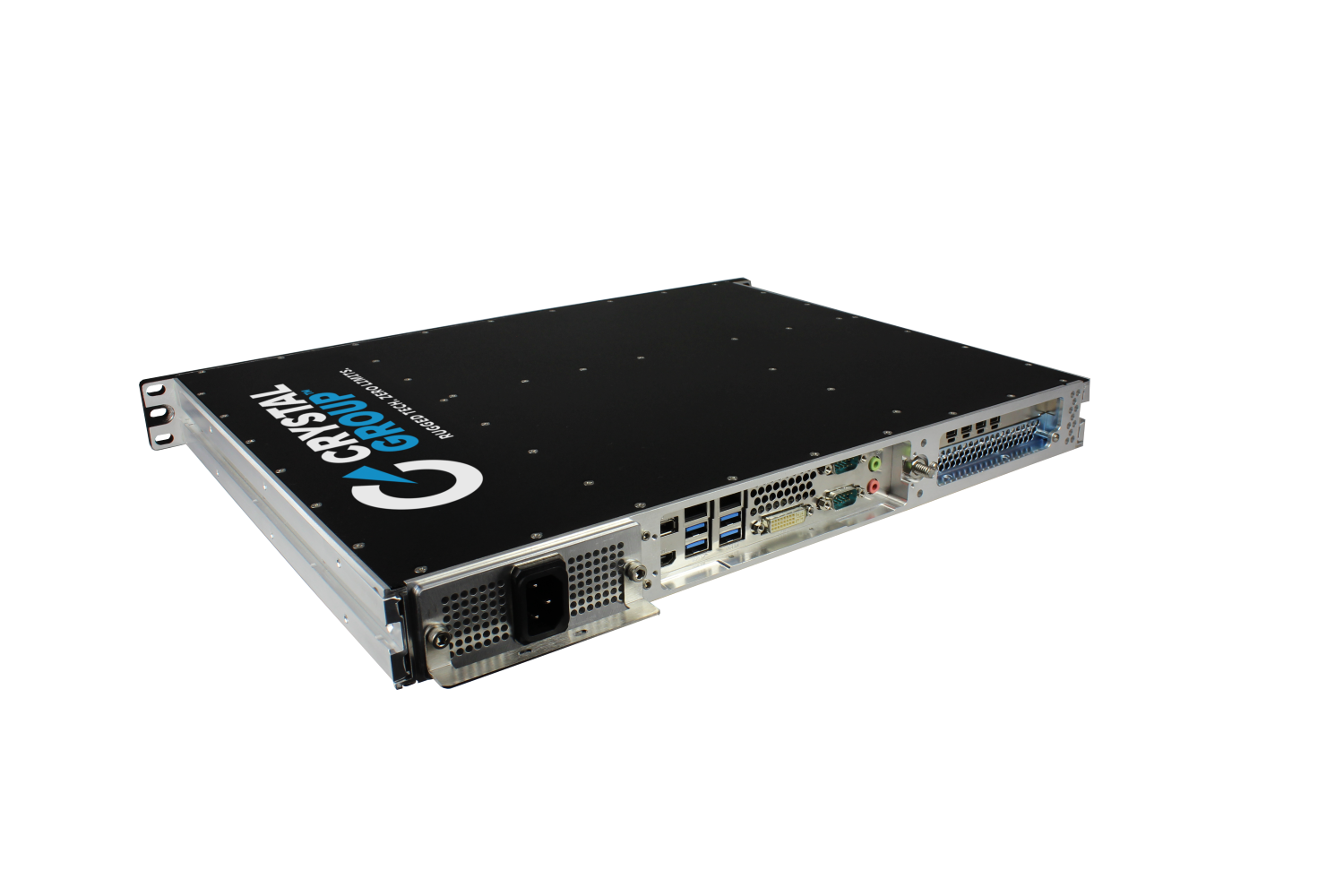

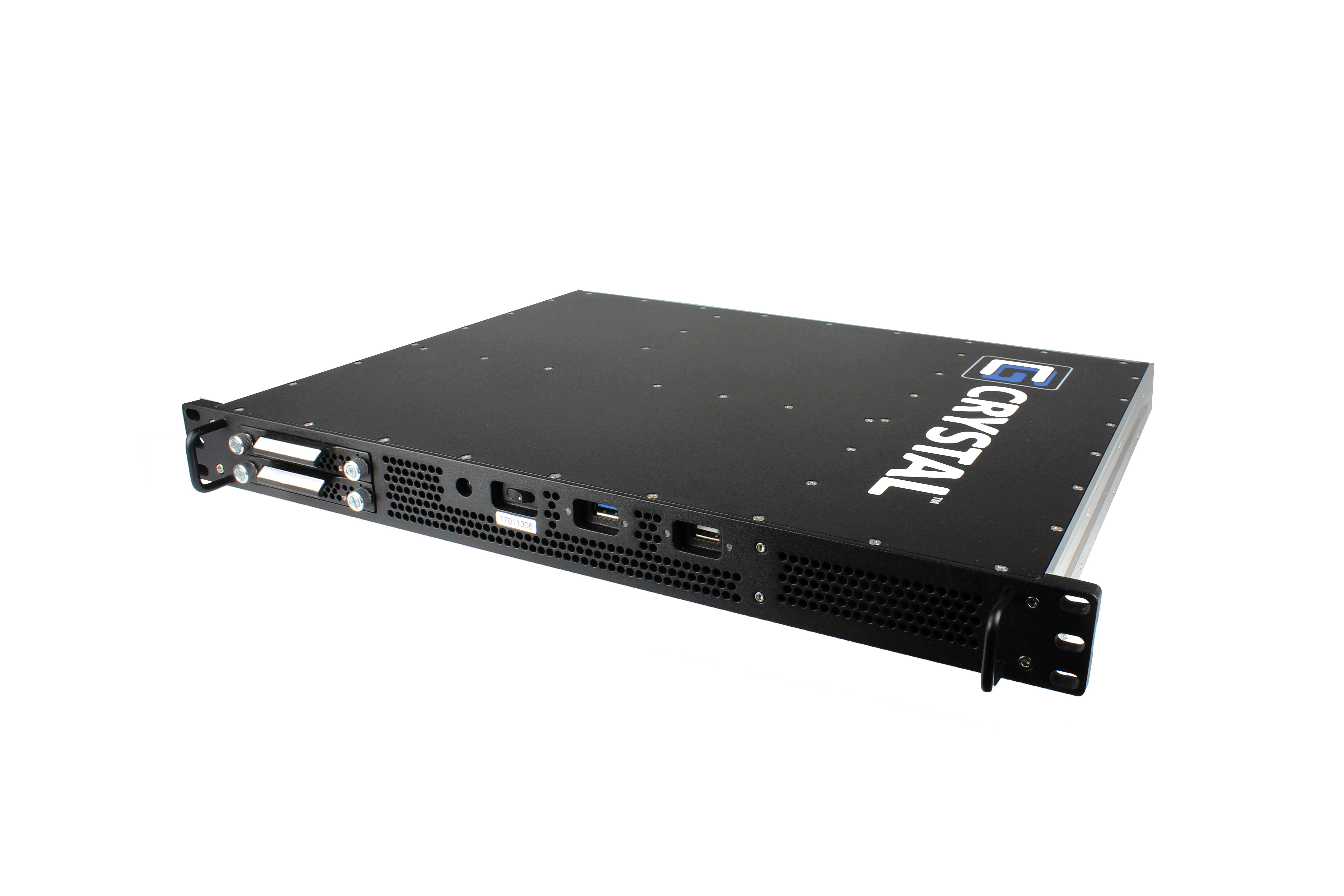

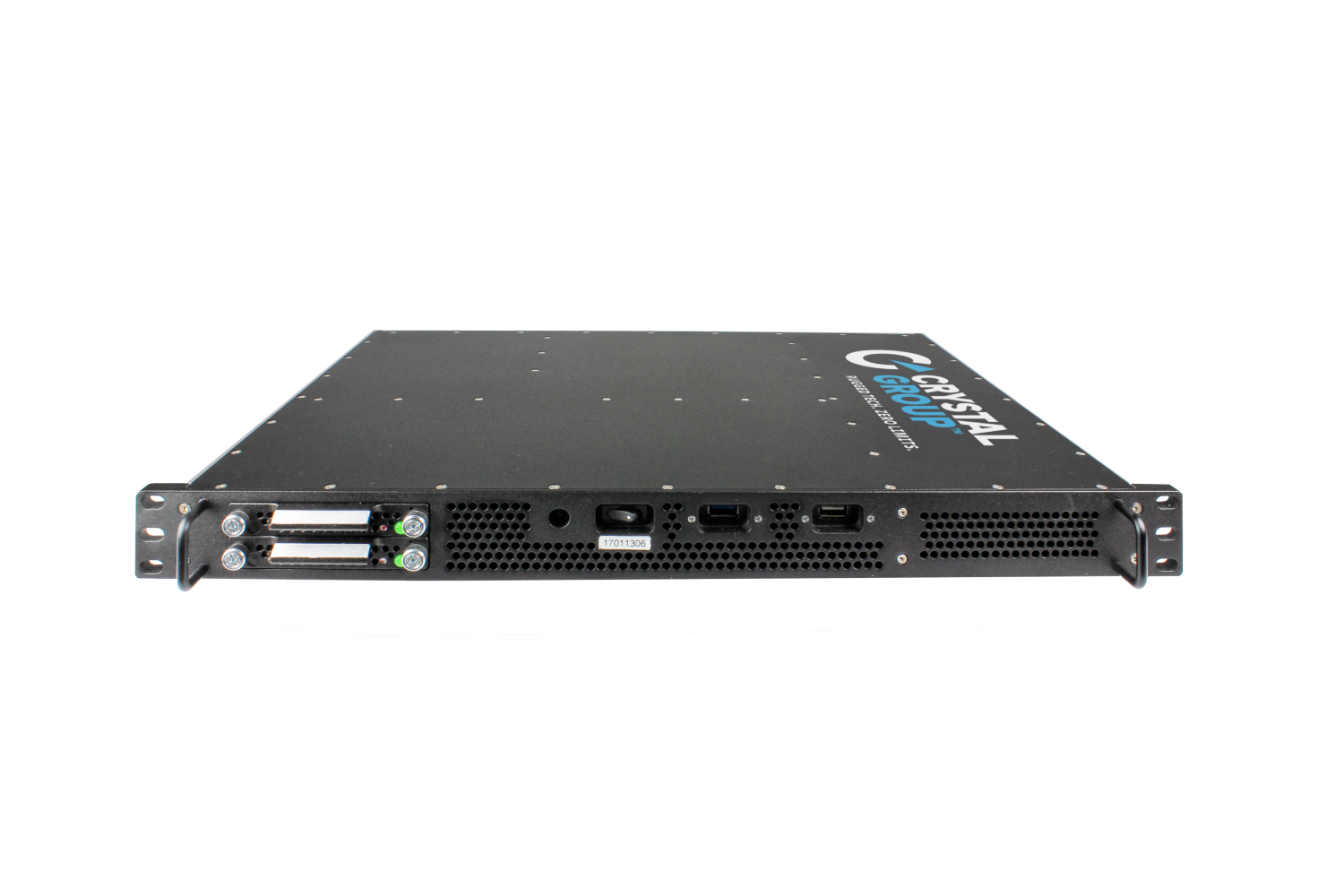

RS112S14 Rugged 1U Server

Field tested, failsafe and long life performance in extreme conditions. As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the RS112S14. High-end computing performance in a 1U chassis with a depth of 13.4” (34.04 cm) fits most any rack space.

RS112S14 Rugged 1U Server

• Light weight aluminum construction – 7 to 15 lbs.
• Full processor performance to +55°C
• Rugged 1U, rack mounted 13.4” depth
• Versatility with two or three removable 2.5” sleds and/or two internally fixed mount 2.5” SSD
• Expandable with PCIe X16 slot
• Intel® Core i3/i5/i7/i9 processors

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II -40°C to +55°C
MIL-STD-810, Storage, Method 501, Procedure I/II -55°C to +85°C
MIL-STD-810, Humidity, Method 507, Procedure II 240 hours with conformal coating option
MIL-STD-810, Altitude, Method 500 12,500 ft operation, 40,000 ft transport
MIL-STD-810, Vibration, Method 514, Procedure I 4.63GRMS, 5-2000Hz, 60 min/axis— with solid state drives + vibration kits
MIL-STD-810, Shock, Method 516, Procedures I/V 20g, 11msec—functional shock; 40g, 11msec crash hazard shock
MIL-S-901, Grade B
MIL-S-901, Grade A With solid state drives + shock kits
Electromagnetic Compatibility Standards
Some standards may require an internal kit
AC, FCC compliant
AC, MIL-STD-461, RE102, CE102 compliant
DC, MIL-STD-461, RE102, CE102 compliant
RTCA DO-160 Section 21, Category M
Mechanical
Form Factor 1U
Height 1.75" (4.45cm)
Width 17.5" (44.45cm) [accepts Crystal Slides and Johnathan Rails]
Depth 13.4" (34.04cm)
Weight 7 - 15 lbs ( 3.18 - 6.8 kgs )
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap
Intel® Core i3/i5/i7/i9 processors
Expansion Slots
One PCIe X16 full height half depth slot
External Bays
Option 1 Two removable SATA SSDs or HDDs
Option 2 Three removable SATA SSDs or HDDs
Option 3 Two 2.5″, SATA internally fixed mount SSDs (can exist with any other option)
Option 4 1x M.2 SATA/PCIe 3.0×4, non-removable (can exist with any other option)
Memory
Up to 64GB (2x DDR4 SO-DIMM)
Cooling
Thermally controlled high volume fans
Mounting
Option 1 Mounted on Crystal glide rails
Option 2 Fixed mount, front and rear
Option 3 Jonathan rails
Power Supply
Option 1 460W 120/240VAC 50/60Hz w/PFC, 115VAC 400Hz
Option 2 505W 18-36 VDC
System Board
Option 1 Fujitsu/Kontron D3633-S, LGA1151, 8th/9th Gen Core i3/i5/i7/i9 series CPU, Q370 Chipset, up to 64GB via 2x DDR4 So-Dimm, 4x SATA, M.2, PCIe x16, 2x 1GbE, HD Audio, Intel HD Graphics via 1x DVI-D and 2X Displayport, 4x USB 2.0, 4x USB 3.1, PS/2 K/M
Option 2 Supermicro X11SSV-Q, LGA1151, 6th, 7th Gen Core i7/i5/i3 series CPU, Q170 Chipset, up to 32GB DDR4 So-Dimm, 5x SATA 3, 2x 1GBE, HD Audio, Intel HD Graphics via 1xHDMI, 1x Displayport, and 1x DVI-I, 2x RS-232 COM Ports, 4x USB 3.0 rear, 2x USB Front
Software Capability
Accepts Windows 10® or Linux®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Program Manager to receive the classification of your product.
