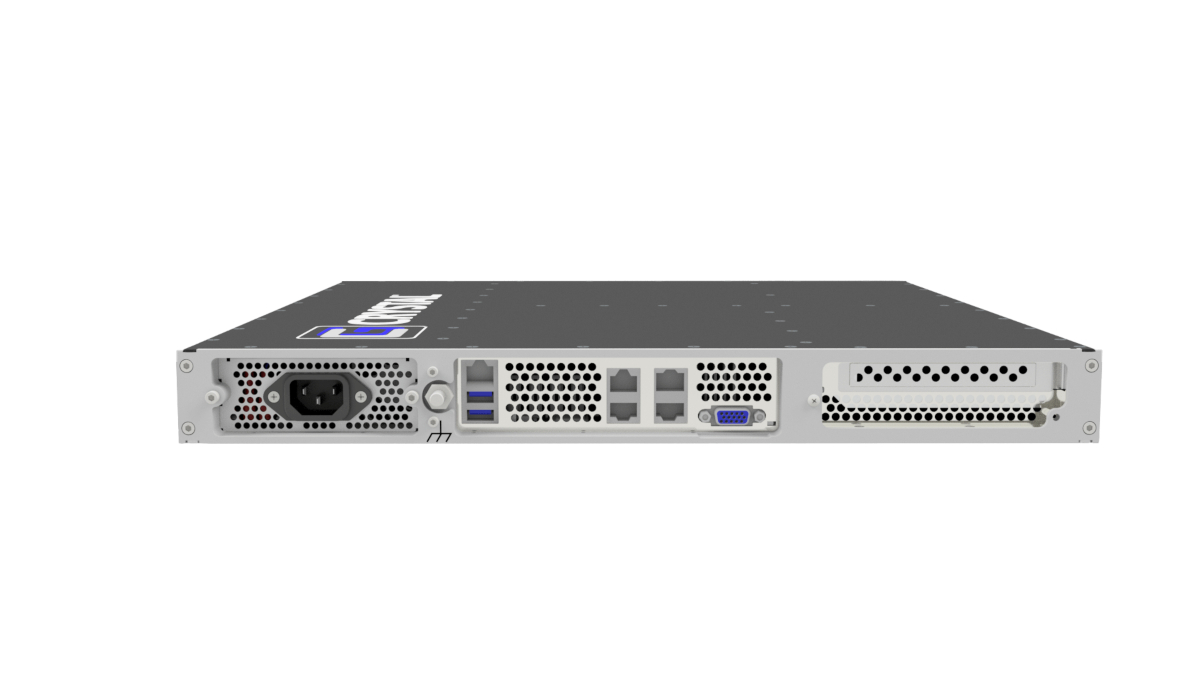

RS112S17 Rugged 1U Server

Field tested, fail-safe and long-life performance in extreme conditions. As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the RS112S17. High-end computing performance in a 1U chassis with a depth of 17” (43.18 cm) fits most any rack space.

Crystal Group Rugged Servers provide high-performance computing and high-capacity data storage in a rugged, all-aluminum package able to withstand the roughest terrains and toughest applications. Crystal Group’s highly customizable Rugged Servers are used by the U.S. Armed Forces, Foreign Military, Power Distribution, Autonomous Vehicles, Oil & Gas, and others for everything from communications and networking to weapons control, sensor and surveillance, and unmanned aircraft systems.

Request More Info Request Quote
RS112S17 - Spec Sheet

Features

• Light weight aluminum construction – 7 to 15 lbs.
• Full processor performance to +50°C
• Rugged 1U, rack mounted 17” depth
• Versatility with two 2.5 SSD’s
• Expandable with PCIe X16 slot
• Intel® Xeon® D series processors

Please contact us to receive the reports, guides and drawings that best fit your requirements.

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II

-30°C to +50°C

MIL-STD-810, Storage, Method 501, Procedure I/II

-55°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500 ft operation, 40,000 ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

2 GRMS, 5-2,000 Hz, 60 min/axis with solid state drives + vibration kits

MIL-STD-810, Shock, Method 516, Procedures I/V

20g, 11msec—functional shock; 40g, 11msec crash hazard shock

MIL-S-901, Grade B
MIL-STD-167-1A
Electromagnetic Compatibility Standards
Some standards may require an internal kit
AC, FCC compliant
AC, RE102, CE102 compliant
DC, RE102, CE102 compliant
Mechanical
Form Factor
1U
Height
1.75" (4.45cm)
Width
16.5" (41.91cm)
Depth
17" (43.18cm)
Weight:
7 - 15 lbs ( 3.18 - 6.8 kgs )
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap
Intel® CPU architecture options from Intel embedded long-life roadmap; Intel® Xeon® D-1500 series processors

Up to 18 core options per socket (dependent on motherboard)

Expansion Slots
One full height half-length PCIe x16 slot
External Bays
Option 1

Six removable SATA SSDs or HDDs

Option 2

Four removable SATA SSDs or HDDs

Option 3

CAC Reader (can exist with half the number of hard drive options)

Option 4

1x M.2 SATA/PCIe 3.0×4, non-removable (can exist with any other option)

Memory
Up to - 128 GB DDR4
Cooling

Thermally controlled high-volume fans

Mounting
Option 1

Mounted on Crystal glide rails

Option 2

Fixed mount, front and rear

Power Supply
460W 120/240VAC 50/60Hz w/PFC, 115VAC 400Hz
System Board
X10SDV-16C-TLN4F, Xeon D-1587, up to 128GB DDR4 DIMM, 6x SATA 3, 2x 10GBE, VGA graphics, IPMI, 2x USB 3.0 rear, 1x USB 2.0 Front
Software Compatibility
Accepts Windows 10® or Linux®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Program Manager to receive the classification of your product.

Deployments

This product is deployed on the following programs:

ATNAVICS (Air, Traffic, Navigation, Integration & Coordination System for US Army

CENTRIXS (Combined Enterprise Regional Exchange System) for US Navy

Prophet for US Army

EC-130H Compass Call for US Air Force

AIAMD (Army Integrated Air and Missile Defense) for US Army



This product is ideal for the following industrial application:

Mining
