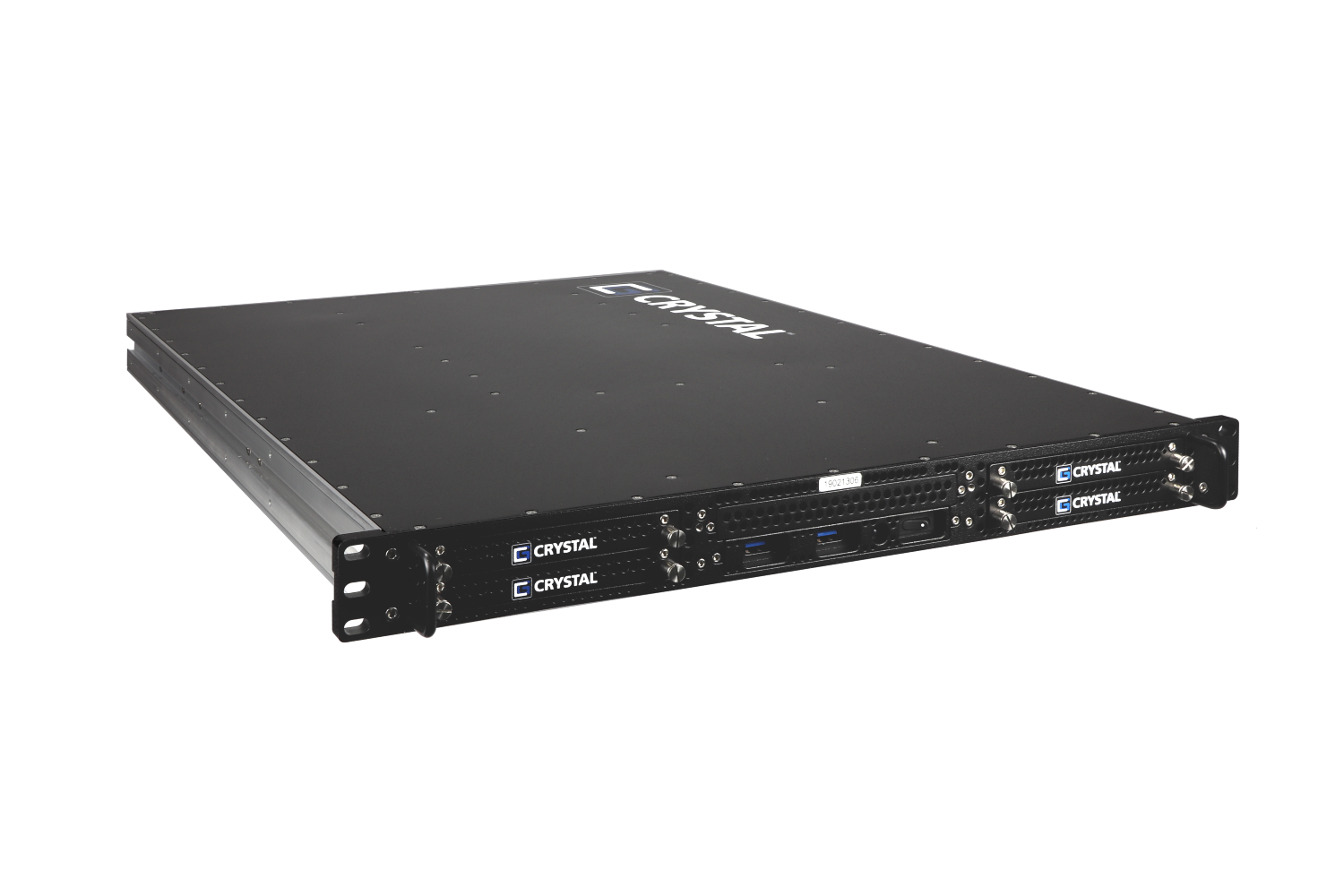

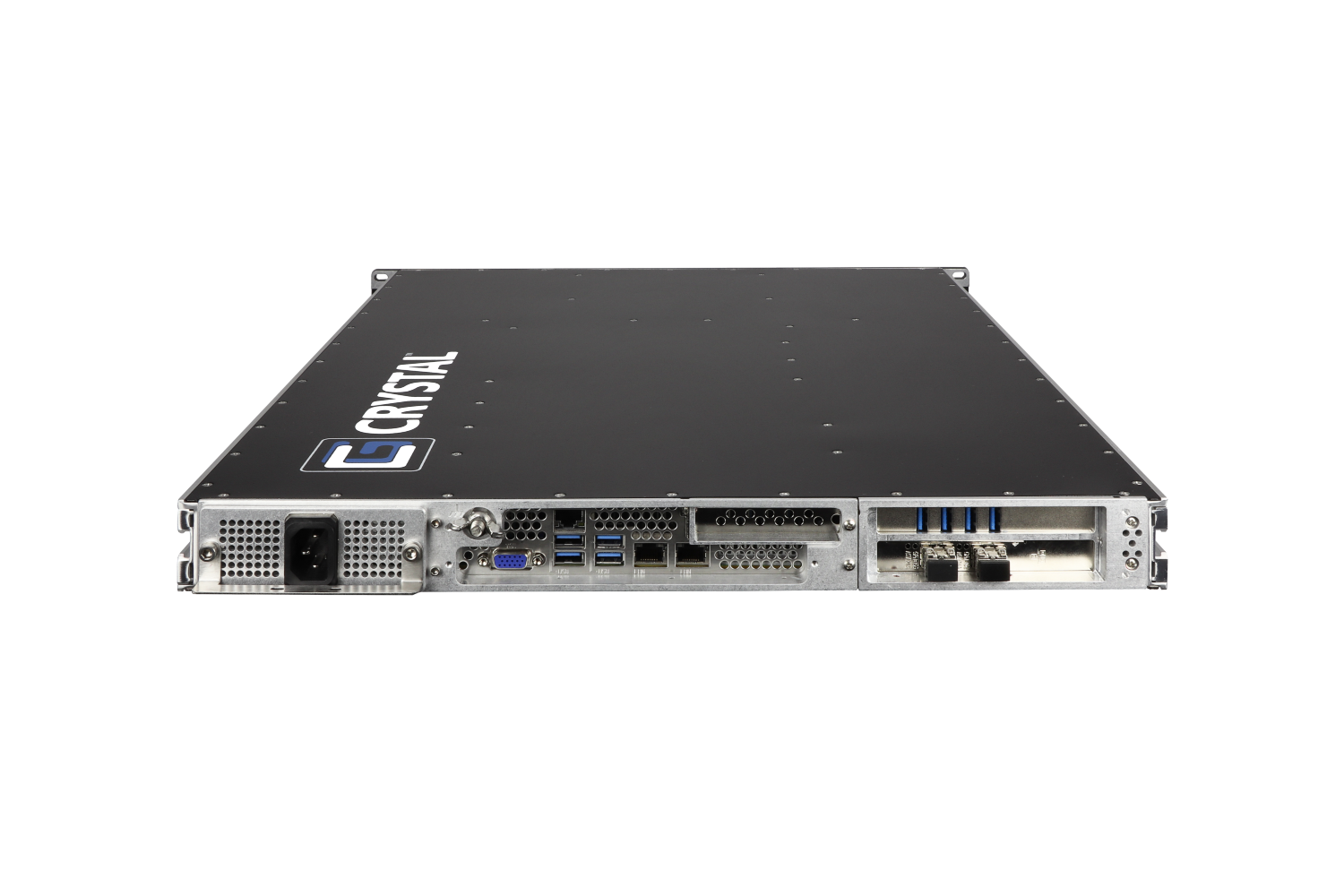

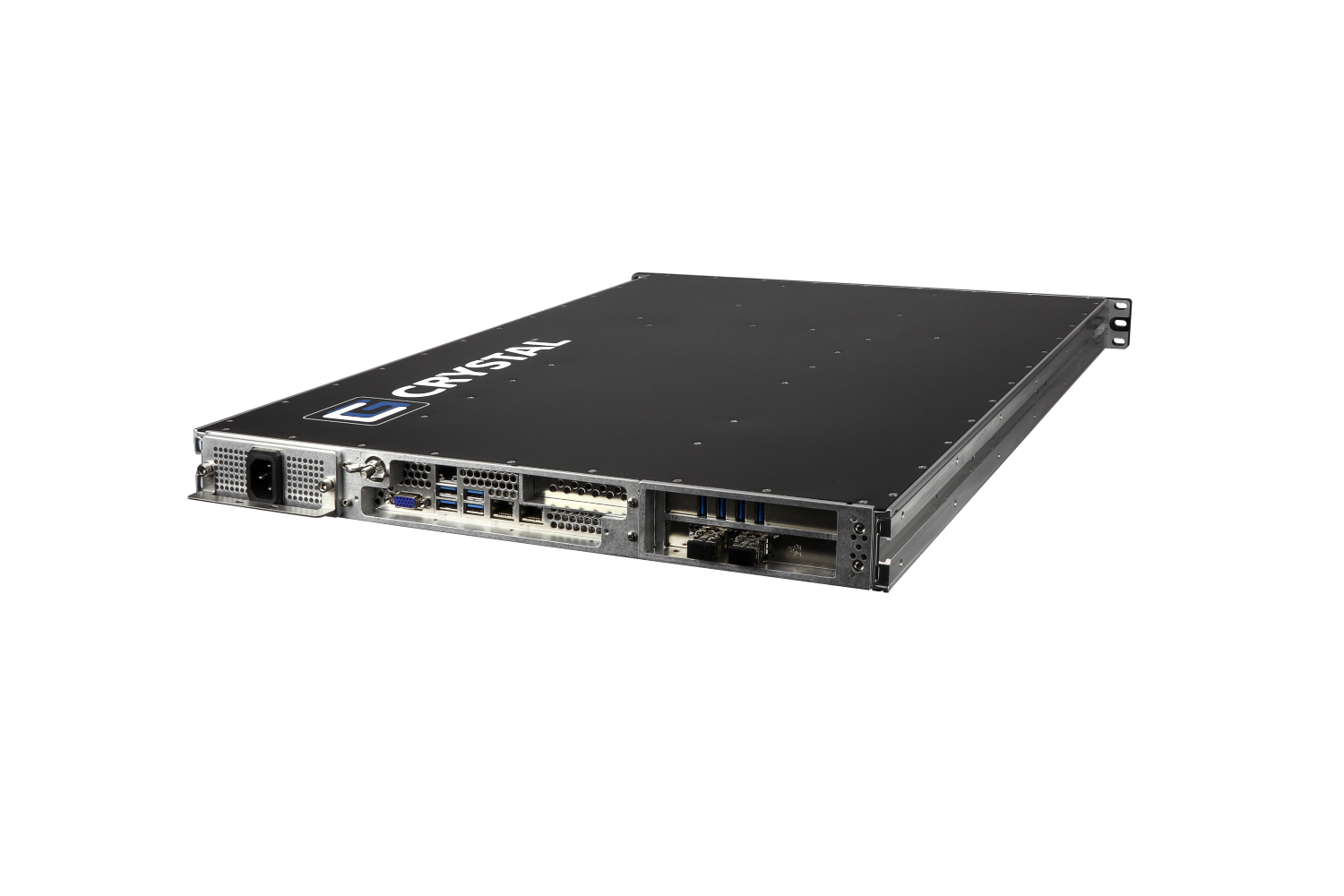

RS132L24 Rugged 1U Server

Field tested, failsafe and long life performance in extreme conditions. As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the RS132L24. High-end computing performance in a 1U chassis with a depth under 24” (61 cm) fits most any rack space.

Request Quote
RS132L24 - Spec Sheet

Features

RS132L24 Rugged 1U Server

• Light weight aluminum construction – 27 lbs.
• Easily mounted – Delrin glides, fixed mount, or Jonathan® rails
• Up to 1 TB of memory
• Rugged 1U, rack mounted 24” depth
• Versatility with two (2) removable 3.5” drives or four (4) removable 2.5” drive bays
• Expandable with two (2) or three (3) slots
• Leading edge Intel® Haswell or Broadwell CPU options

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II

-15°C to +50°C, -40°C operational with temperature kit and SSD

MIL-STD-810, Storage, Method 501, Procedure I/II

-55°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

4.63GRMS, 5-2,000Hz, 60 min/axis with solid state drives + vibration kits

MIL-STD-810, Shock, Method 516, Procedures I/V

20g, 11msec–functional shock; 40g, 11msec crash hazard shock

MIL-S-901, Grade B
MIL-S-901, Grade A

With solid state drives + shock kits

Electromagnetic Compatibility Standards
Some standards may require an internal kit
AC, FCC compliant
AC, MIL-STD-461, RE102, CE102 compliant
DC, MIL-STD-461, RE102, CE102 compliant
RTCA DO-160 Section 21, Category M
Mechanical
Form Factor
1U
Height
1.75" (4.45cm)
Width
17.5" (44.45cm) [accepts Crystal Slides and Johnathan Rails] EIA-310 Compliant
Depth
24" (60.96cm)
Weight:
19 - 27 lbs ( 8.62 - 12.25 kgs ) (depending on content)
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap
Haswell or Broadwell LGA2011, X10DRW-IT or X10SRW-F

Up to 18 core options per socket (dependent on motherboard)

Expansion Slots
X9DRW-F & X10DRW-IT

Two (2) PCIe 3.0X16

X9SRW-IF& X10SRW-F

Two (2) PCIe 3.0X16, one (1) PCIe X8 low profile

External Bays
Option 1

Two (2) removable SATA or SAS 2.5″ or 3.5″ HDD

Option 2

Four (4) 2.5″ SATA or SAS HDDs

Option 3 (Can be combined with HDD option)

One (1) CD/DVD/BD (R/W)

Memory
16 GB - 1 TB DDR3 or DDR4 (motherboard dependent)
Cooling

High speed, high volume fans (6) CPU temperature controlled

Mounting
Option 1

Mounted on Delrin glides

Option 2

Fixed mount, front and rear

Option 3

Jonathan® Rails

Power Supply
Option 1

460W 120/240VAC 50/60Hz w/PFC, 115VAC 400Hz

Option 2

425W 18-36VDC

System Board
Option 1

X10DRW-IT, Dual LGA2011 R3 Xeon®, WIO, 2LAN10G, VGA, 2 PCI-E X16, IPMI, IPKVM, SATA3X10

Option 2

X10SRW-F, Single LGA2011 R3 Xeon®, WIO, 2LAN1000, VGA, 2 PCI-E X16, 1 PCI-E X8, IPMI, IPKVM, SATA3X10

Software Compatibility
Accepts Windows 10®, Windows Server 2012®, VMware® or Linux®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.

Deployments

This product is currently deployed on the following programs:

ADNS Shore Side

AMDPCS (Air/Missile Defense Planning and Control System) for US Army

E-2D Advanced Hawkeye (AHE) for US Navy

Virtual Secure Enclave (VSE) for US Navy

Reports, Guides & Drawings

RS132L24 1U Rugged Server - Outline Installation Drawing
RS132L24 Rugged 1U Server Hardware Guide
TST-00052 RS132L24 May 2014 DO-160 In-House Test Report
TST-00046 RS132L24 May 2014 MIL-STD-461 In-House Test Report
RS132L24 1U Rugged Server -X10 Outline Installation Drawing
TST-00326 RS132L24 November 2015 MIL-STD-810 Shock-Vibe Test Report
