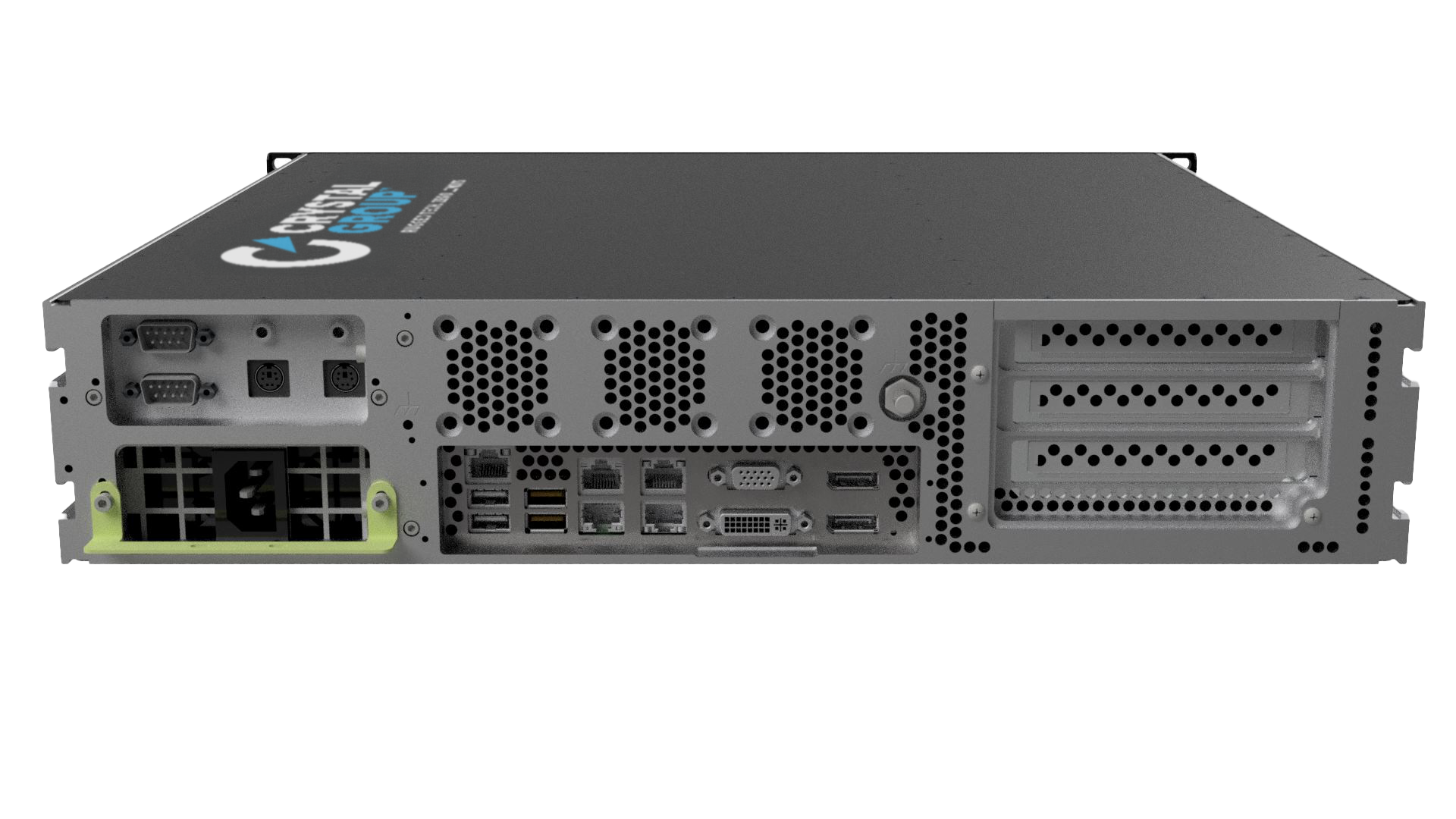

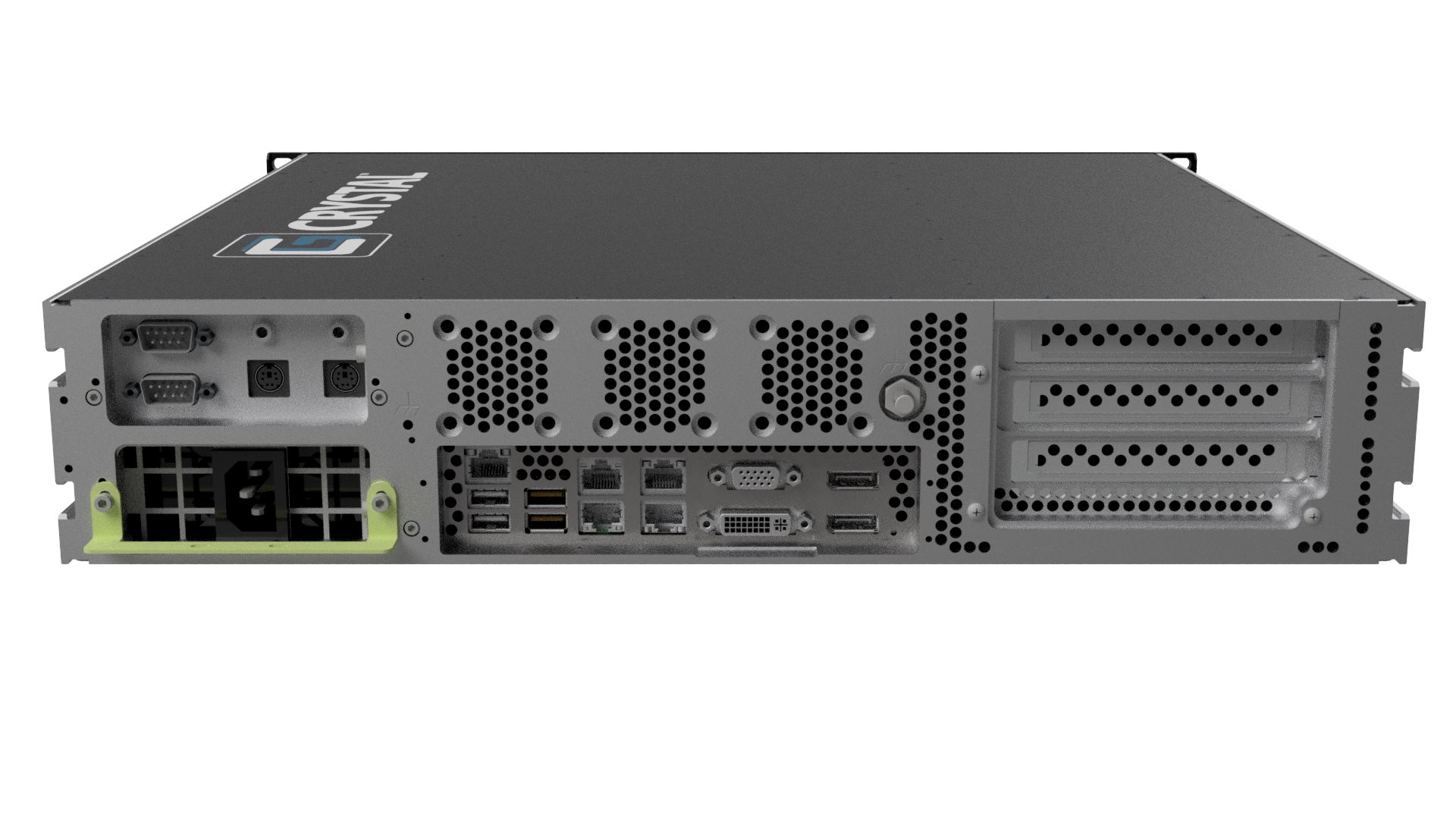

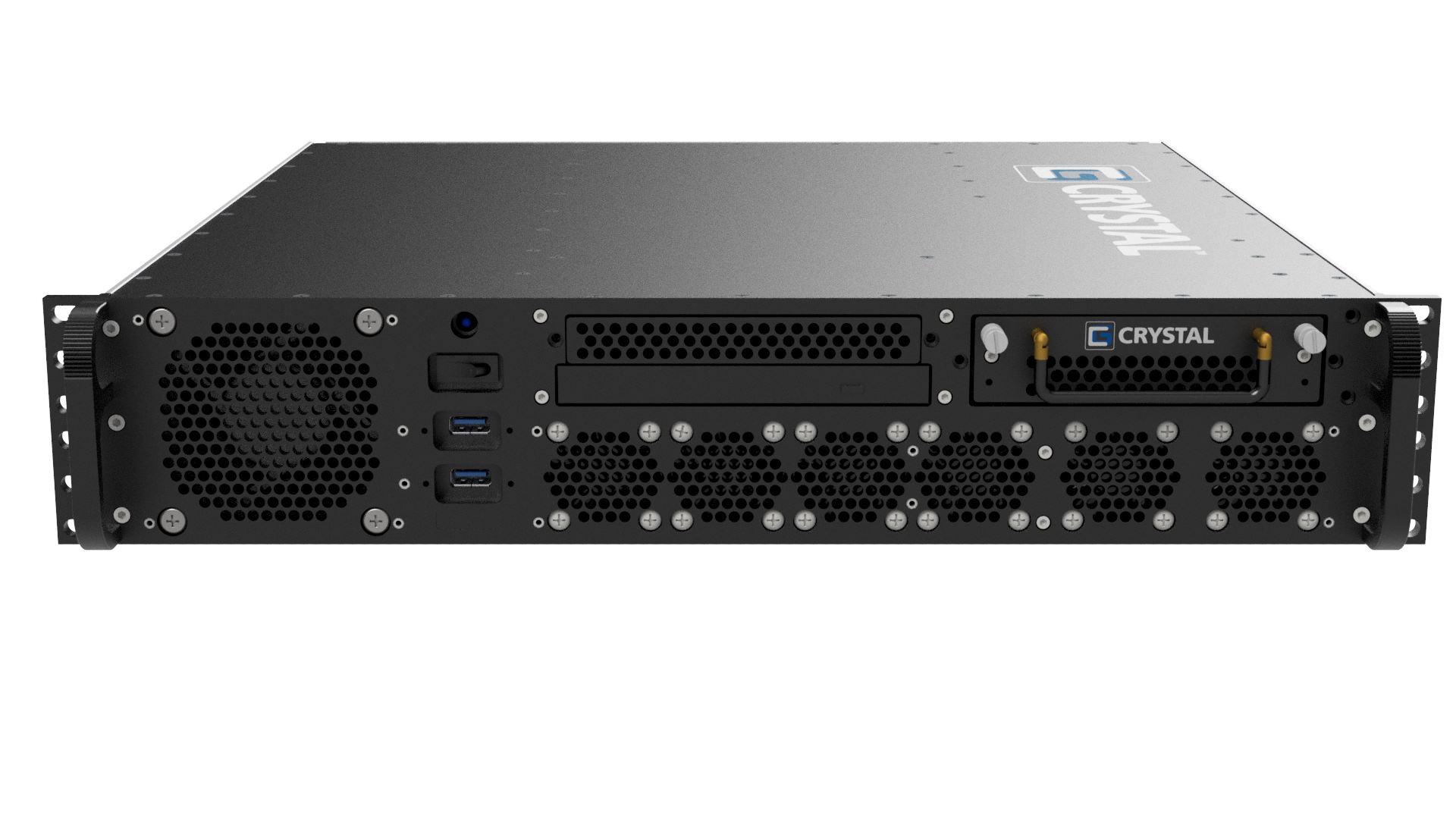

RS232S17A Rugged 2U Workstation

Field tested, failsafe and long life performance in extreme conditions. As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the RS232S17A. High-end computing performance in a 2U chassis with a depth under 17” (43.1 cm) fits most any rack space.

Request More Info Request Quote
RS232S17A - Spec Sheet

Features

RS232S17A Rugged 2U Server

• Light weight aluminum construction – 20 to 24 lbs.
• Easily mounted — Delrin glides, fixed mount, or Jonathan® rails
• Up to 64 GB of memory
• Rugged 2U, rack mounted, short depth 17″
• Versatility with up to two removable 3.5” HDDs or four 2.5” SSDs
• Three full height expansion slots

Please contact us to receive the reports, guides and drawings that best fit your requirements.

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II

-35°C  to +60°C

MIL-STD-810, Storage, Method 501, Procedure I/II

-55°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

3G, 5-2,000Hz, 60 min/axis with solid state drives and vibration kits

MIL-STD-810, Shock, Method 516, Procedures I/V

20g, 11msec-functional shock; 40g, 11msec crash hazard shock

MIL-S-901, Grade B
Electromagnetic Compatibility Standards
Some standards may require an internal kit
AC, FCC compliant
AC, MIL-STD-461, RE102, CE102 compliant
DC, MIL-STD-461, RE102, CE102 compliant
RTCA DO-160 Section 21, Category M
Mechanical
Form Factor
2U
Height
3.5" (8.89cm)
Width
17.5" (44.45cm) EIA-310 Rack Compliant
Depth
17" (43.18cm)
Weight:
20 - 24 lbs ( 9.07 - 10.89 kgs ) depends on content
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap
Intel® CPU architecture options from Intel embedded long-life roadmap; Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™i7/i5/ i3 series, Intel® Celeron® and Intel® Pentium® (single LGA 1151)

Up to 18 core options per socket (dependent on motherboard)

Expansion Slots
1 PCI-E x16, 2 PCI-E x8
External Bays
Option 1

Two removable SATA or SAS 2.5” or 3.5” HDD

Option 2

Four 2.5” SATA or SAS HDD

Option 3 (can be combined with HDD option)

One CD/DVD/BD (R/W)

Memory
16 GB DDR4 (motherboard dependent)
Cooling

Eight high speed, high volume fans CPU temperature controlled

Mounting
Option 1

Mounted on Delrin glides

Option 2

Fixed mount, front and rear

Option 3

Jonathan rails

Power Supply
Option 1

460W 120/240VAC 50/60Hz w/PFC, 115VAC 400Hz

Option 2

505W 18-36VDC

System Board
Option 1

X11SSZ-F, Single LGA 1151 supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™i7/i5/ i3 series, Intel® Celeron® and Intel® Pentium®, Micro-ATX, 2 LAN1000, 2DP, 1 DVI-I, VGA, 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x4, IPMI, SATA3 x4

Option 3

X11SSZ-TLN4F, Single LGA 1151 supports Intel® Xeon® processor E3-1200 v6/v5, Intel® 7th/6th Gen. Core™i7/i5/ i3 series, Intel® Celeron® and Intel® Pentium®,
Micro-ATX, 2 LAN 10Gbe and 2 LAN1000, 2DP, 1 DVI-I, VGA, 1 PCI-E 3.0 x16, 2 PCI-E 3.0 x4, IPMI, SATA3 x4

Software Compatibility
Accepts Windows 10®, Windows Server 2012®, VMware®, Linux® or Windows Server 2016®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Program Manager to receive classification of your product.
