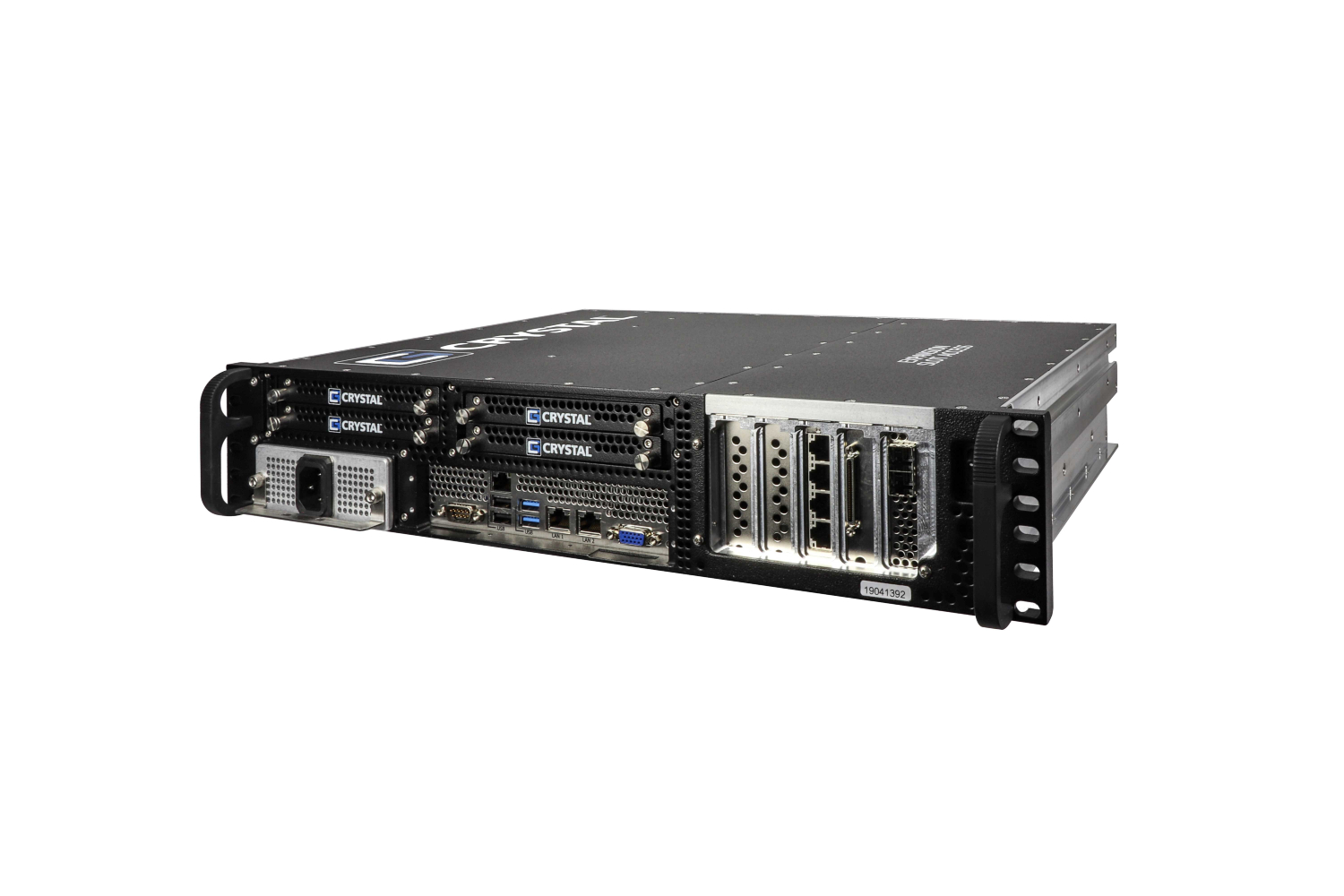

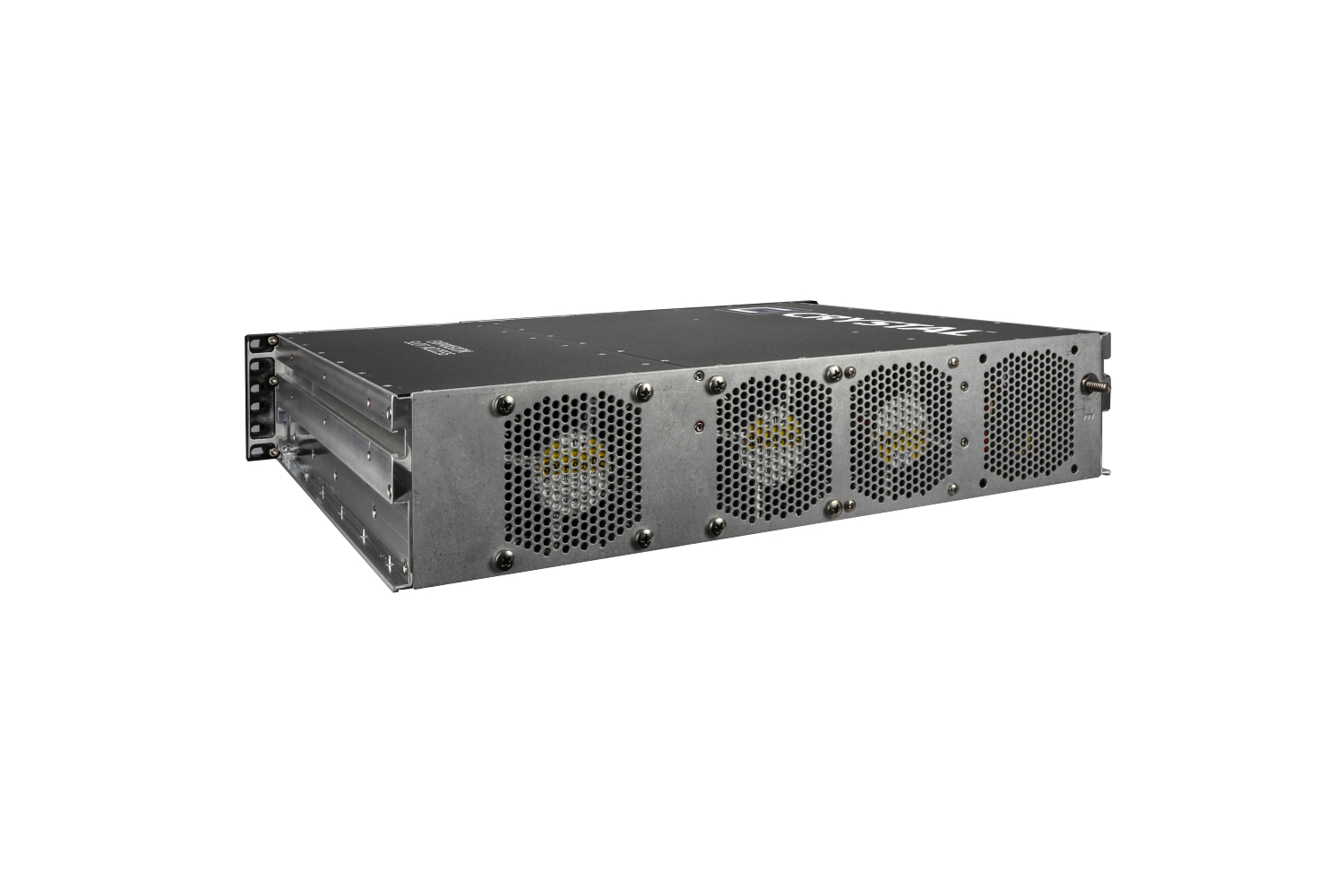

RS252SF Rugged 2U Server

Field tested, failsafe and long life performance in extreme conditions. As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the RS252SF. High-end computing performance in a 2U chassis with a depth under 12.5” (31.8 cm) fits most any rack space.

Request Quote
RS252SF - Spec Sheet

Features

RS252SF Rugged 2U Server

• Light weight aluminum construction – 20 to 25 lbs.
• Easily mounted– Delrin glides, fixed mount, or Jonathan® rails
• Up to 512 GB of memory
• Rugged 2U, rack mounted 12.5” depth
• Versatility with two (2) removable 3.5” HDD or four (4) removable 2.5” SSD bays
• Expandable with five (5) low profile slots
• Leading edge Intel® Sandy Bridge, Ivy Bridge, Haswell or Broadwell CPU options

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II

-15°C to +55°C, -40°C to +71°C with select processors

MIL-STD-810, Storage, Method 501, Procedure I/II

-55°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810 , Altitude, Method 500

12,500ft operation, 40,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

4.63 GRMS, 5-2,000Hz, 60 min/axis with solid state drives and vibration kits

MIL-S-901, Grade B
MIL-S-901, Grade A

With solid state drives + shock kits

MIL-STD-810G, Method 516.6

40g, 11ms, opertaional

Electromagnetic Compatibility Standards
Some standards may require an internal kit
AC, FCC compliant
AC, MIL-STD-461, RE102, CE102 compliant
DC, MIL-STD-461, RE102, CE102 compliant
RTCA DO-160 Section 21, Category M
Mechanical
Form Factor
2U
Height
3.5" (8.89cm)
Width
17.5" (44.45cm) EIA-310 Rack Compliant
Depth
12.5" (31.75cm)
Weight:
20 - 25 lbs ( 9.07 - 11.34 kgs ) [excludes vibration kit mod]
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap
Option 1

Sandy Bridge or Ivy Bridge LGA1155, X9SAE-V

Option 2

Haswell or Broadwell LGA2011, X10SRL-F

Up to 18 core options per socket (dependent on motherboard)

Expansion Slots
Five (5) low profile slots; combinations are configuration dependent
External Bays
Option 1

Two (2) removable SATA or SAS 2.5” or 3.5” HDD

Option 2

Four (4) 2.5″ SATA or SAS HDDs

Option 3 (can be combined with HDD option)

One (1) CD/DVD/BD (R/W)

Memory
16 GB - 512 GB DDR3 or DDR4 (motherboard dependent)
Cooling

High Speed, High Volume Fans (4) CPU temperature controlled

Mounting
Option 1

Mounted on Delrin glides

Option 2

Fixed mount, front and rear

Option 3

Jonathan rails

Power Supply
Option 1

460W 120/240VAC 50/60Hz w/PFC, 115VAC 400Hz

Option 2

505W 18-36VDC

System Board
Option 1

X9SAE-V, Single LGA1155, Xeon®, i3/5/7, ATX, 2LAN1000, VGA, 2XHDMI, AUDIO, 1 PCI, 2 PCI-E X1, 1 PCI-E X4, 1 PCI-E X8, 2 PCI-E X16, SATAX4, SATA3X2

Option 2

X10DRL-I, Dual LGA2011 R3 Xeon®, ATX, 2LAN1000, VGA, 5 PCI-E X8, 1 PCI-E X16, IPMI, IPKVM, SATA3X10

Option 3

X10SRL-F, Single LGA2011 R3 Xeon®, ATX, 2LAN1000, VGA, 2 PCI-E X16, 5 PCI-E X8, IPMI, IPKVM, SATA3X10

Software Compatibility
Accepts Windows 10®, Windows Server 2012®, VMware®, Linux® or Windows Server 2016®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.

Deployments

This product is ideal for the following industrial application:

Weather Radar
