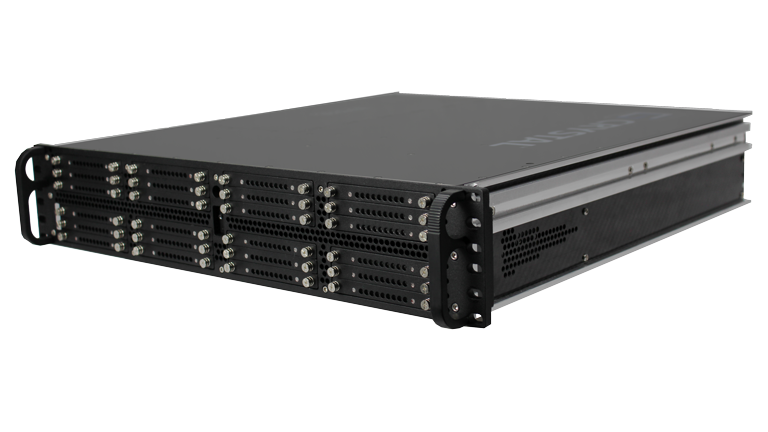

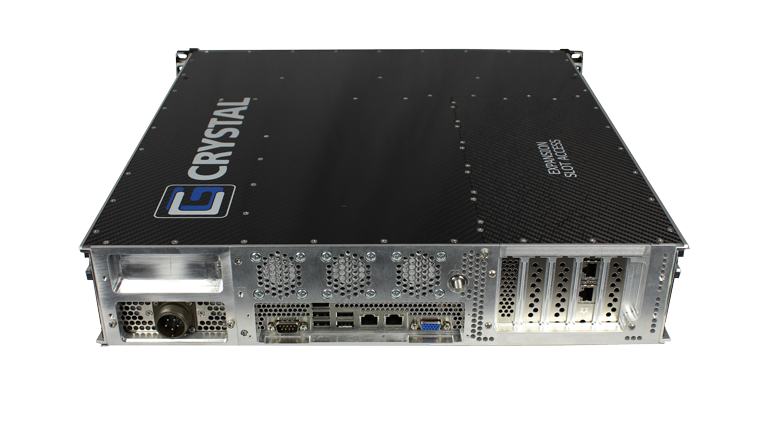

RS2616PS18 Rugged 2U Server

Field tested, failsafe and long life performance in extreme conditions. As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the RS2616PS18. High-end computing performance in a 2U chassis with a depth of 20” (50.8cm) fits most any rack space.

Features

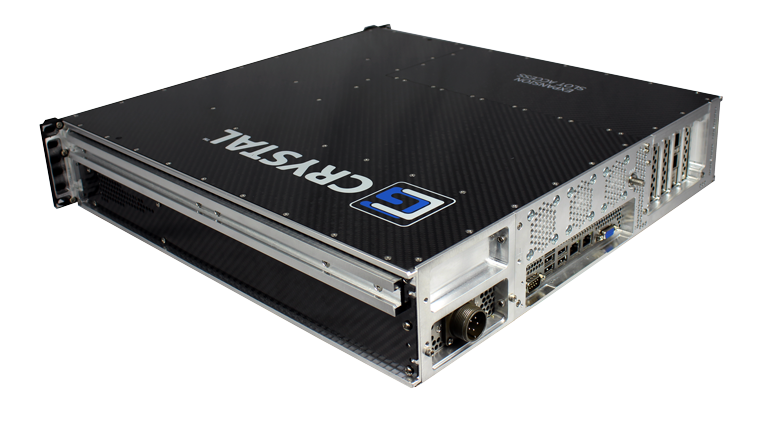

RS2616P18 Rugged 2U Carbon Fiber Server
• Light weight carbon fiber construction – 20-30 lbs. Easily mounted – Delrin glides or Jonathan® rails
• Up to 512 GB of memory
• Rugged 2U, rack mounted 18” depth
• Large storage capacity – up to 24 – 2.5″ drives
• Expandable with Six (6) low profile slots
• Leading edge Intel® Sandy Bridge, Ivy Bridge, Haswell or Broadwell CPU options

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II

-15°C to +55°C, +71°C option, with select CPUs, -40°C operational with temperature kit and SSD

MIL-STD-810, Storage, Method 501, Procedure I/II

-55°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

4.63GRMS, 5-2000Hz, 60 min/axis with solid state drives + vibration kits

MIL-STD-167-1A, Type 1
MIL-S-901, Grade B
MIL-S-901, Grade A

With solid state drives & shock kits

Electromagnetic Compatibility Standards
Some standards may require an internal kit
AC, FCC Compliant
AC, MIL-STD-461, RE102, CE102 compliant
DC, MIL-STD-461, RE102, CE102 compliant
RTCA DO-160 Section 21, Category M
Mechanical
Form Factor
2U
Height
3.5" (8.89cm)
Width
17.5" (44.45cm) [accepts Crystal Slides and Jonathan Rails] EIA-310 Rack Compliant
Depth
18" (45.72cm)
Weight:
25 lbs ( 11.34 kgs )
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap
Option 1

Sandy Bridge or Ivy Bridge LGA1155, X9SAE-V

Option 2

Haswell or Broadwell LGA2011, X10SRL-F or X10DRL-I

Dual, Quad, Hexa, Octa, Deca, or Dodeca Core options (dependent on motherboard)

Expansion Slots
Six (6) low profile, 3/4 length slots, motherboard dependent
External Bays
Option 1

Sixteen (16) 2.5” 5-9.5mm removable drives

Option 2

Twenty-four (24) 2.5” 5-9.5mm removable drives

Memory
8 GB - 512 GB DDR3 or DDR4 motherboard dependent
Cooling

High speed, high volume fans (6) CPU temperature controlled

Mounting
Option 1

Mounted on Delrin glides

Option 2

Jonathan Rails

Power Supply
Option 1 X9DRL-IF & X9SAE-V

460W 120/240VAC W/PFC, 115VAC 400Hz

Option 2 X9DRL-IF & X9SAE

505W 18-36VDC

Option 3 X10SRL-F & X10DRL-I

600W 120/240VAC 50/60Hz w/PFC, 115VAC 400Hz

Option 4 X10SRL-F & X10DRL-I

1005W 18-36VDC

System Board
Option 1

X9SAE-V, Single LGA1155, Xeon®, i3/5/7, ATX, 2LAN1000, VGA, 2XHDMI, AUDIO, 1 PCI, 2 PCI-E X1, 1 PCI-E X4, 1 PCI-E X8, 2 PCI-E X16, SATAX4, SATA3X2

Option 2

X10DRL-I, Dual LGA2011 R3 Xeon®, ATX, 2LAN1000, VGA, 5 PCI-E X8, 1 PCI-E X16, IPMI, IPKVM, SATA3X10

Option 3

X10SRL-F, Single LGA2011 R3 Xeon®, ATX, 2LAN1000, VGA, 2 PCI-E X16, 5 PCI-E X8, IPMI, IPKVM, SATA3X10

Software Compatibility
Accepts Windows 8®, Windows 7®, Windows Server 2008®, Windows Server 2012®, VMware® or Linux®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.
