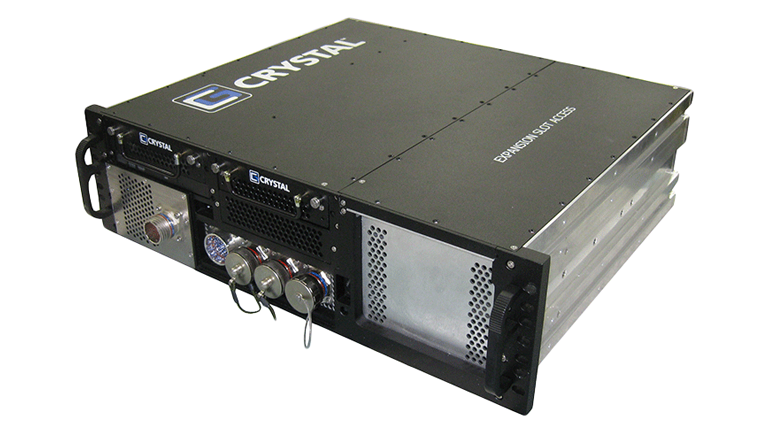

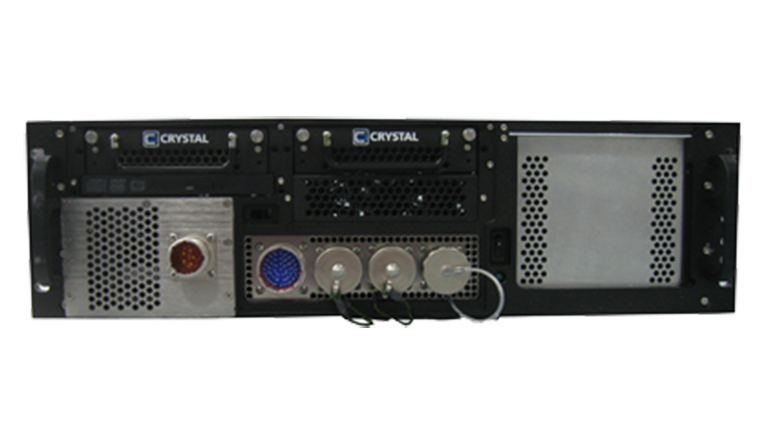

RS363S15FM Rugged 3U Server

Field tested, failsafe and long life performance in extreme conditions. As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the RS363S15F.M High-end computing performance in a 3U chassis with a depth under 15” (38.1 cm) fits most any rack space.

Features

• Light weight aluminum construction – 30-35 lbs.
• Easily mounted – Delrin glides, fixed mount, or Jonathan® rails
• Up to 512 GB of memory
• Rugged 3U, rack mounted 15” depth
• Versatility with three (3) removable 3.5” HDD or six (6) 2.5” SATA or SAS bays
• Expandable with six (6) slots
• Optional liquid cooling kit available
• Leading edge Intel® Sandy Bridge, Ivy Bridge, Haswell or Broadwell CPU options

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II

-15°C to +55°C, capable of -40°C to +71°C with select processors

MIL-STD-810, Storage, Method 501, Procedure I/II

-55°C to 85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

4.63GRMS, 5-2,000Hz, 60 min/axis with solid state drives and vibration kits

MIL-S-901, Grade A

With solid state drives & shock kit

MIL-STD-810G, Method 516.6

40g, 11ms, operational

Electromagnetic Compatibility Standards
Some standards may require an internal kit
AC, FCC compliant
DC, MIL-STD-461, RE102, CE102 compliant
RTCA DO-160 Section 21, Category M
Mechanical
Form Factor
3U
Height
5.25" (13.34cm)
Width
17.5" (44.45cm) EIA-310 Rack Compliant
Depth
15" (38.1cm)
Weight:
30 - 35 lbs ( 13.61 - 15.88 kgs ) [content depending]
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap
Option 1

Sandy Bridge or Ivy Bridge LGA1155, X9SAE-V

Option 2

Haswell or Broadwell LGA2011, X10SRL-F or X10DRL-I

Up to 18 core options per socket (dependent on motherboard)

Expansion Slots
Six (6) full-height slot; combination is configuration dependent
External Bays
Option 1

Three (3) removable SATA or SAS 2.5” or 3.5” HDDs

Option 2

Six (6) 2.5” SATA or SAS HDDs

Option 3 (can be combined with HDD option)

One (1) CD/DVD/BD (R/W)

Memory
16 GB - 512 GB DDR3 or DDR4 (motherboard dependent)
Cooling

High speed, high volume fans, (4) CPU temperature controlled

Mounting
Option 1

Mounted on Delrin glides

Option 2

Fixed mount, front and rear

Option 3

Jonathan rails

Power Supply
Option 1

600W 120/240VAC 50/60Hz w/PFC, 115 400Hz

Option 2

585W 18-36VDC

System Board
Option 1

X9SAE-V, Single LGA1155, Xeon®, i3/5/7, ATX, 2LAN1000, VGA, 2XHDMI, AUDIO, 1 PCI, 2 PCI-E X1, 1 PCI-E X4, 1 PCI-E X8, 2 PCI-E X16, SATAX4, SATA3X2

Option 2

X10DRL-I, Dual LGA2011 R3 Xeon®, ATX, 2LAN1000, VGA, 5 PCI-E X8, 1 PCI-E X16, IPMI, IPKVM, SATA3X10

Option 3

X10SRL-F, Single LGA2011 R3 Xeon®, ATX, 2LAN1000, VGA, 2 PCI-E X16, 5 PCI-E X8, IPMI, IPKVM, SATA3X10

Software Compatibility
Accepts Windows 8®, Windows 7®, Windows Server 2008®, Windows Server 2012®, VMware® or Linux®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.

Reports, Guides & Drawings

RS363S15FM 3U Rugged Server - Outline Installation Drawing
RS363S15FM Hardware Guide
RS363S15FM July 2010 Environmental Test Report
RS363S15FM 3U Rugged Server - X10 Outline Installation Drawing
