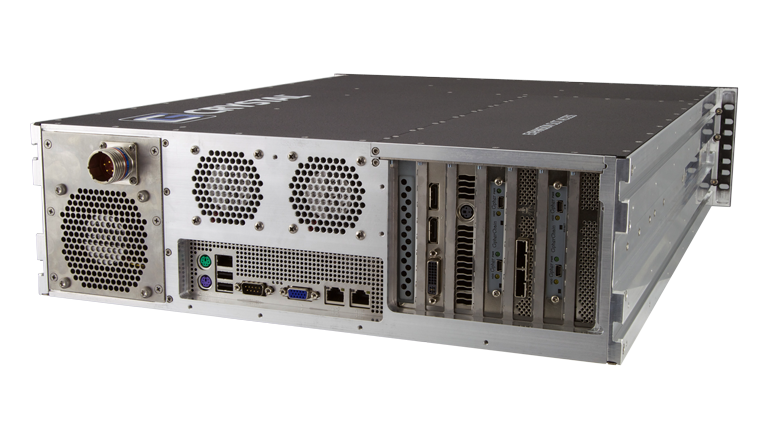

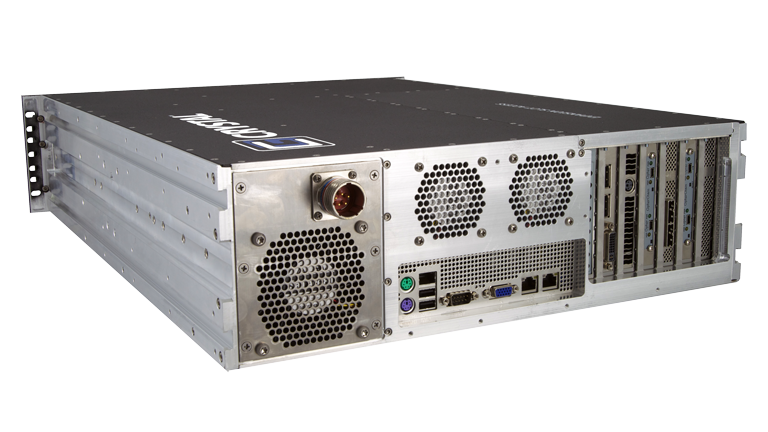

RS378L24 Rugged 3U Server

Field tested, failsafe and long life performance in extreme conditions. As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the RS378L24. High-end computing performance in a 3U chassis with a depth of 24” (61 cm) fits most any rack space.

Features

• Light weight aluminum construction – 50-56 lbs.
• Easily mounted – Delrin glides, fixed mount, or Jonathan® rails
• Up to 1 TB of memory
• Rugged 3U, rack mounted 24” depth

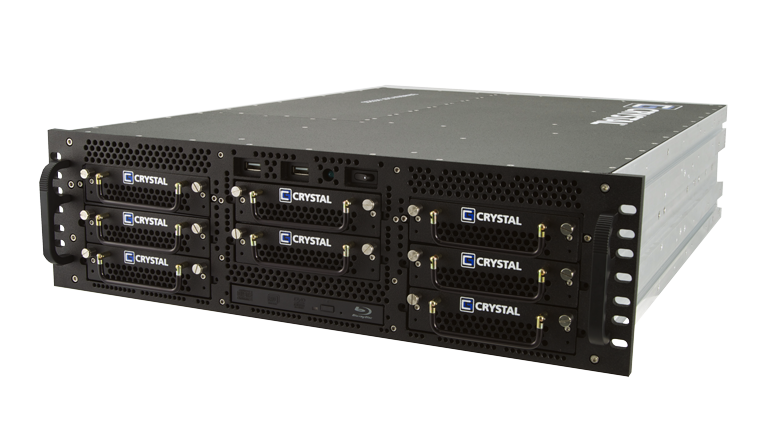

• Versatility with eight (8) removable 3.5” HDD or sixteen (16) 2.5” SATA or SAS bays
• Expandable with seven (7) full height slots
• Leading edge Intel® Haswell or Broadwell CPU options

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II

-15°C to +55°C, capable of -40°C to +71° with select processors

MIL-STD-810, Storage, Method 501, Procedure I/II

-55°C to 85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

4.63 GRMS, 5-2,000Hz, 60 min/axis with solid state drives and vibration kits

MIL-S-901, Grade B
MIL-S-901, Grade A

With solid state drives + shcok kits

Electromagnetic Compatibility Standards
Some standards may require an internal kit
AC, FCC compliant
AC, MIL-STD-461, RE102, CE102 compliant
DC, MIL-STD-461, RE102, CE102 compliant
RTCA DO-160 Section 21, Category M
Mechanical
Form Factor
3U
Height
5.25" (13.34cm)
Width
17.5" (44.45cm) EIA-310 Rack Compliant
Depth
24" (60.96cm)
Weight:
50 - 56 lbs ( 22.68 - 25.4 kgs ) (content dependent)
Expansion Slots
Seven (7) full-height slot; combination is configuration dependent
External Bays
Option 1

Eight (8) removable SATA or SAS 2.5” or 3.5” HDD

Option 2

Sixteen (16) 2.5” SATA or SAS HDDs

Option 3

Two (2) drive packs and two (2) removable SATA or SAS 2.5″ or 3.5″ HDD

Option 4 (can be combined with HDD option)

One (1) CD/DVD/BD (R/W)

Memory
16 GB - 1 TB DDR4
Cooling

High speed, high volume fans (5) CPU temperature controlled

Mounting
Option 1

Mounted on Delrin glides

Option 2

Fixed mount, front and rear

Option 3

Jonathan rails

Power Supply
Option 1

1200W 120/240VAC 1+1 W/PFC

Option 2

1005W 18-36VDC

System Board
X10DRI-T, Dual LGA2011 R3 Xeon®, EATX, 2LAN10G, VGA, 3 PCI-E X16, 3 PCI-E X8, IPMI, IPKVM, SATA3X10
Software Compatibility
Accepts Windows 8®, Windows 7®, Windows Server 2008®, Windows Server 2012®, VMware® or Linux®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.

Deployments

This product is currently deployed on the following programs:

Littoral Combat Ship (LCS) for US Navy
