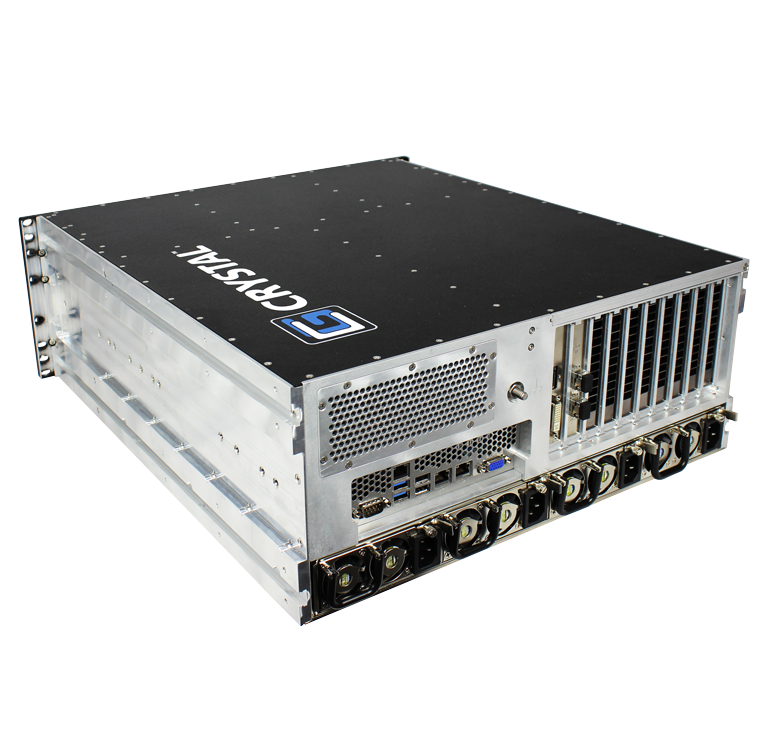

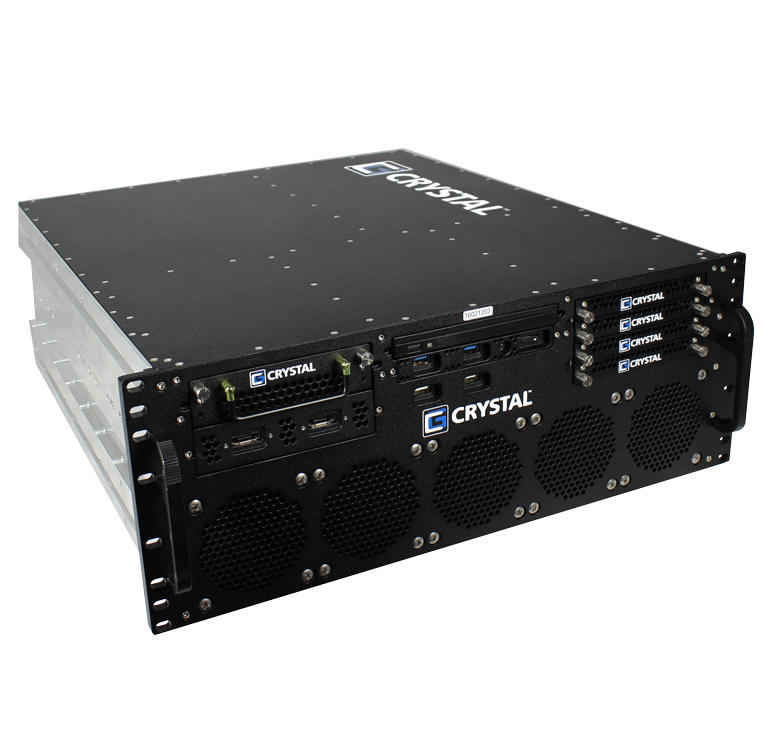

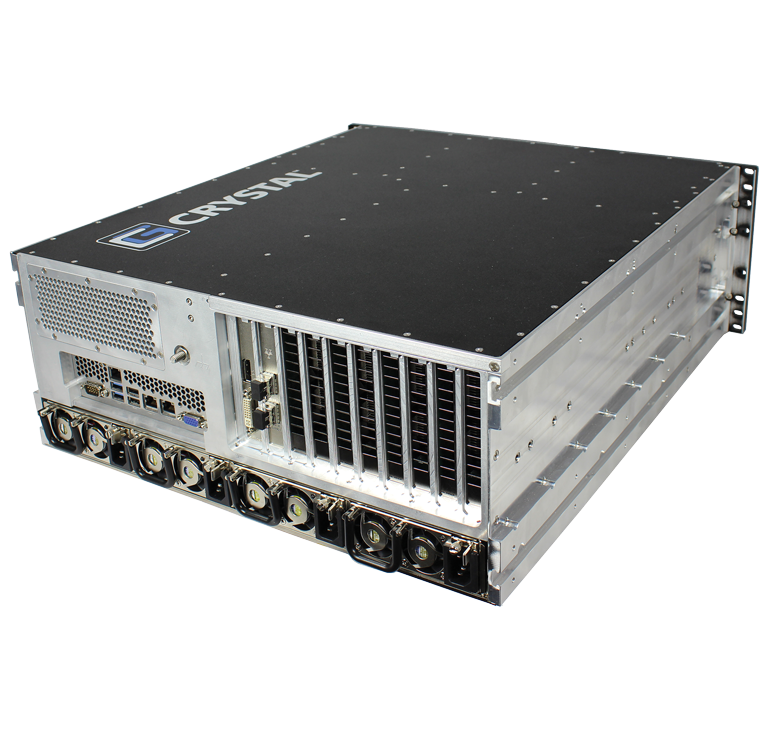

RS4104 Rugged 4U Server

Field tested, failsafe and long life performance in extreme conditions. As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the RS4104. High-end computing performance in a 4U chassis with a depth under 20″ (51.1cm) fits most any rack space.

Features

RS4104 Rugged 4U Server
• Aluminum construction – 65 lbs.
• Easily mounted – Delrin glides, fixed mount, or Jonathan® rails
• Up to 1 TB of memory
• Rugged 4U, rack mounted 20″ depth
• 1780W N+1 AC power supply
• Versatility with four (4) removable 3.5” HDDs or eight (8) 2.5” SSD SATA or SAS bays
• GPGPU ready
• Expandable with ten (10) PCIe slots
• Leading edge Intel® Haswell or Broadwell E5-2600 V3 or V4 CPUs

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II

-15°C to +55°C

MIL-STD-810, Storage, Method 501, Procedure I/II

-55°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

4.63GRMS, 5-2,000Hz, 60 min/axis with solid state drives + vibration kits

MIL-S-901, Grade B
MIL-S-901, Grade A

With solid state drives + shock kits

Mechanical
Form Factor
4U
Height
7.0" (17.78cm)
Width
17.5" (44.45cm) EIA-310 Rack Compliant
Depth
20" (50.8cm)
Weight:
65 lbs ( 29.48 kgs )
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap
Option 1

Haswell or Broadwell  LGA2011, X10DRG-Q

Option 2

Haswell or Broadwell LGA2011, X10DRX

6, 8, 10, 12, 14, 18 Core options from the E5-2600 V3 and V4 family

Expansion Slots
Option 1

Five (5) PCIe 3.0 x 16, One (1) PCIe 3.0 x8 slots with X10DRG-Q

Option 2

Ten (10) PCIe 3.0 x8 slots with X10DRX

External Bays
Option 1

Six (6) removable SATA or SAS 2.5” or 3.5” HDD

Option 2

Rugged Drive pack (RDp) offer up to twelve (12) 2.5” HDDs

Option 3 Can be combined with HDD option

One (1) CD/DVD/BD (R/W)

Memory
16 GB - 512 GB DDR4
Cooling

High speed, high volume fans (15) CPU temperature controlled

Mounting
Jonathan rails
Power Supply
1780W 120/240VAC 50/60Hz w/PFC, N+1 redundant, 115VAC 400Hz
System Board
Option 1

X10DRG-Q

Option 2

X10DRX

Software Compatibility
Accepts Windows 10®, Windows 7®, Windows Server 2008®, Windows Server 2012®, VMware® or Linux®
Export Compliance
ECCN: 5A992.a | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification for your product.

Reports, Guides & Drawings

RS4104 4U Rugged Server - X10 Outline Installation Drawing
RS4104 Hardware Guide
