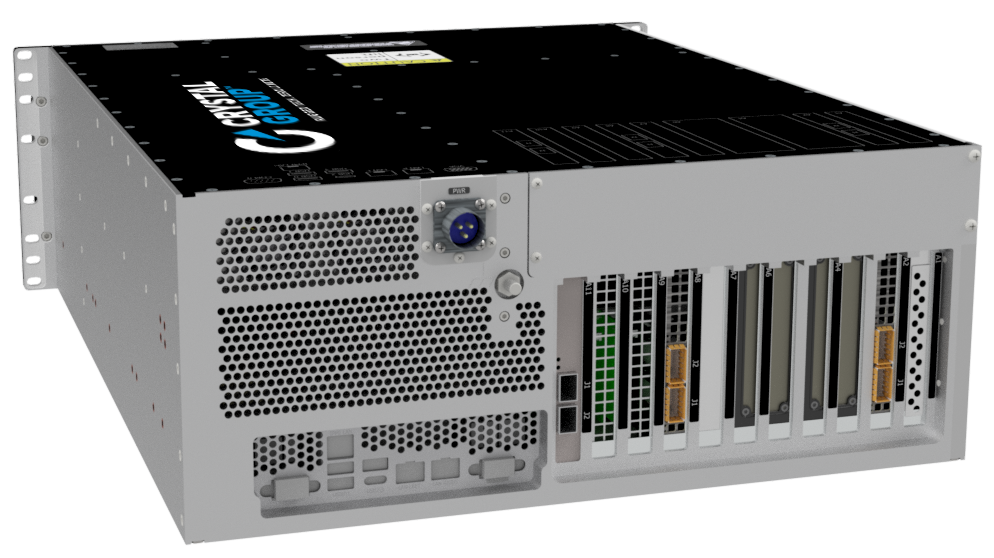

RS41110L21 4U Rugged Server

Field tested, fail-safe and long-life performance in extreme conditions. As processing performance continues to improve, Crystal Group is dedicated to minimize the SWaP envelope of the RS41110L21. High-end computing performance in a 4U chassis with a depth of 20.7″ (52.6 cm) fits most any rack space.

RS41110L21 4U Rugged Server
  • Rugged 4U, rack-mounted 20.7″ depth
  • Aluminum construction — 51-55lbs, content dependent
  • Up to 4TB of DDR4 memory
  • 1200W AC power supply
  • Versatility with 10 modular SSD bays for up to 20 SSDs
  • Designed for two high-powered GPGPUs operating at 50°C
  • Expandable with 11 PCIe slots
  • Intel® Xeon® Scalable processors
Environmental Standards
Designed to meet standard; Testing in progress
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II -30°C to +50°C
MIL-STD-810, Storage, Method 501, Procedure I/II -40°C to +85°C
MIL-STD-810, Humidity, Method 507, Procedure II 240 hours with conformal coat
MIL-STD-810, Altitude, Method 500 12,500ft operation, 40,000ft transport
MIL-STD-810, Vibration, Method 514, Procedure I 2 GRMs, 5-2,000Hz, 60 min/axis
MIL-DTL-901, Grade B
Electromagnetic Compatibility Standards
Designed to meet standard; Testing in progress
AC, FCC compliant
AC, MIL-STD-461, RE102, CE102 compliant
Mechanical
Form Factor 4U
Height 7" (17.78cm)
Width 17.5" (44.45cm) EIA-310 rack compliant
Depth 20.7" (52.6cm)
Weight 51 - 55lbs (23.13 - 24.95 kgs); content dependent
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap; Dual Socket 2nd Generation Intel® Xeon® Scalable options up to 28 cores each
Dual socket Intel® Xeon® Scalable processors
Expansion Slots
Eleven PCIe expansion slots
External Bays
Ten Crystal Group FORCE expansion bays, up to 20x SSD or other FORCE accessory modules
Memory
32GB – 4TB DDR4 RDIMM/LRDIMM
Cooling
Seven high-speed, high-volume fans; speed controlled
Mounting
Crystal glides or Jonathan rails
Power Supply
1200W 120/240VAC 50/60Hz
System Board
Supermicro X12DPG-QT6
Software Capability
Supports Windows 10®, Windows Server, VMware®, or Linux®
