RVA6152 Rugged Video Appliance

Extend your reach with multi-channel HD.Video-based data is critical to the accuracy and effectiveness of critical edge applications. In collaboration with Matrox® Video, the RVA6152 is the world’s only ruggedized multi-4K video encoder and 4K IP KVM extender. This game-changing ruggedized video appliance (RVA) delivers critical, real-time 4K video streaming, recording,
extension, and storage with seamless accuracy in the most demanding and unpredictable operating environments. Equipped with H.264 compression technology, the RVA6152 video encoder delivers quality, low-bitrate streaming and recording. The quad 4K input capture and encode enables secure, real-time streaming and/or recording of four or more 4K channels simultaneously over standard one Gigabit Ethernet (GbE) networks. The plug-and-play design integrates easily into existing infrastructures for high-density content distribution and system scalability.

RVA6152 Rugged Video Appliance
  • 4x 4096×2160 @ 60Hz max resolution
  • Four HDMI outputs
  • Four+ decoded streams
  • Glass-to-glass latency as low as 50 ms
  • Quad 4K input with zero latency pass  through
  • HDCP compliant: 1.4 and 2.2
  • Whisper-quiet operation at less than 25 dB
  • Supports up to eight 4K streams from a  single U of rack space
  • Multiple audio input and output options – Stand alone or rackmounted options
Hardware
Acoustic noise ~25 dB at full stream/record capacity
Form factors Stand-alone appliance
Rack mount (1U, 1/2R)
Encoding
Formats (Codecs) Video: H.264/MPEG-4 Part 10 (AVC)
Audio: MPEG-4 AAC-LC/HEv1/HEv2
Recording
Formats MP4, MOV, fMP4
Programmability Start date and time, duration, maximum file length, file frequency
Locations Shared network drive or NAS. Local USB ports for USB flash drive and external hard drive • 2x USB 2.0 (front) and 1x USB 3.0 (back)
Network interface
Streaming protocols RTSP (TCP), RTCP, and RTP (UDP); all required
RTP/RTCP over UDP; both required
SRT over UDP
RTMP
MPEG2.TS over UDP
HLS
Command & control HTTPS over TCP, UPnP (discovery)
Network standard 100/1,000 base-T Ethernet, auto speed, half/full duplex
IP addressing IPv4, IPv6, DHCP (default), static IP address support
Performance
Maximum capture resolution 2x 3840x2160 @60Hz or 2x 4096x2160 @60Hz
4x 3840x2160 @30Hz or 4x 4096x2160 @30Hz
Power supply 100-240 VAC in, 12 VDC out, 60W
DIN4 locking power connector
Product dimensions 8.53 x 7.52 x 1.68 in (21.7 x 19.1 x 4.3 cm)
Color space capture RGB and YUV 8- and 10-bit support
Color space conversion support

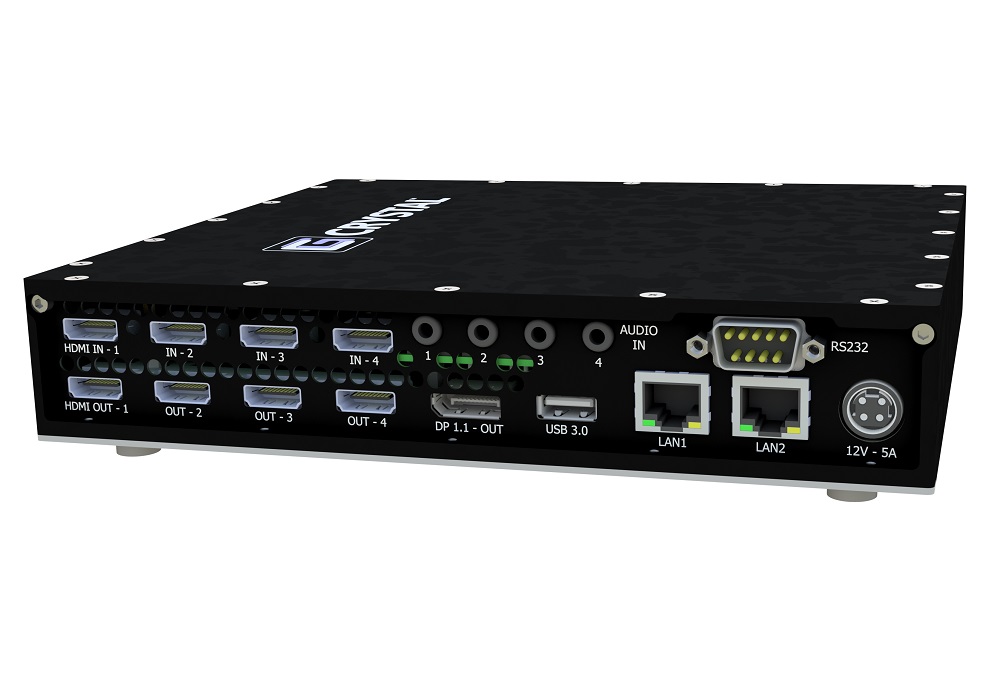

Connectivity
Network connector 2x RJ45 with status LED indicators
1x control and stream
1x stream only
Video input 4x HDMI (Type A) with audio support
Video output/Pass-through 4x HDMI (Type A) with audio support
Video monitoring output 1x DisplayPort 1.1
Audio input 4x HDMI digital LPCM two-channel stereo audio
4x 3.5 mm analog stereo audio
1x 3.5 mm stereo mic in
Download spec sheet for more details
Audio output 4x HDMI digital LPCM two-channel stereo audio
1x 3.5 mm headphones out
Download spec sheet for more details
Environmental Standards
MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II: -10°C to +50°C, -40°C operational with SSD
MIL-STD-810, Storage, Method 501, Procedure I/II: -30°C to +75°C
MIL-STD-810, Humidity, Method 507, Procedure II: 240 hours with humidity kit
MIL-STD-810, Altitude, Method 500 10,000ft operation, 20,000ft transport
MIL-STD-810, Vibration, Method 514, Procedure I: 1.5 GRMS, 5-2,000Hz, 75 min/axis
MIL-STD-810, Shock, Method 516, Procedures I/V: 20g, 11 msec; 3 axes, each direction
IEC/EN 60945 Maritime navigation and radiocommunication equipment and systems (ENV and EMC)
