RD2217 Rugged Rackmount Dual 17″ Display

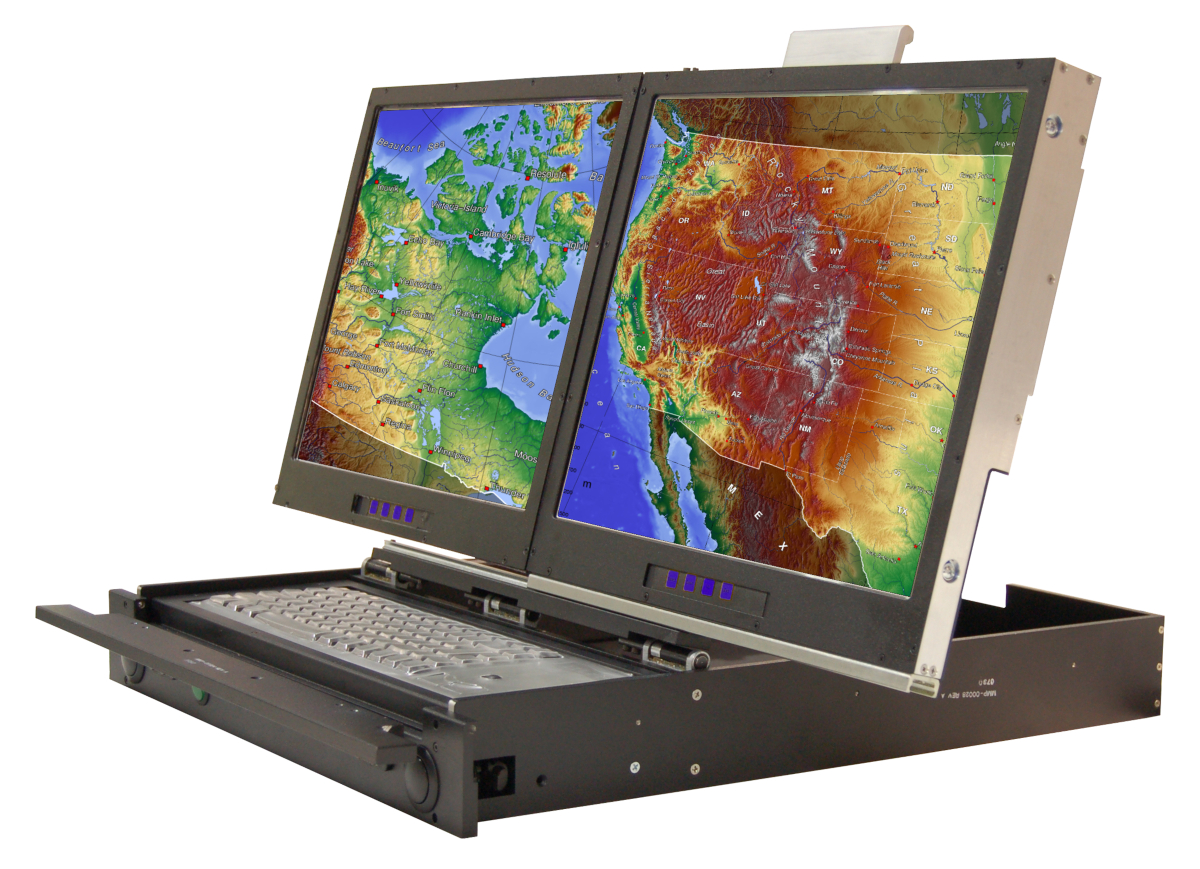

Field tested, failsafe and long life performance in extreme conditions. With an all aluminum construction weighing in at 42lbs., the RD2217 provides a small package with big capabilities. Unique folding design provides a 2U 17” LCD in a user centric attitude for ease of use in a compact and rugged package.

Features

RD2217 Rugged Rackmount Dual 17″ Display

• Light weight aluminum construction – 42 lbs. depending on content
• Easily mounted – Delrin glides, fixed mount or Jonathan rails
• Rugged 17″ dual display in 2U EIA form factor
• Front mounted for ease of use and storage, sealed iKey keyboard option available
• SXGA resolution, 1000 nit, low reflectance, high ambient contrast,full color TFT LCD
• High brightness backlight and low reflectance cover glass yield sunlight readability

Specifications

Environmental Standards
Testing Standards *register to download certification reports Environmental Standards MIL-STD-810, Operational Temperature, Method 501/502 Procedure I/II

-15°C** to +55°C, lower temperatures available with heater kit

** LCD may be impacted by temperature, resulting in LC response time to be less than 250 ms 10/90 at -15°C.

MIL-STD-810, Storage, Method 501, Procedure I/II:

-55°C to +85°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

12,500ft operation, 40,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

3 GRMS, 5-2000Hz, 75 min/axis, 3 axes

MIL-S-901, Grade B

With shock kits

Mechanical
Form Factor
2U
Height
3.5" (8.89cm)
Width
17.75" (45.09cm)
Depth
23" (58.42cm)
Weight:
42 lbs ( 19.05 kgs )
LCD
Manufacturer and Type

AUO 17” diagonal , TFT TN, normally black AMVA

Resolution

SXGA, 1280X1024

Active Area

337.920 (H) x 270.336 (W)

Pixel pitch

0.294 (per one triad) x 0.264

Pixel Configuration

RGB Vertical Stripe

Color Palette

16.2M colors (RGB 6-bits + FRC data)

Rise and fall times (10/90 and 90/10)

12ms at 25°C

Interface
VGA HD15 or DVI; selectable cable for each display
Keyboard
Sealed iKey Keyboard with touchpad - optional non-sealed. Trackball version available; 10-Key Numeric Pad; 24 function keys
Mounting
Accuride Slides with locking rails
Power Supply
120/240VAC w/PFC
Optics
Viewing Angle

+/- 60V, +/-60H minimum

Luminance

1000 nits normal to display surface (excludes kit mods)

Contrast Ratio

600:1

Rise and fall times (10/90 and 90/10)

9ms

Export Compliance
ECCN: 4A994 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.

Deployments

This product currently deployed on:

C-RAM (Counter Rocket, Artillery and Mortar) for US Army

Seen in the motion pictureTerminator: Salvation

Reports, Guides & Drawings

RD2217 Rugged Dual 17 Inch Display - Outline Installation Drawing
RD2217 Dual 17" Display Hardware Guide
TST-00025 RD2217 Display December 2009 MIL-STD-810 Thermal In-House Test Report
