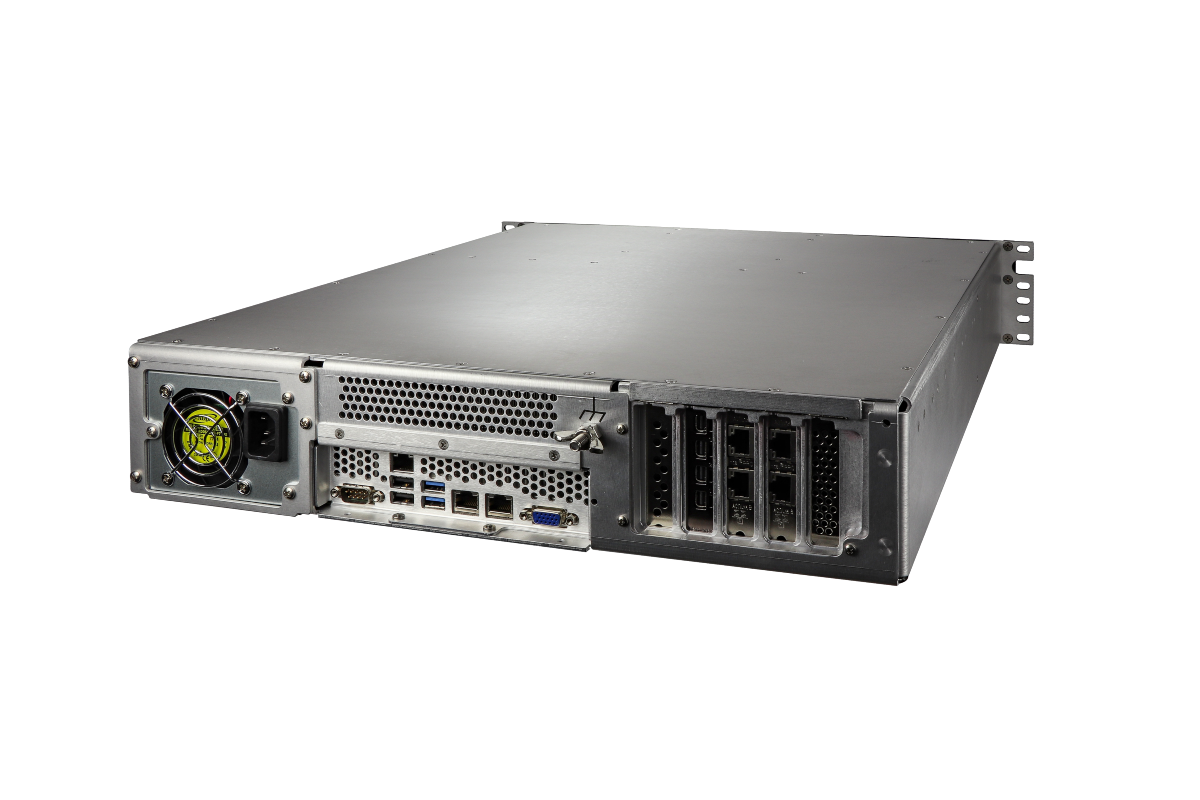

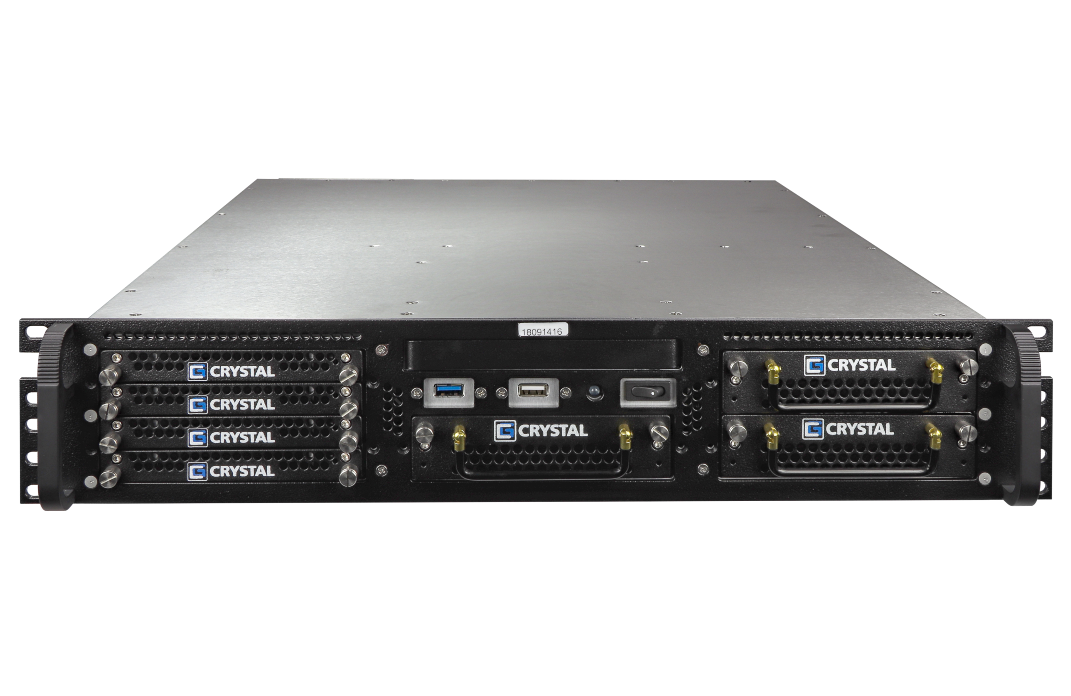

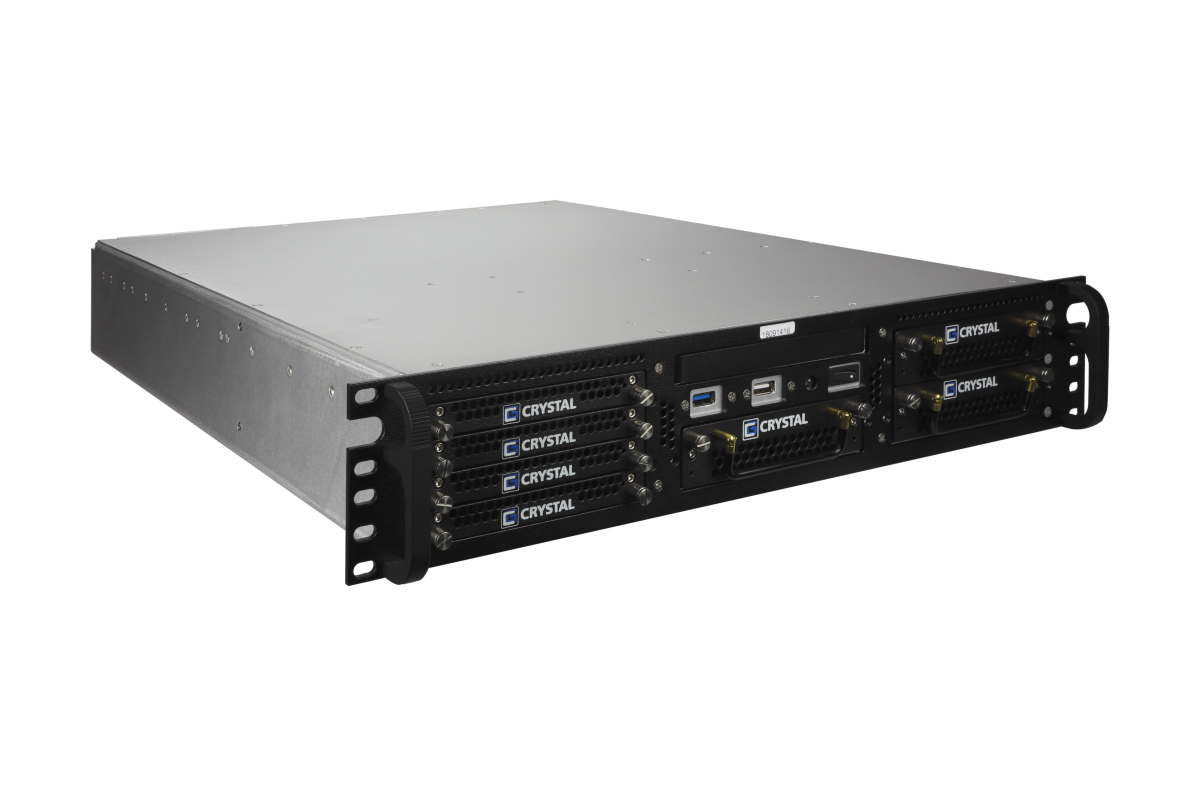

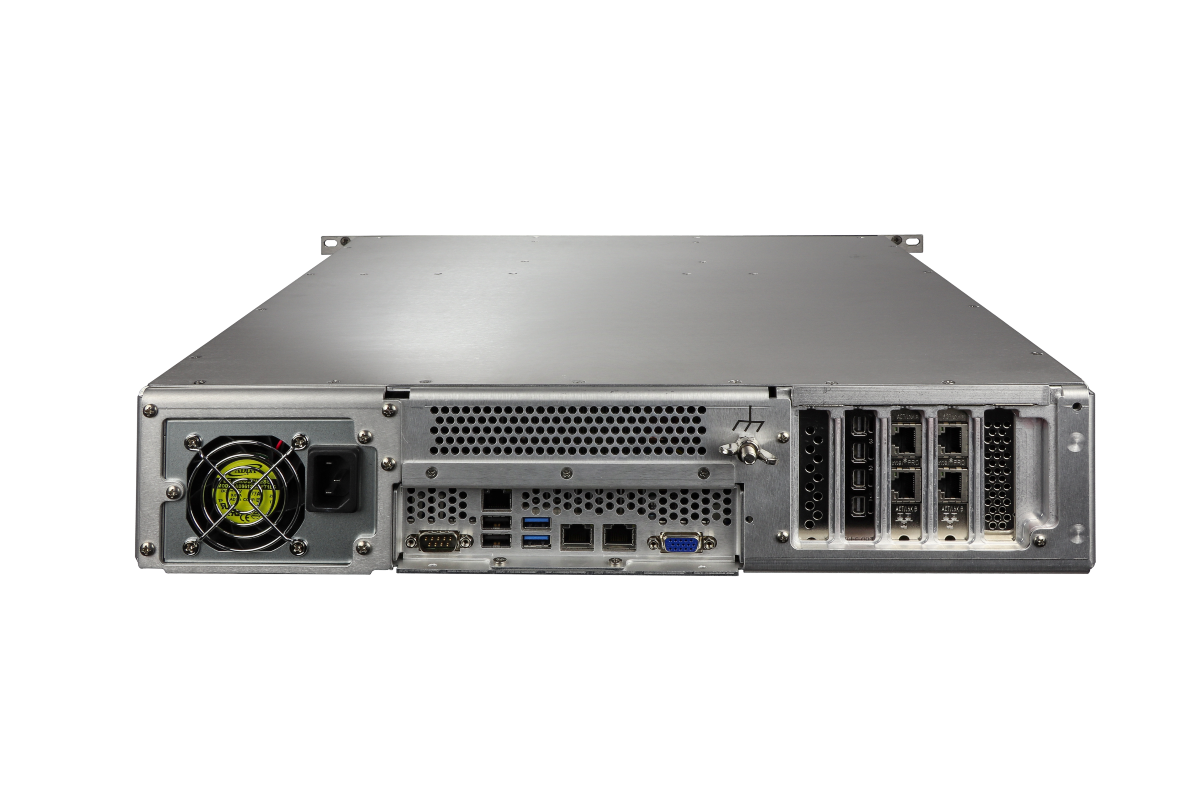

IS200 Industrial 2U Server

Propelling Productivity
Technology is a must in today’s world. It assists in extending the quality of life, creating jobs, opening doors for communication, and speeding up production to meet consumer demands. The IS200 server can be built quickly and efficiently in order to reach your consumers when they want and need it.

Features

IS200 Industrial 2U Server

  • Designed to MIL-STD-810, FCC
  • Industrial 2U, 20″ depth
  • 5 or 10 drives
  • Light weight aluminum construction – 18.6-28.8 lbs
  • Leading edge Intel® Sandy Bridge, Ivy Bridge, or Haswell CPU options
  • Front power switch with LED and HDD activity lights
  • Modular design allows for easy reconfiguration and versatility
  • Up to 512 GB of memory

Specifications

Environmental Standards
MIL-STD-810, Operational Temperature, Method 501, Procedure I/II

-10°C to +55°C, capable of -40°C to +71°C with select processors

MIL-STD-810, Storage, Method 501, Procedure I/II

-30°C to +75°C

MIL-STD-810, Humidity, Method 507, Procedure II

240 hours with humidity kit

MIL-STD-810, Altitude, Method 500

10,000ft operation, 20,000ft transport

MIL-STD-810, Vibration, Method 514, Procedure I

1.5GRMS, 5-500Hz, 75 min/axis

MIL-STD-810, Shock, Method 516, Procedures I/V

20g, 11msec, 3 axes, each direction

Electromagnetic Compatibility Standards
Emissions

FCC Class A

Mechanical
Form Factor
2U
Height
3.5" (8.89cm)
Width
16.93" (43cm) EIA-310 Rack Compliant
Depth
20" (50.8cm)
Weight:
18.6 - 28.8 lbs ( 8.44 - 13.06 kgs )
CPU
Intel® CPU architecture options from Intel embedded long-life roadmap
Option 1

Sandy Bridge or Ivy Bridge LGA2011, X9DRL-IF

Option 2

Sandy Bridge or Ivy Bridge LGA1155, X9SAE-V

Option 3

Haswell LGA 2011, X10SRL-F or X10DRL-I

Dual, Quad, Hexa, Octa, Deca, or Dodeca Core options (dependent on motherboard)

Expansion Slots
Option 1

Five (5) low profile slots

Option 2

Three (3) PCI full height slots

External Bays
Option 1

Five (5) removable SATA or SAS 2.5″ or 3.5″ HDD

Option 2

Ten (10) 2.5″ SATA or SAS HDDs

Option 3

(can be combined with HDD option)  One (1) CD/DVD (R/W) or Blu-ray

Memory
- 512 GB DDR3 or DDR4 (motherboard dependent)
Cooling

Three (3) high speed, high volume fans temperature controlled

Mounting
EIA rack mounted slides - Mounted on ball bearing slides
Power Supply
Option 1

600W 110/240VAC w/PFC

Option 2

18-36VDC

Option 3

1200W 1+1 110/240VAC w/PFC

System Board
Option 1

X9DRL-IF, Dual LGA2011 Xeon®, ATX, 2LAN1000, VGA, 1 PCI 3.3V, 4 PCI-E X8, 1 PCI-E X1, IPMI, IPKVM, SATARAIDX8, SATA3X2

Option 2

X9SAE-V, Single LGA1155, Xeon®, i3/5/7, ATX, 2LAN1000, VGA, 2XHDMI, AUDIO, 1 PCI, 2 PCI-E X1, 1 PCI-E X4, 1 PCI-E X8, 2 PCI-E X16, SATAX4, SATA3X2

Option 3

X10DRL-I, Dual LGA2011 R3 Xeon®, ATX, 2LAN1000, VGA, 5 PCI-E X8, 1 PCI-E X16, IPMI, IPKVM, SATA3X10

Option 4

X10SRL-F, Single LGA2011 R3 Xeon®, ATX, 2LAN1000, VGA, 2 PCI-E X16, 5 PCI-E X8, IPMI, IPKVM, SATA3X10

Software Compatibility
Accepts Windows 8®, Windows 7®, Windows Server 2008®, Windows Server 2012®, VMware® or Linux®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Business Development Manager to receive the classification of your product.

Deployments

This product is deployed on the following programs:

Multi-Domain Exchange System for the transferring of data across multi-level security domains

This product is ideal for the following industrial applications:

Communications

Weather Radar

Reports, Guides & Drawings

TST-00096 IS200 November 2012 FCC Test Report
IS200 2U Industrial Server - Outline Installation Drawing
IS200 X9 Hardware Guide
TST-00098 IS200 January 2014 Thermal Test Report
IS200 Response Care Case Study
IS200 2U Industrial Server - X10 Outline Installation Drawing
