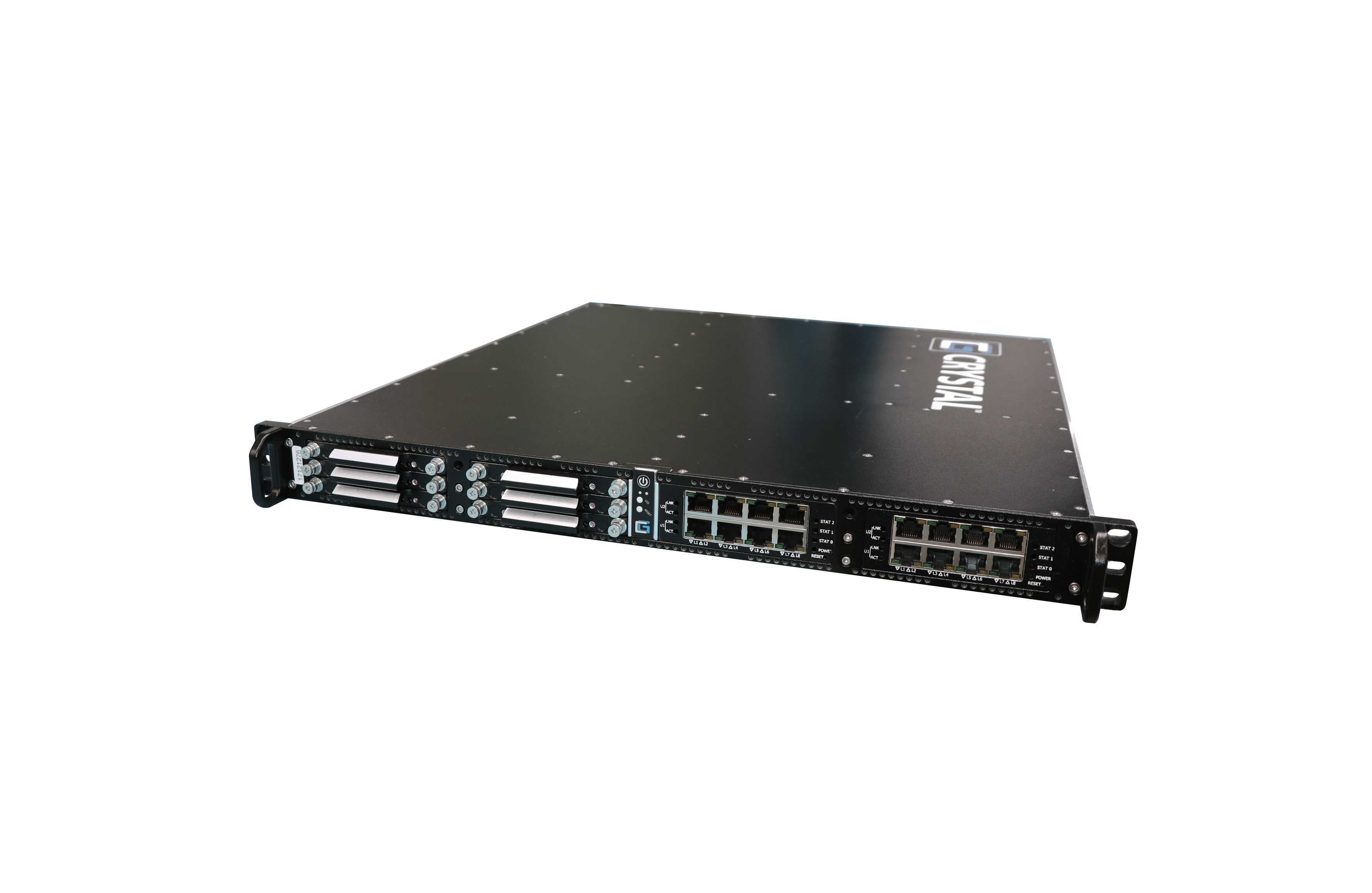

Crystal Group FORCE™ RS1104 Rugged 1U Server

The FORCE to fight and win. Next-generation Crystal Group Rugged Servers are the new FORCE – Fully Optimized Rugged Computer Equipment – to tackle the toughest workloads in the most challenging environments. Crystal Group FORCE™ servers provide a whole new level of bandwidth, scalability, flexibility, and security to the field. These rugged rack-mount servers accelerate compute-intensive workloads in today’s most demanding applications, including machine learning, sensor fusion, artificial intelligence, unmanned systems, signals intelligence, electronic warfare, and intelligence, surveillance, and reconnaissance (ISR). With vital cybersecurity features, like rugged FIPS 140-2 SAS SSDs, optional key management, intrusion detection and instant data destruction, Crystal Group FORCE ensures your critical, confidential data is protected from potential threats.

Get a Quote Request More Info Download Spec Sheet
Crystal Group FORCE™ RS1104 Rugged 1U Server
  • Rugged, lightweight chassis, 23-29 lbs.
  • Rack mounted 19” and 22″ depths
  • Liquid cooling option for 22″
  • 2nd Gen Intel® Xeon® Scalable processors
  • Easily mounted – Delrin glides, fixed mount, or Jonathan® rails
  • 16GB–2TB or 32GB–4TB DDR4 ECC RDIMM/LRDIMM memory
  • Up to four module options for fast, flexible customization
  • Chassis intrusion switch
  • EMI compliance
Standard Features
  • EMI compliance
  • Chassis intrusion switch
  • Humidity protection
  • MIL-STD-810 shock and vibe
  • 7, 9.5, 15mm drive capability
  • Backlit power/reset/UID switch
  • High-speed, high-volume fans
  • Lightweight billet aluminum chassis
  • Up to 4 TB DDR4 ECC memory
  • Up to 22 core, Intel Xeon Scalable processors
Optional Features
  • DVD + 2x USB ports + CMOS battery tray
  • Dust filter
  • Liquid cooling
  • 4-Key LCD panel
  • 2x eSATA
  • 2x USB 3.0
  • 2x USB 2.0
  • MIL-CIRC I/O
  • 8-16 port Layer 2+ switch
  • Audio modules
  • Data sanitize
  • Card reader
  • Fluid pump and reservoir

Click here to view all Crystal Group FORCE Module Options.

Environmental Standards
MIL-STD-810, Operational Temperature -40°C to +55°C
MIL-STD-810, Storage, Method 501, Procedure I/II -40°C to +85°C
MIL-STD-810, Humidity, Method 507, Procedure II 240 hours with conformal coating
MIL-STD-810, Altitude, Method 500 12,500 ft operation, 40,000 ft transport
MIL-STD-810, Shock, Method 516, Procedures I/V 20g, 11msec–functional shock; 40g, 11msec crash hazard shock
MIL-STD-810, Vibration, Method 514, Procedure I 4.7G, 5-2,000Hz, 60 min/axis, 3 axis
MIL-STD-167-1A, Vibration, Type 1
MIL-S-901, Grade A, Class II
MIL-S-901, Grade B
Electromagnetic Compatibility Standards
Some standards may require an internal kit
AC, FCC compliant
AC, MIL-STD-461, RE102, CE102 compliant
DC, MIL-STD-461, RE102, CE102 compliant
RTCA DO-160 Section 21, Category M
Mechanical
Form Factor 1U
Height 1.75" (4.45cm)
Weight 23 - 29 lbs ( 10.43 - 13.15 kgs ) (depends on if air or liquid cooled)
Width 17" (43.18cm)
Depth 19" (48.26cm) or 22" (55.88cm)
CPU
2nd Gen Intel® Xeon® Scalable processors
Air Cooled Up to 18 core options per socket (dependent on motherboard)
Liquid Cooled Up to 22 core options per socket
Expansion Slots
One low profile or full-height PCIe slot (dependent on motherboard)
External Bays
Option 1 (air cooled) Up to 4 bays populated with FORCE module accessories
Option 2 (air cooled) Optical Drive with up to 2 bays populated with FORCE module accessories
Option 1 (liquid cooled) Up to 3 bays populated with FORCE module accessories
Option 2 (liquid cooled) Optical Drive with 1 bay populated with a FORCE module accessory
Memory
16 GB - 4 TB DDR4 (air or liquid cooled dependent)
Mounting
Option 1 Mounted on Delrin glides
Option 2 Fixed mount, front and rear
Option 3 Jonathan Rails
Power Supply
Options: 460WAC, 505W 18-36VDC
System Board
Option 1 X11SPi-TF, ATX, 2nd Gen Intel® Xeon® Scalable processors
Option 2 X11DPL-i, ATX, 2nd Gen Intel® Xeon® Scalable processors
Option 3 X11DPi-NT, eATX, 2nd Gen Intel® Xeon® Scalable processors
Software Capability
Accepts Windows 10®, Windows Server 2012®, VMware®, Linux® or Windows Server 2016®
Export Compliance
ECCN: 5A992 | Classification is dependent on configuration and is subject to change. Please contact your Program Manager to receive the classification of your product.
